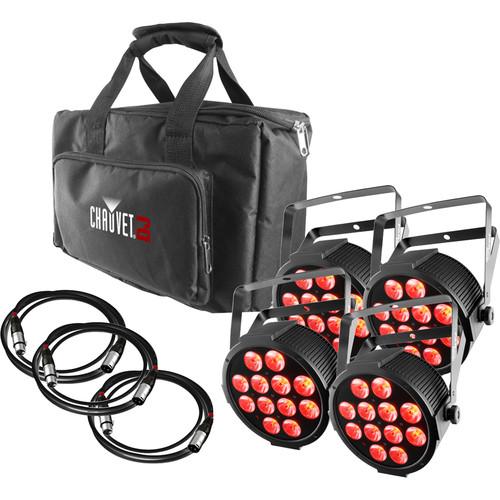

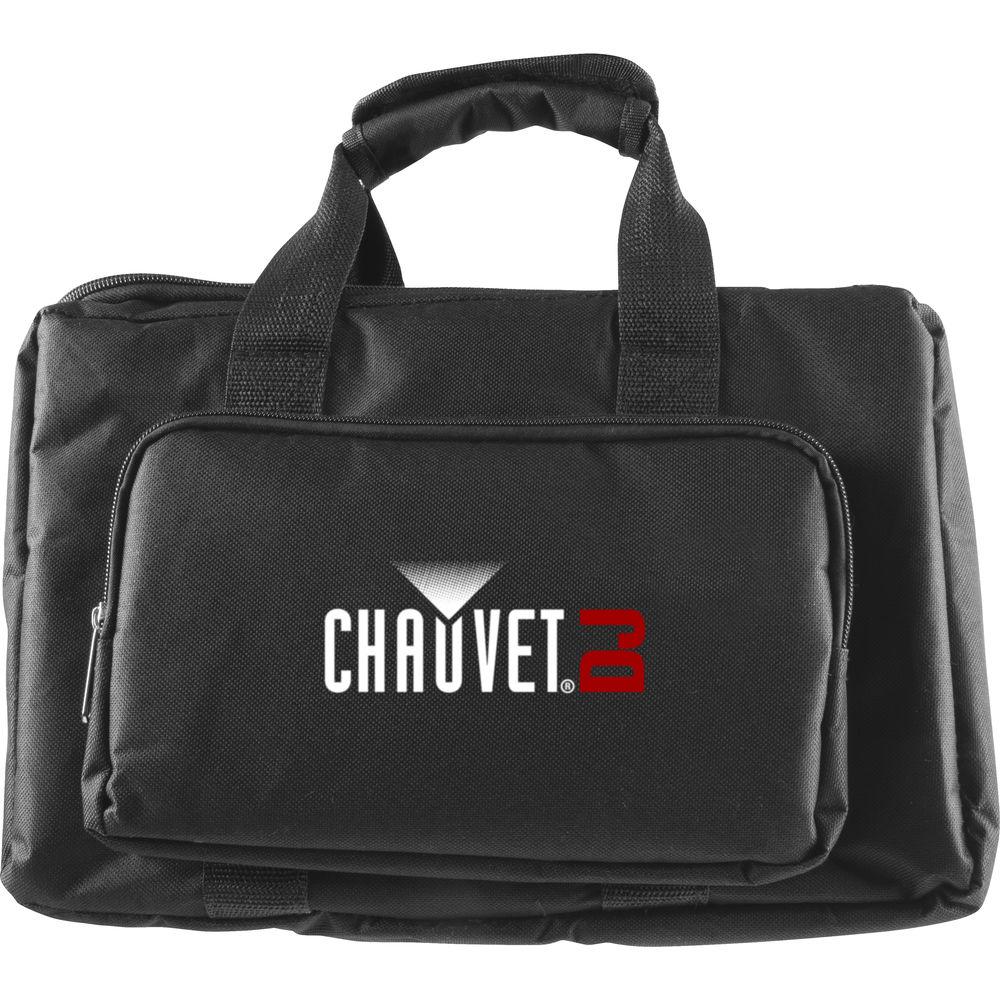

Product description The SlimPACK Q12 USB - Wireless DMX RGBA LED Wash Light Kit from Chauvet includes four SlimPAR Q12 USB fixtures with their power cords, three 5’ DMX cables (3-pin), and one VIP custom gear bag.

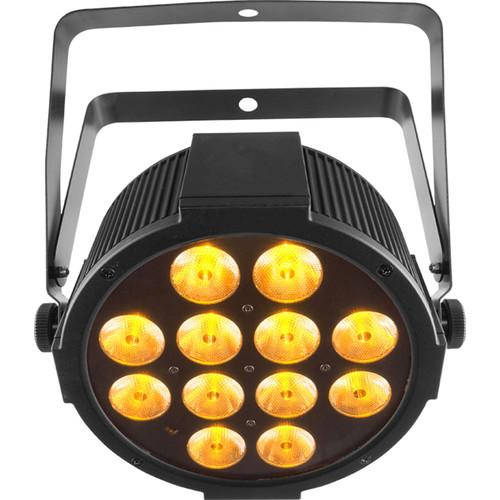

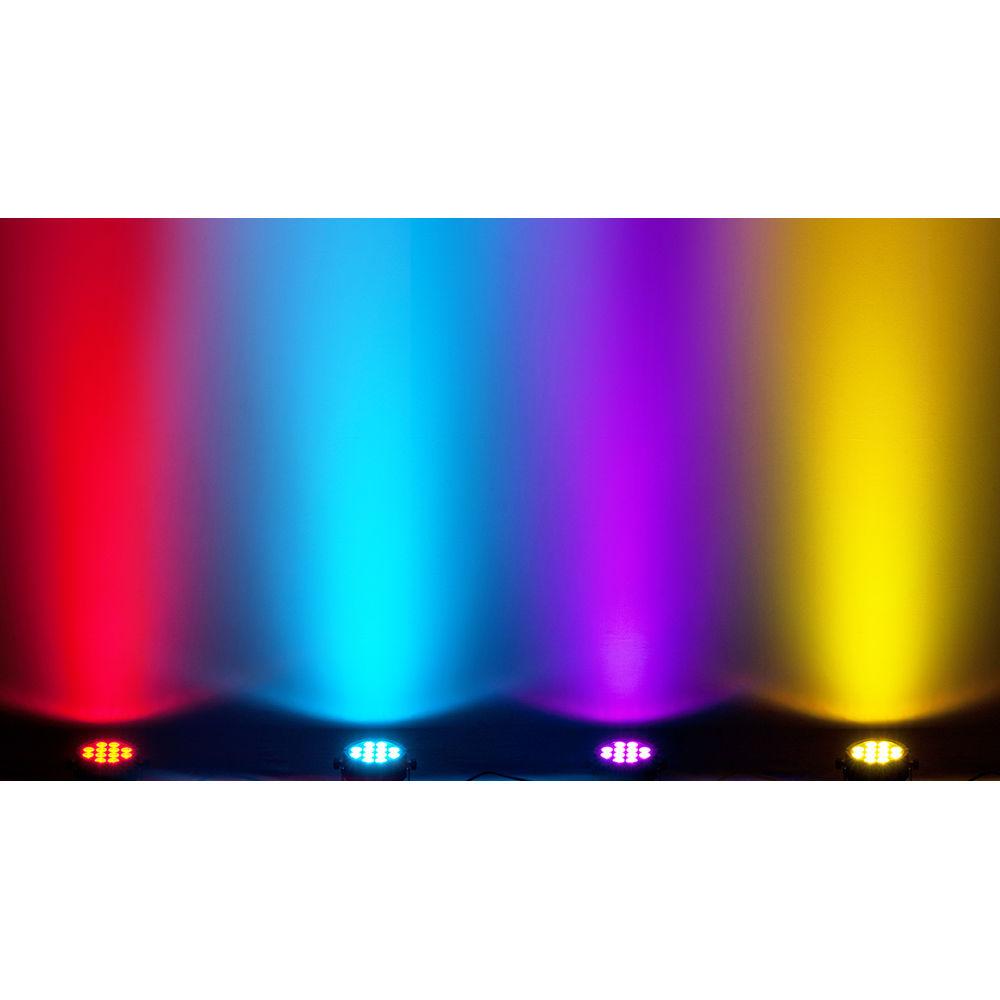

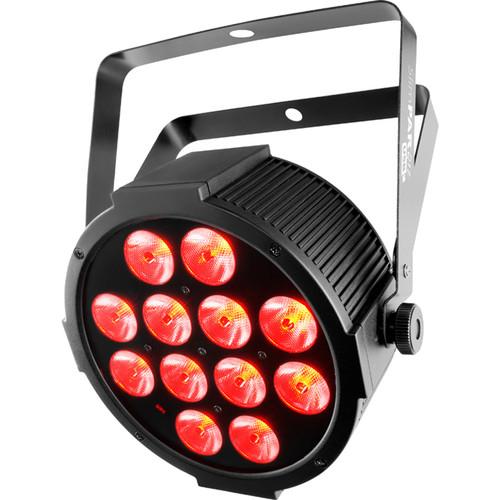

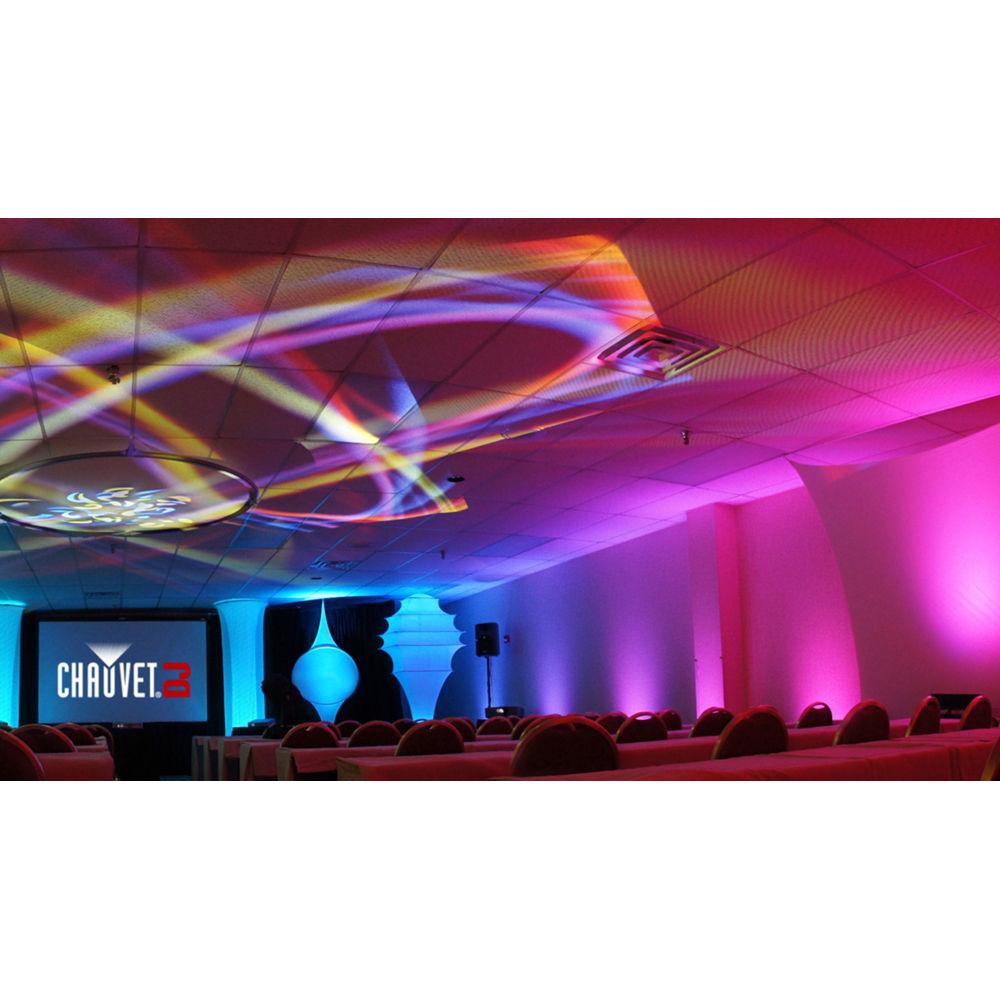

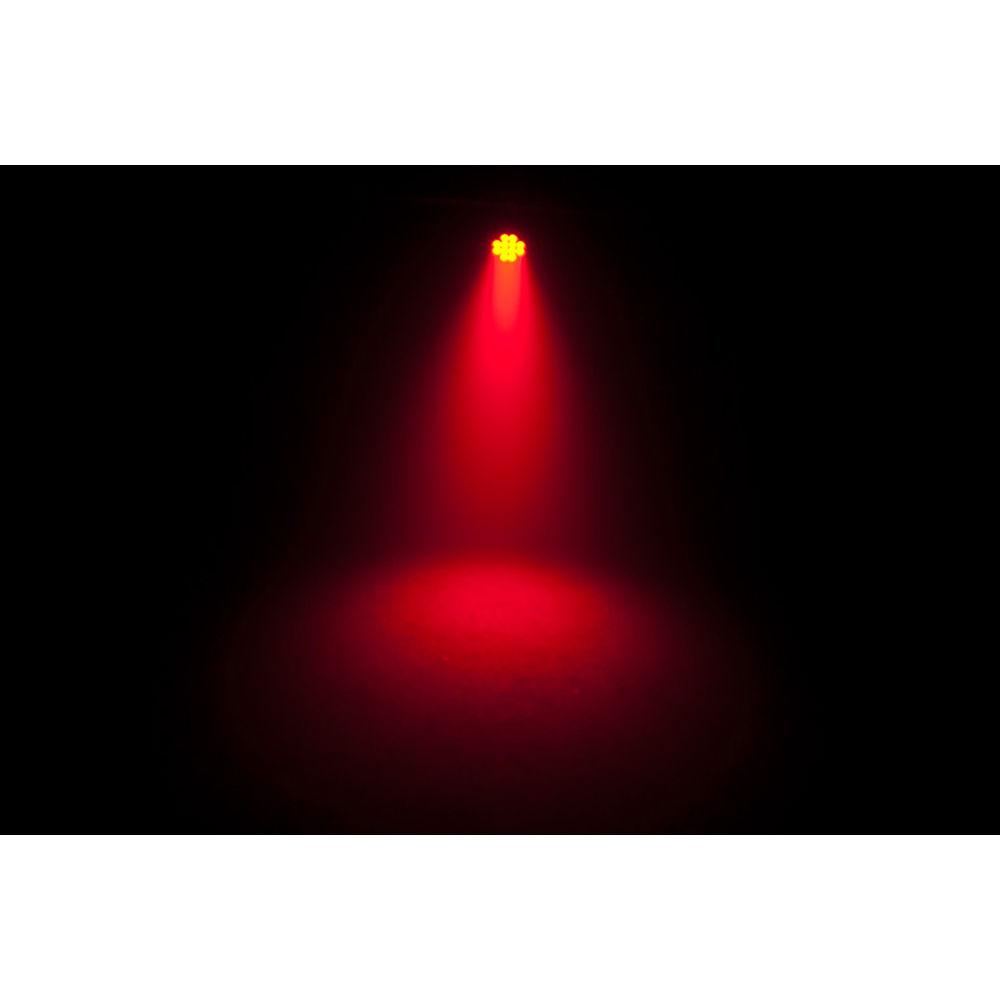

The SlimPAR Q12 USB is a low-profile, high-output quad-color (RGBA) LED PAR, which generates a broad spectrum of colors and achieves natural-looking color temperatures with punchy amber LEDs, for venue up-lighting and color washes. It features D-Fi USB technology for instant wireless DMX connectivity. With no moving parts and flicker-free operation, the fixture is ideal for video productions or applications where silence is essential.The included DMX cables are specifically designed for lighting applications and provide interference-free transmission of DMX signals, even in the most demanding environments. Use the VIP custom gear bag to safely store your kit or easily transport it to your gigs. - SlimPAR Q12 USB - Wireless DMX RGBA LED Wash Light The SlimPAR Q12 USB from Chauvet is a low-profile, high-output wash light featuring twelve quad-color (RGBA) LEDs and built-in D-Fi USB compatibility for wireless connectivity. It is controllable via Master/Slave, DMX, and Standalone modes, or the point-and-shoot IRC-6 remote (sold separately). This fixture creates natural-looking color temperatures thanks to punchy amber LEDs. Its flicker-free and silent operation makes it well suited for video productions. It also features multiple user-configurable settings.
- Low-profile, high-output quad-color (RGBA) LED PAR
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
- Convenient access to RGBA color mixing and static colors with or without DMX
- Flicker-free operation suitable for on-camera use
- Silent operation with no moving parts
- Standalone versatility with multiple user-configurable settings
- Save time running cables and extension cords by power linking multiple units
- Control static colors and built-in automated programs via IRC-6 remote (sold separately)
- Fits best in the CHS-30 VIP Gear Bag (sold separately)

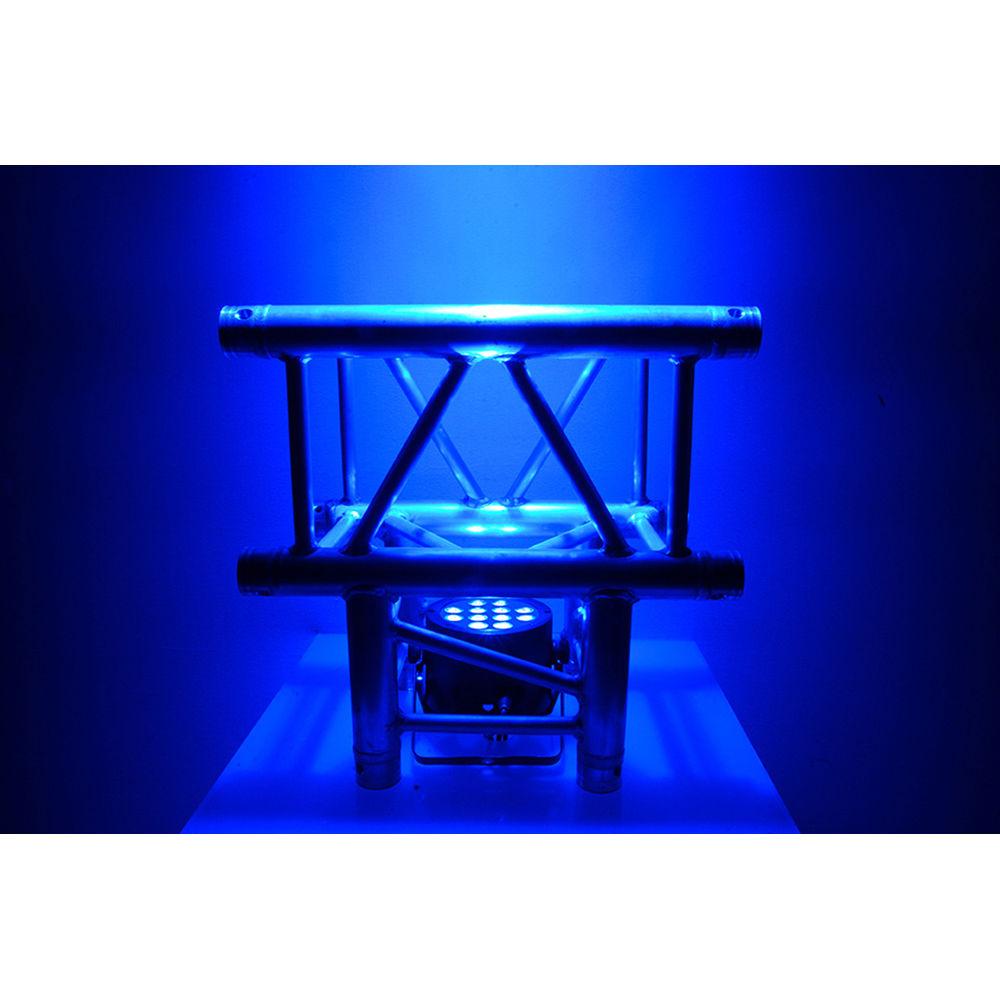

- Compact design easily fits inside sticks of TRUSST
UPC: 781462213947 - 3-Pin DMX Cable (Black, 5') This black Chauvet 5' 3-Pin DMX Cable is specifically made for lighting, and meets stringent standards of suitability and quality to provide safety, shielding, and prevention of transmission interference. UPC: 781462203450
In the Box Bundle Items 4 x SlimPAR Q12 USB - Wireless DMX RGBA LED Wash Light evvzxarydfdwvqzzzwueeaycysazzuwtf 3 x 3-Pin DMX Cable (Black, 5') evvzxarydfdwvqzzzwueeaycysazzuwtf
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPACK Q12 USB - Wireless DMX RGBA LED Wash Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SlimPAR Q12 USB - Wireless DMX RGBA LED Wash Light

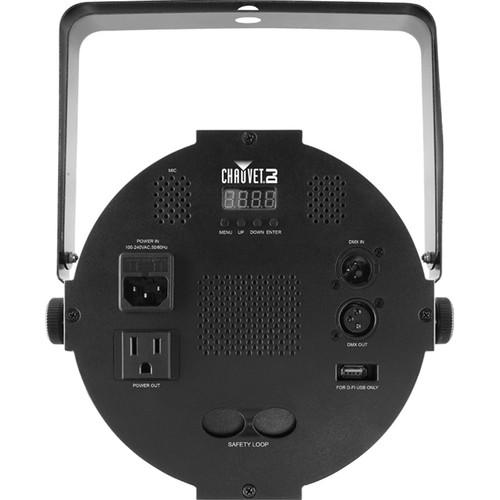

| Light Source | 12 x 4 W quad-color (RGBA) LEDs (0.8 A) (red, green, blue, amber) | | LED Life Expectancy | Up to 50,000 hours | | DMX Channels | 4 or 9 | | DMX Connectors | 1 x XLR 3-pin input
1 x XLR 3-pin output | | Strobe Rate | 0 to 18 Hz | | PWM Frequency | 1,200 Hz | | Beam Angle | 19° | | Field Angle | 35° | | Illuminance | 4,960 lux @ 6.56' (2 m) | | Display | Four-button LED menu | | Control Modes | DMX (wired and wireless), Master/Slave, Standalone, and IRC-6 Remote | | Wireless Control | IRC-6 Remote Control (sold separately)
D-Fi USB (requires D-Fi USB sticks, sold separately) | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | 1 x IEC input
1 x Edison output | | Power Linking | 12 units @ 120 V
21 units @ 230 V | | Power and Current | 45 W, 0.7 A @ 120 V, 60 Hz
44 W, 0.4 A @ 230 V, 50 Hz | | Approvals | CE | | Fuse | T 1 A, 250 V | | Dimensions | 9.7 x 3.6 x 11.5" (24.7 x 9.2 x 29.3 cm) | | Weight | 5 lb (2.3 kg) | | | | Box Dimensions (LxWxH) | 14.3 x 12.4 x 5.6" | - 3-Pin DMX Cable (Black, 5')
| Length | 5' (1.5 m) | | Pin Configuration | 3-Pin | | | | Box Dimensions (LxWxH) | 8.5 x 7.8 x 1.1" |
