User Manual for CHAUVET DJ SlimPANEL Tri 24 IP LED Light Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ SlimPANEL Tri 24 IP
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ SlimPANEL Tri 24 IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

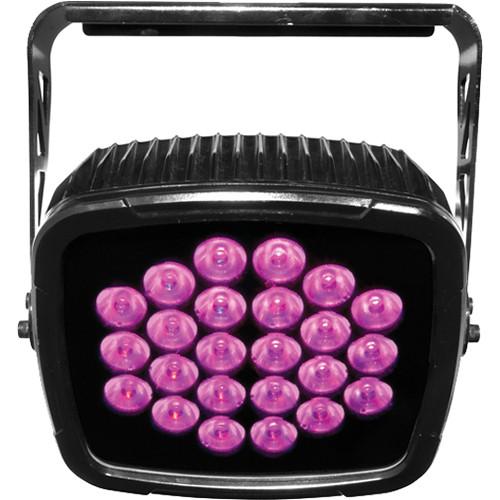

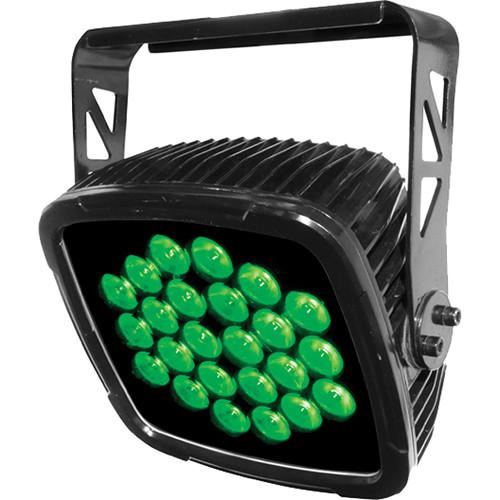

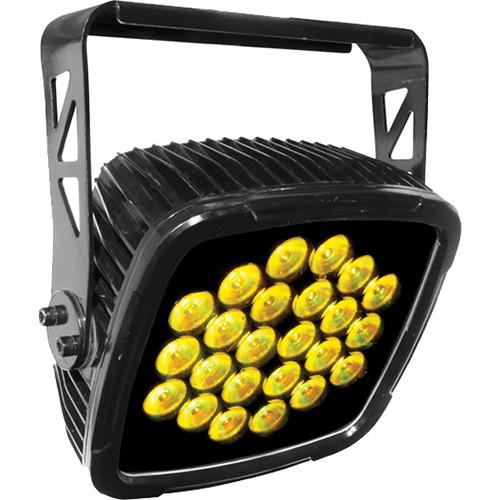

Product description Designed for worry-free lighting at indoor and outdoor events, the CHAUVET SlimPANEL Tri 24 IP LED Light Fixture provides vibrant, saturated color wherever it is needed. This IP65-rated fixture is well suited for any environment and can withstand the strongest rainstorms without having to be covered or brought inside, out of the elements. Powered by 24 tri-colored LEDs, this light fixture projects a smooth even wash onto nearly any surface and almost completely eliminates multi-colored shadows. - Outdoor-rated, tri-color LED wash light designed for any temporary outdoor event
- Weatherproof fixture suitable for outdoor parties or behind wet bars
- Alleviate the rush to set up and tear down in the rain

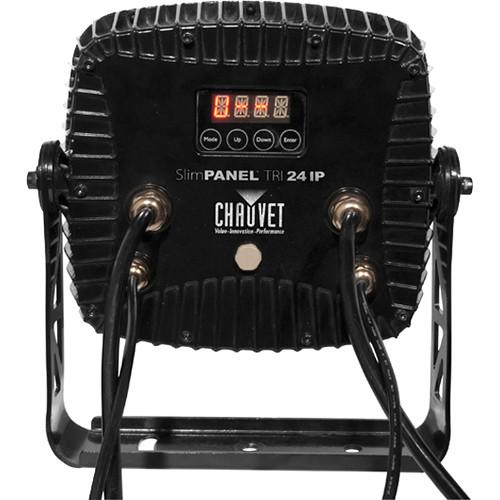

- Innovative, touch-sensitive digital display
- Eliminate internal humidity and pressure with the integrated GORE valve
- Reduce the need for extra extension cords with power and data linking outputs
- Robust housing repels water, snow, dirt, sand, and salt for all-weather applications
- Flicker-free operation suitable for on-camera use
- Provides smooth and even coverage while nearly eliminating multicolored shadows
- Fits in the CHS-40 VIP Gear Bag 1
Please Note: Gear bag not included close UPC: 781462208806 In the Box CHAUVET DJ SlimPANEL Tri 24 IP LED Light Fixture Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPANEL Tri 24 IP LED Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ SlimPANEL Tri 24 IP Specs | DMX Channels | 3, 4, 5, or 9 | | Connectors | DMX Connectors: 3-pin | | Light Source | 24 (tri-color) 3 W (350 mA x 3) LEDs 50,000 hours | | Strobe Rate | 0 to 27 Hz | | Angle | Beam Angle: 20°
Field Angle: 34° | | Illuminance | 5,850 lux @ 6.5' (2.0 m) | | Environment | IP65 | | Power Linking | 6 units @ 120 V; 12 units @ 230 V | | Input Voltage | Auto-ranging 100 to 240 VAC 50/60 Hz | | Power and Current | 137 W, 1.2 A @ 120 V 60 Hz
146 W, 0.6 A @ 230 V 50 Hz | | Temperature | Startup: -4 to 113°F (-20 to 45°C)
Operating: -22 to 113°F (-30 to 45°C) | | Approvals | CE, MET | | Dimensions | 10.5 x 11.9 x 5.3" (268.0 x 301.0 x 134.0 mm) | | Weight | 13.8 lb (6.2 kg) | | | | Package Weight | 18.6 lb | | Box Dimensions (LxWxH) | 16.9 x 16.8 x 10.3" |
