User Manual for CHAUVET DJ SlimPAR 38 Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ SlimPAR 38
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ SlimPAR 38 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

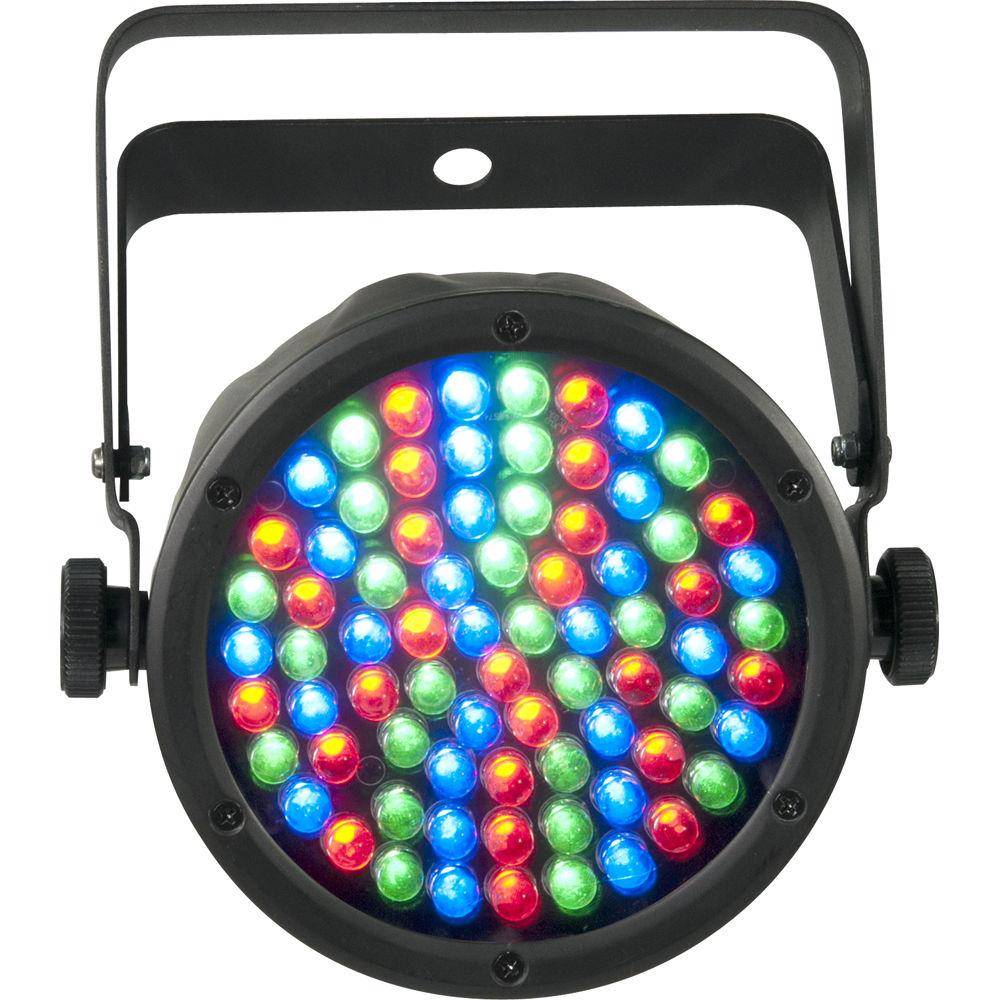

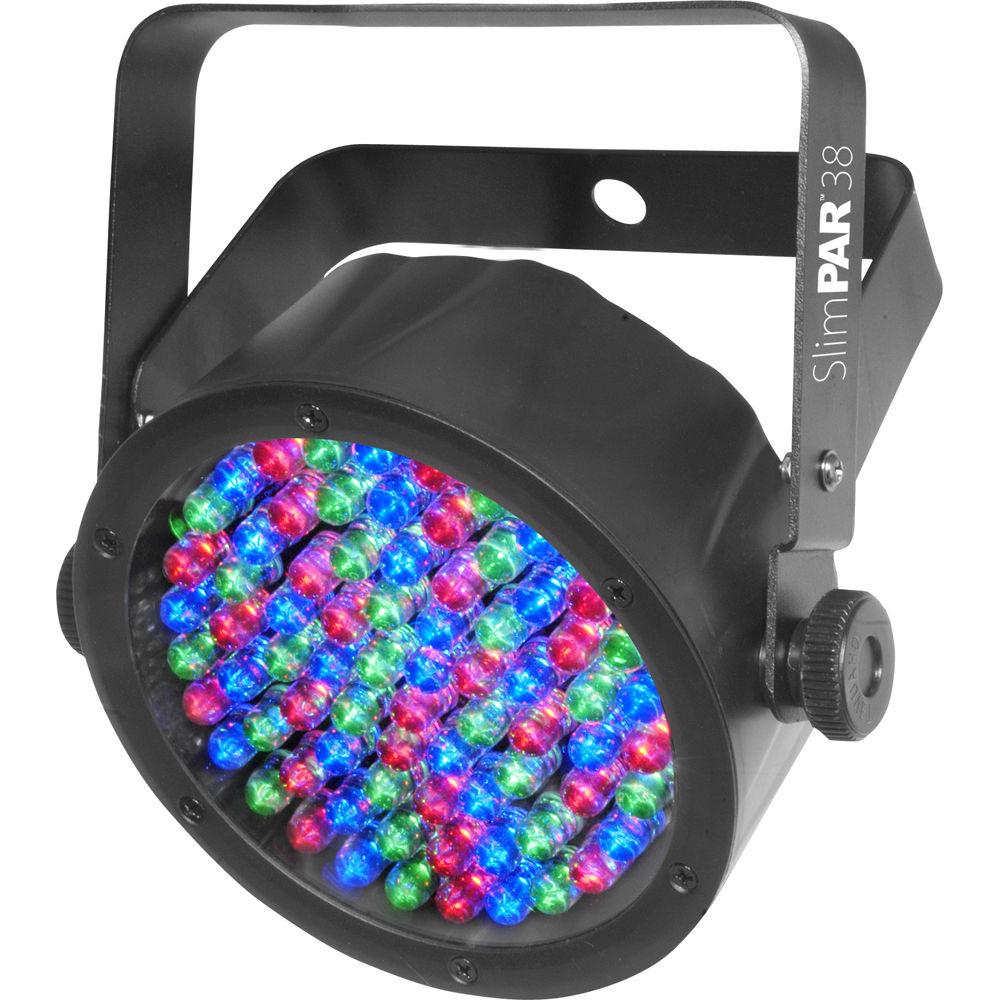

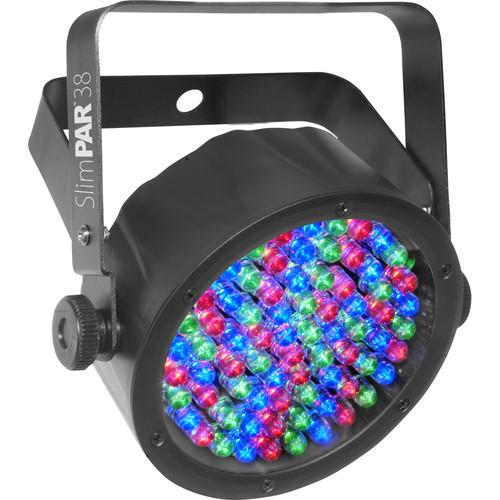

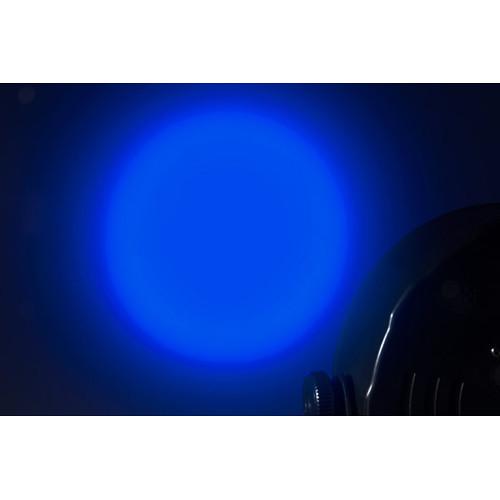

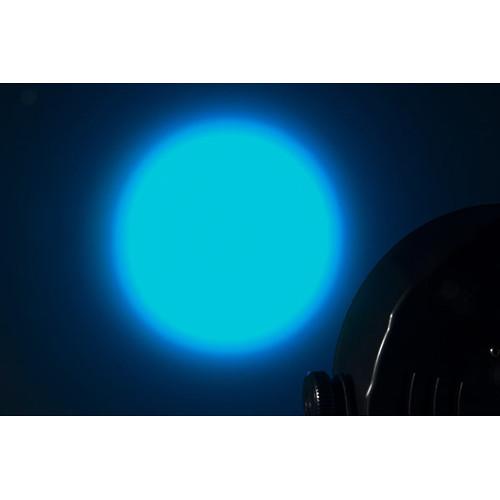

Product description The SlimPAR 38 from Chauvet is a slim-line LED lighting instrument, well suited for truss uplighting, restaurants, bars, night clubs, stages, and entertainment halls. The fixture offers 75 RGB LEDs (25 red, 25 green, and 25 blue) that can be controlled via DMX with either 3-channel or 7-channel modes, or via built-in automated and sound-activated programs featuring variable speed-pulse effects. The light also provides static colors and RGB color mixing with or without DMX. The SlimPAR 38 can be power-linked with up to 50 fixtures (up to 100 units on a 230V system) and ships with a standard IEC power cord. -
- LED PAR designed for any application in need of a compact wash light
- Low-profile fixture fits most places other lights cannot
- Ideal for quiet applications due to silent operation and no moving parts
- Convenient access to RGB color mixing and static colors without DMX
- Trigger eye-catching effects with built-in, automated and sound-activated programs via Master/Slave or DMX mode
- Increase standalone versatility with multiple user-configurable settings
- Achieve flicker-free video operation with high-frequency LED dimming
- Save time running cables and extension cords by power-linking multiple units
UPC: 781462205638 In the Box CHAUVET DJ SlimPAR 38 IEC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR 38 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

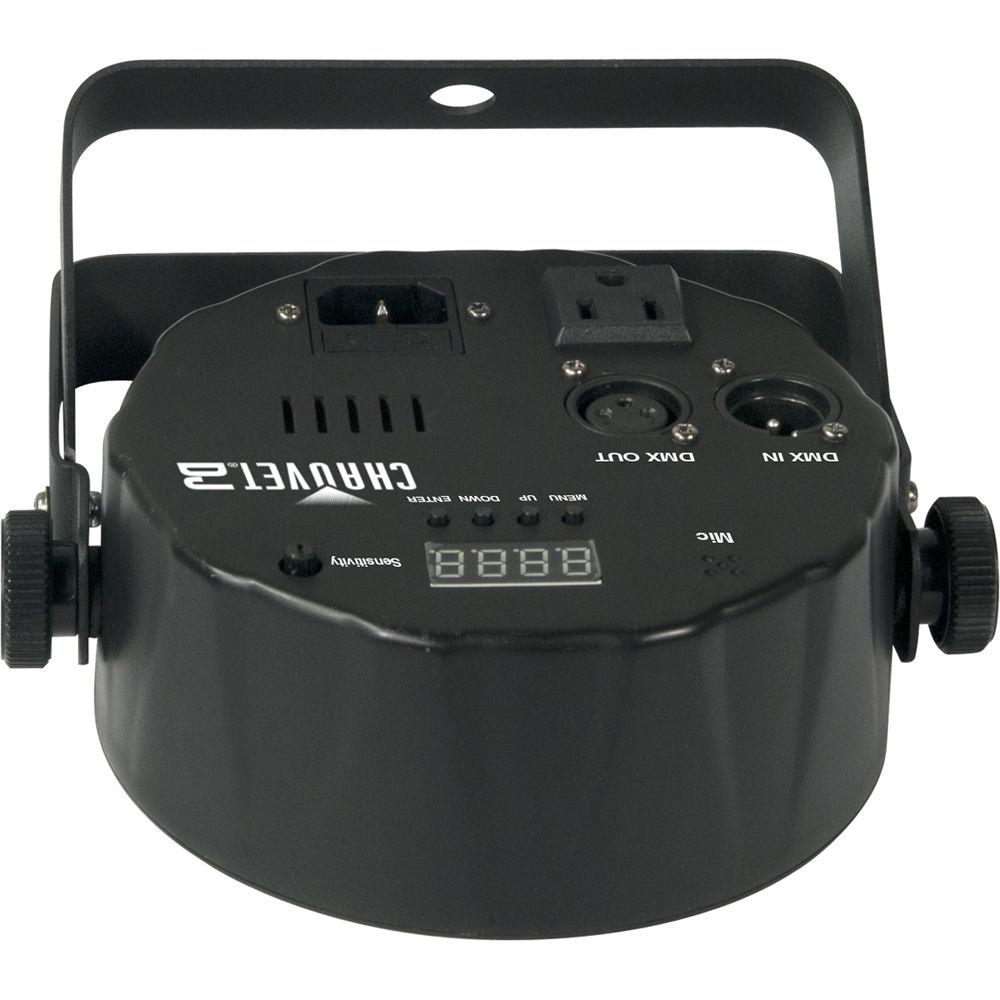

Technical parametersCHAUVET DJ SlimPAR 38 Specs | DMX | DMX Channels: 3 or 7
DMX Connectors: 3-pin | | Light Source | 75x LEDs (25 red, 25 green, 25 blue) 0.25 W (20 mA), 100,000 hours life expectancy | | Beam and Field Angle | Beam Angle: 14°
Field Angle: 23° | | Illuminance | 531 lux @ 2 m | | Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 18 W, 0.2 A @ 120 V, 60 Hz
Power and Current: 20 W, 0.1 A @ 230 V, 50 Hz | | Power Linking | 50 units @ 120 V; 100 units @ 230 V | | Temperature (Operating) | 104°F / 40°C | | Dimension (L x W x H) | 7.3 x 8.1 x 2.5" / 18.5 x 20.6 x 6.4 cm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 8.6 x 7.8 x 4.1" |
