Product description

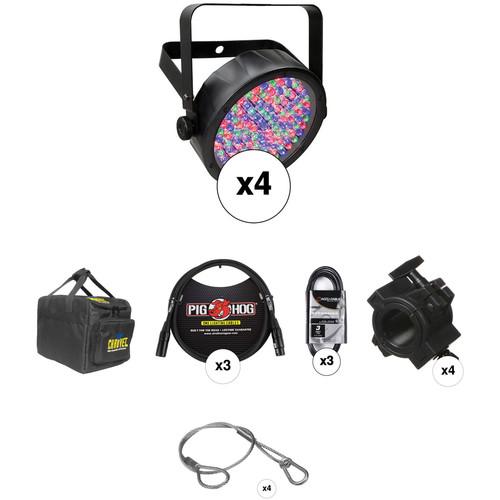

The SlimPAR 56 Complete Kit (4 Pack) was put together by B&H to allow the traveling DJ or small production to add life to any venue. The kit includes 4 Chauvet SlimPAR 56 fixtures, 3 extension cords, 3 DMX cables, 4 O-Clamps, 4 safety cables and a gear bag.SlimPAR56
The Chauvet SlimPAR 56 is a high-powered LED PAR can lighting effect with a slim 2.2" profile and 108 red, green, and blue LEDs. The SlimPAR 56 is an ideal choice for architectural lighting, object lighting and mood lighting in nightclubs, restaurants, bars, etc. The SlimPAR 56 features built-in automated programs with master/slave or DMX512 control. The double-bracket yoke is used to mount the SlimPAR 56 overhead, or on the ground.Gear Bag
Store, protect, and transport your lights and accessories with the black CHS-25 VIP Gear Bag for Four SlimPAR 56 Light Fixtures from Chauvet Lighting. A well-designed bag, it has five internal compartments formed by four, padded dividers, and 2 exterior, zippered, accessory compartments. Dual-zipper pulls enable quick access to the main compartment. Carry your VIP gear bag with the dual top handles and touch-fastening connector.DMX Cables
Featuring extra-thick 8 mm wire, performance-quality connectors, and tension-resistant stress relief, these 5' Pig Hog DMX cables from Strukture are overbuilt precisely to stand up to the most grueling tour conditions imaginable. Consequently, Pig Hog cables have a "no questions" lifetime guarantee.O-Clamps
The American DJ O-Clamp 1.5 fits a 1.5" truss when used with the supplied adapter. It also fits a 2" truss when the adapter is removed. The clamp has a non-abrasive interior, offers compatibility with ADJ LTS-1, LTS-2, and LTS-30 lighting stands, and rotates 360 degrees around truss tubing. Load capacity is 28 lb.Extension Cords
The 3' American DJ Accu-Cable Indoor/Outdoor General Purpose AC Edison Extension Cord is appropriate for both home and professional applications. The 3-wire 16-gauge cord features a ground prong and terminates in an Edison connector for powering a wide variety of electronics. The cord is rated to 13 amps, 125 volts, and a maximum of 1625W.
  • 4 x CHAUVET DJ SlimPAR 56 - RGB LED PAR Wash Light (Black)
    • SlimPAR 56
    The black CHAUVET DJ SlimPAR 56 is an RGB LED PAR wash light with a slim, 2.2" low profile and 108 LEDs (red, green, and blue). The fixture is an ideal choice for architectural illumination, object accenting, and mood lighting in nightclubs, restaurants, bars, and more. The SlimPAR 56 offers automated programs such as Sound-Active, Auto Program, Strobe, RGB Dimming, and Static Color for fast setup in standalone mode, as well as DMX mode for in-depth control. The master/slave option lets you coordinate multiple fixtures without the need for a controller. Other features include flicker-free operation (ideal when used for video applications) and an auto-ranging power supply. You can also daisy-chain power for up to 50 units at 120V. The fixture comes equipped with a double-bracket yoke, which can be used for conventional mounting to a truss or to create a variable-angle floor stand.
      Key Features
      • 108 x 10mm RGB LEDs (red, green, blue), for bright color washes
      • Compact, low-profile fixture fits most places
      • Ideal for quiet applications due to silent operation and no moving parts
      • 14° beam angle, 23° field angle
      • Two DMX channel modes – 3 or 7
      • Electronic dimmer – 0-100%
      • Variable strobe – slow/fast
      • Operation modes – Static Color, Auto Program, Sound-Active, RGB Dimming, DMX-Controlled
      • Color macros – convenient access to RGB color mixing and static colors without DMX
      • Produce eye-catching effects with built-in automated programs via Master/Slave or DMX mode
      • Standalone versatility with multiple user-configurable settings
      • Flicker-free light for use with video applications
      • LED display with 4-button menu for easy navigation
      • Daisy-chain power for up to 50 units at 120V
      • Compatible with the Satellite battery-operated system (available separately)
      • Multi-voltage operation – 100-240 VAC, 50/60 Hz
      • Includes hanging bracket with mounting hardware
    UPC: 781462204631
  • CHAUVET DJ CHS-25 VIP Gear Bag for Four SlimPAR 64 Light Fixtures
    • SlimPAR 56
    Store, protect, and transport your lights and accessories with the black CHS-25 VIP Gear Bag for Four SlimPAR 64 Light Fixtures from Chauvet Lighting. A well-designed bag, it has five internal compartments formed by four, padded dividers, and 2 exterior, zippered, accessory compartments. Dual zipper pulls enable quick access to the main compartment. Carry your VIP gear bag with the dual top handles and touch-fastening connector.
    • Carries up to 4 Chauvet DJ lights, connecting cables, and controller
    • Features 7 compartments: 2 external and 5 internal
    • Padded compartments safeguard fixture
    • Compatible with SlimPAR 64, SlimPAR 64 RGBA, or other similar fixtures
    UPC: 781462209506
  • 3 x Pig Hog 3-Pin XLR DMX Cable (5')
    • SlimPAR 56
    Featuring extra-thick 8 mm wire, performance quality connectors, and tension-resistant stress relief, this 5' Pig Hog DMX Cable from Strukture is overbuilt precisely to stand up to the most grueling tour conditions imaginable. Consequently, Pig Hog cables have "no questions" lifetime guarantee. UPC: 672485347156
  • 3 x American DJ Accu-Cable Indoor-Outdoor General Purpose IEC Extension Cord (3')
    • SlimPAR 56
    The 3' American DJ Accu-Cable Indoor/Outdoor General Purpose IEC Extension Cord is appropriate for both home and professional applications. The 3-wire 16-gauge cord features a ground prong and can extend the connection-cable length of a wide variety of electronics. The cord is rated to 13 amps, 125 volts, and a maximum of 1625 watts. UPC: 819730014047
  • 4 x American DJ O-Clamp 1.5 for 1.5 or 2" Truss
    • SlimPAR 56
    The American DJ O-Clamp 1.5 fits a 1.5" truss when used with the supplied adapter. It also fits a 2" truss when the adapter is removed. The clamp has a non-abrasive interior, offers compatibility with ADJ LTS-1, LTS-2, and LTS-30 lighting stands, and rotates 360 degrees around truss tubing. Load capacity is 28 lb.
    • 360° clamp that wraps around truss tubing
    • Securely mounts fixtures to truss
    • Non-scuffing, non-scratching, non-scoring, and non-denting
    • Compatible with ADJ LTS-1, LTS-2, and LTS-30 lighting stands
    UPC: 819730010247
  • 4 x American DJ S-Cable/60 Pro Lighting Safety Cable
    • SlimPAR 56
    The American DJ S-Cable/60 Pro Lighting Safety Cable is a 24" (60.96 cm) safety cable for lighting fixtures, with a weight rating of 60 lbs (25 kg).
    • 24" (60.96 cm) safety cable with a weight rating of 60 lbs (25 kg)
    UPC: 640282091893
In the Box
  • 4 x SlimPAR 56 - RGB LED PAR Wash Light (Black) zafdusdzzq
  • Hanging Bracket with Mounting Hardware
  • Power Cord
  • Limited 2-Year Warranty
  • CHS-25 VIP Gear Bag for Four SlimPAR 64 Light Fixtures
  • 3 x Pig Hog - 3-Pin XLR DMX Cable (5')
  • 3 x American DJ - Accu-Cable Indoor-Outdoor General Purpose IEC Extension Cord (3')
  • 4 x American DJ - O-Clamp 1.5 for 1.5 or 2" Truss
  • 4 x American DJ - S-Cable/60 Pro Lighting Safety Cable
Table of Contents




Upload User Manual

Have you got an user manual for the CHAUVET DJ SlimPAR 56 Complete Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • 4 x CHAUVET DJ SlimPAR 56 - RGB LED PAR Wash Light (Black)
    Light Source 108 x 10 mm RGB LEDs (36 x red, 36 x green, 36 x blue)
    Current: 3 x 20 mA
    Life Expectancy: 100,000 hours
    Beam and Field Angle Beam Angle: 14°
    Field Angle: 23°
    Illuminance 876 lux at 6.5' (2.0 m)
    PWM Frequency 1200 Hz
    DMX DMX Channels: 3, 7
    DMX Connectors: 3-pin XLR, in/out
    Dimming 0-100%, electronic
    Operational Modes Variable strobe, fast/slow
    Static Color with color macros
    Sound-Active
    Auto Program
    Standalone
    Master/Slave
    DMX-controlled
    Power Linking 50 x units at 120 V
    100 x units at 230 V
    Power Connectors IEC, in/out
    Input Voltage 100-240 VAC, 50/60 Hz, auto-ranging
    Power Consumption 87 W, 0.2 A at 120 V, 60 Hz
    27 W, 0.1 A at 230 V, 50 Hz
    Fuse F 1 A, 250 V
    Maximum Operating Temperature 104°F / 40°C
    Cooling System: Convection
    Approvals CE, MET
    Dimensions 9.5 x 8.8 x 2.2" (241 x 224 x 56 mm)
    Weight 2.7 lb (1.2 kg)
    Box Dimensions (LxWxH) 9.9 x 8.9 x 3.4"
  • CHAUVET DJ CHS-25 VIP Gear Bag for Four SlimPAR 64 Light Fixtures
    Compartment Dimensions (W x H x D) 11 x 10 x 2.5" / 27.9 x 25.4 x 6.4 cm (Each)
    Closure Type Zipper
    Carry and Transport Options 2 x Connecting Handstrap
    Exterior Dimensions (W x H x D) 15.7 x 12.4 x 11.2" / 40 x 31.5 x 28.5 cm
    Weight 1.8 lb / 0.8 kg
    Box Dimensions (LxWxH) 12.0 x 9.5 x 8.0"
  • 3 x Pig Hog 3-Pin XLR DMX Cable (5')
    Wire Gauge 24 AWG
    Connector 1 3-Pin XLR Male
    Connector 2 3-Pin XLR Female
    Cable Length 5' / 1.52 m
    Box Dimensions (LxWxH) 8.5 x 7.5 x 0.75"
  • 3 x American DJ Accu-Cable Indoor-Outdoor General Purpose IEC Extension Cord (3')
    Connector 1 C14 IEC Male
    Connector 2 C13 IEC Female
    Length 3' / 0.91 m
    Maximum Current 13 A
    Maximum Voltage 125 V
    Maximum Wattage 1625 W
    Wire Gauge 16 AWG
    Box Dimensions (LxWxH) 8.7 x 3.2 x 0.6"
  • 4 x American DJ O-Clamp 1.5 for 1.5 or 2" Truss
    Load Capacity 28 lb (13 kg)
    Thickness 2.0" (50.8 mm)
    Dimensions (W x H) 3.5 x 3.0" (88.9 x 76.2 mm)
    Weight 0.5 lb (0.2 kg)
    Box Dimensions (LxWxH) 4.5 x 3.75 x 2.25"
  • 4 x American DJ S-Cable/60 Pro Lighting Safety Cable
    Load Capacity 60 lbs (25 kg)
    Length 24" (60.96 cm)
    Box Dimensions (LxWxH) 5.984 x 5.512 x 1.0"
