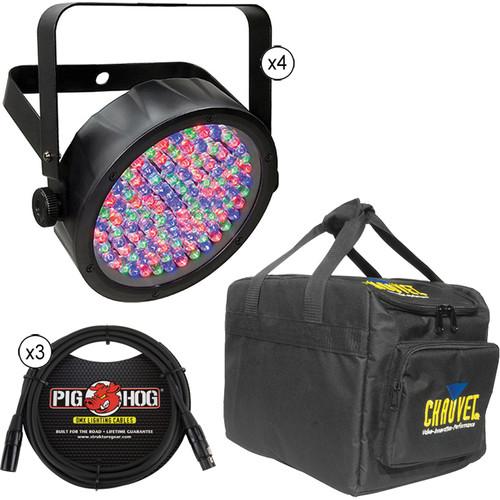

Product description The Chauvet and American DJ SlimPAR 56 LED Quad Kit was put together by to provide portable, visual excitement for clubs, concerts or mobile DJs. The kit includes four SlimPAR 56 LED RGB Effects Lights, kit bag with room for all 4 lights and thee 5' DMX XLR 3-pin cable for remote console control. Chauvet SlimPAR 56 is a high-powered LED PAR with a slim 2.2" profile and 108 red, green and blue LEDs. The SlimPAR 56 is an ideal choice for architectural lighting, object lighting and mood lighting in nightclubs, restaurants, bars, etc. The light features built-in automated programs with master/slave or DMX-512 control. The included double-bracket yoke is used to mount the SlimPAR 56 overhead, or on the ground. The CHS-25 VIP Gear Bag features 5 external and 2 internal compartments. The compartments are internally padded to keep your equipment safe. This gear bag is designed to carry up to four of the SlimPAR 64, SlimPAR 64 RGBA, or other similar fixtures, along with their connecting cables and controller. The included 10' 3-pin XLR DMX Cable features extra-thick 8 mm wire, performance quality connectors, and tension-resistant stress relief. - 4 x CHAUVET DJ SlimPAR 56 - RGB LED PAR Wash Light (Black) The black CHAUVET DJ SlimPAR 56 is an RGB LED PAR wash light with a slim, 2.2" low profile and 108 LEDs (red, green, and blue). The fixture is an ideal choice for architectural illumination, object accenting, and mood lighting in nightclubs, restaurants, bars, and more. The SlimPAR 56 offers automated programs such as Sound-Active, Auto Program, Strobe, RGB Dimming, and Static Color for fast setup in standalone mode, as well as DMX mode for in-depth control. The master/slave option lets you coordinate multiple fixtures without the need for a controller. Other features include flicker-free operation (ideal when used for video applications) and an auto-ranging power supply. You can also daisy-chain power for up to 50 units at 120V. The fixture comes equipped with a double-bracket yoke, which can be used for conventional mounting to a truss or to create a variable-angle floor stand.
- Key Features
-
- 108 x 10mm RGB LEDs (red, green, blue), for bright color washes
- Compact, low-profile fixture fits most places
- Ideal for quiet applications due to silent operation and no moving parts
- 14° beam angle, 23° field angle
- Two DMX channel modes – 3 or 7
- Electronic dimmer – 0-100%
- Variable strobe – slow/fast
- Operation modes – Static Color, Auto Program, Sound-Active, RGB Dimming, DMX-Controlled
- Color macros – convenient access to RGB color mixing and static colors without DMX
- Produce eye-catching effects with built-in automated programs via Master/Slave or DMX mode
- Standalone versatility with multiple user-configurable settings
- Flicker-free light for use with video applications
- LED display with 4-button menu for easy navigation
- Daisy-chain power for up to 50 units at 120V
- Compatible with the Satellite battery-operated system (available separately)
- Multi-voltage operation – 100-240 VAC, 50/60 Hz
- Includes hanging bracket with mounting hardware
UPC: 781462204631 - CHAUVET DJ CHS-SP4 -Vip Gear Bag For 4-Piece SlimPAR 56 and Obey 3 DMX Controller The Chauvet CHS-SP4-Vip Gear Bag For 4-Piece Slimpar 56 and Obey 3 DMX Controller is a custom designed carrying bag intended for storing and transporting up to four SlimPAR light fixtures, an Obey 3 DMX controller, and all the necessary interconnecting cables. The bag features five padded internal compartments for each fixture and the DMX controller. It also features two external compartments for cables and other accessories. UPC: 781462206918
- 3 x Pig Hog 3-Pin XLR DMX Cable (5') Featuring extra-thick 8 mm wire, performance quality connectors, and tension-resistant stress relief, this 5' Pig Hog DMX Cable from Strukture is overbuilt precisely to stand up to the most grueling tour conditions imaginable. Consequently, Pig Hog cables have "no questions" lifetime guarantee. UPC: 672485347156
In the Box - 4 x SlimPAR 56 - RGB LED PAR Wash Light (Black) cbvewqedusbzyeacxvfyxvttascddtq
- Hanging Bracket with Mounting Hardware
- Power Cord
- Limited 2-Year Warranty
- CHS-SP4 -Vip Gear Bag For 4-Piece SlimPAR 56 and Obey 3 DMX Controller
- 3 x Pig Hog - 3-Pin XLR DMX Cable (5')
Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR 56 LED Quad Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4 x CHAUVET DJ SlimPAR 56 - RGB LED PAR Wash Light (Black)
| Light Source | 108 x 10 mm RGB LEDs (36 x red, 36 x green, 36 x blue)
Current: 3 x 20 mA
Life Expectancy: 100,000 hours | | Beam and Field Angle | Beam Angle: 14°
Field Angle: 23° | | Illuminance | 876 lux at 6.5' (2.0 m) | | PWM Frequency | 1200 Hz | | DMX | DMX Channels: 3, 7
DMX Connectors: 3-pin XLR, in/out | | Dimming | 0-100%, electronic | | Operational Modes | Variable strobe, fast/slow
Static Color with color macros
Sound-Active
Auto Program
Standalone
Master/Slave
DMX-controlled | | Power Linking | 50 x units at 120 V
100 x units at 230 V | | Power Connectors | IEC, in/out | | Input Voltage | 100-240 VAC, 50/60 Hz, auto-ranging | | Power Consumption | 87 W, 0.2 A at 120 V, 60 Hz
27 W, 0.1 A at 230 V, 50 Hz | | Fuse | F 1 A, 250 V | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Approvals | CE, MET | | Dimensions | 9.5 x 8.8 x 2.2" (241 x 224 x 56 mm) | | Weight | 2.7 lb (1.2 kg) | | | | Box Dimensions (LxWxH) | 9.9 x 8.9 x 3.4" | - CHAUVET DJ CHS-SP4 -Vip Gear Bag For 4-Piece SlimPAR 56 and Obey 3 DMX Controller
| | | Interior Dimensions | 9.5 x 8.8 x 2.2" / 241 x 224 x 56 mm | | | | Exterior Dimensions (W x H x D) | 9.5 x 8.8 x 15" / 241 x 224 x 381 mm | | Weight | 2 lb / 907 g | | | | Box Dimensions (LxWxH) | 22.3 x 12.25 x 10.35" | - 3 x Pig Hog 3-Pin XLR DMX Cable (5')
| | | Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 5' / 1.52 m | | | | Box Dimensions (LxWxH) | 8.5 x 7.5 x 0.75" |
