User Manual for CHAUVET DJ SlimPAR 56 - RGB LED PAR Wash Light Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ SlimPAR 56 - RGB
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ SlimPAR 56 - RGB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

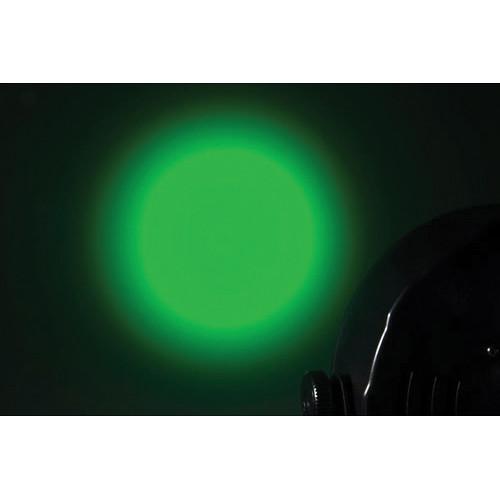

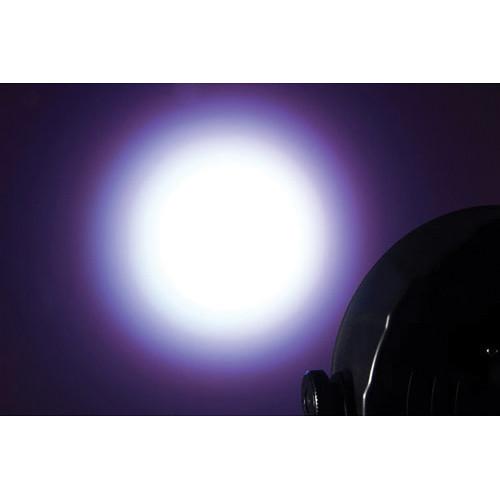

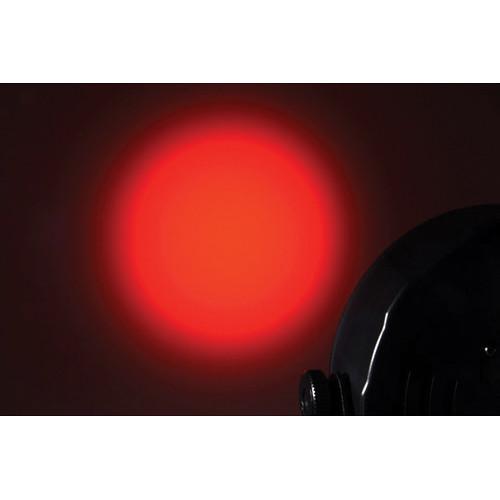

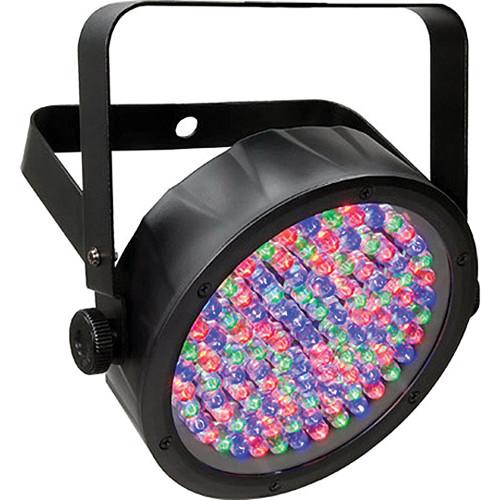

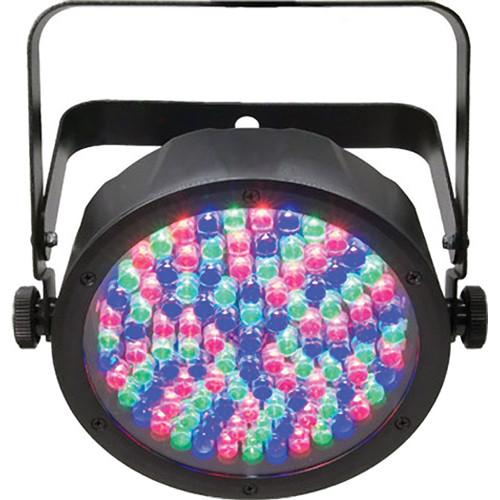

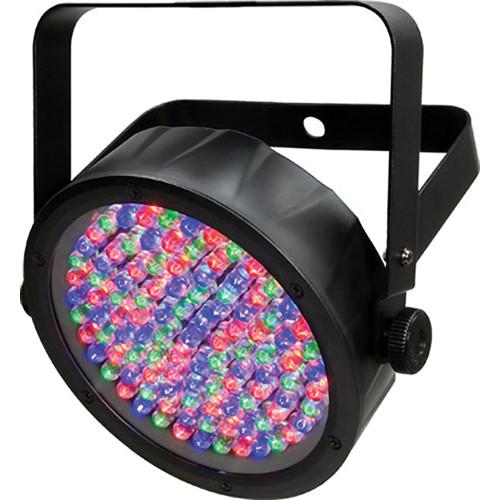

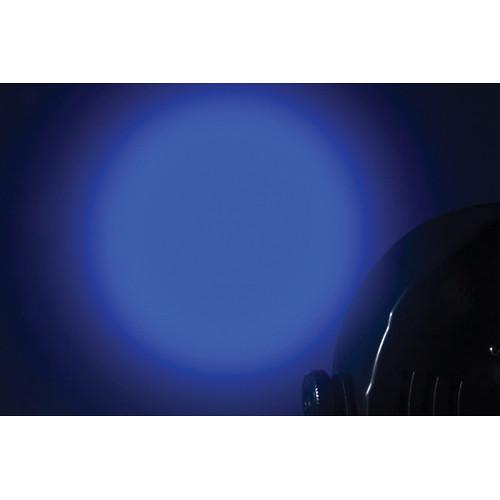

Product description The black CHAUVET DJ SlimPAR 56 is an RGB LED PAR wash light with a slim, 2.2" low profile and 108 LEDs (red, green, and blue). The fixture is an ideal choice for architectural illumination, object accenting, and mood lighting in nightclubs, restaurants, bars, and more. The SlimPAR 56 offers automated programs such as Sound-Active, Auto Program, Strobe, RGB Dimming, and Static Color for fast setup in standalone mode, as well as DMX mode for in-depth control. The master/slave option lets you coordinate multiple fixtures without the need for a controller. Other features include flicker-free operation (ideal when used for video applications) and an auto-ranging power supply. You can also daisy-chain power for up to 50 units at 120V. The fixture comes equipped with a double-bracket yoke, which can be used for conventional mounting to a truss or to create a variable-angle floor stand. - Key Features
-
- 108 x 10mm RGB LEDs (red, green, blue), for bright color washes
- Compact, low-profile fixture fits most places
- Ideal for quiet applications due to silent operation and no moving parts
- 14° beam angle, 23° field angle
- Two DMX channel modes – 3 or 7
- Electronic dimmer – 0-100%
- Variable strobe – slow/fast
- Operation modes – Static Color, Auto Program, Sound-Active, RGB Dimming, DMX-Controlled
- Color macros – convenient access to RGB color mixing and static colors without DMX
- Produce eye-catching effects with built-in automated programs via Master/Slave or DMX mode
- Standalone versatility with multiple user-configurable settings
- Flicker-free light for use with video applications
- LED display with 4-button menu for easy navigation
- Daisy-chain power for up to 50 units at 120V
- Compatible with the Satellite battery-operated system (available separately)
- Multi-voltage operation – 100-240 VAC, 50/60 Hz
- Includes hanging bracket with mounting hardware
UPC: 781462204631 In the Box CHAUVET DJ SlimPAR 56 - RGB LED PAR Wash Light (Black) Hanging Bracket with Mounting Hardware Power Cord Limited 2-Year Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR 56 - RGB LED PAR Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ SlimPAR 56 Specs | Light Source | 108 x 10 mm RGB LEDs (36 x red, 36 x green, 36 x blue)
Current: 3 x 20 mA
Life Expectancy: 100,000 hours | | Beam and Field Angle | Beam Angle: 14°
Field Angle: 23° | | Illuminance | 876 lux at 6.5' (2.0 m) | | PWM Frequency | 1200 Hz | | DMX | DMX Channels: 3, 7
DMX Connectors: 3-pin XLR, in/out | | Dimming | 0-100%, electronic | | Operational Modes | Variable strobe, fast/slow
Static Color with color macros
Sound-Active
Auto Program
Standalone
Master/Slave
DMX-controlled | | Power Linking | 50 x units at 120 V
100 x units at 230 V | | Power Connectors | IEC, in/out | | Input Voltage | 100-240 VAC, 50/60 Hz, auto-ranging | | Power Consumption | 87 W, 0.2 A at 120 V, 60 Hz
27 W, 0.1 A at 230 V, 50 Hz | | Fuse | F 1 A, 250 V | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Approvals | CE, MET | | Dimensions | 9.5 x 8.8 x 2.2" (241 x 224 x 56 mm) | | Weight | 2.7 lb (1.2 kg) | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 9.9 x 8.9 x 3.4" |
Rating74% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
