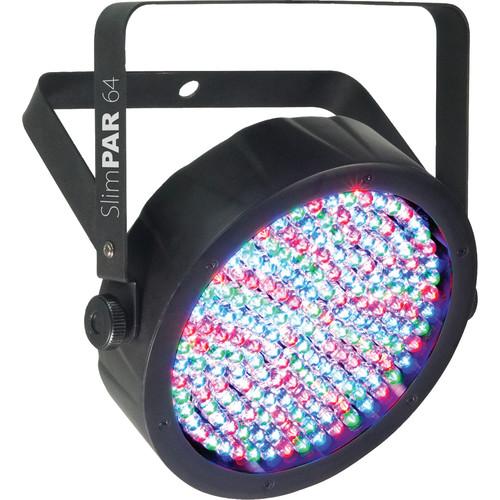

Product description The Chauvet SlimPAR 64 LED PAR Wash Light is designed for live entertainment applications such as concerts, night clubs, and DJ-featured events.

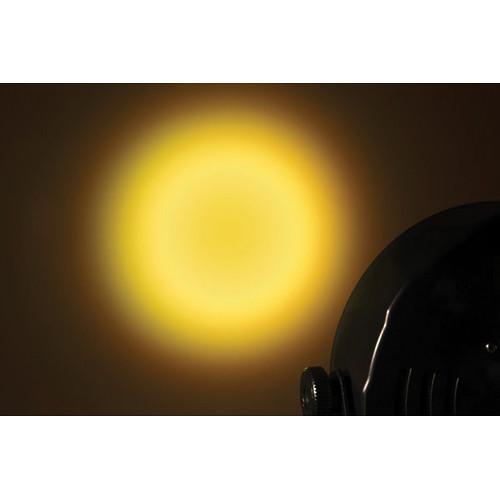

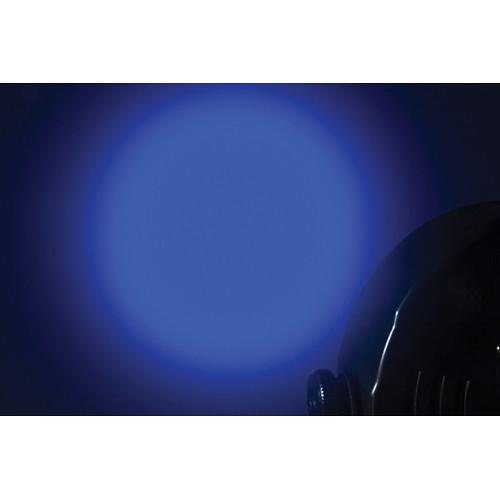

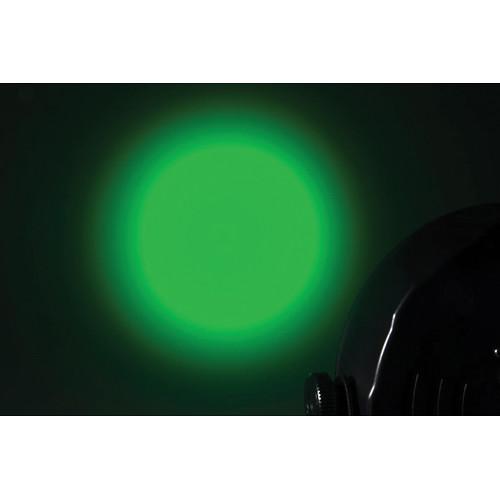

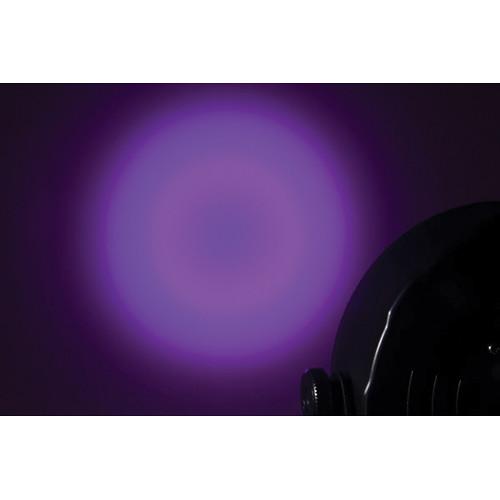

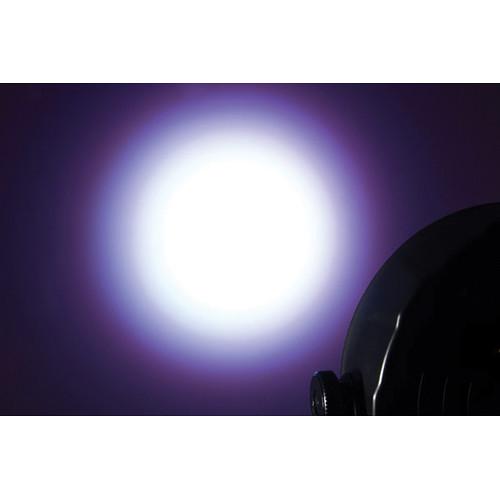

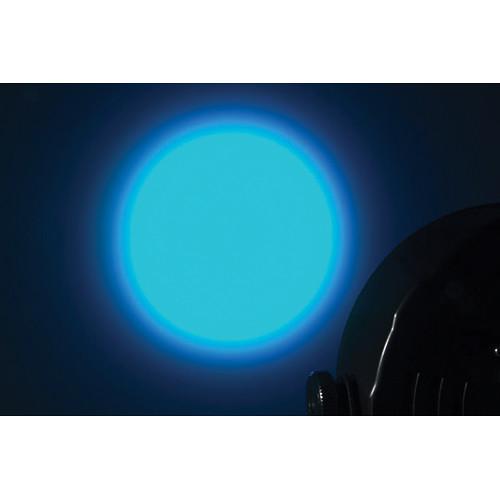

The unit features 60 red, 60 green, and 60 blue 10mm LEDS that produce a powerful light source with a beam angle of 14° and a field angle of 23°. You can use 3 or 7 channel modes to control the unit via DMX or use master/slave mode for manual color mixing or static colors. Alternatively you can select one of the SlimPAR's built-in automatic lighting programs or set the light to be triggered by sound using its built-in microphone. Multiple lights can be daisy chained together instead of running separate cables or you can use the light with Chauvet's Satellite battery operated system.
The SlimPAR's lightweight construction and slim form factor allows you to hang it from a truss, while the numerous control options allow you to program a lighting display that complements your performance. - Attributes and Benefits
-
- LED PAR designed for any application in need of a compact wash light
- Low-profile fixture fits most places other lights cannot
- Compatible with the Satellite battery-operated system
- Ideal for quiet installations due to silent operation and no moving parts
- Convenient access to RGB color mixing and static colors without DMX
- Trigger eye-catching effects with built-in, automated programs via master/slave or DMX mode
- Increase stand-alone versatility with multiple user-configurable settings
- Save time running cables and extension cords by power linking multiple units
- Fits in optional CHS-25 VIP gear bag
- Compact design easily fits inside the sticks of TRUSST brand truss sections
UPC: 781462205645 In the Box CHAUVET DJ SlimPAR 64 LED PAR Wash Light Power Cord with Edison Plug (US/North America) Hanging Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR 64 LED PAR Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

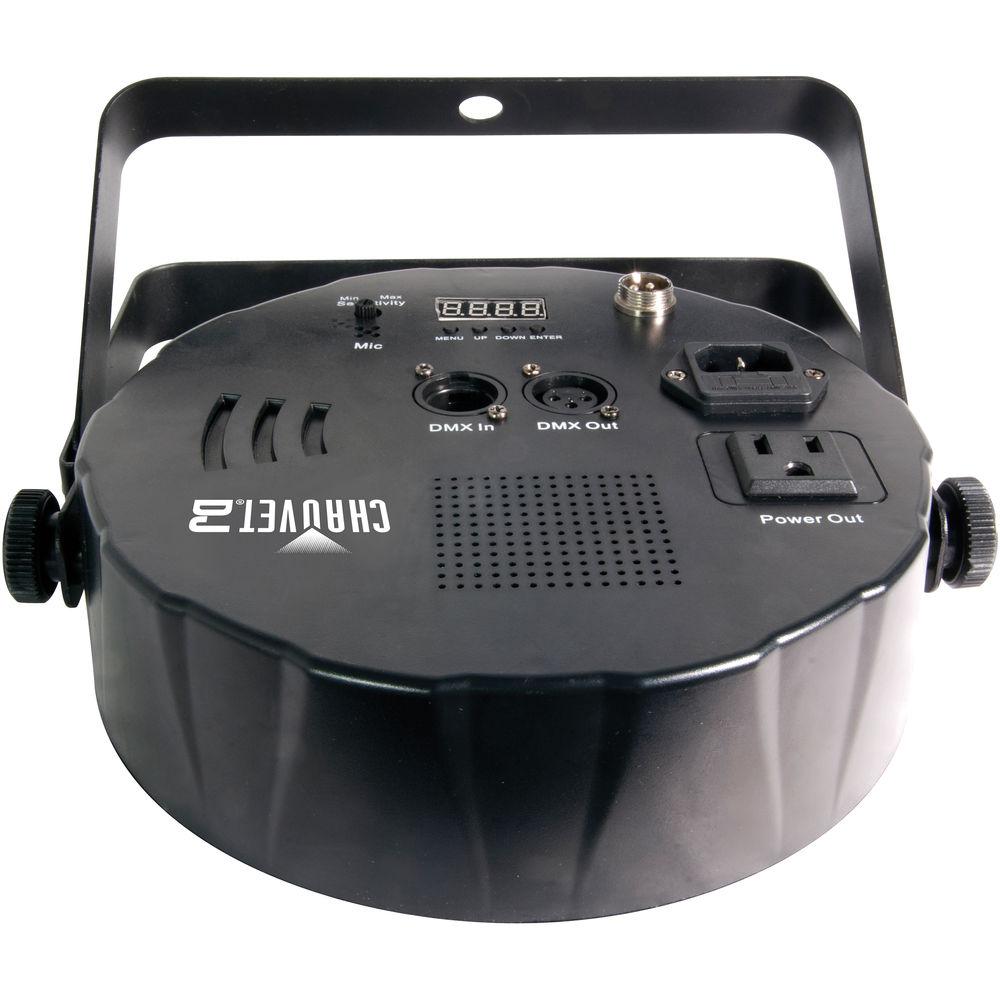

Technical parametersCHAUVET DJ SlimPAR 64 Specs | DMX Channel Modes | 3 or 7 | | DMX Connectors | 3-Pin XLR | | Light Source | 180 LEDs (60 red, 60 green, 60 blue) at 0.25 W (20 mA)
Rated for 100,000 hr | | Beam Angle | 14° | | Field Angle | 23° | | Illuminance | 1,241 lux @ 6.56' (2.0 m) | | Power Linking | 40 Units at 120 V
60 Units at 230 V | | Input Voltage | Auto-ranging 100 to 240 VAC, 50/60 Hz | | Power | 32 W, 0.3 A at 120 V, 60 HZ
36 W, 0.2 A at 230 V, 50 Hz | | Approvals | CE, MET | | Dimensions | 9.7 x 11.1 x 2.5" (246 x 282 x 64 mm) | | Weight | 2.8 lb (1.3 kg) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 11.6 x 10.4 x 3.8" |
