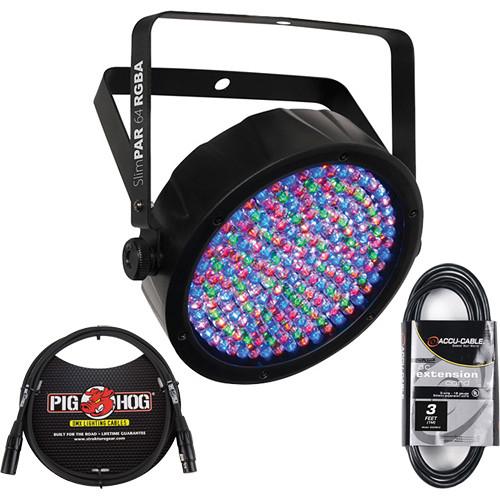

User Manual for CHAUVET DJ SlimPAR 64 RGBA LED Light with Power and DMX Daisy-Chain Kit Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ SlimPAR 64 RGBA LED
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
|
User manual for the CHAUVET DJ SlimPAR 64 RGBA LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description This B&H Kit combines the Chauvet SlimPAR 64 RGBA LED Light with an Edison extension cord and a 3-pin DMX cable for daisy-chaining multiple fixtures. The SlimPAR 64 is designed for live entertainment applications such as DJing, concerts, night clubs, and other venues. The unit features 180 Red, Green, Blue, and Amber 10mm LEDS that produce a powerful spread light source with a beam angle of 14° and a field angle of 23°. You can control the unit over 4 or 8 DMX channels for color mixing and programming a lighting display. The unit can be set to Master or Slave modes. Alternatively you can select one of the unit's built-in automatic lighting programs or set the light to be triggered by sound using its built-in microphone. Up to 40 SlimPAR 64 fixtures can be daisy-chained (up to 60 units on a 230V system).
The 3.0' / 1m general purpose AC Edison extension cord is appropriate for both home and professional applications. The 3-wire 16-gauge cord features a ground prong and terminates in an Edison connector for powering a wide variety of electronics. The cord is rated to 13 amps, 125 volts, and a maximum of 1625 watts. The 5.0' / 1.5m DMX cable features extra-thick 8 mm wire, performance quality connectors, and tension-resistant stress relief to provide an overbuilt construction capable of withstanding the rigors of on-the-road wear and tear. - CHAUVET DJ SlimPAR 64 RGBA LED PAR Wash Light with DMX Control The Chauvet SlimPAR 64 RGBA LED PAR Wash Light with DMX Control is designed for live entertainment applications such as DJing, concerts, night clubs, and other venues.
The unit features 180 Red, Green, Blue, and Amber 10mm LEDS that produce a powerful spread light source with a beam angle of 14° and a field angle of 23°. You can control the unit over channels 4 and 8 using DMX cables and with master/slave mode for color mixing and programming a lighting display. Alternatively you can select one of the unit's built-in automatic lighting programs or set the light to be triggered by sound using its built-in microphone. Multiple units can be daisy chained together to save on power cabling or you can use the light with Chauvet's Satellite battery operated system.
The unit's lightweight construction and slim form factor allows you to hang it from an overhead truss and the numerous control options enable you to program a lighting display that complements your performance. UPC: 781462209476 - Pig Hog 3-Pin XLR DMX Cable (5') Featuring extra-thick 8 mm wire, performance quality connectors, and tension-resistant stress relief, this 5' Pig Hog DMX Cable from Strukture is overbuilt precisely to stand up to the most grueling tour conditions imaginable. Consequently, Pig Hog cables have "no questions" lifetime guarantee. UPC: 672485347156
- American DJ Accu-Cable Indoor-Outdoor General Purpose IEC Extension Cord (3') The 3' American DJ Accu-Cable Indoor/Outdoor General Purpose IEC Extension Cord is appropriate for both home and professional applications. The 3-wire 16-gauge cord features a ground prong and can extend the connection-cable length of a wide variety of electronics. The cord is rated to 13 amps, 125 volts, and a maximum of 1625 watts. UPC: 819730014047
In the Box - SlimPAR 64 RGBA LED PAR Wash Light with DMX Control yeqxazrruqdbbt
- Power Cord
- Hanging Bracket with Mounting Hardware
- Limited 2-Year Warranty
- Pig Hog - 3-Pin XLR DMX Cable (5') yeqxazrruqdbbt
- American DJ - Accu-Cable Indoor-Outdoor General Purpose IEC Extension Cord (3')
Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR 64 RGBA LED Light with Power and DMX Daisy-Chain Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CHAUVET DJ SlimPAR 64 RGBA LED PAR Wash Light with DMX Control
| DMX Channels | 4 or 8 | | DMX Connectors | 3-Pin | | Light Source | 180 (39 red, 39 green, 51 blue, 51 amber) LEDs at 0.25 W (20 mA)
Rated to 100,000 hours | | Beam Angle | 14° | | Field Angle | 23° | | Illuminance | 1,325 lux @ 2 m | | Power Linking | 40 units at 120 V
60 units at 230 V | | Input Voltage | Auto-ranging 100 to 240 VAC at 50/60 Hz | | Power | 30 W at 0.3 A at 230 V at 60 HZ
33 W at 0.2A at 230 V at 50 Hz | | Approvals | CE, MET | | Dimensions | 10.8 x 10.8 x 2.6" (276 x 275 x 66 mm) | | Weight | 2.8 lb (1.3 kg) | | | | Box Dimensions (LxWxH) | 11.7 x 10.4 x 4.0" | - Pig Hog 3-Pin XLR DMX Cable (5')
| | | Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 5' / 1.52 m | | | | Box Dimensions (LxWxH) | 8.5 x 7.5 x 0.75" | - American DJ Accu-Cable Indoor-Outdoor General Purpose IEC Extension Cord (3')
| Connector 1 | C14 IEC Male | | Connector 2 | C13 IEC Female | | Length | 3' / 0.91 m | | Maximum Current | 13 A | | Maximum Voltage | 125 V | | Maximum Wattage | 1625 W | | Wire Gauge | 16 AWG | | | | Box Dimensions (LxWxH) | 8.7 x 3.2 x 0.6" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
