User Manual for CHAUVET DJ SlimPAR 64 RGBA LED PAR Wash Light with DMX Control Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ SlimPAR 64 RGBA LED
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ SlimPAR 64 RGBA LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

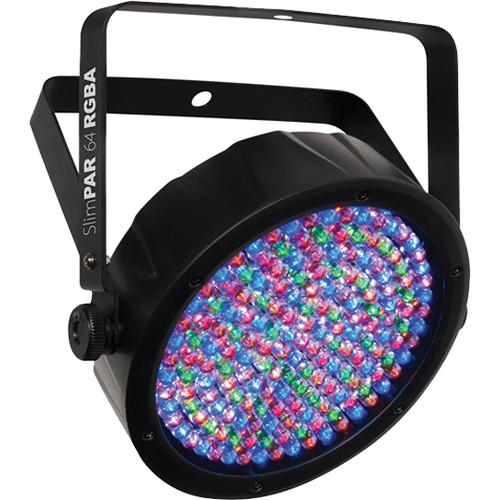

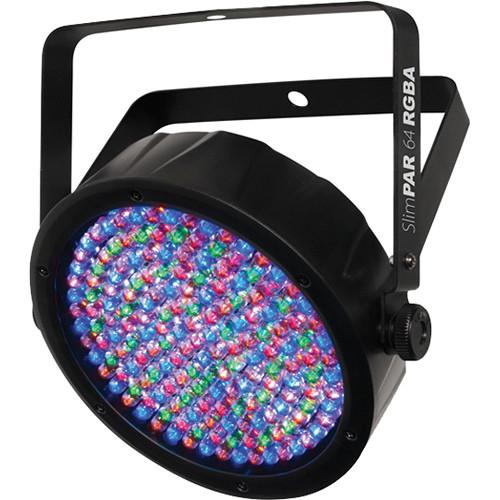

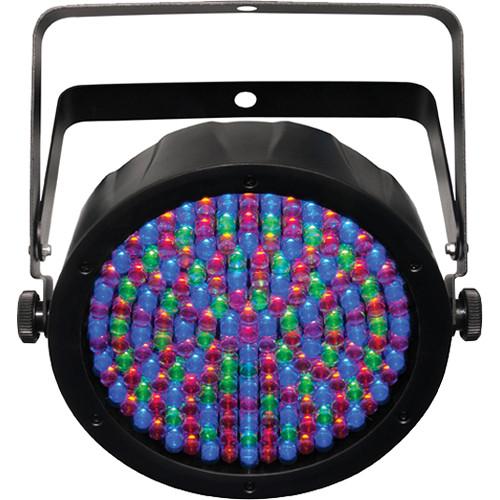

Product description The Chauvet SlimPAR 64 RGBA LED PAR Wash Light with DMX Control is designed for live entertainment applications such as DJing, concerts, night clubs, and other venues.

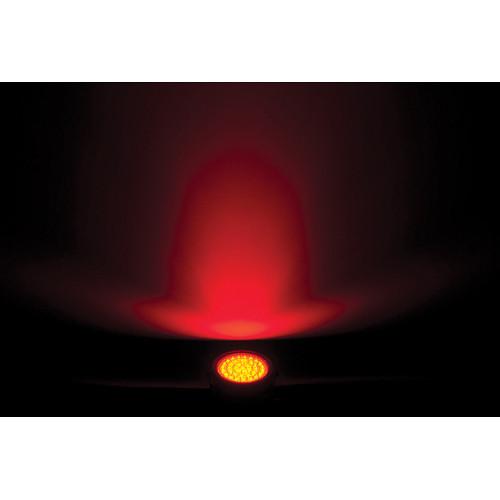

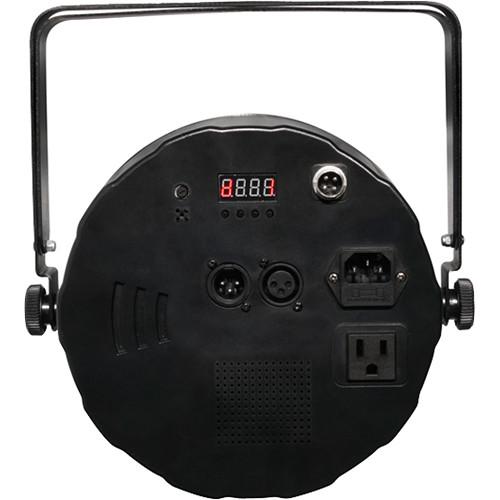

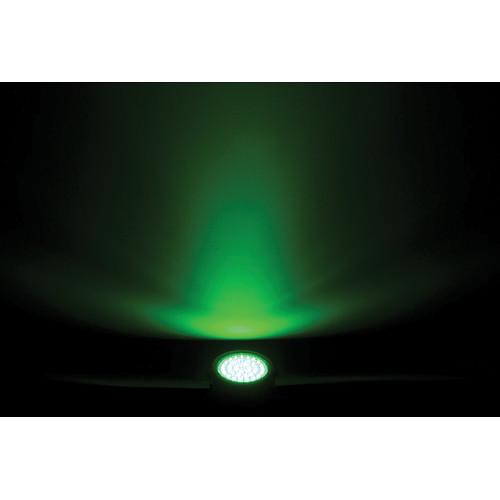

The unit features 180 Red, Green, Blue, and Amber 10mm LEDS that produce a powerful spread light source with a beam angle of 14° and a field angle of 23°. You can control the unit over channels 4 and 8 using DMX cables and with master/slave mode for color mixing and programming a lighting display. Alternatively you can select one of the unit's built-in automatic lighting programs or set the light to be triggered by sound using its built-in microphone. Multiple units can be daisy chained together to save on power cabling or you can use the light with Chauvet's Satellite battery operated system.
The unit's lightweight construction and slim form factor allows you to hang it from an overhead truss and the numerous control options enable you to program a lighting display that complements your performance. UPC: 781462209476 In the Box CHAUVET DJ SlimPAR 64 RGBA LED PAR Wash Light with DMX Control Power Cord Hanging Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR 64 RGBA LED PAR Wash Light with DMX Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ SlimPAR 64 Specs | DMX Channels | 4 or 8 | | DMX Connectors | 3-Pin | | Light Source | 180 (39 red, 39 green, 51 blue, 51 amber) LEDs at 0.25 W (20 mA)
Rated to 100,000 hours | | Beam Angle | 14° | | Field Angle | 23° | | Illuminance | 1,325 lux @ 2 m | | Power Linking | 40 units at 120 V
60 units at 230 V | | Input Voltage | Auto-ranging 100 to 240 VAC at 50/60 Hz | | Power | 30 W at 0.3 A at 230 V at 60 HZ
33 W at 0.2A at 230 V at 50 Hz | | Approvals | CE, MET | | Dimensions | 10.8 x 10.8 x 2.6" (276 x 275 x 66 mm) | | Weight | 2.8 lb (1.3 kg) | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 11.7 x 10.4 x 4.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
