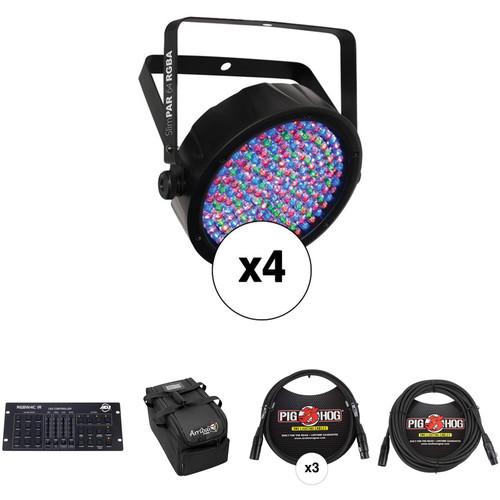

User Manual for CHAUVET DJ SlimPAR 64 RGBA LED PAR with 32-Channel DMX Controller Kit Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ SlimPAR 64 RGBA LED
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
|
User manual for the CHAUVET DJ SlimPAR 64 RGBA LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description The CHAUVET DJ SlimPAR 64 RGBA LED PAR with 32-Channel DMX Controller Kit from B&H includes four SlimPAR 64 RGBA LED PAR wash light fixtures, an American DJ RGBW4C-IR 32-channel DMX controller, a 25' Pig Hog 3-Pin XLR DMX cable, three 5' Pig Hog 3-Pin XLR DMX cables, and an Arriba Cases AC-410 DJ lighting case to safely store and transport the fixtures.
The kit can be used to produce wide washes with brilliant amber-infused hues and smooth color mixing, controlled via the RGBW4C-IR with color preset/chase programs and effects. It is well suited for uplighting events and lighting stages in nightclubs, lounges, bars, DJ setups, and more. - 4 x CHAUVET DJ SlimPAR 64 RGBA LED PAR Wash Light with DMX Control The Chauvet SlimPAR 64 RGBA LED PAR Wash Light with DMX Control is designed for live entertainment applications such as DJing, concerts, night clubs, and other venues.
The unit features 180 Red, Green, Blue, and Amber 10mm LEDS that produce a powerful spread light source with a beam angle of 14° and a field angle of 23°. You can control the unit over channels 4 and 8 using DMX cables and with master/slave mode for color mixing and programming a lighting display. Alternatively you can select one of the unit's built-in automatic lighting programs or set the light to be triggered by sound using its built-in microphone. Multiple units can be daisy chained together to save on power cabling or you can use the light with Chauvet's Satellite battery operated system.
The unit's lightweight construction and slim form factor allows you to hang it from an overhead truss and the numerous control options enable you to program a lighting display that complements your performance. UPC: 781462209476 - American DJ RGBW4C-IR 32-Channel DMX Controller for RGB, RGBW, and RGBA LED Fixtures (RC Compatible) The RC-compatible RGBW4C-IR from American DJ is a 32-channel RGB, RGBW, and RGBA LED DMX controller designed to control any standard three or four-channel group of LED fixtures where channel one is red, channel two green, channel three blue, and channel four white or amber. Up to eight LED fixtures or fixture groups can be independently controlled via four fixture buttons. The unit is ideal for use in nightclubs, lounges, and bars by DJs and anyone who wants easy control of LED pars, bars, floods, or panels.
Controls include nine direct-access "Static Color/Chase" buttons which contain pre-programmed color presets and chase programs, three user-programmable color preset buttons, and four multi-function faders that control RGBW intensities in real-time as well as chase-program "Speed", chase-program "Fade Time", and "Master Dimmer". Additionally, an array of eight buttons selects the operation mode: RGB Fade, Auto Run, Color Macro, Chase, Sound Active, Strobe, Manual RGBW, or Blackout. The RGBW4C-IR is compatible with the LED RC2 infrared remote (not included). - Compact DMX512 controller for RGB, RGBW, and RGBA LED fixtures
- Three user-programmable color preset, direct-access buttons
- Nine color preset/chase program direct-access buttons
- Manual RGBW intensity control mode
- On-the-fly Speed and Fade control of all chase programs
- Adjustable microphone sensitivity
UPC: 819730016485 - Arriba Cases AC-410 DJ Lighting Case (Black) Primarily designed to protect PAR 64 SLIM +SILM PAR PRO Type Lighting Fixtures, the black AC-410 Mobile DJ Lighting Case from Arriba Cases is used to house lighting fixtures from Chauvet, ADJ, Blizzard, and various other brands of Lighting fixtures. This flexible, soft case comes with 3 dividers that can be used to create 4 compartments on the inside. Suitable for mobile applications, it can house up to 4 PAR lights and has skid feet at the bottom. This case features an exterior accessory pocket, double zipper pull closure, dual top handle straps with connector, and a clear ID window for your business card.
- Comes with 3 dividers that can be used to set up 4 compartments
- Suitable for all brands of lighting fixtures used in DJ, working band, and karaoke rig setups
- Great for mobile DJs, Karaoke rigs and working bands
- Extra wide mouth design allows gear to be extracted quickly
- Clear window to see into the bag, or for storing ID
UPC: 859459001775 - 3 x Pig Hog 3-Pin XLR DMX Cable (5') Featuring extra-thick 8 mm wire, performance quality connectors, and tension-resistant stress relief, this 5' Pig Hog DMX Cable from Strukture is overbuilt precisely to stand up to the most grueling tour conditions imaginable. Consequently, Pig Hog cables have "no questions" lifetime guarantee. UPC: 672485347156
- Pig Hog 3-Pin XLR DMX Cable (25') Featuring extra-thick 8 mm wire, performance quality connectors, and tension-resistant stress relief, this 25' Pig Hog DMX Cable from Strukture is overbuilt precisely to stand up to the most grueling tour conditions imaginable. Consequently, Pig Hog cables have "no questions" lifetime guarantee. UPC: 672485347170
In the Box - 4 x SlimPAR 64 RGBA LED PAR Wash Light with DMX Control rwusvavvcfebwyfzqssydueedvd
- Power Cord
- Hanging Bracket with Mounting Hardware
- Limited 2-Year Warranty
- American DJ - RGBW4C-IR 32-Channel DMX Controller for RGB, RGBW, and RGBA LED Fixtures (RC Compatible)
- Arriba Cases - AC-410 DJ Lighting Case (Black)
- 3 x Pig Hog - 3-Pin XLR DMX Cable (5')
- Pig Hog - 3-Pin XLR DMX Cable (25')
Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR 64 RGBA LED PAR with 32-Channel DMX Controller Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4 x CHAUVET DJ SlimPAR 64 RGBA LED PAR Wash Light with DMX Control
| DMX Channels | 4 or 8 | | DMX Connectors | 3-Pin | | Light Source | 180 (39 red, 39 green, 51 blue, 51 amber) LEDs at 0.25 W (20 mA)
Rated to 100,000 hours | | Beam Angle | 14° | | Field Angle | 23° | | Illuminance | 1,325 lux @ 2 m | | Power Linking | 40 units at 120 V
60 units at 230 V | | Input Voltage | Auto-ranging 100 to 240 VAC at 50/60 Hz | | Power | 30 W at 0.3 A at 230 V at 60 HZ
33 W at 0.2A at 230 V at 50 Hz | | Approvals | CE, MET | | Dimensions | 10.8 x 10.8 x 2.6" (276 x 275 x 66 mm) | | Weight | 2.8 lb (1.3 kg) | | | | Box Dimensions (LxWxH) | 11.7 x 10.4 x 4.0" | - American DJ RGBW4C-IR 32-Channel DMX Controller for RGB, RGBW, and RGBA LED Fixtures (RC Compatible)
| Connectors | 1 x 3-pin XLR, DMX output
1 x IR receiver sensor input | | Power Requirements | 12 VDC 500 mA from included UL approved power supply
Power Draw: 3.6 W | | Dimensions | 12.9 x 5.5 x 1.9 (327 x 140 x 48 mm) | | Weight | 2.4 lb (1.1 kg) | | | | Box Dimensions (LxWxH) | 18.0 x 7.0 x 3.4" | - Arriba Cases AC-410 DJ Lighting Case (Black)
| | | Closure Type | Zipper | | Carry and Transport Options | 2 x Connecting Handstrap | | Exterior Dimensions (W x H x D) | 11 x 18 x 11.5" / 27.9 x 45.7 x 29.2 cm | | | | Box Dimensions (LxWxH) | 18.9 x 11.5 x 4.8" | - 3 x Pig Hog 3-Pin XLR DMX Cable (5')
| | | Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 5' / 1.52 m | | | | Box Dimensions (LxWxH) | 8.5 x 7.5 x 0.75" | - Pig Hog 3-Pin XLR DMX Cable (25')
| | | Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 25' / 7.62 m | | | | Box Dimensions (LxWxH) | 8.5 x 8.0 x 1.5" |
