User Manual for CHAUVET DJ SlimPAR H6 USB - Wireless DMX RGBAW UV LED Wash Light Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ SlimPAR H6 USB -
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ SlimPAR H6 USB - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

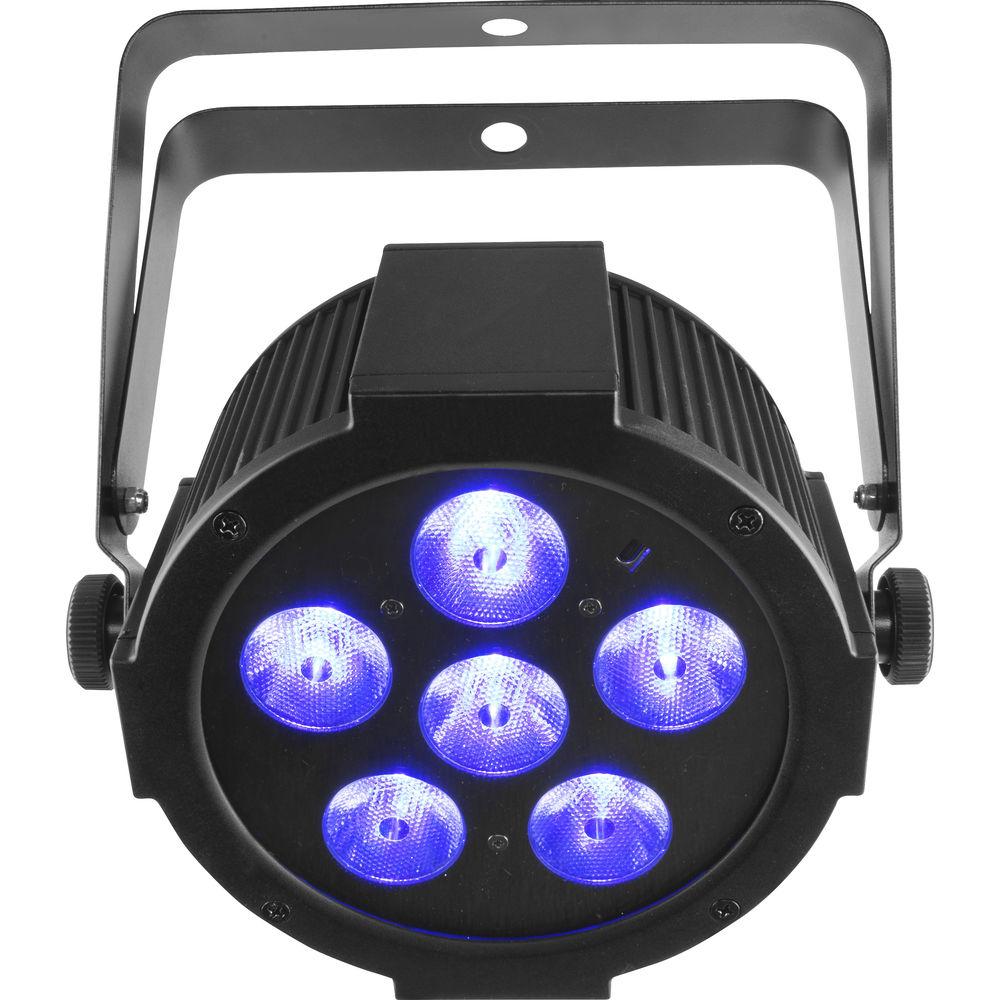

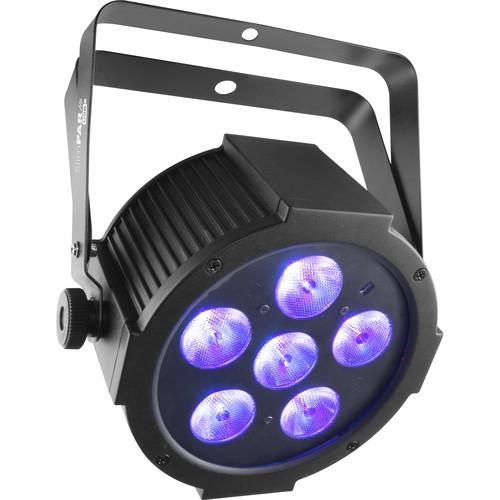

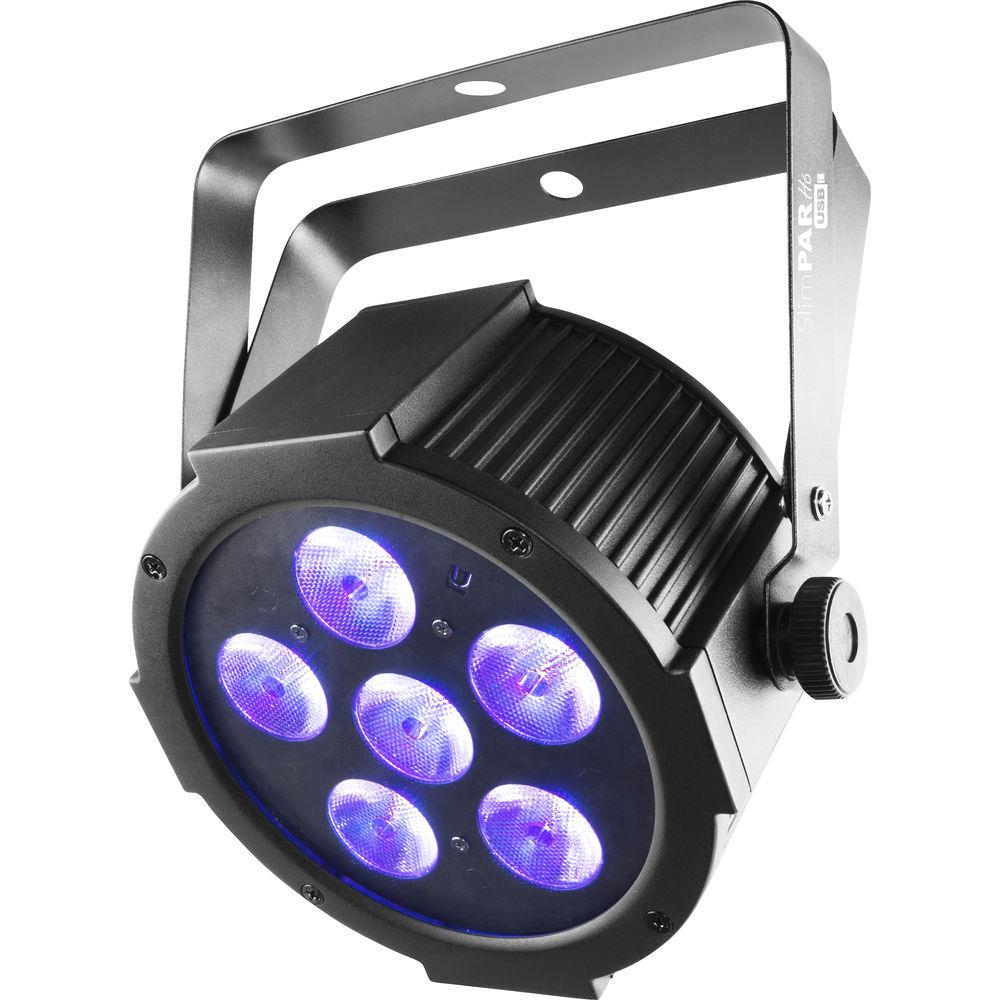

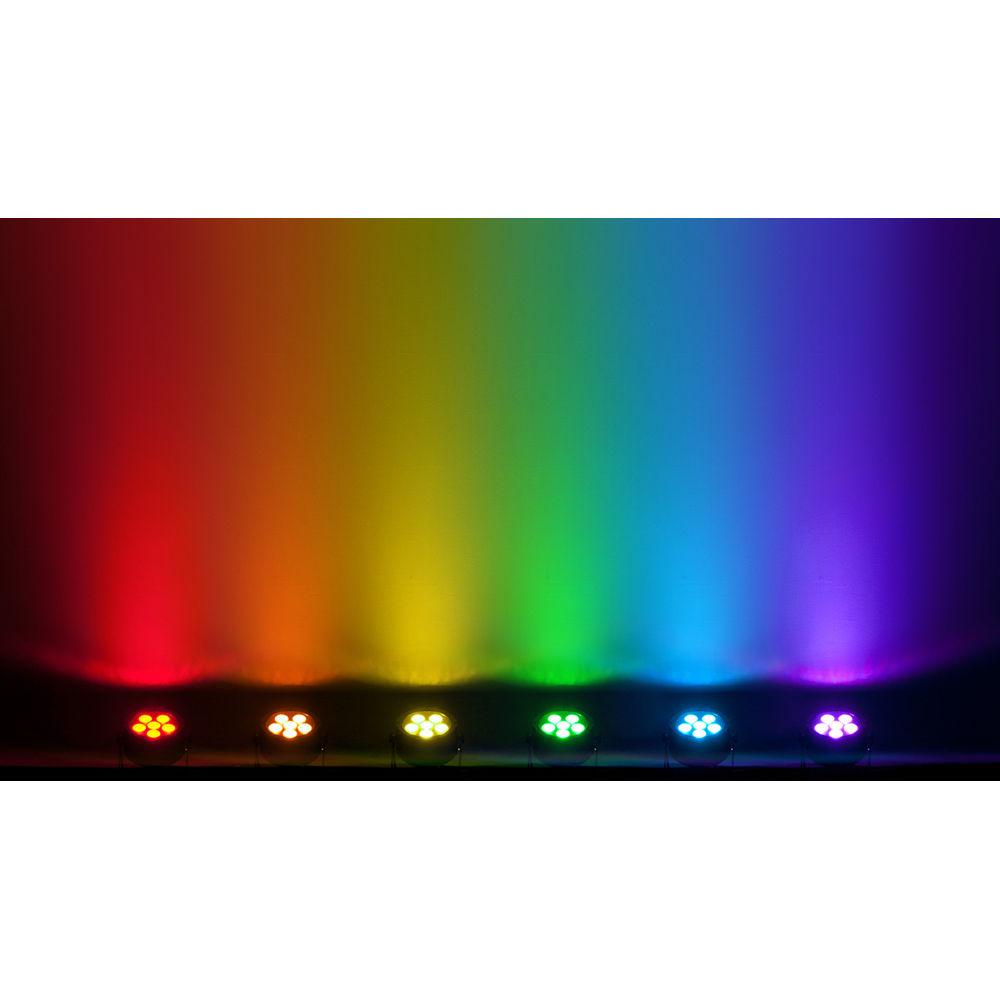

Product description The SlimPAR H6 USB from Chauvet is a low-profile, RGBAW-UW (6-in-1) LED wash light with D-Fi USB compatibility for wireless master/slave or DMX control (requires optional D-Fi USB transceiver). It also works in sound-active mode. Built-in dimming curves provide smooth LED fading, and the 6-in-1 LED technology generates a broad spectrum of natural-looking colors. Precise colors can also be created with the built-in LED display. Its compact design also makes it suitable as a truss warmer and it features a safety cable loop for additional security when mounting. This unit ships comes with a power cable. -
- Low-profile LED PAR with 6-in-1 LED technology (red, green, blue, amber, white, ultraviolet)
- D-Fi USB compatibility for wireless Master/Slave or DMX control (requires optional D-Fi USB transceiver)
- Generates a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology
- Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote
- Save time by power linking multiple units
- Multiple control options include DMX, master/slave and sound-active modes
- Customizable colors thanks to the built-in LED display
- Smooth LED fading with built-in dimming curves
- Flicker-free operation suitable for on-camera use
- Sleek and lightweight to easily fit inside trussing
UPC: 781462215088 In the Box CHAUVET DJ SlimPAR H6 USB - Wireless DMX RGBAW+UV LED Wash Light Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR H6 USB - Wireless DMX RGBAW UV LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ SlimPAR H6 USB Specs | Light Source | 6 x RGBAW+UV (6-in-1) LEDs: 10 W, 2.4 A | | Life Expectancy | 50,000 hours | | Illuminance | 747 lux @ 6.6' (2 m) | | Beam and Field Angle | Beam: 23°
Field: 41° | | Strobe Rate | 0 to 18 Hz | | PWM Frequency | 1.2 kHz | | Operational Modes | Standalone, master/slave, DMX

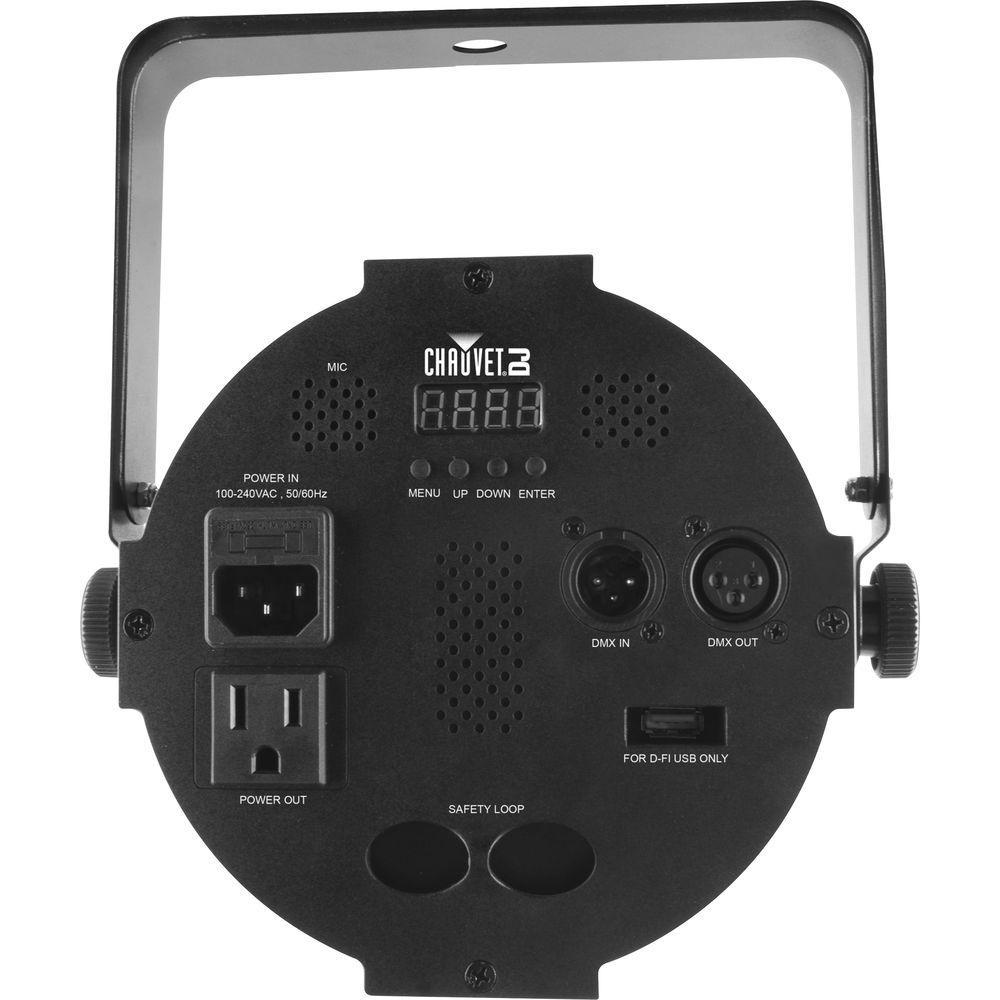

| | Built-In Programs | Automated and sound active | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 3 x Modes: 6, 8, or 12 | | Wireless Control | D-Fi USB (requires optional D-Fi USB transceivers)
IRC-6 Remote Control (available separately) | | Display/Controls | 4-character LED display
4-button control interface | | Voltage Range | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: IEC
Output: Edison | | Power Linking | 120 V: 20 units
230 V: 39 units | | Power and Current | 120 V (60 Hz): 25 W, 0.4 A
230 V (50 Hz): 23 W, 0.2 A | | Fuse | T 1 A, 250 V | | Approvals | CE | | Dimensions (L x W x H) | 8.3 x 3.6 x 9.6" (21.1 x 9.2 x 24.4 cm) | | Weight | 3.4 lb (1.6 kg) | | | | Package Weight | 5.35 lb | | Box Dimensions (LxWxH) | 12.5 x 11.0 x 5.2" |
