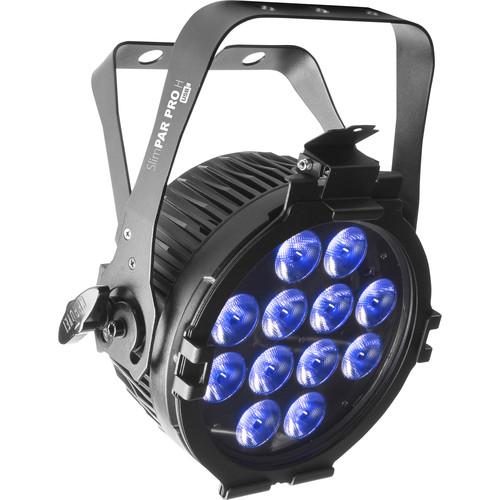

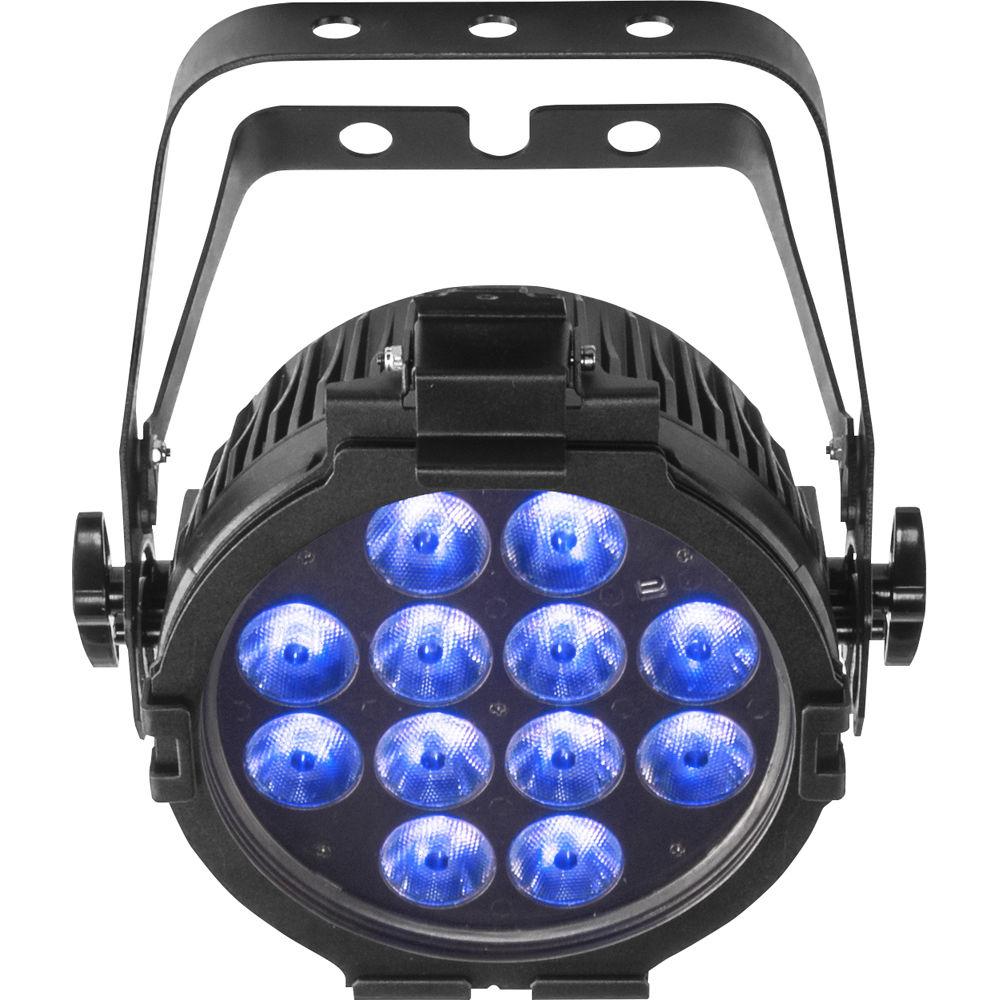

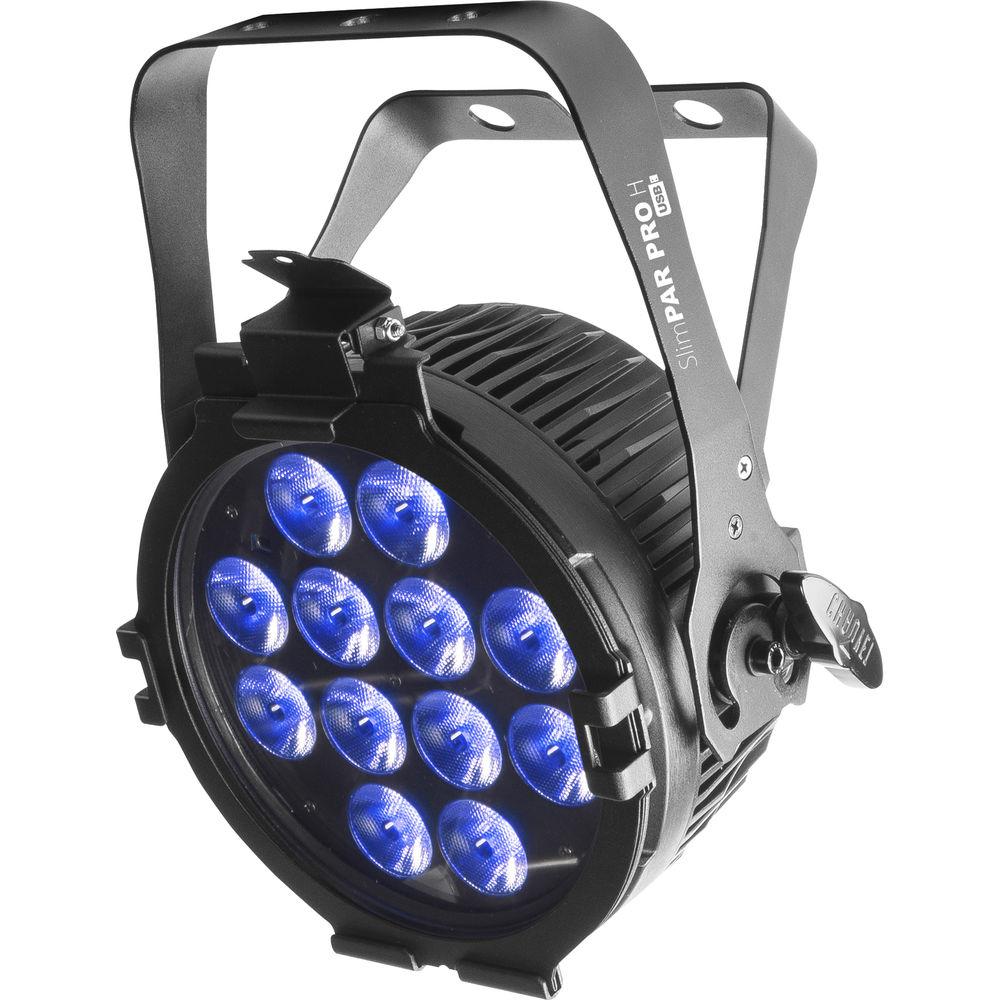

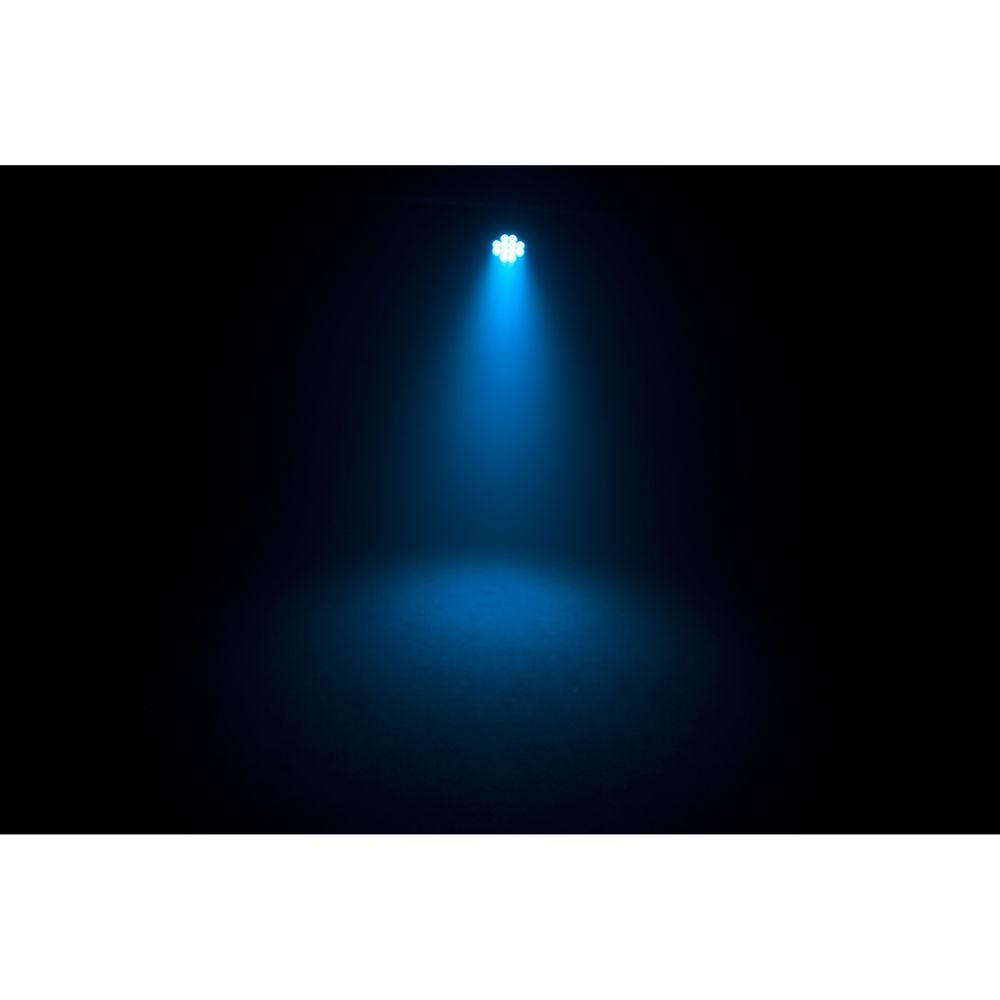

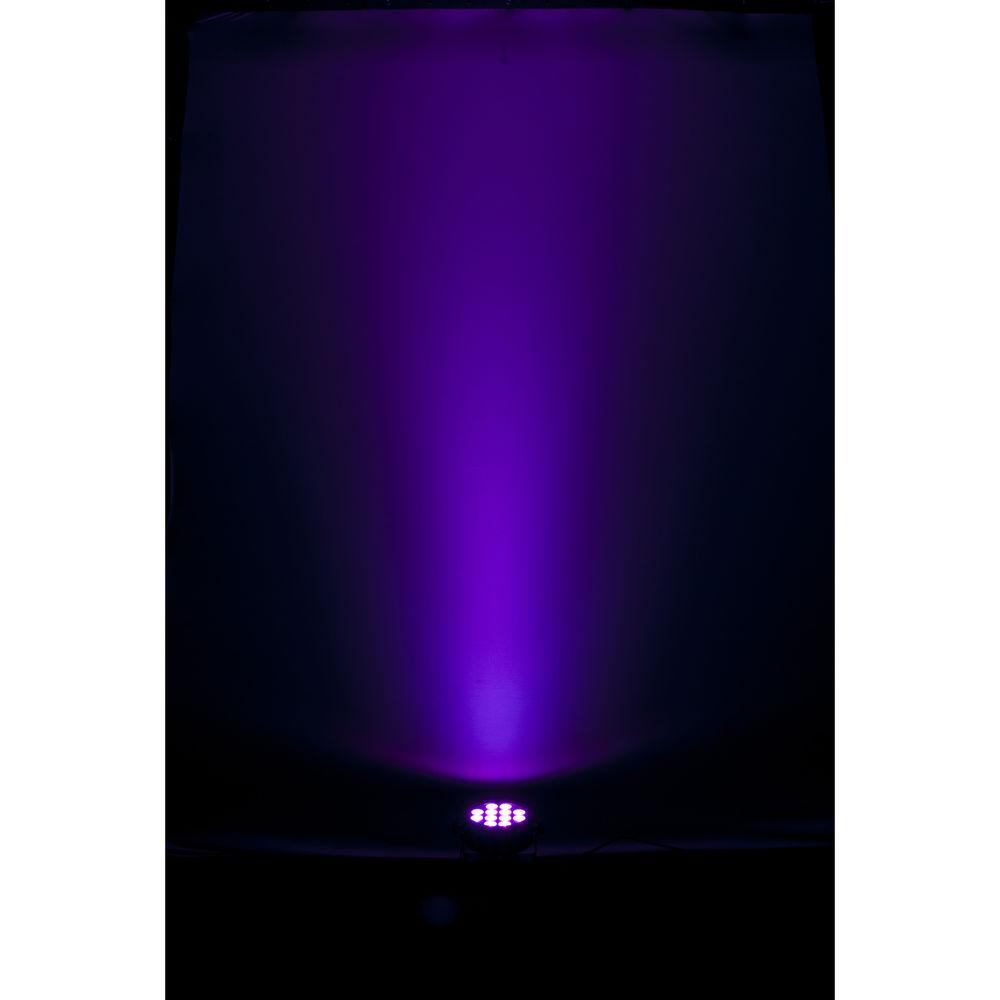

Product description The black CHAUVET DJ SlimPAR Pro H USB is a high-powered RGBAW+UV (red, green, blue, amber, white + ultraviolet) LED PAR fixture designed to produce UV-infused color washes, with a broad spectrum of colors and natural-looking color temperatures. Featuring twelve, 10W (6-in-1) hex-color LEDs that have a beam angle of 24° and a field angle of 41°, it provides wide washes for venue uplighting and heat-free illumination to performers on stage.The SlimPAR Pro H USB is equipped with a USB port that accepts the D-Fi USB transceiver (available separately). The D-Fi USB enables wireless DMX control and eliminates the need for DMX cables. The unit can also be wirelessly controlled via the IRC-6 remote (available separately).Easy to operate, the SlimPAR Pro H USB offers a standalone mode with automated programs such as Sound-Active, RGBAW+UV Dimmer, Strobe, and DMX mode for in-depth control. The Master/Slave option lets you coordinate multiple fixtures without the need for a controller.Other features include flicker-free operation (for video applications) and an auto-sensing power supply. You can also daisy-chain power for up to 5 units at 120V, or 10 units at 230V.The SlimPAR Pro H USB comes equipped with a dual-yoke bracket, which can be used for conventional mounting to a truss or lighting stand, or to create a variable-angle floor stand. The fixture ships with a gel-frame holder and gel frame. - Key Features
-
- 12 x 10W hex-color RGBAW + UV LEDs (red, green, blue, amber, white + ultraviolet) for high-power color washes
- Generates a broad spectrum of colors and achieves natural-looking color temperatures with 6-in-1 LED technology
- USB port lets you plug the D-Fi USB transceiver (available separately), for wireless Master/Slave or DMX control
- Low-profile design easily fits inside most trussing
- 24° beam angle, 41° field angle
- 3 x DMX channel modes (6, 7, or 12)
- Achieve smooth LED fading with built-in dimming curves
- Color macros
- Built-in automated programs, sound-activated
- LED strobe effect
- Standalone or Master/Slave configuration
- Flicker-free operation suitable for on-camera use
- Ideal for quiet applications due to silent operation and no moving parts
- Daisy-chain power for up to 5 units at 120V, or 10 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging
- LED display with 4-button menu for easy navigation
- Compatible with IRC-6 wireless remote
- Double-bracket yoke can be used for conventional mounting or as a variable-angle floor stand
- Compatible with most 7.5" barn doors (available separately) for added light control
- Includes a gel-frame holder and gel frame
UPC: 781462214807 In the Box CHAUVET DJ SlimPAR Pro H USB Low-Profile RGBAW+UV LED PAR (Black) Power Cord Gel Frame Gel Frame Holder Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR Pro H USB Low-Profile RGBAW UV LED PAR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ SlimPAR Pro H USB Specs | Light Source | 12 x 10 W hex-color RGBAW + UV LEDs (red, green, blue, amber, white + ultraviolet)
Current: 2.4 A
Life Expectancy: 50,000 hours | | Illuminance | 3218 lux at 6.6' / 2 m | | Beam and Field Angle | Beam Angle: 24°
Field Angle: 41° | | PWM Frequency | 1.2 kHz | | Operating Modes | DMX
Master/Slave
Standalone | | Effects | Electronic Dimming: 0-100%, with dimming curves
Auto Programs
Sound-Active
Color macros
Strobe: Variable from 0 to 31 Hz | | DMX Interface | DMX Channels Modes: 6, 7, or 12

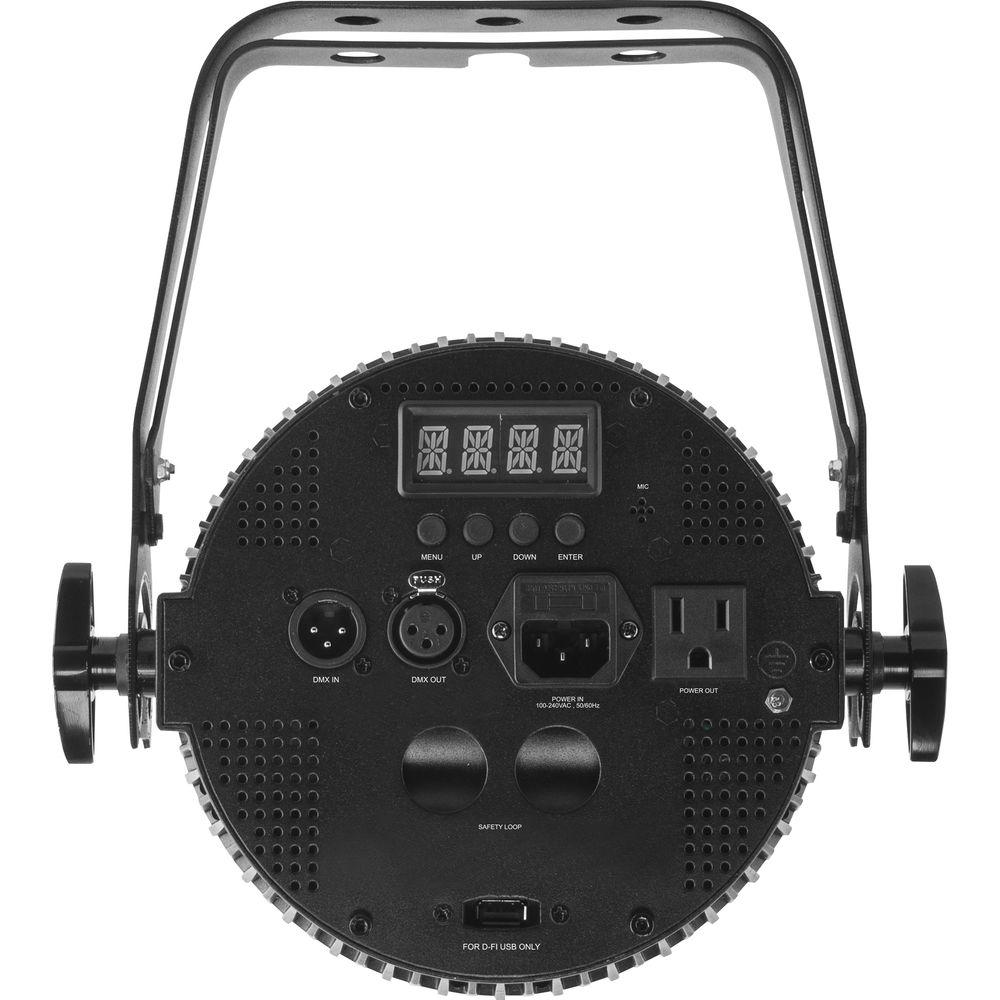

DMX Connectors: 3-pin XLR, in/out | | Wireless Control | D-Fi USB transceiver (available separately)
IRC-6 Remote (available separately) | | Display/Controls | 4-character LED display
4-button control interface | | Power Linking | 5 units, 8 A at 120 V
10 units, 8 A at 230 V | | Power Requirements | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: IEC
Output: Edison | | Power and Current | 120 V (60 Hz): 99 W, 1.4 A
230 V (50 Hz): 96 W, 0.8 A | | Fuse | F 2 A, 250 V | | Mounting | Double-bracket yoke | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Approvals | CE, MET | | Dimensions | 10 x 3.9 x 11.4" / 253 x 98 x 290 mm | | Weight | 7.3 lb / 3.3 kg | | | | Package Weight | 9.9 lb | | Box Dimensions (LxWxH) | 13.4 x 11.7 x 5.7" |
