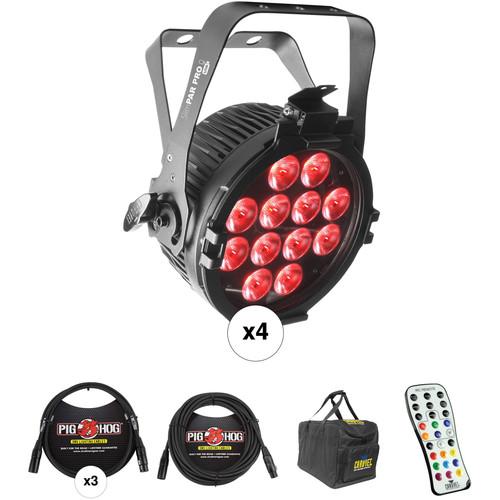

User Manual for CHAUVET DJ SlimPAR Pro Q USB Kit with 4 RGBA LED Wash Lights, Cables, Case, and Remote Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ SlimPAR Pro Q USB
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
|
User manual for the CHAUVET DJ SlimPAR Pro Q USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description This B&H Kit combines four CHAUVET DJ SlimPAR Pro Q USB Low-Profile RGBA LED Wash Lights with three 5' DMX cables, a 25' DMX cable, a padded gear bag, and an infrared remote control to create a professional lighting package for mobile DJs, theaters, and clubs, well suited for venue uplighting and heat-free illumination of performers on stage. - 4 x CHAUVET DJ SlimPAR Pro Q USB Low-Profile RGBA LED Wash Light The CHAUVET DJ SlimPAR Pro Q USB is a high-powered RGBA (red, green, blue, amber) LED PAR fixture designed to produce a broad spectrum of amber-infused color washes with natural-looking color temperatures. Featuring twelve, 6W (4-in-1) quad-color LEDs that have a beam angle of 16° and a field angle of 31°, it provides wide washes for venue uplighting and heat-free illumination to performers on stage. The SlimPAR Pro Q USB is equipped with a USB port that accepts the D-Fi USB transceiver (available separately). The D-Fi USB enables wireless DMX control and eliminates the need for DMX cables. The unit can also be wirelessly controlled via the IRC-6 remote (available separately).Easy to operate, the SlimPAR Pro Q USB offers a standalone mode with automated programs such as Sound-Active, RGBA Dimmer, Strobe, and DMX mode for in-depth control. The Master/Slave option lets you coordinate multiple fixtures without the need for a controller.Other features include flicker-free operation (for video applications) and an auto-sensing power supply. You can also daisy-chain power for up to 7 units at 120V, or 13 units at 230V.The low-profile SlimPAR Pro Q USB comes equipped with a dual-yoke bracket that can be used for conventional mounting to a truss or lighting stand, or to create a variable-angle floor stand. The fixture ships with a gel-frame holder and gel frame.
- Key Features
-
- 12 x 6W quad-color RGBA + UV LEDs (red, green, blue, amber) for high-power color washes
- Generates a broad spectrum of colors and achieves natural-looking color temperatures with vibrant amber hues
- USB port lets you plug the D-Fi USB transceiver (available separately), for wireless Master/Slave or DMX control
- Low-profile design easily fits inside most trussing
- 16° beam angle, 31° field angle
- 3 x DMX channel modes (4, 5, or 10)
- Achieve smooth LED fading with built-in dimming curves
- Color macros
- Built-in automated programs, sound-activated
- LED strobe effect
- Standalone or Master/Slave configuration
- Flicker-free operation suitable for on-camera use
- Ideal for quiet applications due to silent operation and no moving parts
- Daisy-chain power for up to 7 units at 120V, or 13 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging
- LED display with 4-button menu for easy navigation
- Compatible with IRC-6 wireless remote
- Double-bracket yoke can be used for conventional mounting or as a variable-angle floor stand
- Compatible with most 7.5" barn doors (available separately) for added light control
- Includes a gel-frame holder and gel frame
UPC: 781462214791 - 3 x Pig Hog 3-Pin XLR DMX Cable (5') Featuring extra-thick 8 mm wire, performance quality connectors, and tension-resistant stress relief, this 5' Pig Hog DMX Cable from Strukture is overbuilt precisely to stand up to the most grueling tour conditions imaginable. Consequently, Pig Hog cables have "no questions" lifetime guarantee. UPC: 672485347156
- Pig Hog 3-Pin XLR DMX Cable (25') Featuring extra-thick 8 mm wire, performance quality connectors, and tension-resistant stress relief, this 25' Pig Hog DMX Cable from Strukture is overbuilt precisely to stand up to the most grueling tour conditions imaginable. Consequently, Pig Hog cables have "no questions" lifetime guarantee. UPC: 672485347170
- CHAUVET DJ CHS-30 VIP Gear Bag for Four SlimPAR Tri or Quad IRC Light Fixtures Store, protect, and transport your lights and accessories with the black CHS-30 VIP Gear Bag for Four SlimPAR Tri or Quad IRC Light Fixtures from Chauvet Lighting. A well-designed bag, it has five internal compartments formed by four, padded dividers, and 2 exterior, zippered, accessory compartments. Dual zipper pulls enable quick access to the main compartment. Carry your VIP gear bag with the dual top handles and touch-fastening connector.
- Carries up to 4 Chauvet DJ lights, connecting cables, and controller
- Features 7 compartments: 2 external and 5 internal
- Padded compartments safeguard fixture
- Compatible with SlimPAR TRI 7 IRC, SlimPAR TRI 12 IRC, PIX PAR12, SlimPAR Quad 6 IRC, SlimPAR Quad 12 IRC, SlimPAR PRO RGBA, SlimPAR PRO Tri, and SlimPAR PRO VW, or other similar fixtures
UPC: 781462209513 - CHAUVET DJ IRC-6 Infrared Remote Control 6 The Chauvet IRC-6 Infrared Remote Control 6 is designed for controlling lighting parameters on Chauvet IRC products. The controller operates using infrared light with a maximum unobstructed operating distance of 15'. It can control parameters such as strobe, speed, sensitivity, fade, blackout, sound activation mode, color percentages, and access pre-programmed shows without the need for a DMX controller. UPC: 781462211516
In the Box - 4 x SlimPAR Pro Q USB Low-Profile RGBA LED Wash Light sdezcxfcsrzrra
- Power Cord
- Gel Frame
- Gel Frame Holder
- Limited 2-Year Warranty
- 3 x Pig Hog - 3-Pin XLR DMX Cable (5')
- Pig Hog - 3-Pin XLR DMX Cable (25')
- CHS-30 VIP Gear Bag for Four SlimPAR Tri or Quad IRC Light Fixtures
- IRC-6 Infrared Remote Control 6
Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR Pro Q USB Kit with 4 RGBA LED Wash Lights, Cables, Case, and Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4 x CHAUVET DJ SlimPAR Pro Q USB Low-Profile RGBA LED Wash Light
| Light Source | 12 x 6 W quad-color RGBA LEDs (red, green, blue, amber)
Current: 2 A
Life Expectancy: 50,000 hours | | Illuminance | 4220 lux at 6.6' / 2 m | | Beam and Field Angle | Beam Angle: 16°
Field Angle: 31° | | Operating Modes | DMX
Master/Slave
Standalone | | Effects | Electronic Dimming: 0-100%, with dimming curves
Auto Programs
Sound-Active
Color macros
Strobe: Variable from 0 to 31 Hz | | DMX Interface | DMX Channels Modes: 4, 5, or 10
DMX Connectors: 3-pin XLR, in/out | | Wireless Control | D-Fi USB transceiver (available separately)
IRC-6 remote (available separately) | | Display/Controls | 4-character LED display
4-button control interface | | Power Linking | 7 units, 8 A at 120 V
13 units, 8 A at 230 V | | Power Requirements | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: IEC
Output: Edison | | Power and Current | 120 V (60 Hz): 82 W, 1.0 A
230 V (50 Hz): 78 W, 0.6 A | | Fuse | F 2 A, 250 V | | Mounting | Double-bracket yoke | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Approvals | CE, MET, RoHS | | Dimensions | 10 x 3.9 x 11.4" / 253 x 98 x 290 mm | | Weight | 7.3 lb / 3.3 kg | | | | Box Dimensions (LxWxH) | 13.2 x 11.7 x 5.9" | - 3 x Pig Hog 3-Pin XLR DMX Cable (5')
| | | Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 5' / 1.52 m | | | | Box Dimensions (LxWxH) | 8.5 x 7.5 x 0.75" | - Pig Hog 3-Pin XLR DMX Cable (25')
| | | Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 25' / 7.62 m | | | | Box Dimensions (LxWxH) | 8.5 x 8.0 x 1.5" | - CHAUVET DJ CHS-30 VIP Gear Bag for Four SlimPAR Tri or Quad IRC Light Fixtures
| | | Compartment Dimensions (W x H x D) | 12 x 11 x 3.5" / 25.4 x 28 x 8.9 cm (Each) | | | | Closure Type | Zipper | | Carry and Transport Options | 2 x Connecting Handstrap | | Exterior Dimensions (W x H x D) | 18.5 x 11.8 x 9.4" / 47 x 30 x 24 cm | | Weight | 2 lb / 907 g | | | | Box Dimensions (LxWxH) | 14.173 x 11.26 x 9.528" | - CHAUVET DJ IRC-6 Infrared Remote Control 6
| Operating Range | Maximum unobstructed distance: 15' (4.6 m) | | Input Voltage | 3 VDC lithium battery (CR2025) | | Approvals | CE | | Dimensions | 3.9 x 1.8 x 0.3" (100 x 47.0 x 7.00 mm) | | Weight | 0.7 oz (20 g) | | | | Box Dimensions (LxWxH) | 4.75 x 4.3 x 0.3" |
