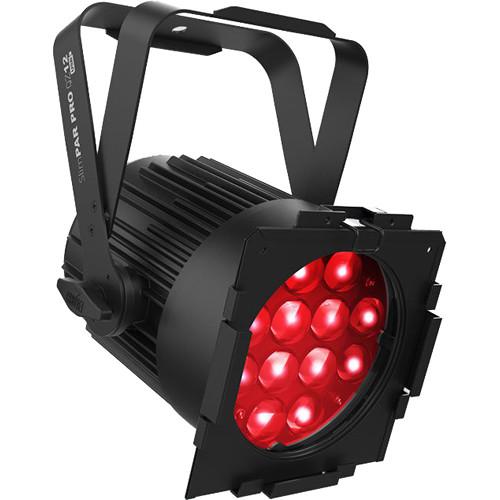

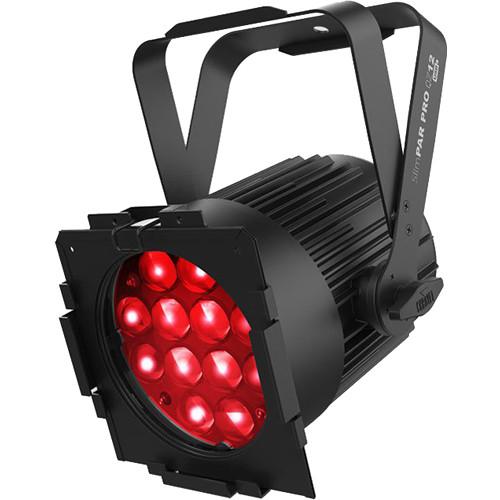

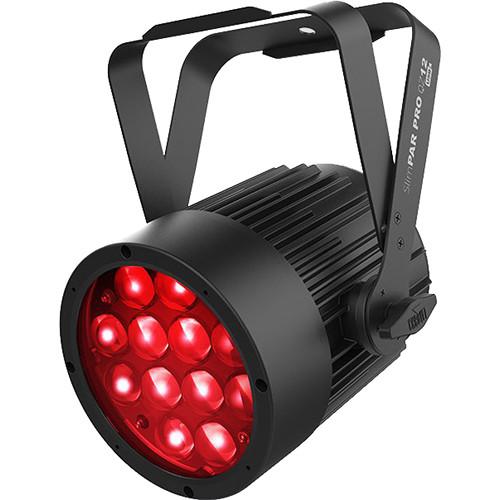

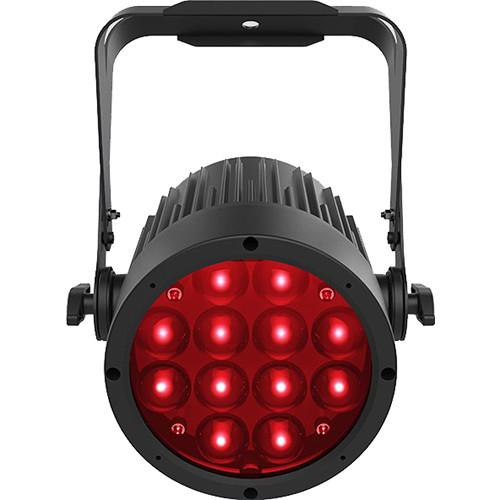

Product description The CHAUVET DJ SlimPAR Pro QZ12 USB is a high-powered RGBA (red, green, blue, amber) LED PAR fixture designed to produce a broad spectrum of amber-infused color washes with natural-looking color temperatures. Featuring twelve, 10W (4-in-1) quad-color LEDs and a motorized zoom for beam angles ranging from 10 to 50°, it provides wide washes for venue uplighting and heat-free illumination to performers on stage.Easy to operate, the SlimPAR Pro QZ12 USB offers a standalone mode with automated programs such as Sound-Active, RGBA Dimmer, Strobe, and DMX mode for in-depth control. It is equipped with a USB port that accepts the D-Fi USB transceiver (available separately), which enables wireless DMX control and eliminates the need for DMX cables. The Master/Slave option lets you coordinate multiple fixtures without the need for a controller.Other features include flicker-free and silent fanless operation (for video applications), and an auto-sensing power supply. You can also daisy-chain power for up to 9 units at 120V, or 17 units at 230V.The SlimPAR Pro QZ12 USB comes equipped with a dual-yoke bracket that can be used for conventional mounting to a truss or lighting stand, or to create a variable-angle floor stand. The fixture ships with a gel frame. - Key Features
-
- Robust wash light with motorized zoom designed for mobile lighting professionals
- 12 x 10W quad-color RGBA (red, green, blue, amber) LEDs
- Zoom angle: 10 to 50° (beam to field)
- 3 x DMX channel modes
- USB port lets you plug in the D-Fi USB transceiver (available separately) for wireless Master/Slave or DMX control
- Standalone and Master/Slave configuration
- Built-in automated programs, sound-activated
- Color macros
- LED strobe effect
- 0 to 100% dimming curves simulate halogen filaments
- Daisy-chain power for up to 9 units at 120V, or 17 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging
- powerCON connectors for secure power connections and power linking

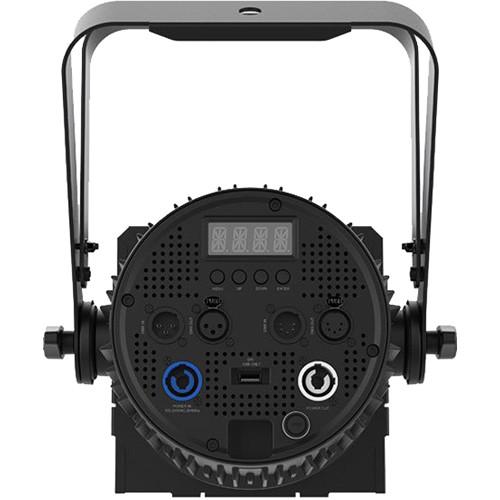

- LED display with 4-button menu for easy navigation
- Flicker-free and silent fanless design for video applications
- Double-bracket yoke can be used for conventional mounting or as a variable-angle floor stand

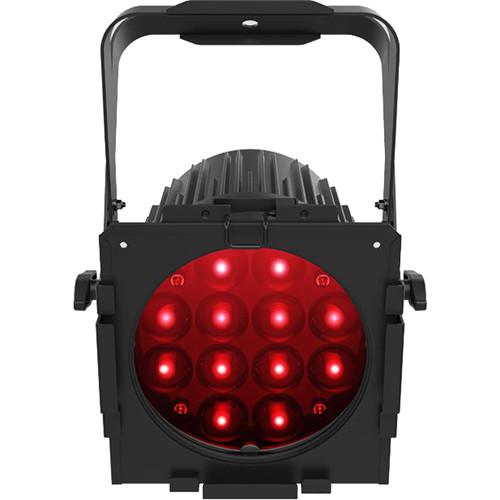

- Built-in gel frame holder and 7.5" accessory slot to hold barn doors
- Includes gel frame
UPC: 781462217884 In the Box CHAUVET DJ SlimPAR Pro QZ12 USB RGBA LED Wash Light Gel Frame powerCON Power Cord Hanging Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR Pro QZ12 USB RGBA LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ SlimPAR Pro QZ12 USB Specs | Light Source | 12 x 10 W quad-color RGBA LEDs (red, green, blue, amber)
Current: 2.7 A
Life Expectancy: 50,000 hours | | Illuminance | 16,070 lux at 6.6' / 2 m (10°)
1216 lux at 6.6' / 2 m (50°) | | PWM Frequency | 1200 Hz | | Zoom Angle | 10 to 50° (beam to field) | | Operating Modes | DMX
Master/Slave
Standalone | | Effects | Zoom in and outElectronic Dimming: 0-100%, with slow to fast dimming curves
Auto Programs
Sound-Active
Color macros
Strobe: Variable from 0 to 29 Hz | | DMX Interface | DMX Channels Modes: 5, 6, or 11
| | DMX Connectors | 3-pin XLR, in/out
5-pin XLR, in/out | | Wireless Control | D-Fi USB transceiver (available separately) | | Manual Controls | 4-character LED display
4-button control interface | | Power Linking | 9 units, 8 A at 120 V
17 units, 8 A at 230 V | | Power Requirements | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: 1 x powerCON
Output: 1 x powerCON | | Power and Current | 120 V (60 Hz): 100 W, 0.8 A
230 V (50 Hz): 112 W, 0.4 A | | Cooling System | Fanless | | Mounting | Double-bracket yoke | | Approvals | CE, MET, RoHS | | Dimensions | 9.2 x 10.6 x 12.5" / 233.7 x 269.2 x 317.5 mm | | Weight | 10.2 lb / 4.6 kg |
