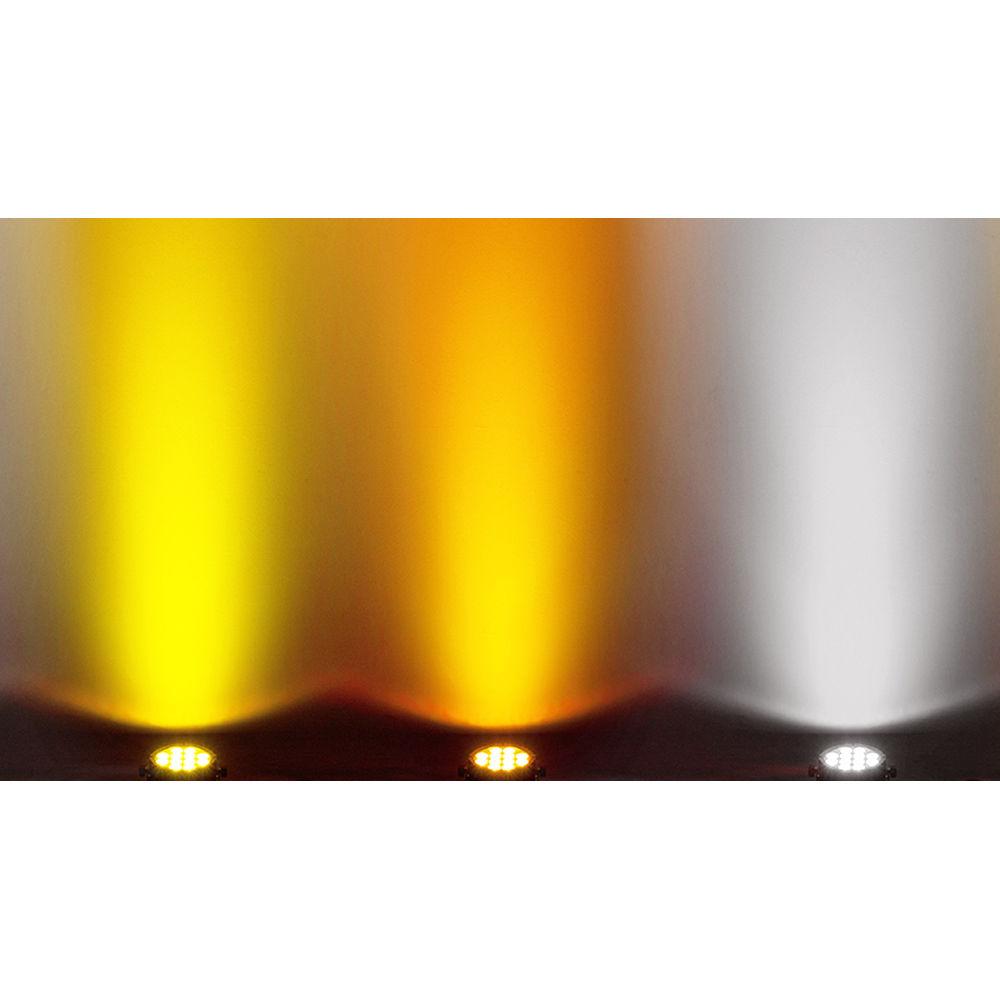

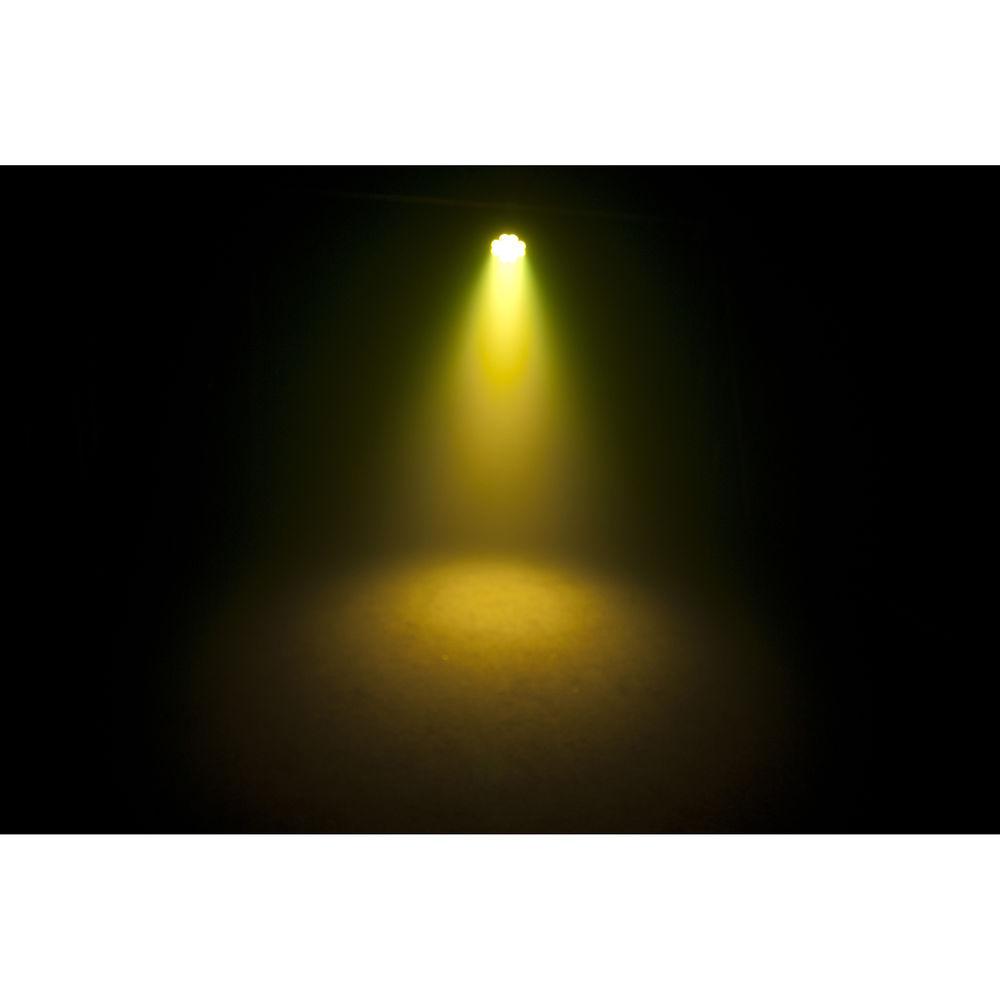

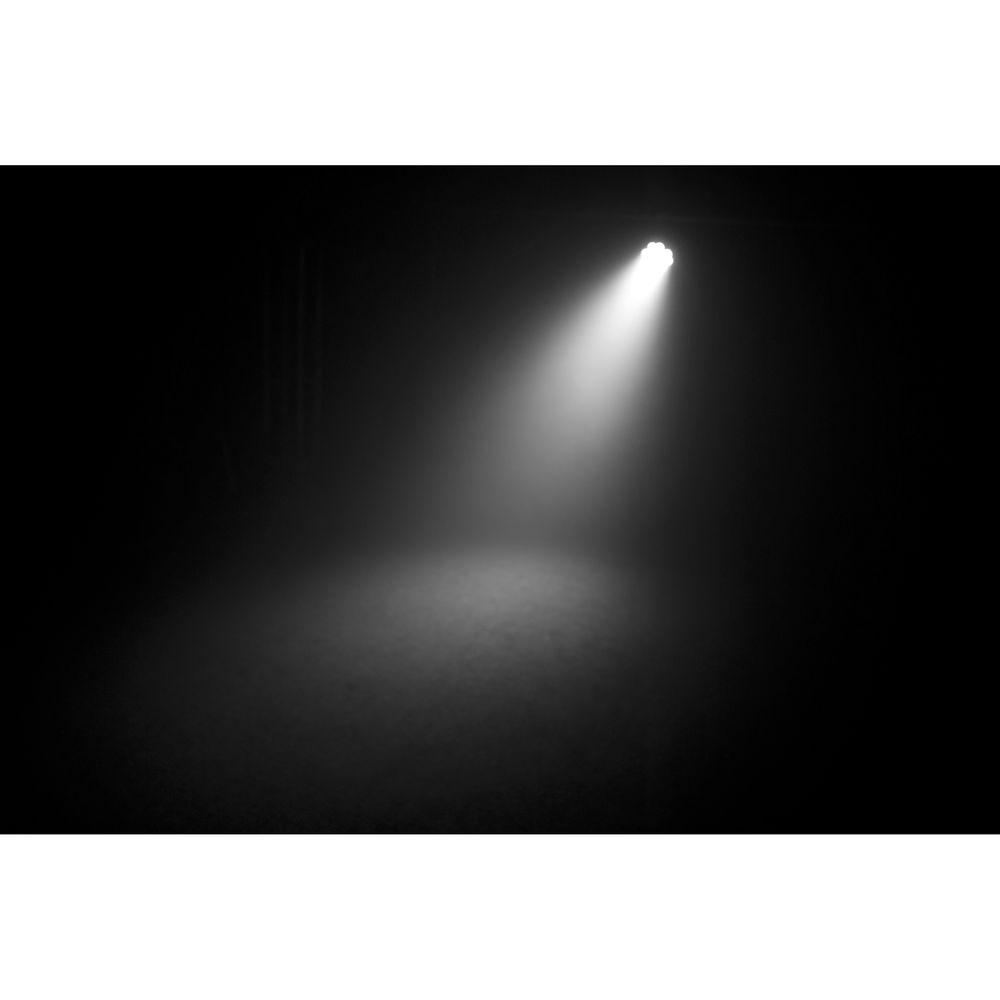

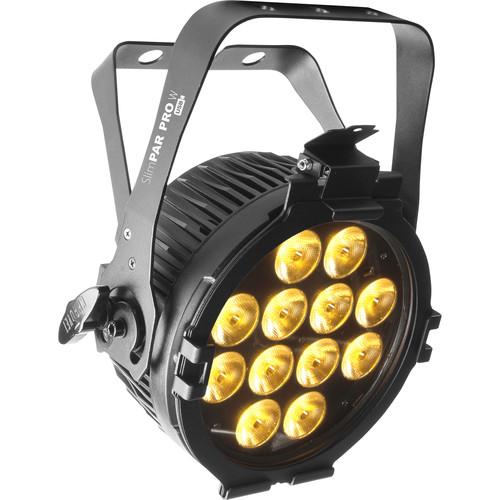

Product description Wash your scene in various shades of white and amber with the CHAUVET DJ SlimPAR Pro W USB. Housed in a low-profile black enclosure, it features 12 tricolor LEDs, each with cool-white, warm-white, and amber diodes, as well as a beam angle of 17° and a field angle of 33°. With built-in dimming curves that simulate halogen filaments and flicker-free, silent operation, the fixture is well suited for matching the light temperature to existing fixtures or ambient light in video applications.The SlimPAR Pro W USB allows for both wired and wireless operation in either standalone or DMX-controlled configurations. Plug a D-Fi USB transceiver (available separately) into the fixture's USB port and pair with a D-Fi-enabled controller for instant, wireless DMX communication, or use a standard 3-pin DMX cable for wired connection. Three DMX channel modes (3-, 4-, and 9-channel) enable varying levels of control over the fixture. For operation without a DMX controller, use the built-in programs in either Sound-Active or automatic mode. You can even synchronize multiple units via Master/Slave control, to create coordinated light shows. Additional controls include an on-board menu with digital display and the IRC-6 wireless remote (available separately).
The SlimPar Pro W USB supports power-linking via its pass-through IEC input and Edison output. Connect a single IEC power cable to the wall and daisy-chain up to 9 units at 120V, or up to 17 units at 230V. The universal, auto-ranging power supply ensures functionality from 100 to 240 VAC. A double-bracket yoke allows for various angle adjustments for flexible positioning on the floor or on a truss, and a safety-cable loop provides additional safety when truss-mounted. The fixture ships with a power cord, a gel frame, and a gel frame holder. - Lighting
-

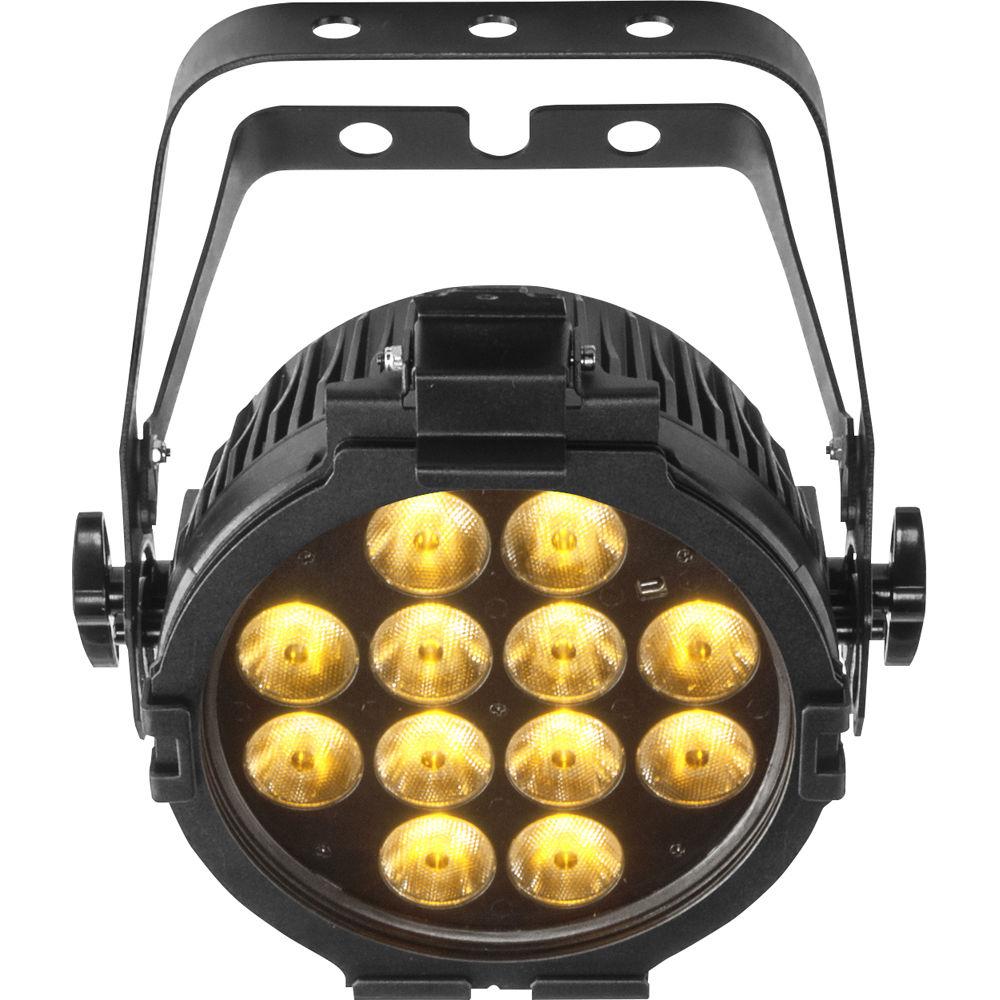

- 12 x 6W tricolor LEDs (cool-white, warm-white, and amber) provide variable white washes
- Adjustable white color temperatures can match ambient daylight, tungsten light, or anything in-between
- Variable electronic dimmer – 0-100%
- Built-in dimming curves provide smooth LED fading that simulates halogen filaments
- Flicker-free and silent operation for video applications

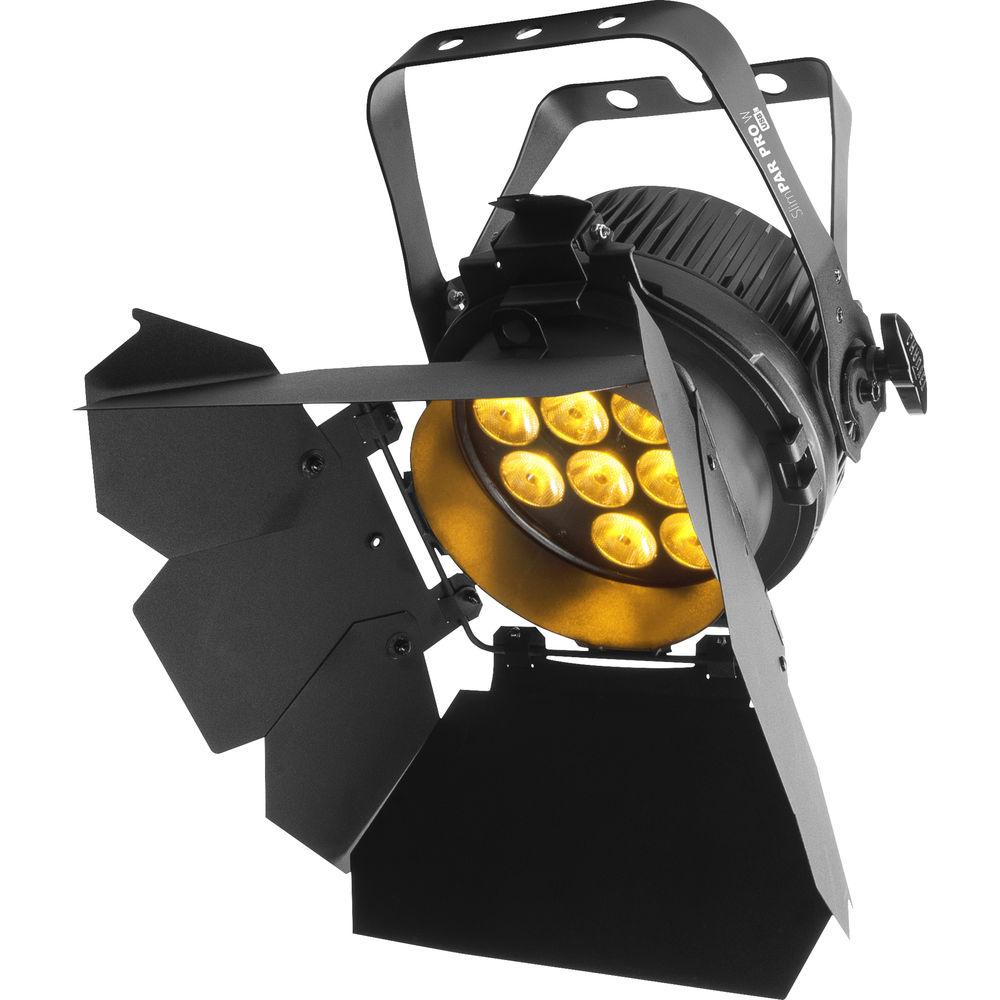

- Compatible with most 7.5" barn doors (available separately) for added light control
- Includes gel frame and gel frame holder
- Operation
-
- Three DMX channel modes – 3, 4, and 9 channels
- Sound-Active mode allows the fixture to be controlled by the beat of the music
- Variable strobe effect – 0-31 Hz
- Use Master/Slave configuration with other SlimPAR Pro W USB fixtures for a coordinated show
- Trigger eye-catching effects with built-in automated programs
- Easily control static colors and automated programs with the IRC-6 wireless remote (available separately)
- D-Fi USB compatibility offers wireless Master/Slave or DMX control
- Other Features
-
- 4-digit LED display with 4-button control panel
- Daisy-chain power for up to 9 fixtures at 120V
- Multi-voltage operation - 100-240 VAC, 50/60 Hz
- Double-bracket yoke doubles as floor stand
UPC: 781462214814 In the Box CHAUVET DJ SlimPAR Pro W USB Variable White LED Wash Light (Black) Power Cord Gel Frame Gel Frame Holder Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR Pro W USB Variable White LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ SlimPAR Pro W USB Specs | LED Source | 12 x 6 W tricolor CW/WW/A (cool white, warm white, amber) LEDs
Current: 1.4 A
Life Expectancy: 50,000 hours | | Beam and Field Angle | Beam: 17°
Field: 33° | | Illuminance | 3097 lux at 6.6' (2 m) | | PWM Frequency | 1.2 kHz | | DMX | Connectors: 3-Pin XLR, in/out
Channel Modes: 3, 4, 9 | | Dimming | 0-100%, electronic | | Strobe Rate | 0 to 31 Hz | | Operation Modes | Strobe (variable)
Static Color with color macros
Sound-Active
Auto Programs
Standalone
Master/Slave
DMX | | Wireless Control | D-Fi USB compatibility (requires hardware available separately)

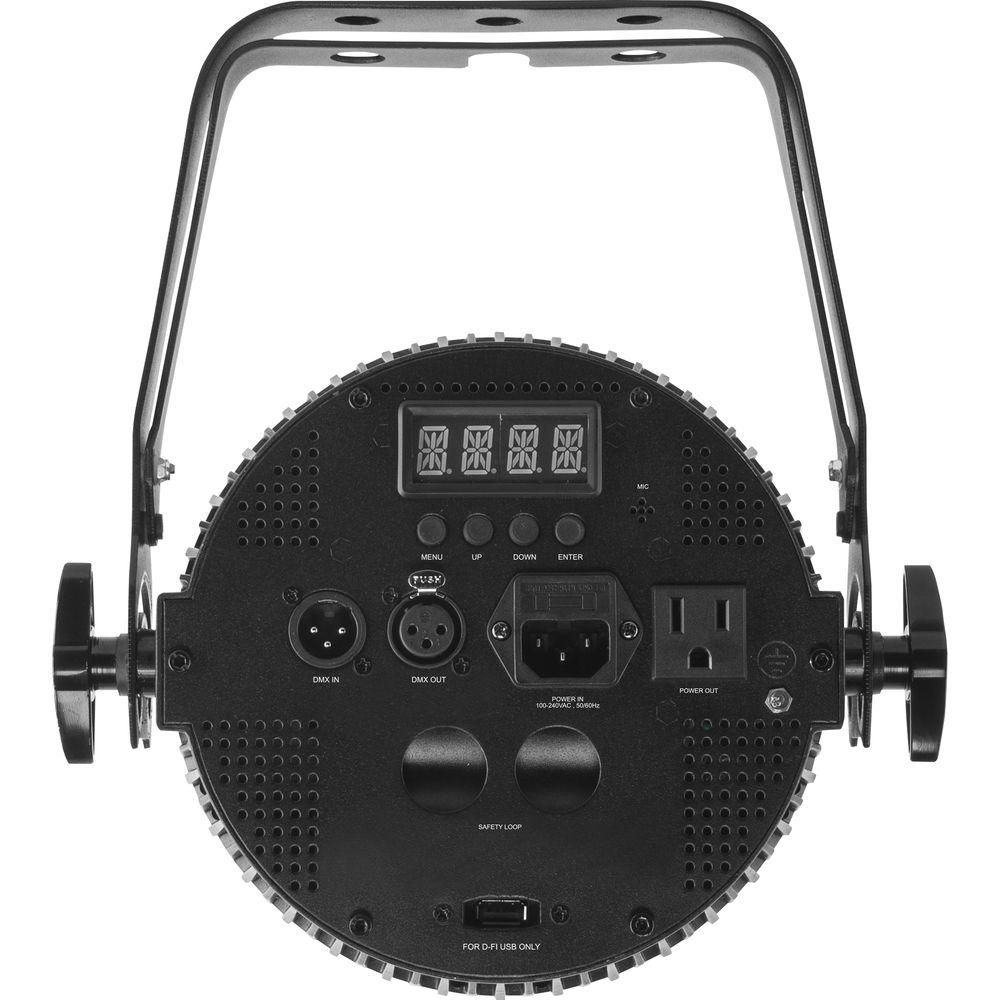

IRC-6 wireless remote (available separately) | | USB Port | D-Fi USB port | | Display/Controls | 4-digit LED display with 4-button control panel | | Power Connectors | Input: 1 x IEC
Output: 1 x Edison | | Input Voltage | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Linking | 9 units, 8 A at 120 VAC
17 units, 8 A at 230 VAC | | Power and Current | 59 W, 0.9 A at 120 V, 60 Hz
58 W, 0.5 A at 230 V, 50 Hz | | Fuse | F 2 A, 250 VAC (replaceable) | | Mounting | Double-bracket yoke
Safety-cable loop | | Operating Temperature | Maximum External Temperature: 104°F (40°C) | | Cooling System | Convection | | Approvals and Certifications | MET, CE, and RoHS | | Dimensions (L x W x H) | 10.0 x 3.9 x 11.4" (25.3 x 9.8 x 29.0 cm) | | Weight | 7 lb (3.2 kg) | | | | Package Weight | 9.65 lb | | Box Dimensions (LxWxH) | 13.2 x 11.7 x 6.0" |
