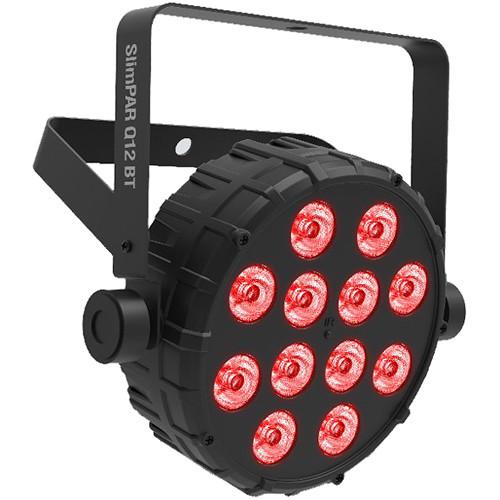

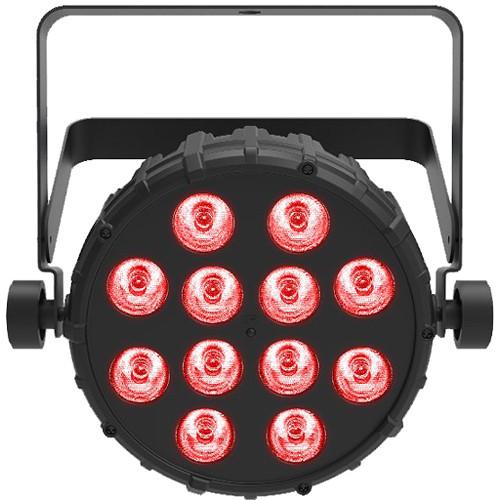

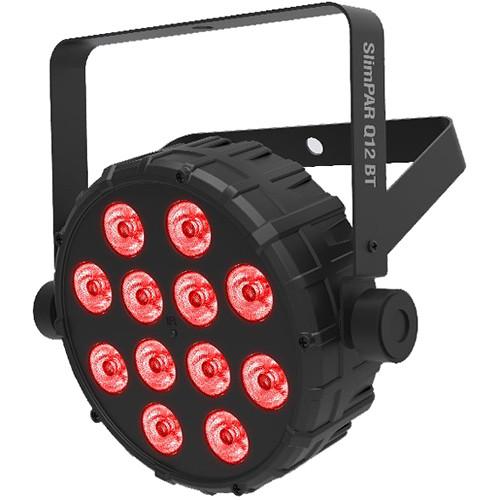

Product description The CHAUVET DJ SlimPAR Q12 BT is a compact LED PAR with built-in Bluetooth wireless technology, allowing you to control the fixture from any smart phone or tablet without any additional hardware. The fixture utilizes twelve quad-color RGBA (red, green, blue, amber) 3.5W LEDs that generate a broad spectrum of colors and can achieve a natural-looking color temperature with punchy amber LEDs.
The SlimPAR Q12 BT can set static colors or automated programs by utilizing the free BTAir control app, via DMX, or via the optional IRC-6 remote. DMX channel modes include 12 or 4 for simple to advanced controls. Additionally, up to 11 units (@120 V) can be power linked, which helps simplify setup and cabling. The CHAUVET DJ SlimPAR Q12 BT ships with a standard IED power cord, hanging bracket, and mounting hardware. - Key Features
-
- Compact wash light with built-in Bluetooth wireless technology
- Control directly from a smart phone or tablet without any additional hardware
- Easily set static colors or automated programs with the optional IRC-6 remote
- Save time running cables and extension cords by power linking multiple units
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
- Generate eye-catching effects with sound-activated and automated programs
- Compatible with the CHS-40 VIP gear bag
UPC: 781462217754 In the Box CHAUVET DJ SlimPAR Q12 BT Compact Wash LED (RGBA) PAR with Bluetooth Power Cord Mounting Hardware Hanging Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR Q12 BT Compact Wash LED PAR with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ SlimPAR Q12 BT Specs | DMX | DMX Channels: 12 or 4
DMX Connectors: 3-pin XLR | | Maximum Unobstructed Distance | 150.0' / 45.7 m | | Light Source | 12 x LED (RGBA) 3.5 W, (1.5 A)
Current: 2.4 A
Life Expectancy: 50,000 hours | | Strobe Rate | 0 to 25 Hz | | PWM Frequency | 7.8 kHz | | Beam and Field Angle | Beam Angle: 18°

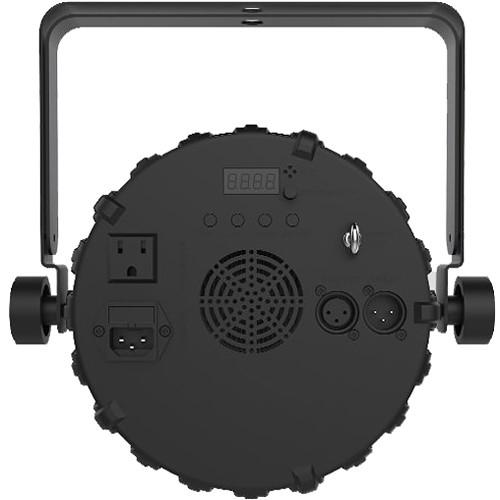

Field Angle: 35° | | Operating Frequency | 2.4 GHz | | Illuminance | 2893 lux at 6.6' / 2 m | | Bluetooth | 4.2 | | Display/Controls | 4-character LED display
4-button control interface | | Power Linking | 11 units at 120 V
20 units at 230 V | | Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
49 W, 0.7 A at 120 V, 60 Hz
48 W, 0.3 A at 230 V, 50 Hz | | Power Connectors | Input: IEC
Output: Edison | | Mounting | Double-bracket yoke | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Approvals | CE, FCC | | Dimensions | 10.9 x 10.8 x 2.9" / 276.9 x 274.3 x 73.7 mm | | Weight | 3.2 lb / 1.5 kg |
