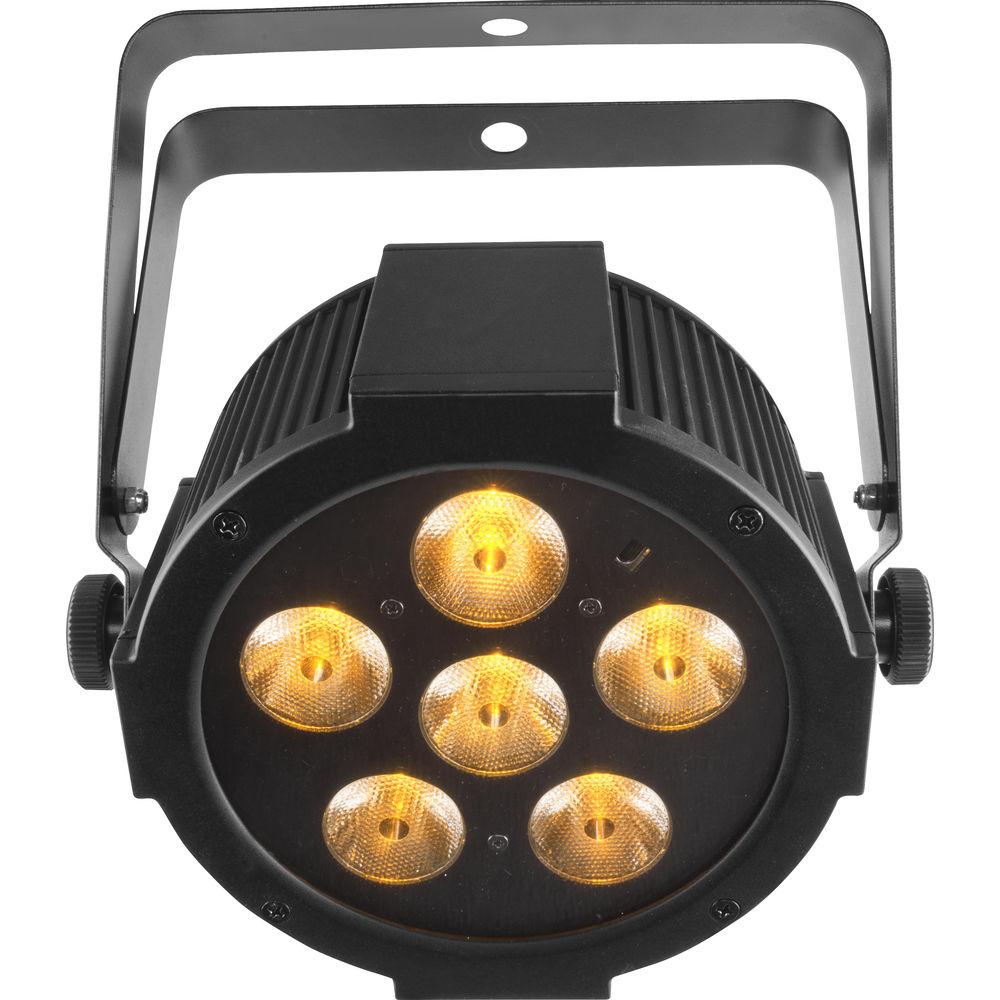

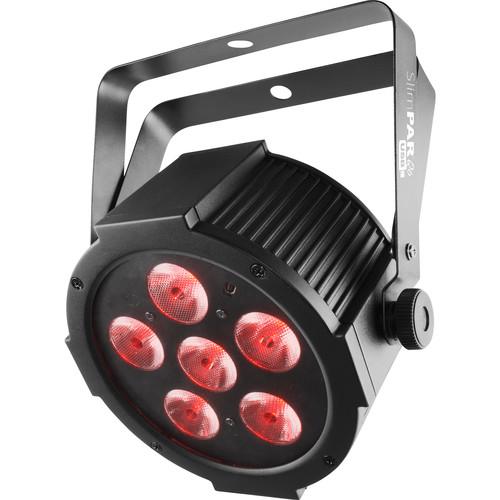

Product description The SlimPAR Q6 USB from Chauvet is a low-profile, high-output PAR wash light featuring six quad-color (RGBA) LEDs and built-in D-Fi USB compatibility for instant wireless connectivity. It is controllable via Master/Slave configurations, a number of stand-alone modes, with the point-and-shoot IRC-6 remote (sold separately), and over 4 or 9 channels of DMX, either wired or wirelessly over D-Fi. It also features multiple user-configurable settings. This fixture creates natural-looking color temperatures thanks to punchy amber LEDs. Its flicker-free operation makes it well suited for video productions. Other features include a built-in gel frame holder and a gel frame. With no moving parts, the fixture is ideal for applications where silence is essential. - Low-profile, high-output quad-color (RGBA) LED PAR
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
- Convenient access to RGBA color mixing and static colors with or without DMX
- Flicker-free operation suitable for on-camera use
- Stand-alone versatility with multiple user-configurable settings
- Save time running cables and extension cords by power linking multiple units
- Access built-in automated programs via IRC-6 remote (sold separately)
- Easily control static colors and automated programs with the optional IRC-6 remote
- Fits best in the CHS-30 VIP Gear Bag (sold separately)
- Compact design easily fits inside sticks of TRUSST
UPC: 781462213930 In the Box CHAUVET DJ SlimPAR Q6 USB - LED Wash PAR Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR Q6 USB - LED Wash PAR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

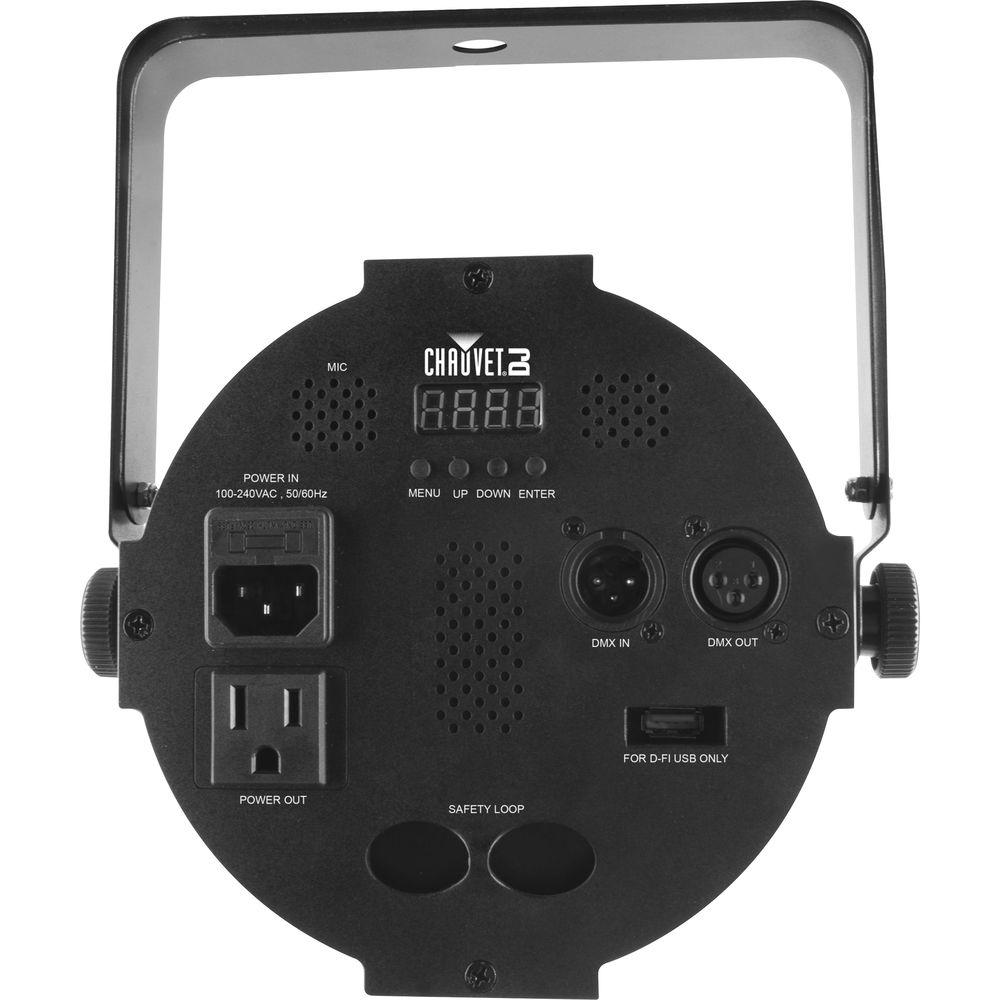

Technical parametersCHAUVET DJ SlimPAR Q6 USB Specs | Light Source | 6 x 4 W quad-color RGBA LEDs (red, green, blue, amber) (0.9 A) | | LED Life Expectancy | 50,000 hours | | DMX Channels | 4 or 9 | | DMX Connectors | 1 x XLR 3-pin input
1 x XLR 3-pin output | | Strobe Rate | 0 to 18 Hz | | PWM Frequency | 1,200 Hz | | Beam Angle | 19° | | Field Angle | 35° | | Illuminance | 2,684 lux @ 6.56' (2 m) | | Display | Four-button LED menu | | Wireless Control | IRC-6 (sold separately)
D-Fi USB (requires D-Fi USB sticks, sold separately) | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | 1 x IEC input
1 x Edison output | | Power Linking | 19 units @ 120 V; 35 units @ 230 V | | Power and Current | 28 W, 0.4 A @ 120 V, 60 Hz
27 W, 0.3 A @ 230 V, 50 Hz | | Fuse | T 1 A, 250 V | | Approvals | CE | | Dimensions | 8.3 x 3.6 x 9.6" (21.2 x 9.2 x 24.4 cm) | | Weight | 3.4 lb (1.6 kg) | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 12.3 x 10.9 x 5.3" |
