User Manual for CHAUVET DJ SlimPAR QUV12 USB - Wireless DMX RGB UV LED Wash Light Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ SlimPAR QUV12 USB -
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ SlimPAR QUV12 USB - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

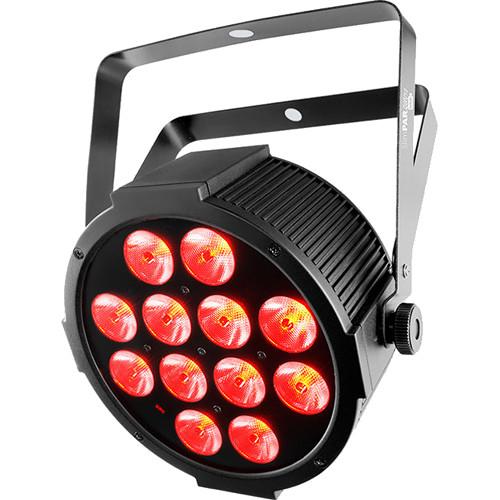

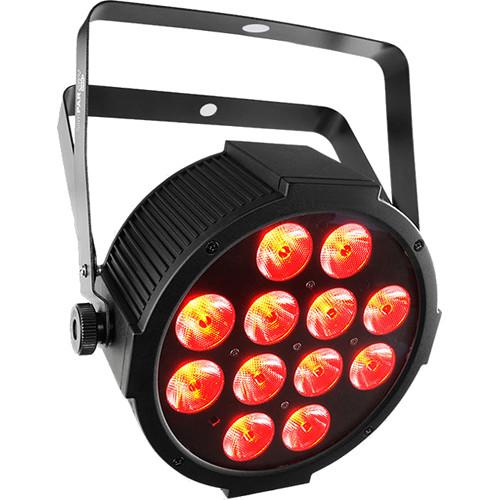

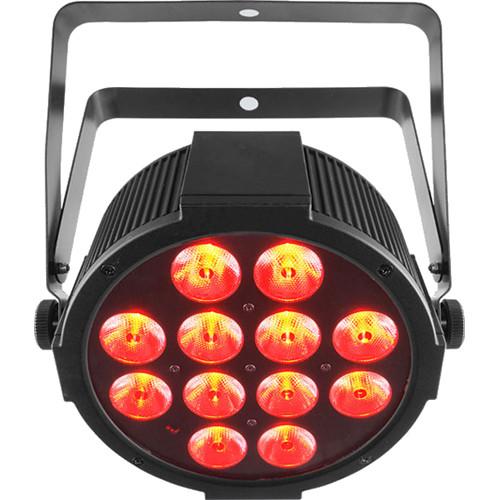

Product description The compact SlimPAR QUV12 USB from Chauvet is a high-power, low-profile, RGB+UV LED wash light with D-Fi USB compatibility for wireless master/slave or DMX control (requires optional D-Fi USB transceiver). This quad-color wash light features UV LEDs that help generate a broader spectrum of intense colors. Multiple user-configurable settings are available to increase standalone versatility and multiple units can be power linked to save time running cables and extension cords. With no moving parts, this silent, flicker-free fixture is ideal for on-camera use. The safety cable loop can provide additional security when mounting. This unit comes with a power cord. -
- Low-profile, high-output, quad-color (RGB+UV) LED wash light
- D-Fi USB compatibility for wireless master/slave or DMX control (requires optional D-Fi USB transceiver)
- Generates a broad spectrum of colors and achieve intense colors with punchy UV LEDs
- Flicker-free operation suitable for on-camera use
- Ideal for quiet applications due to silent operation and no moving parts
- Increased standalone versatility with multiple user-configurable settings
- Saves time by power linking multiple units
- Compact design easily fits inside most trussing
UPC: 781462214975 In the Box CHAUVET DJ SlimPAR QUV12 USB - Wireless DMX RGB+UV LED Wash Light Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR QUV12 USB - Wireless DMX RGB UV LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ SlimPAR QUV12 USB Specs | Light Source | 12 x RGB+UV (4-in-1) LEDs: 4 W, 1.4 A | | Life Expectancy | 50,000 hours | | Illuminance | 2,377 lux @ 6.6' (2 m) | | Beam Angle | Beam: 15°

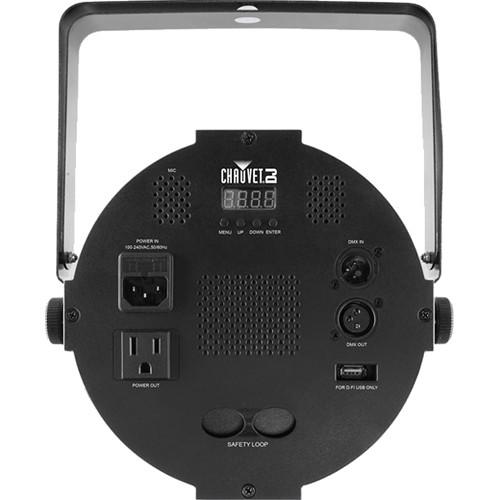

Field: 27° | | Strobe Rate | 0 to 18 Hz | | PWM Frequency | 1.2 kHz | | Operational Modes | Standalone, master/slave, DMX | | Built-In Programs | Automated and sound active | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 4 or 9 channels | | Wireless Control | D-Fi USB (requires optional D-Fi USB transceiver)
IRC-6 Remote Control (available separately) | | Display/Controls | 4-character LED display
4-button control interface | | Input Voltage Range | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: IEC
Output: Edison | | Power Linking | 120 V: 13 units
230 V: 23 units | | Power and Current | 120 V (60 Hz): 44 W, 0.6 A
230 V (50 Hz): 41 W, 0.3 A | | Fuse | T 1 A, 250 V | | Approvals | CE | | Dimensions | 9.7 x 3.6 x 12" (24.7 x 9.2 x 29.3 cm) | | Weight | 4.6 lb (2.1 kg) |
