User Manual for CHAUVET DJ SlimPAR T12 BT Compact Wash LED PAR with Bluetooth Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ SlimPAR T12 BT Compact
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ SlimPAR T12 BT Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

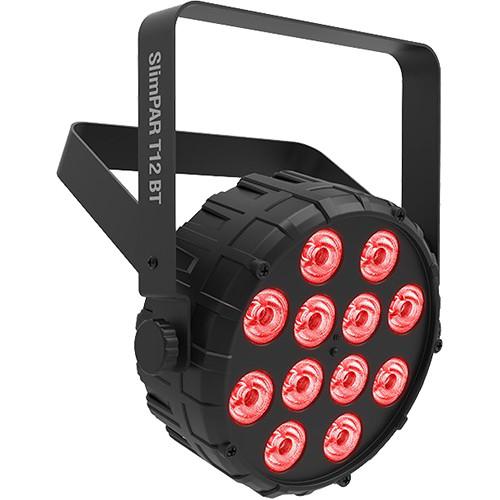

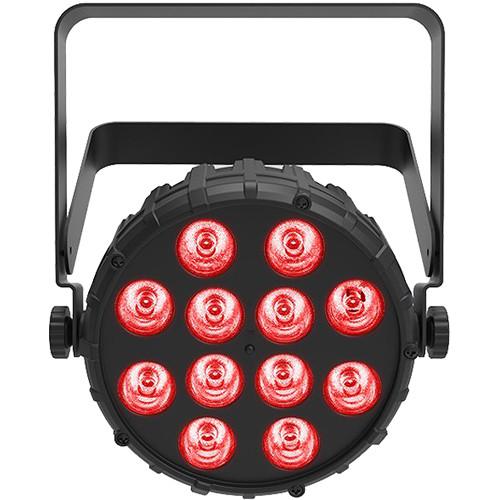

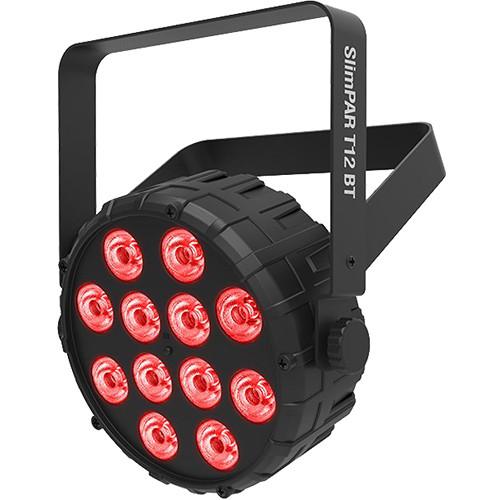

Product description The CHAUVET DJ SlimPAR T12 BT is a compact LED PAR with built-in Bluetooth wireless technology, allowing you to control the fixture from any smartphone or tablet without any additional hardware. The fixture utilizes twelve tricolor RGB (red, green, blue) 2.5W LEDs that generate a broad spectrum of colors. The fixture can easily fit inside trussing for uplighting effects.
The SlimPAR T12 BT can set static colors or automated programs by utilizing the free BTAir control app, via DMX, or via the optional IRC-6 remote. DMX channel modes include 3 or 7 for simple to advanced controls. Additionally, up to 13 units (@120 V) can be power linked, which helps simplify setup and cabling. The CHAUVET DJ SlimPAR T12 BT ships with a standard power cord, hanging bracket, and mounting hardware. - Key Features
-
- Compact wash light with built-in Bluetooth wireless technology
- Control directly from a smart phone or tablet without any additional hardware
- Easily set static colors or automated programs with the optional IRC-6 remote
- Access built-in automated programs via IRC-6 remote, master/slave, or DMX
- Save time running cables and extension cords by power linking multiple units
- Compact design easily fits inside trussing
- Compatible with the CHS40 VIP gear bag
UPC: 781462217747 In the Box CHAUVET DJ SlimPAR T12 BT Compact Wash LED (RGB) PAR with Bluetooth Power Cord Hanging Bracket Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR T12 BT Compact Wash LED PAR with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ SlimPAR T12 BT Specs | DMX | DMX Channels: 3 or 7
DMX Connectors: 3-pin XLR | | Maximum Unobstructed Distance | 150.0' / 45.7 m | | Light Source | 12 x LED (tricolor RGB) 2.5 W, 1 A
Current: 1 A
Life Expectancy: 50,000 hours | | Strobe Rate | 0 to 25 Hz | | PWM Frequency | 7.8 kHz | | Beam and Field Angle | Beam Angle: 14°

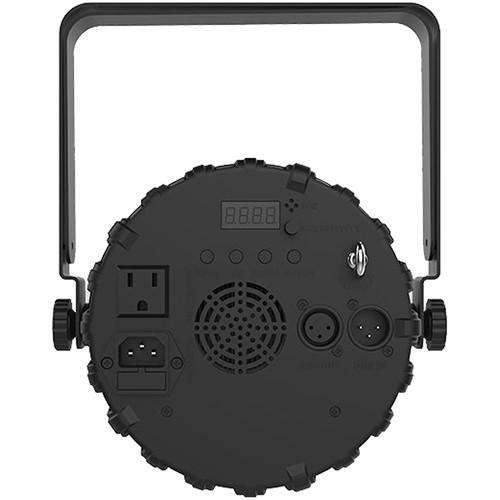

Field Angle: 27° | | Operating Frequency | 2.4 GHz | | Illuminance | 5340 lux at 6.6' / 2 m | | Bluetooth | 4.2 | | Display/Controls | 4-character LED display
4-button control interface | | Power Linking | 13 units at 120 V
24 units at 230 V | | Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
43 W, 0.6 A @ 120 V, 60 Hz
42 W, 0.3 A @ 230 V, 50 Hz | | Power Connectors | Input: IEC
Output: Edison | | Mounting | Double-bracket yoke | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Approvals | CE, FCC | | Dimensions | 10.3 x 8.4 x 3.0" / 261.6 x 213.4 x 76.2 mm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 3.51 lb | | Box Dimensions (LxWxH) | 12.0 x 10.5 x 5.4" |
