User Manual for CHAUVET DJ SlimPAR T12 USB RGB LED PAR Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ SlimPAR T12 USB RGB
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ SlimPAR T12 USB RGB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

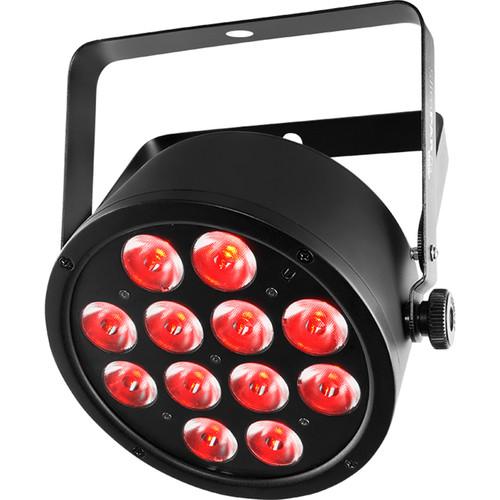

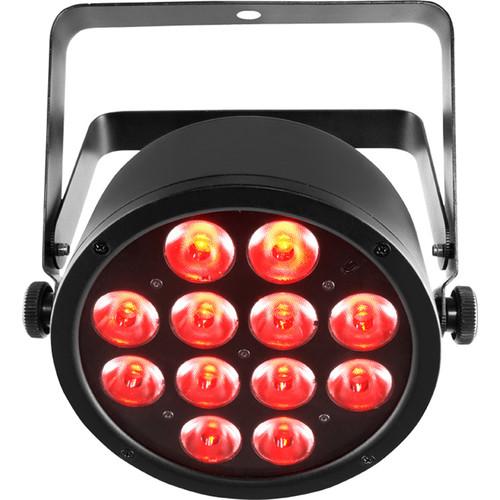

Product description The SlimPAR T12 USB LED PAR from Chauvet is a high-output tri-color (RGB) LED wash light with D-Fi USB compatibility for wireless Master/Slave or DMX control. It eliminates distracting multicolored shadows and its flicker-free output makes it ideal for front-light applications and use in video productions. The IRC-6 remote (sold separately) can be used to access automated programs and control static colors. - Low-profile, high-output tri-color (RGB) LED PAR
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Eliminates multicolored shadows with high-power, tri-color LEDs
- Convenient access to RGB color mixing and static colors with or without DMX
- Emits a smooth and even output suitable for front-light applications
- Flicker-free operation suitable for on-camera use
- Save time running cables and extension cords by power linking multiple units
- Access built-in automated programs via IRC-6 remote (sold separately), Master/Slave or DMX
- Fits best in the CHS-30 VIP Gear Bag (sold separately)
- Compact design easily fits inside sticks of TRUSST
UPC: 781462213923 In the Box CHAUVET DJ SlimPAR T12 USB RGB LED PAR Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR T12 USB RGB LED PAR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

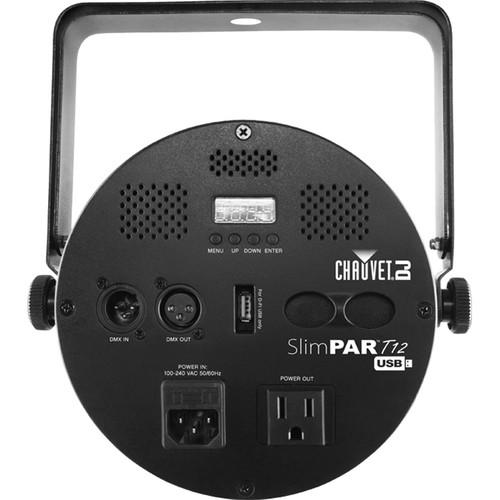

Technical parametersCHAUVET DJ SlimPAR T12 USB Specs | Light Source | 12 x 3 W (1 A) tri-color RGB LEDs (red, green, blue) | | LED Life Expectancy | Up to 50,000 hours | | DMX Channels | 3 or 8 | | DMX Connectors | 1 x XLR 3-pin input
1 x XLR 3-pin output | | Strobe Rate | 0 to 20 Hz | | PWM Frequency | 1,200 Hz | | Beam Angle | 15° | | Field Angle | 29° | | Illuminance | 3,801 lux @ 2 m | | Wireless Control | D-Fi USB (automated programs, Master/Slave, and DMX) | | IR Remote Control | Chauvet IRC-6 (automated programs and static colors) | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | 1 x IEC input
1 x Edison output | | Power Linking | 14 units @ 120 V; 25 units @ 230 V | | Power and Current | 39 W, 0.6 A @ 120 V, 60 Hz
39 W, 0.3 A @ 230 V, 50 Hz | | Approvals | CE | | Dimensions | 9.0 x 3.3 x 10.0" (23.0 x 8.3 x 25.4 cm) | | Weight | 4 lb (2 kg) | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 12.6 x 11.5 x 5.3" |
