User Manual for CHAUVET DJ SlimPAR T6 USB - LED Wash PAR Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ SlimPAR T6 USB -
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ SlimPAR T6 USB - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

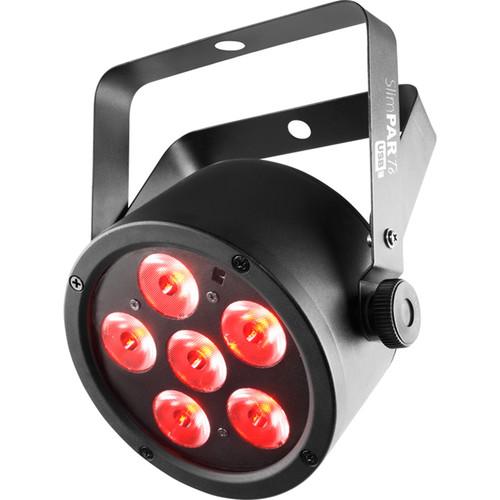

Product description The SlimPAR T6 USB from Chauvet is a low-profile, high-output tri-color (RGB) LED wash PAR light with D-Fi USB compatibility for wireless Master/Slave or DMX control. This compact fixture is an ideal truss warmer and, because of its even output, it can also be used as a front light. Its flicker-free output makes it a suitable light for broadcast and video applications. The fixture's tri-color LEDs virtually eliminate multicolored shadows. It has multiple user-configurable settings and built-in automated programs that are easily accessed via the IRC-6 remote (sold separately), DMX, or Master/Slave. - Low-profile, high-output tri-color (RGB) LED PAR
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Nearly eliminate multicolored shadows with high-power, tri-color LEDs
- Convenient access to RGB color mixing and static colors with or without DMX
- Emits a smooth and even output suitable for frontlight applications
- Flicker-free operation suitable for on-camera use
- Stand-alone versatility with multiple user-configurable settings
- Save time running cables and extension cords by power linking multiple units
- Access built-in automated programs via the IRC-6 remote (sold separately), Master/Slave or DMX
- Fits best in the CHS-30 VIP Gear Bag (sold separately)
- Compact design easily fits inside sticks of TRUSST
In the Box CHAUVET DJ SlimPAR T6 USB - LED Wash PAR Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPAR T6 USB - LED Wash PAR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

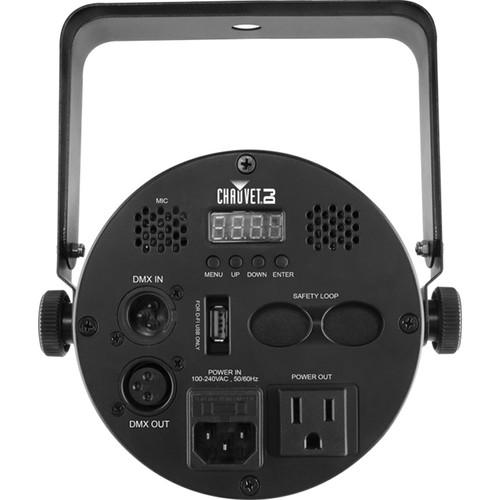

Technical parametersCHAUVET DJ SlimPAR T6 USB Specs | Light Source | 6 x 3 W tri-color RGB LEDs (red, green, blue) (800 mA) | | LED Life Expectancy | 50,000 hours | | DMX Channels | 3 or 8 | | DMX Connectors | 1 x XLR 3-pin input
1 x XLR 3-pin output | | Strobe Rate | 0 to 25 Hz | | PWM Frequency | 1,200 Hz | | Beam Angle | 15° | | Field Angle | 29° | | Illuminance | 1,621 lux @ 6.56' (2 m) | | Display | Four-button LED menu | | Wireless Control | IRC-6 (sold separately)
D-Fi USB (requires D-Fi USB sticks, sold separately) | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | 1 x IEC input
1 x Edison output | | Power Linking | 31 units @ 120 V; 52 units @ 230 V | | Power and Current | 18 W, 0.3 A @ 120 V, 60 Hz
18 W, 0.2 A @ 230 V, 50 Hz | | Fuse | T 1 A, 250 V | | Approvals | CE | | Dimensions | 7.1 x 3.3 x 9.0" (18.1 x 8.4 x 22.6 cm) | | Weight | 2.4 lb (1.1 kg) |
