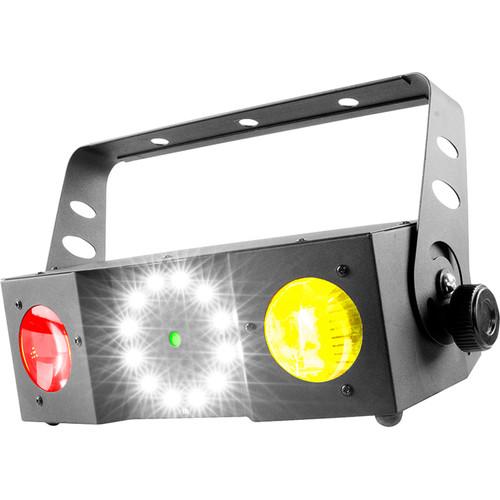

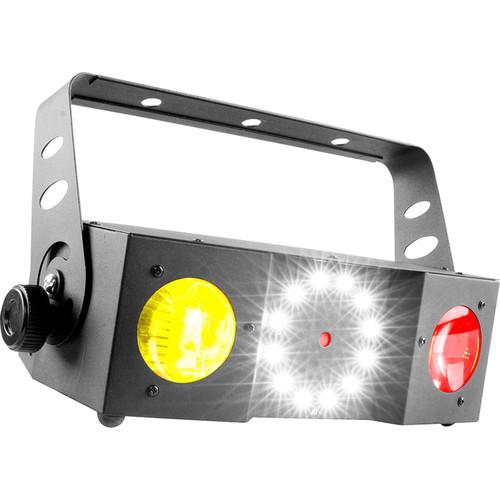

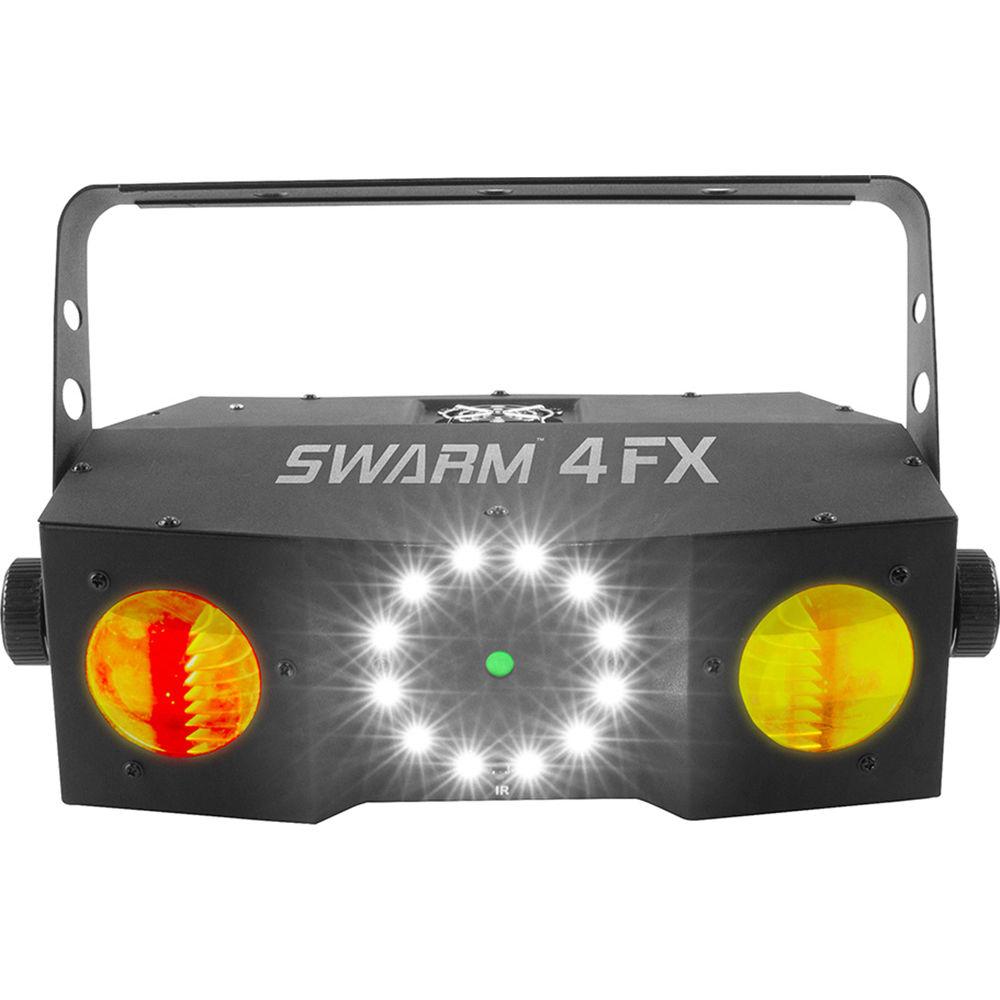

Product description The Swarm 4 FX 3-In-1 LED from Chauvet DJ combines three dynamic lighting effects in one durable and compact housing. The single fixture includes quad-color (RGBA) dual moonflowers, a red/green laser, and a white strobe. The dual moonflowers spin colorful beams, creating an energetic environment, and the laser provides impact by producing thousands of sharp red and green beams. Additionally, there is a bright-output strobe ring with built-in motion effects. Control options include sound activation, master/slave configurations, DMX modes, and a separately sold IRC-6 remote control. - Combination of three LED lighting effects in one compact housing
- Bright, quad-color moonflower, red/green laser, and white strobe effect
- Dual LED moonflowers for multi-colored spinning beams
- Red and green laser produces thousands of sharp beams
- Create energy with included bright LED strobe ring and built-in motion effects

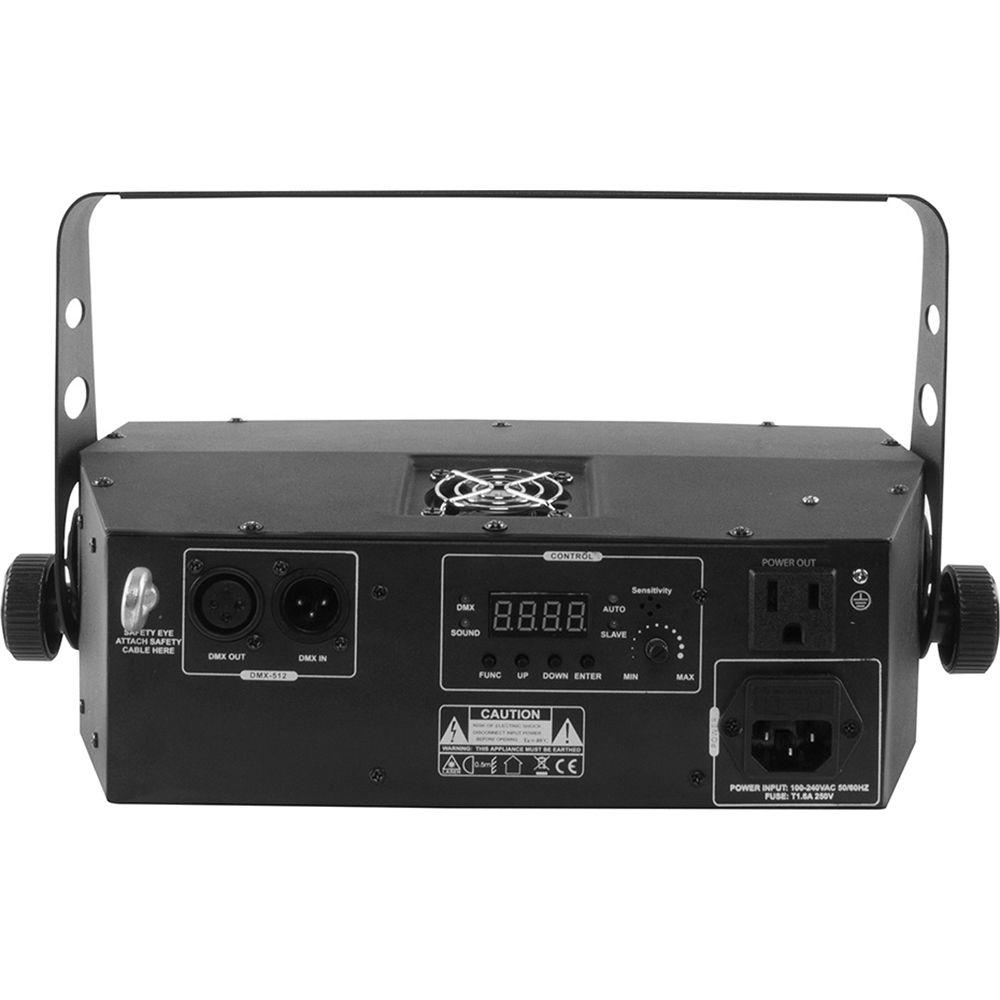

- Convenient control of color and program output from the display and DMX
- Flexible control using automated and sound-activated programs, master/slave configurations, and DMX modes
- Power link multiple units for fewer cables and extension cords
UPC: 781462214340 In the Box CHAUVET DJ Swarm 4 FX 3-In-1 LED Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Swarm 4 FX 3-In-1 LED in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Swarm 4 FX Specs | DMX Channels | 2, 12 | | DMX Connectors | 3-pin XLR | | Light Source | Moonflower:
2 x LEDs (quad-color RGBA)
13 W, 4.4 A
Life expectancy: 50,000 hr
Strobe:
12 x LEDs (white)
1 W, 300 mA
Life expectancy: 50,000 hr
Laser:
532 nm / 30 mW (green) laser diode
650 nm / 100 mW (red) laser diode | | Strobe Rate | 0 to 11 Hz | | Coverage Angle | Moonflower: 54°
Strobe: 69° | | Power Linking | 11 units @ 120 V
21 units @ 230 V | | Input Voltage | 100 to 240 VAC, 50/60 Hz | | Power and Current | 47 W, 0.7 A @ 120 V, 60 Hz
46 W, 0.4 A @ 230 V, 50 Hz | | Approvals and Certifications | CE, FDA
Classified per EN/IEC 60825-1:2007 | | Dimensions | 11.4 x 14.2 x 4.2" / 29.0 x 36.1 x 10.7 cm | | Weight | 5.4 lb / 2.4 kg |
