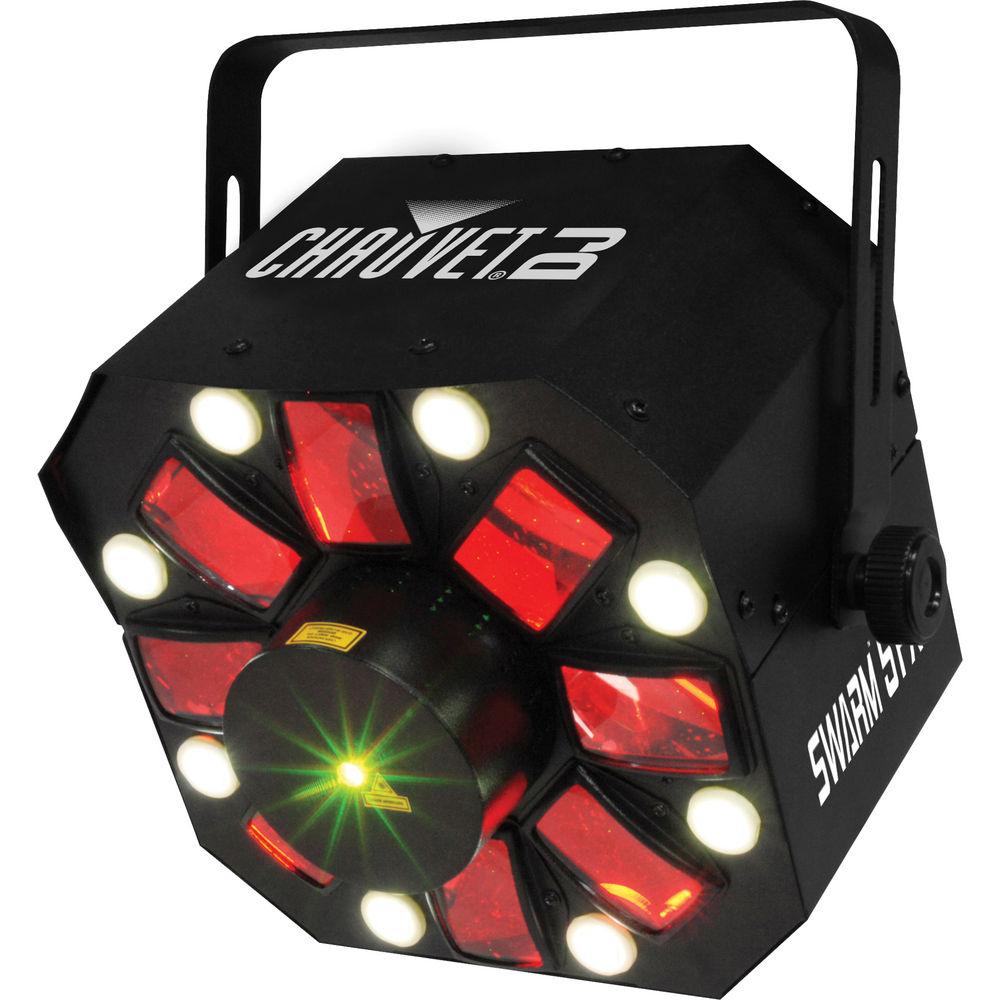

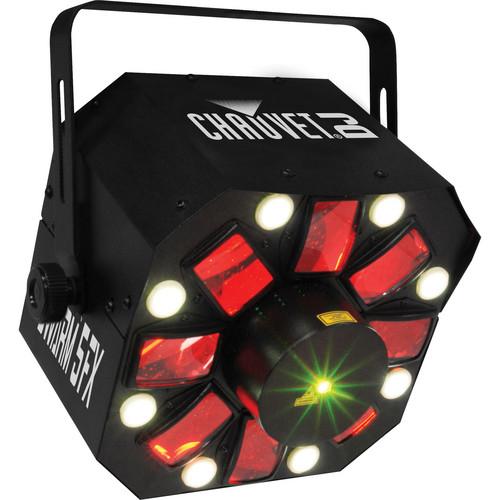

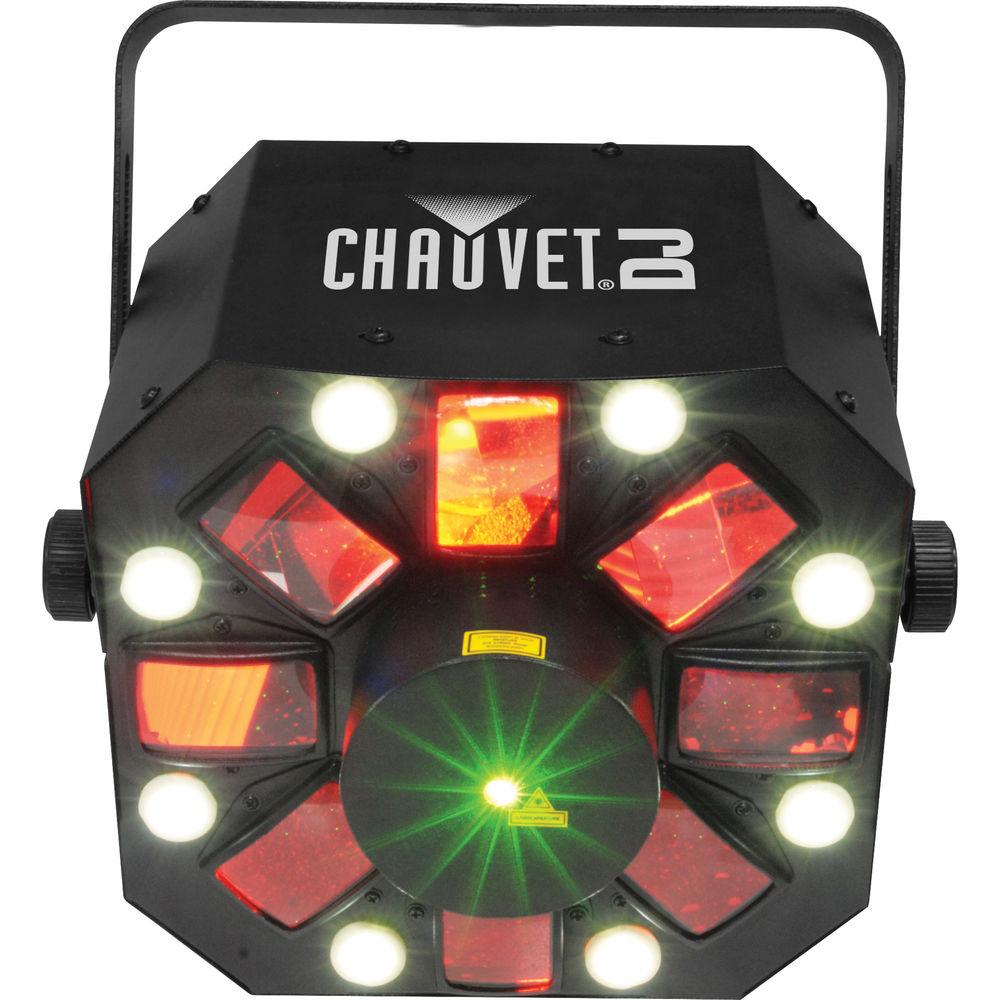

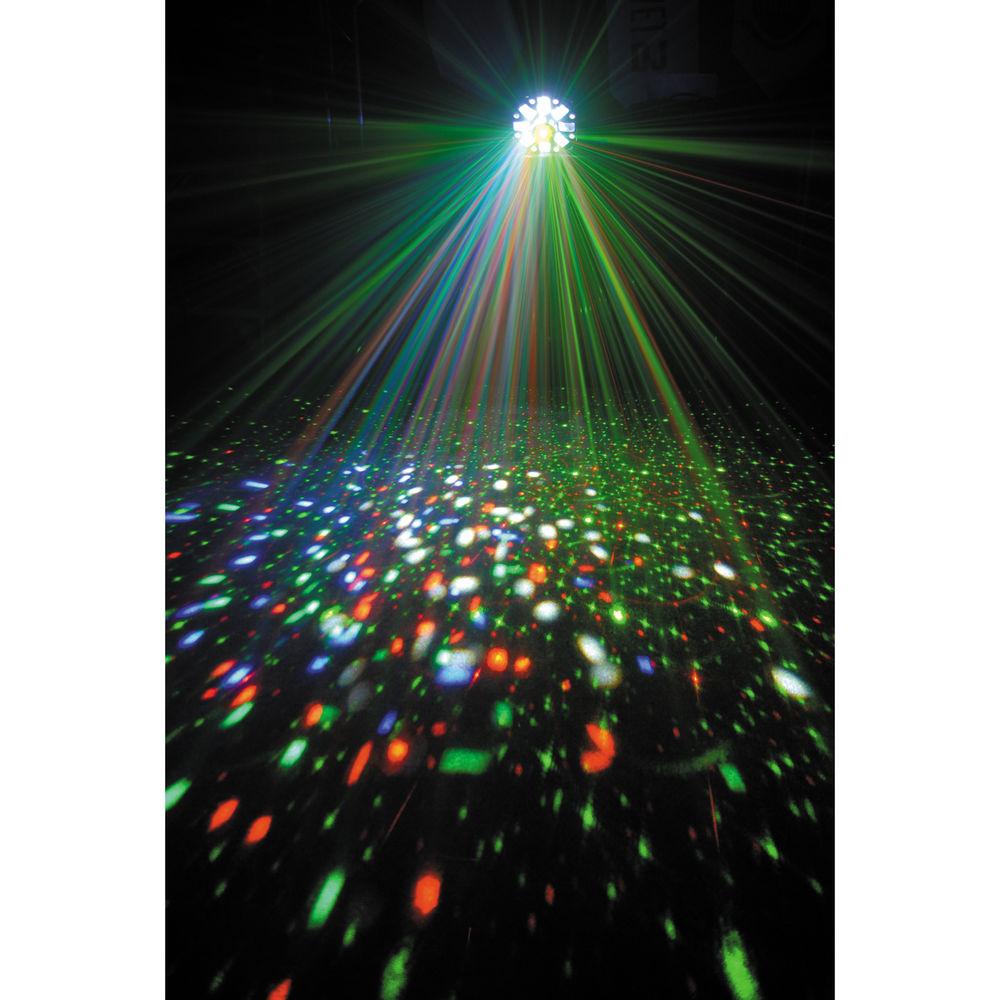

Product description The Chauvet Swarm 5 FX DJ Light with Power Cord is designed for lighting installations and live performance applications such as DJing at parties and in clubs. The unit combines a 3-in-1 LED light which includes an RGBAW rotating derby, a red and green laser, and a white strobe effect to create a complex dynamic lighting display. The unit enables separate control over both color and programs using built-in automated programs, sound activated programs via built-in microphone, master/slave mode, or DMX-512 control mode over XLR connectors.
Multiple units can be powerlinked together to save on cabling and the light fits within Chauvet's CHS-40 VIP Gear Bag, sold separately. It also comes with an integrated hanging bracket for connection to a truss or for more permanent installations. UPC: 781462211134 In the Box CHAUVET DJ Swarm 5 FX DJ Light with Power Cord Power Cord Hanging Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Swarm 5 FX DJ Light with Power Cord in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

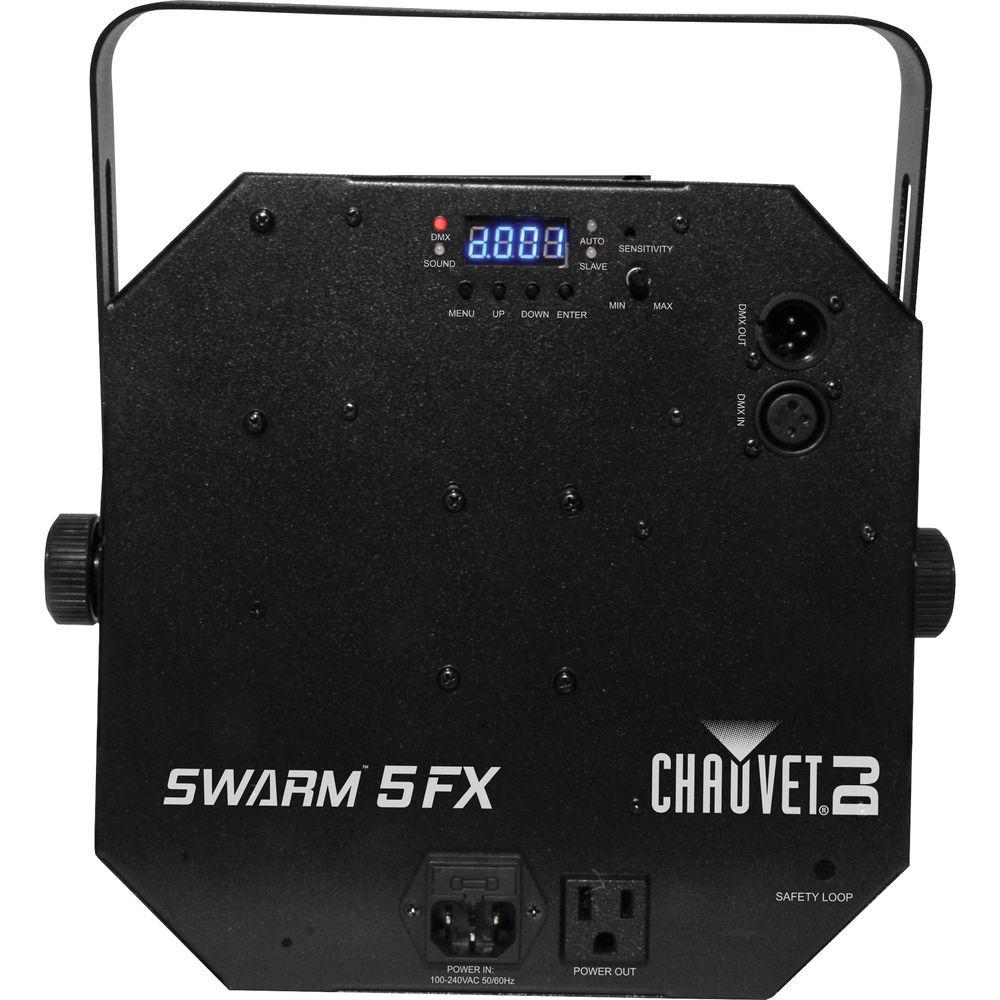

Technical parametersCHAUVET DJ Swarm 5 FX Specs | I/O | 1x XLR-3F DMX In
1x XLR-3M DMX Out | | DMX Channels | 9 | | DMX Connectors | 3-pin XLR | | Light Sources | Swarm: 5x LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white)
Strobe: 8x white LEDS
Laser: 532 nm green and 650 nm red laser diode | | Power Rating | Swarm: 3 W
Strobe: 1 W
Laser: 50 mW green laser diode, 100 mW red laser diode | | Life Expectancy | Approximately 50,000 hours | | Strobe Rate | 0 to 20 Hz | | Beam Angle | Strobe: 17° | | Field Angle | Strobe: 35° | | Coverage Angle | Laser: 100°
Swarm: 65° | | Illuminance | Strobe: 823 lux at 2 m | | Power Linking | 15 units at 120V
26 units at 230V | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 62 W, 0.5 A at 120 V 60 Hz
66 W, 0.3 A 230 V 50 Hz | | Operating Temperature | 104°F (40°C) | | Approvals | CE | | Dimensions | 9.75 x 11.7 x 12.2" (248 x 298 x 310 mm) | | Weight | 9.8 lb (4.5 kg) | | | | Package Weight | 12.3 lb | | Box Dimensions (LxWxH) | 14.6 x 13.9 x 12.3" |
