Product description - Swarm Wash FX by CHAUVET DJ

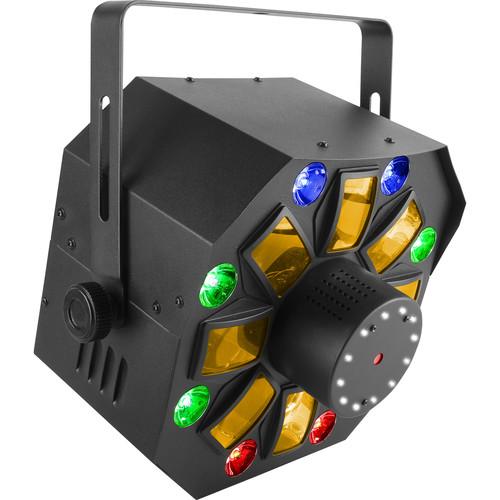

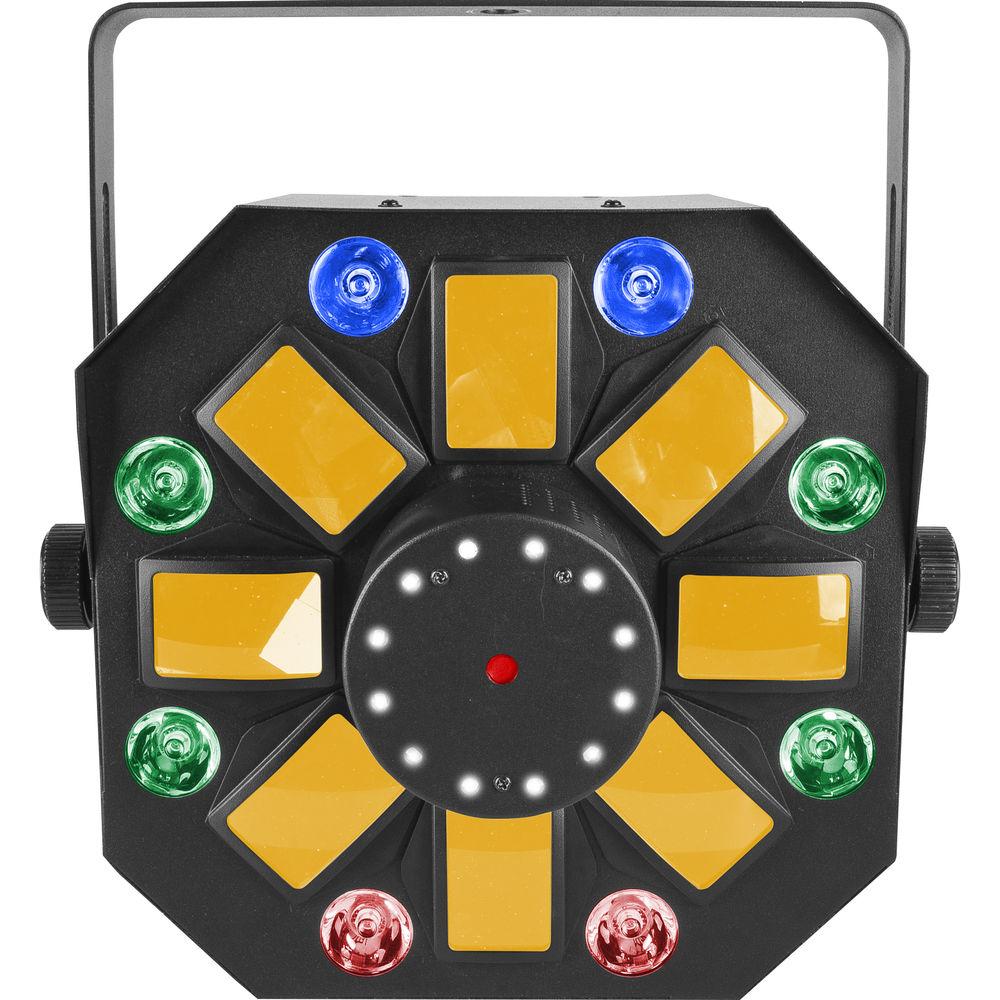

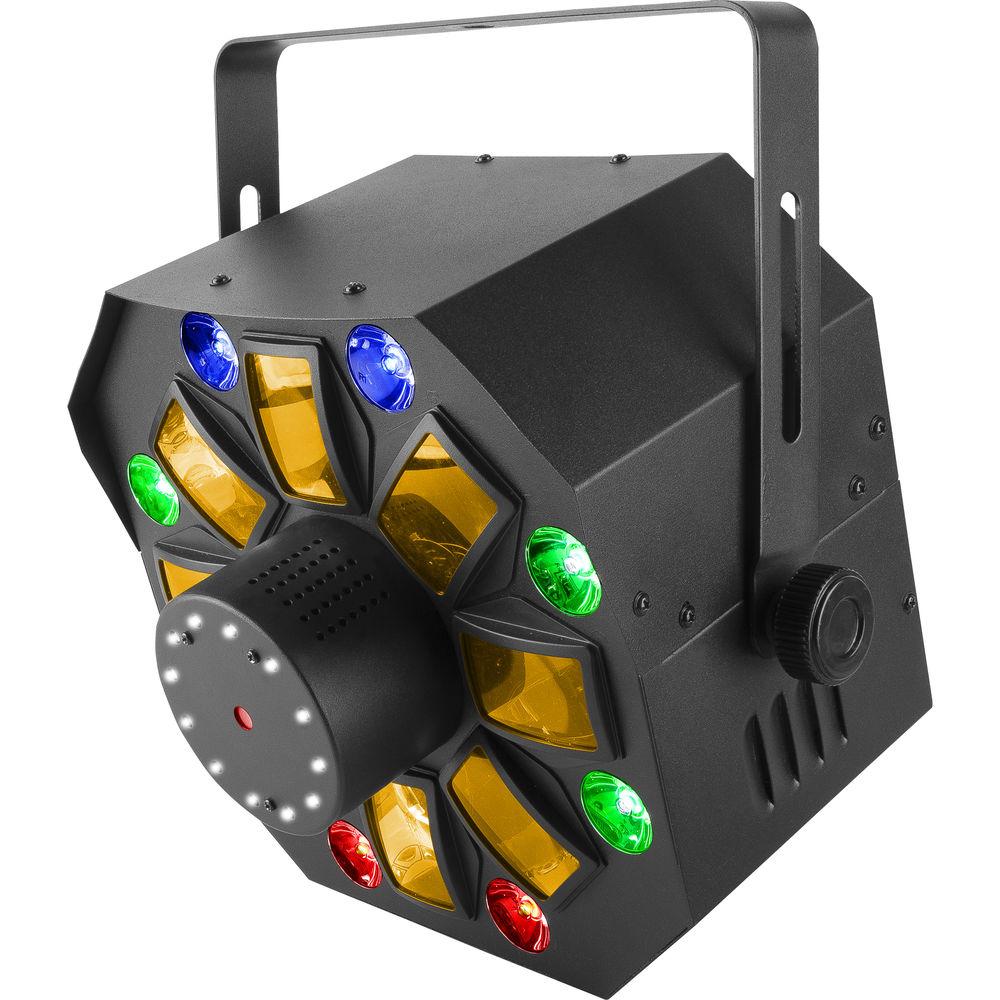

The versatile CHAUVET DJ Swarm Wash FX combines an RGBAW (red, green, blue, white) LED rotating derby effect with an RGB+UV (red, green, blue + ultraviolet) LED wash light, green/red laser diodes, and a white SMD LED strobe, in a single compact fixture. The effects can be coordinated to create instant light shows with countless, multicolor LED beams, UV-infused color washes, eye-catching strobe effects and chases, and hundreds of red and green beams that can both rotate and strobe. The fixture provides wide coverage angles of 82° for the laser, 65° for the derby, 71° for the strobe, and 46° for the washes, and is suitable for blanketing a stage or dance floor.The Swarm Wash FX allows for both standalone and DMX operation. For use without a DMX controller, you can choose between sound-active or automatic modes. The Master/Slave option lets you coordinate multiple fixtures without the need for a controller. The fixture is equipped with a universal, auto-sensing power supply and is compatible with the IRC-6 wireless remote (available separately). Note: This is a class 3R laser product. Avoid direct eye exposure. - Effects
-
- Projects countless razor-sharp multi-color beams for a derby effect
- Eight RGB+UV LEDs for various washes
- Ring of 12 SMD strobe lights produces eye-catching strobe effects and chases
- Use red and green laser beams individually or together to add various laser effects to your show
- Control
-
- Use one of two DMX modes: 2-channel mode or 18-channel mode for more detailed control
- Let the environment control the fixture in sound-active mode
- Use Master/Slave configuration with other fixtures for a coordinated show
- Built-in programs for shows right out of the box

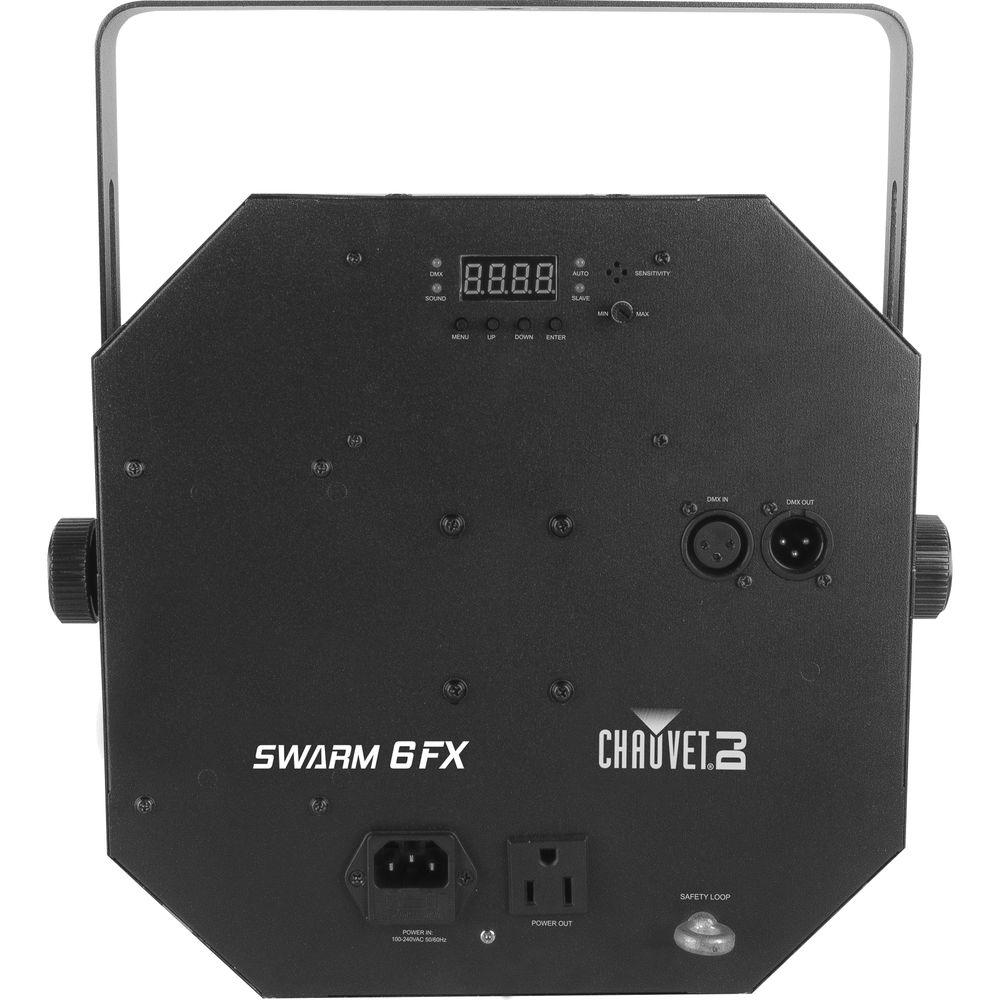

- LED display with 4-button menu and user-friendly menu structure
- Use the IRC-6 wireless remote (available separately) for quick and simple control
- Linking
-
- DMX-link to other fixtures via the XLR 3-pin DMX output
- Power-link up to 15 fixtures at 120V, or up to 26 fixtures at 230V
- Other Features
-
- Single-yoke hanging bracket
- Includes mounting hardware
- Multi-voltage operation: 100-240 VAC, auto-ranging
UPC: 781462215033 In the Box CHAUVET DJ Swarm Wash FX Derby Wash Laser Strobe Multi-Effects Fixture Power Cord Mounting Hardware Limited 2-Year Warranty on Fixture Limited 6-Month Warranty on Laser Diodes Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Swarm Wash FX Derby Wash Laser Strobe Multi-Effects Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Swarm Wash FX Specs | Light Sources | Swarm/Derby
5 x 2 W RGBAW (red, green, blue, amber, white) LEDs
Current: 650 mA
Wash
8 x 1.5 W quad-color RGB+UV (red, green, blue, ultraviolet) LEDs
Current: 600 mA
Lasers (Class 3R)
1 x 650 nm red laser diode, 100 mW
1 x 532 nm green laser diode, 30 mW
Class 3R levels
Strobe
12 x 1 W white SMD (surface-mount device) LEDs
Current: 300 mA | | LED Life Expectancy | 50,000 hours | | Coverage Angle | Laser: 82°
Swarm/Derby: 65°
SMD Strobe: 71°
Wash: 46° | | Illuminance | Strobe: 823 lux at 6.5' / 2 m | | Strobe Rate | 0 to 20 Hz | | Operation Modes | DMX, Standalone, Master/Slave | | Built-In Programs | Automatic and Sound-Active modes | | Display/Controls | LED display with 4-button control panel | | Wireless Control | IRC-6 remote (available separately) | | DMX Connectors | Input: 1 x XLR 3-pin
Output: 1 x XLR 3-pin | | DMX Channel Modes | 2 x Modes: 2 or 18 channels | | LED Indicators | DMX, Auto, Sound, Slave | | Input Voltage Range | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: 1 x IEC
Output: 1 x Edison | | Power Linking | 15 units, 8 A at 120 VAC
26 units, 8 A at 230 VAC | | Power and Current | 40 W, 0.5 A at 120 VAC, 60 Hz
38 W, 0.3 A at 230 VAC, 50 Hz | | Fuse | T 1.6 A, 250 VAC | | Maximum Operating Temperature | Laser External Temperature: 95°F / 35°C | | Cooling System | Convection | | Mounting | Hanging bracket | | Safety | Safety Loop | | Dimensions (L x H x W) | 13.1 x 9.4 x 13.0" / 33.5 x 24.1 x 33.2 cm | | Weight | 9.2 lb / 4.2 kg | | | | Package Weight | 12.5 lb | | Box Dimensions (LxWxH) | 14.6 x 13.8 x 12.4" |
