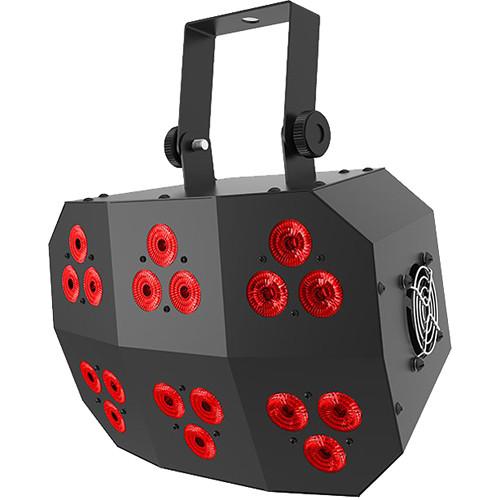

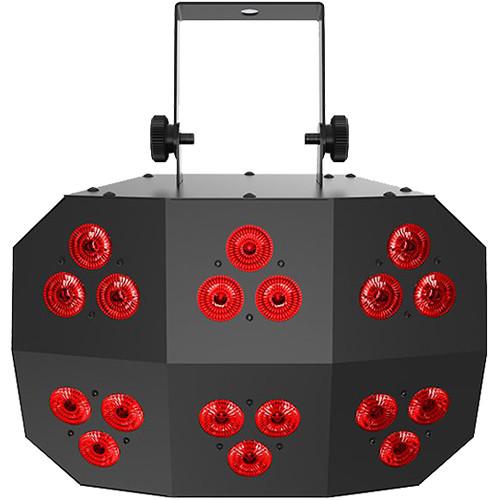

Product description Well suited for mobile entertainers, the CHAUVET DJ Wash FX 2 is a multipurpose quad-color effect light that doubles as a standard wash light and an eye-candy effect with six chasing zones. The fixture utilizes eighteen quad-color RGB+UV (red, green, blue, and ultraviolet), which are capable of rich color mixing. Additionally, the light offers six separate zones, each with chase programing for a powerful special effects pallet.

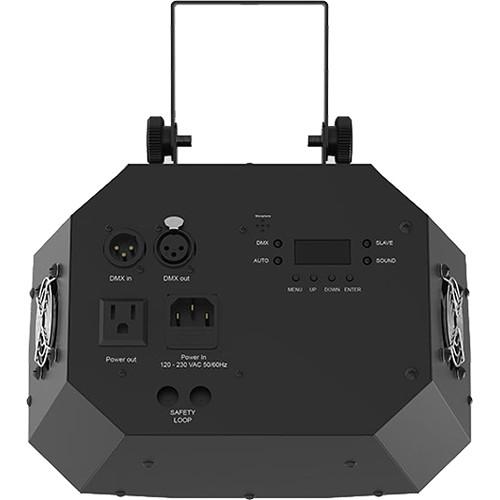

The Wash FX 2 can operate stand-alone or via DMX, IR, master/slave, or by the optional IRC-6 remote. DMX channel modes include 3, 8, or 28 for simple to advanced controls. Additionally, up to 6 units (@120 V) can be power linked, which helps simplify setup and cabling. The CHAUVET DJ Wash FX 2 ships with a standard power cord and mounting bracket. -
- Multipurpose effect light designed for mobile entertainers
- Use as a regular wash light or eye candy effect with 6 chasing zones
- Powerful UV LEDs create a psychedelic blacklight effect
- Multiple control options include standalone, DMX, IR, or master/slave
- Compatible with the optional IRC6 wireless remote for wireless triggering
- Power linking saves time running cables
- Compatible with the CHS-40 VIP gear bag
UPC: 781462217853 In the Box CHAUVET DJ Wash FX 2 - Wash and Special Effects - Quad-Color LED (RGB+UV) Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Wash FX 2 - Wash and Special Effects - Quad-Color LED in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Wash FX 2 Specs | DMX | DMX Channels: 3, 8 or 28
DMX Connectors: 3-pin XLR | | Light Source | 18 x LED (quad-color RGB+UV) 6 W, 2 A
Life Expectancy: 50,000 hours | | Strobe Rate | 0 to 25 Hz | | PWM Frequency | 78.126 Hz | | Beam Angle | 40° | | Field Angle | 64° | | Illuminance | 1795 lux @ 2 m | | Power Linking | 6 units at 120 V
12 units at 230 V | | Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 145 W, 1.3 A at 120 V, 60 Hz
141 W, 0.6 A at 230 V, 50 Hz | | Approvals | CE | | Max Temperature | 104°F / 40°C | | Cooling System | Fan-assisted convection | | Dimensions | 12.2 x 5.5 x 9.0" / 309.9 x 139.7 x 228.6 mm | | Weight | 5.8 lb / 2.6 kg | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 13.5 x 10.0 x 7.5" |
