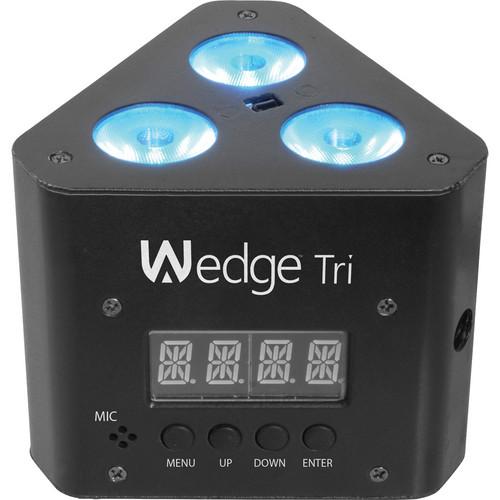

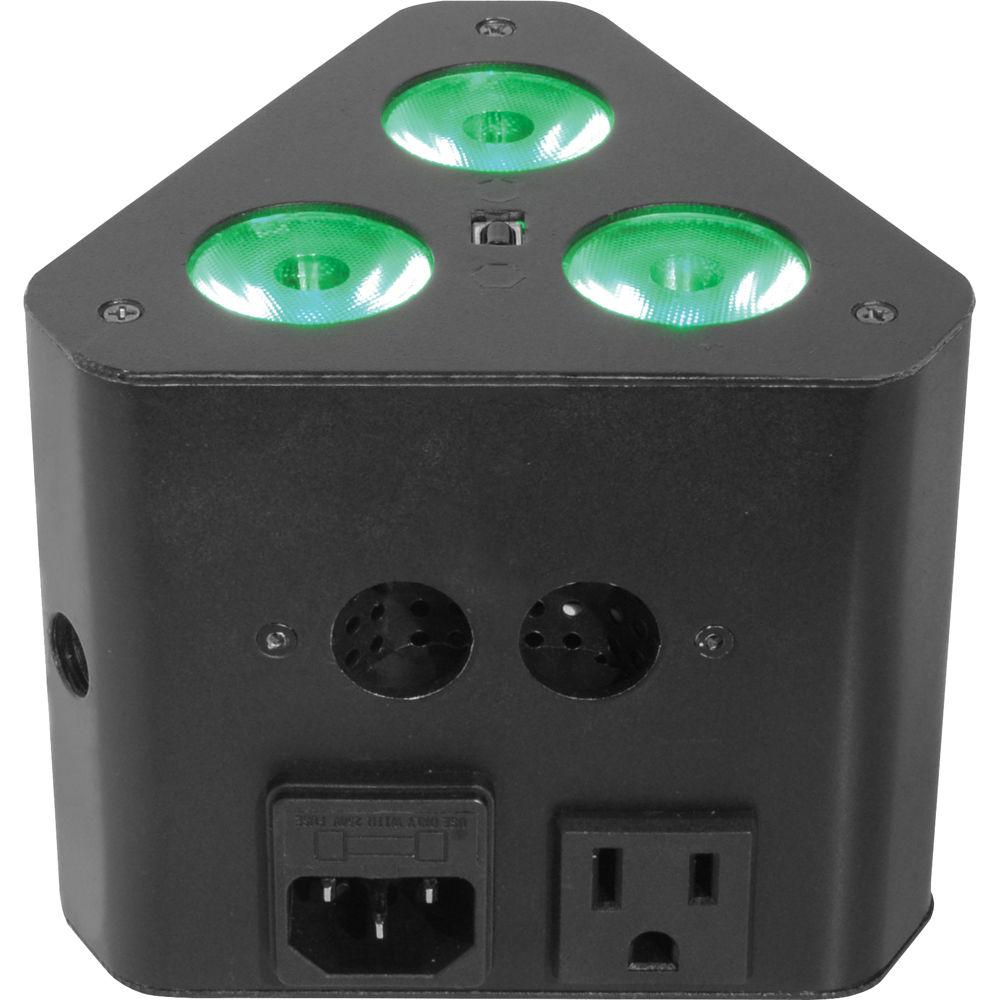

Product description The CHAUVET DJ Wedge Tri is a triangularly-shaped RGB LED wash light designed to fit inside triangle-truss systems, and produce color washes with bright and smooth color mixing. Featuring three, 3W LEDs, a 30° field angle, and a 16° beam angle, it is well suited for venue uplighting, dance-floor color washing, and more.The Wedge Tri can be used as a standalone with dynamic effects including electronic dimming, color macros, variable strobe, and built-in automated programs. It can also be controlled via DMX or used in a master/slave configuration to coordinate multiple fixtures without the need for a controller.The fixture comes equipped with a DMX LED display, an auto-ranging power supply, and M10 or M12 threaded rig points so you can attach it to a truss without needing a bracket. The Wedge Tri ships with the IRC-6 wireless remote. - Key Features
-

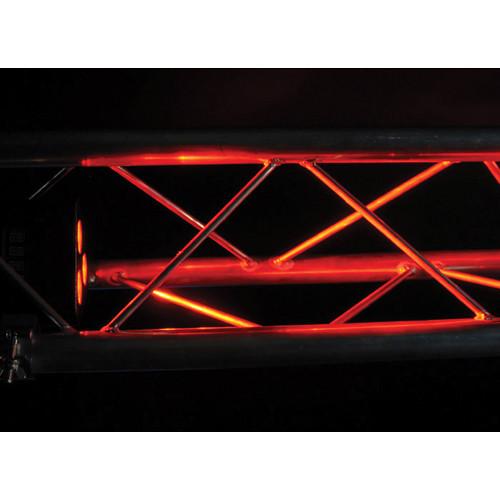

- Triangular-shaped LED wash light designed to fit inside triangle truss systems from most manufacturers
- 3 x 3W tricolor RGB LEDs (red, green, blue), for bright color washes
- 16° beam angle, 30° field angle
- 2 x DMX channel modes: 3 or 8
- Built-in automated programs
- Variable color-strobe effect
- Smooth dimming with built-in dimming curves: 0 to 100%, electronic
- Create coordinated light shows by linking other Wedge Tri fixtures in master/slave mode
- Easily control static colors and automated programs with the included IRC-6 wireless remote
- Program any color without DMX by using the built-in digital display
- Flicker-free operation suitable for on-camera use
- Attaches to 35mm truss without the need for a bracket, using M10 or M12 threaded rig points
- Fits neatly inside TRUSST Goal Post and Arch Kit truss systems (available separately)
- Daisy-chain power for up to 42 units at 120V or 74 units at 230 V
- Multi-voltage operation: 100-240 VAC, auto-ranging
UPC: 781462210830 In the Box CHAUVET DJ Wedge Tri RGB LED Wash Light IRC-6 Infrared Remote Control 6 vxyyzzbfyczybbcauvsart Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Wedge Tri RGB LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Wedge Tri Specs | Light Source | 3 x 3 W tri-color RGB LEDs (red, green, blue)
Current: 350 mA x 3
Life Expectancy: 50,000 hours | | Beam and Field Angle | Beam Angle: 16°
Field Angle: 30° | | Illuminance | 1066 lux at 6.5' (2.0 m) | | Operating Modes | DMX
Master/slave mode
Sound-active
Stand-alone | | Effects | Electronic Dimming: 0-100%, with dimming curves
Auto-programs
Color macros
Variable strobe: 0 to 17 Hz | | DMX Channel Modes | 3 or 8 | | DMX Connectors | 3-pin XLR, in/out | | Power Linking | 42 Units, 8 A at 120 VAC
74 Units, 8 A at 230 VAC | | Power Requirements | 100-240 VAC, 50/60 Hz, auto-ranging | | Power and Current | 120 VAC, 60 Hz: 23 W, 0.2 A
230 VAC, 50 Hz: 26 W, 0.1 A | | Fuse | T 1 A, 250 V | | Remote Control | IRC-6 wireless remote, included | | Mounting | M10 and M12 threaded rig points | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Approvals | CE, RoHS | | Dimensions | 4.3 x 4.3 x 4.1" (109.2 x 109.2 x 104.1 mm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 6.6 x 6.1 x 6.0" |
