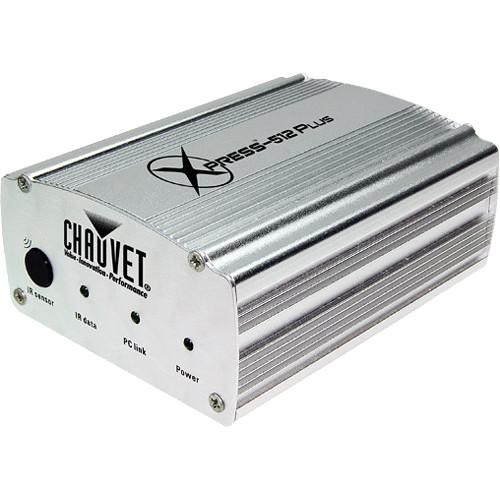

User Manual for CHAUVET DJ Xpress 512 Plus DMX-512 USB Interface Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Xpress 512 Plus DMX-512
- Product category: DMX Devices CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DMX Devices
 |
User manual for the CHAUVET DJ Xpress 512 Plus DMX-512 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

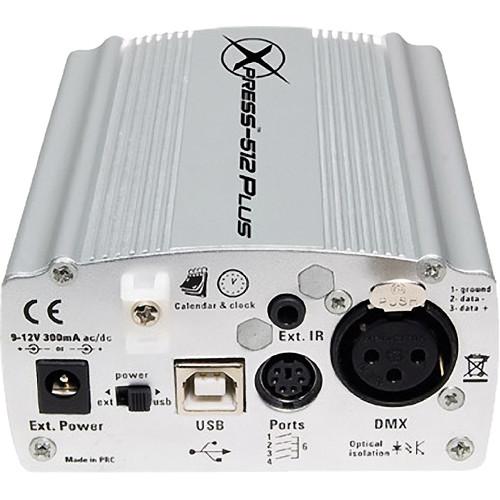

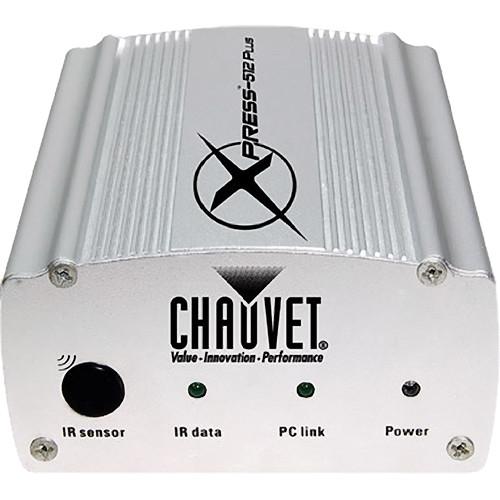

Product description The Xpress 512 Plus DMX-512 USB Interface from Chauvet is a self-contained unit providing one universe of data and control from a computer or USB-equipped lighting board. The user can control many separate universes by connecting multiple USB cables to as many Xpress 512 Plus' as are needed to control the lighting units. In addition, the Xpress 512 Plus has the capability to store and playback up to 18 shows with speed control and layering without a computer. External triggering is possible using a mini-DIN connector to control up to 4 scenes remotely. In addition the Xpress 512 Plus has built-in IR capability enabling infrared remote control (sold separately) of up to 18 scenes remotely. Playback can also be triggered at a predetermined date and time by utilizing the unit's internal calendar.
The Xpress 512 Plus can be powered via an AC/DC voltage converter or through the USB input cable. This unit is compatible with both Windows and Mac OS X operating systems. -
- Interface for the ShowXpress software
- Transmits 1 DMX universe, or control multiple universes by connecting multiple units
- Access external triggering using a mini-DIN connector to control up to 4 scenes remotely
- Optional infrared remote allows you to control up to 18 scenes remotely
- Easily connect the infrared extension using the rear connection
- Dual power options include USB or AC/DC
- Built-in electrical isolation for DMX line
- Playback up to 18 shows with speed control and layering without using a computer
- Create unlimited shows when operating with a computer
- Trigger playback at a specific date and time, without a computer, using the internal calendar
- Compatible with Windows and Mac OS X operating systems
- Lock your cable into place using the Neutrik DMX connector
UPC: 781462204662 In the Box CHAUVET DJ Xpress 512 Plus DMX-512 USB Interface Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Xpress 512 Plus DMX-512 USB Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Xpress 512 PLUS Specs | DMX Connectors | 3-pin | | Input Voltage | 5 VDC USB or 9-12 VDC 300 mA external power supply (not included) | | Approvals | CE | | Dimensions | 4.7 x 3.5 x 1.8" (119 x 89 x 47 mm) | | Weight | 0.6lbs (0.3kg) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 5.7 x 5.6 x 3.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
