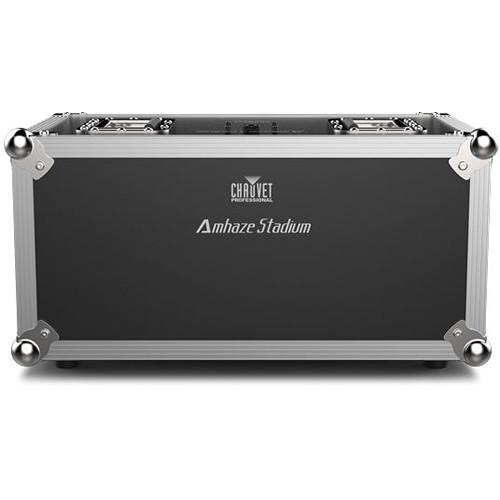

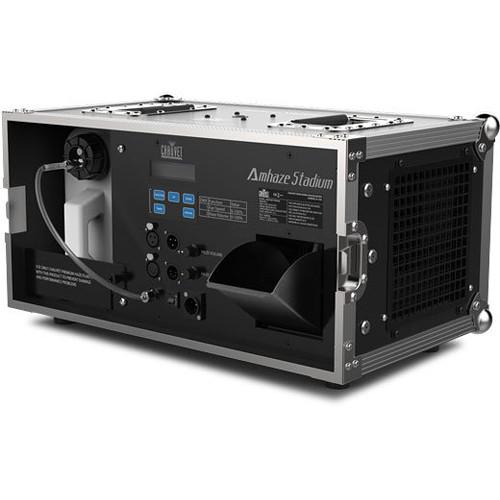

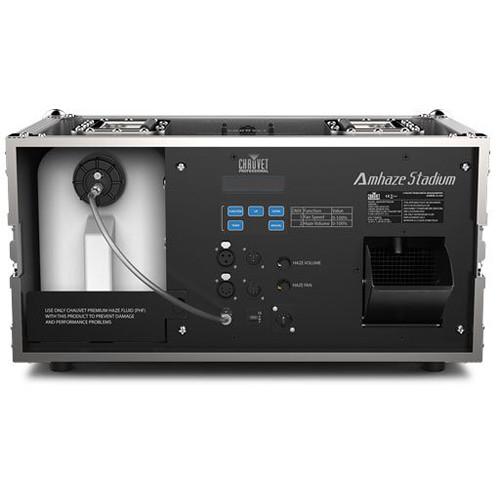

Product description Create scenes with the AmHaze Stadium Haze Machine from CHAUVET PROFESSIONAL. Designed for large-scale applications, this professional water-based haze machine boasts an output of 14,000 ft³/min and a heat-up time of only 30 seconds. Portable and sturdy, it is integrated into a low-profile road case made to survive the rigors of touring and production. The volume and speed of the haze output can be easily adjusted via DMX or using the onboard knobs and LCD screen. The hazer is equipped with four rubber feet, as well as with an M12 threaded insert for easy rigging using a separately available clamp. - Adjustable vent louver for directional haze flow
- Tour-ready with a rugged road case and M12 threaded rigging insert
- Runs up to 11 hours on full tank
- Haze output and blower speed adjustment via DMX or manual knobs
UPC: 781462217181 In the Box CHAUVET PROFESSIONAL AmHaze Stadium Haze Machine Seetronic Powerkon IP65 Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL AmHaze Stadium Haze Machine in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Amhaze Stadium Specs | | | Output | 14,000 ft³/min | | Auto Shutdown | Low-Fluid Shutdown | | | | Tank Capacity | 1.3 gal / 4.92 L | | Fluid Consumption | 0.12 Gallons per Hour / 7.45 mL per Minute | | Maximum Runtime | 11 Hours on Full Tank | | | | Power | Edison (Local) Plug to Seetronic Powerkon IP65 | | Power Input | Seetronic Powerkon IP65 | | Data | Input/Output: XLR 3-Pin and 5-Pin | | Power Cable Length | 5' / 1.5 m | | | | Protocol | DMX | | DMX Channels | 2 | | DMX Personalities | 1 | | On-Board Control | Knobs for Fan Speed and Haze Volume
LCD Screen | | | | Input Voltage | 120 VAC, 60 Hz or 230 VAC, 50 Hz | | Power and Current | 1230 W, 10.25 A at 120 V, 60 Hz
2430 W, 10.56 A at 230 V, 50 Hz | | Heat-up Time | 30 Seconds | | | | Certification | CE | | IP Rating | IP20, for Use in Dry Locations | | | | Dimensions | 20.60 x 10.80 x 15.97" / 52.3 x 27.5 x 40. 6 cm | | Weight | 38.4 lb / 17.4 kg |
