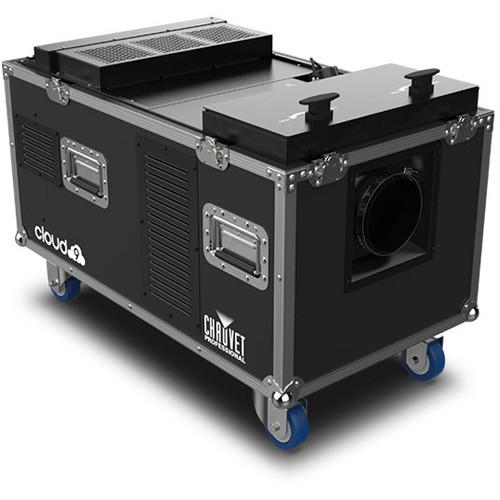

Product description The CHAUVET PROFESSIONAL Cloud 9 is a low-lying fog machine that creates thick, cloud-like effects with high, sustained output well suited for large-scale stages, theaters, live performances, and theme parks. The Cloud 9 boasts a super-fast four-minute heat up time and requires no CO2 or dry ice for operation. The innovative design utilizes an ultrasonic agitator that combines distilled water and standard fog fluid to produce low-lying fog effects.

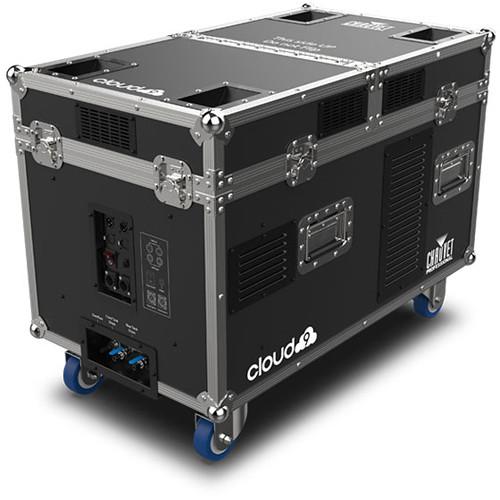

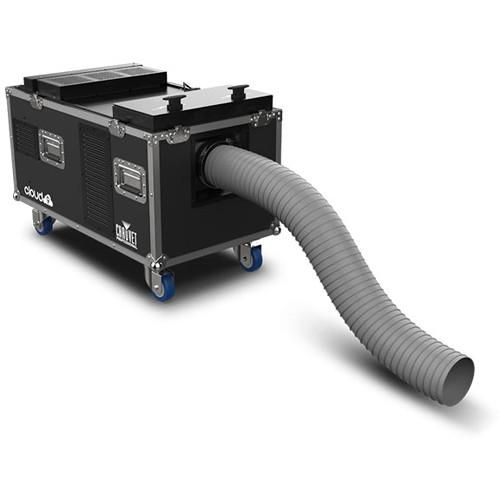

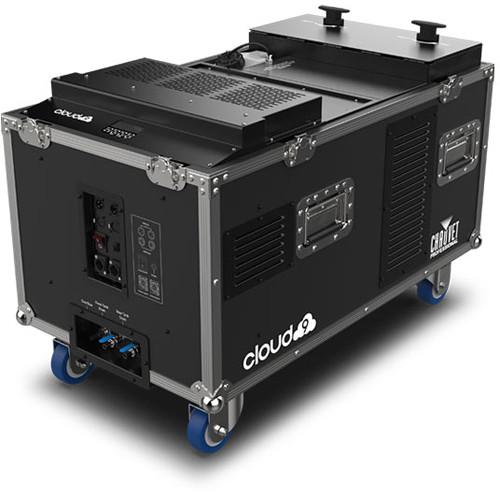

The Cloud 9 is integrated into a rugged flight case with locking casters and a hinged top cover to allow for operation, even when closed. The unit can operate for two hours at 100% and provides a whopping 15,000 cfm with coverage up to 3240 ft². An integrated water drain system makes for fast and easy cleanup. Operate the unit via the onboard control panel or via two-channel DMX (fan speed / fog output). The Cloud 9 ships with a power cord and 8' directional hose with clamp. -
- Professional fogger gives high-impact, low-lying fog effect on stage or in ballrooms
- Continuous operation produces fog to cover 3230 ft² area
- Ultrasonic agitator combines distilled water with fog to produce low-lying fog effect
- Ships in rugged flight case with locking casters and hinged top cover to allow for operation even when closed
- Control via onboard digital display or DMX

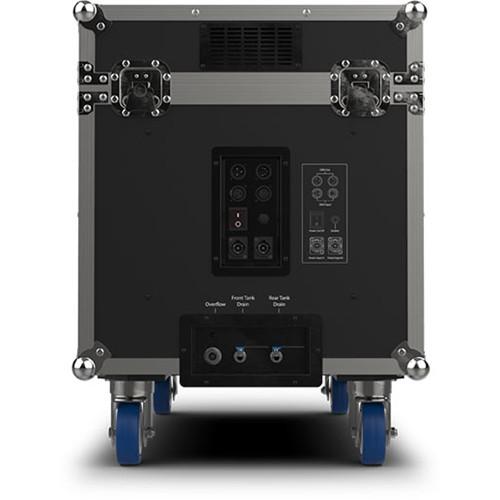

- Integrated water drain system makes cleanup fast and easy
- Works with fog fluid, haze fluid, or quick-dissipating fluid for desired effect
- Use without dry ice or CO2, so no special licensing or training is required
UPC: 781462218386 In the Box CHAUVET PROFESSIONAL Cloud 9 Low-Lying Fog Machine Seetronic powerCon Power Cord Directional Hose Hose Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Cloud 9 Low-Lying Fog Machine in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Cloud 9 Specs | Dynamic Effects | Output: 15,000 cfm
Low Fluid Shutdown: Yes
HDF: Best Performance for Medium-to-Large Coverage Area (Fog Dissipates After Lifting into the Air)
PHF: Great Dual-Purpose Effect with Good Coverage Area (Fog Lifts into the Air to Become Haze) | | Connectors | Power Connection: Edison plug to Seetronic powerCon IP65
Power Input: Seetronic powerCon IP65 (2 x 120 V, 1 x 230 V)
Data Connectors: 3- and 5-Pin XLR
Cable Length (Power): 5.0' / 1.5 m | | Control | Control Protocol: DMX
2 x DMX Channels
1 x Mode
2 x Personalities
Onboard Control: Yes | | Construction | Exterior Color: Black
Fluid Tank Capacity: 0.92 gal / 3.5 l
Water tank Capacity: 5.3 gal / 20 l
Fluid Consumption: 29 ml/min / 0.75 gal/hour
Water Consumption (Distilled): 165 ml/min / 2.62 gal/hour
Maximum Runtime: 2 Hours at 100% Output | | Required Accessories | PHF or HDF | | Certifications | CE, MET | | IP Rating | IP20, Dry Location | | Temperature | -4 to 113°F / -20 to 45°C | | Dimensions (L x W x H) | 33.9 x 19.3 x 24.8" / 86.0 x 49.0 x 63.0 cm
Output Nozzle (Outer Diameter): 4.8" / 12.1 cm
Hose Length (Fully Extended): 8.0' / 2.4 m | | Weight | 121.3 lb / 55.0 kg |
