User Manual for CHAUVET PROFESSIONAL COLORado 1-Quad Zoom Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL COLORado 1-Quad Zoom
- Product category: Stage & Studio CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL Stage & Studio
 |
User manual for the CHAUVET PROFESSIONAL COLORado 1-Quad Zoom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|

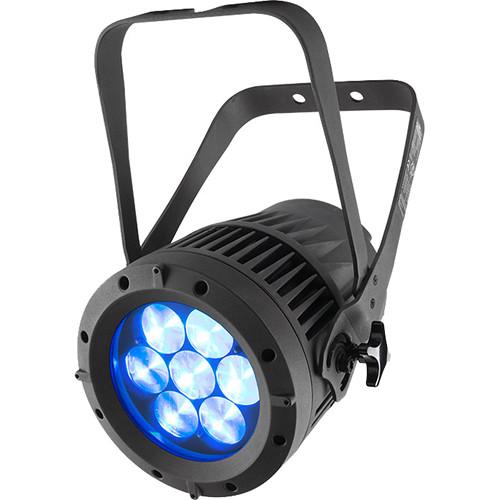

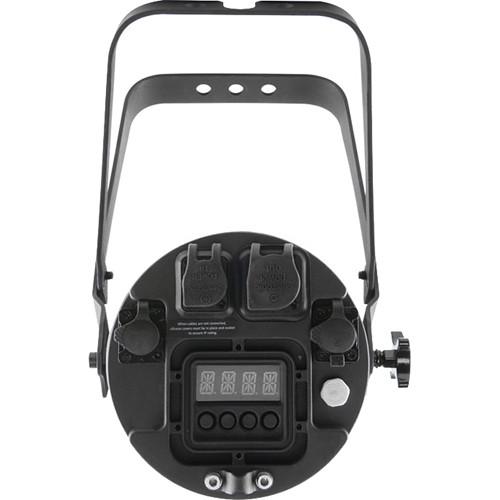

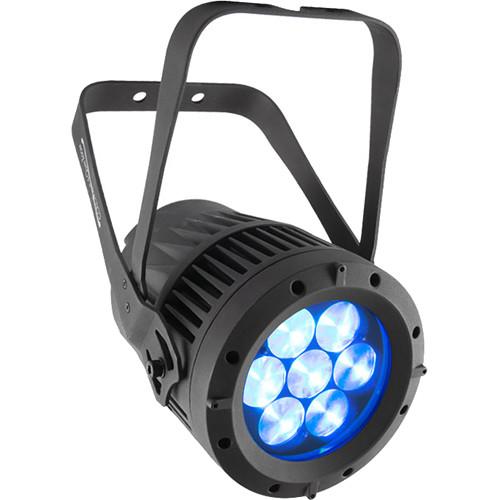

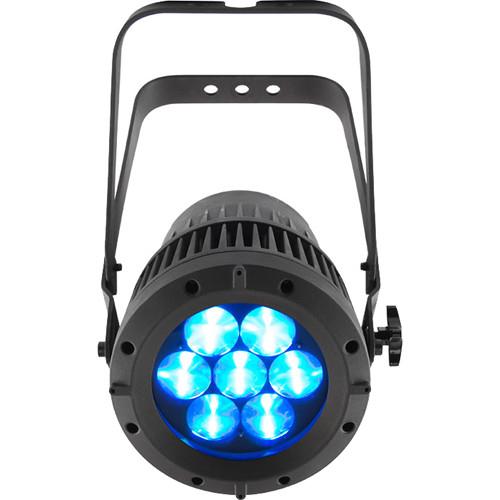

Product description The COLORado1-Quad Zoom from Chauvet is a bright, indoor/outdoor, variable-color PAR-style wash light that features seven 15W Osram quad-color (RGBW) LEDs, allowing for versatile color mixing. With a zoom range of 13 to 45°, it can be used as a beam, a wide flood, or a wash light in clubs, restaurants, television studios, outdoor stages, and more.Other functions include built-in auto and custom programs, master/slave operation, color macros, and five dimming modes. It maintains its IP65 rating with IP-rated DMX cables, but standard 5-pin XLR DMX cables work perfectly for indoor use. Additionally, it includes an IP65 power cord, a 7.5" gel frame holder, and a gel frame. - Color mix from the on-board menu or via DMX
- 16-bit dimming resolution for smoother fades
- Zoom control via DMX or the menu
- Built-in auto and custom programs recalled via DMX and Master/Slave
- Selectable, smooth dimming curves for programming versatility
- Color macros with included speed adjustment
- Double-bracket yoke doubles as a floor stand
- All-environment operation with IP-rated power and DMX connections
- 5-pin DMX input/output connections
- LED display with password protection
UPC: 781462215910 In the Box CHAUVET PROFESSIONAL COLORado 1-Quad Zoom Seetronic Powerkon IP65 Power Cord 7.5" Gel Frame Holder Gel Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLORado 1-Quad Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORado 1-Quad Zoom Specs | Light Source | 7 x RGBW LEDs, 5 W (1 A) | | Life Expectancy | 50,000 hours | | Illuminance | 7°: 4,009 lux @ 16.4' / 5 m
32°: 324 lux @ 16.4' / 5 m | | Beam Angle | 7 to 32° | | Field Angle | 13 to 45° | | Zoom Angle | 13 to 45° | | Zoom Adjustment | Motorized | | Color Mixing | RGB, RGBW, RGBW (16-bit), HSV | | Color Temperature Presets | Yes | | Dimmer | Electronic | | Dimmer Mode | 5 x modes | | Dimmer Curves | 4 x curves | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 20 Hz | | PWM Frequency | 1,200 Hz | | Built-In Programs | Yes | | Custom Functions | Customizable Programs: Yes
Recall Custom Programs: Yes | | Protocols | DMX | | DMX Connectors | Input: XLR 5-pin
Output: XLR 5-pin | | DMX Channel Modes | 3, 4, 5, 6, 7, 10, 12, 17, or 25 | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: Seetronic Powerkon IP65
Output: Seetronic Powerkon IP65 | | Power Linking | 120 V: 14 units
230 V: 26 units | | Power Consumption | 120 V, 60 Hz: 112 W, 0.97 A
230 V, 50 Hz: 119 W, 0.51 A | | Power Cable | Edison plug to Seetronic Powerkon IP65 | | Power Cable Length | 5' (1.5 m) | | Certifications & Approvals | CE, MET | | IP Rating | IP65 | | Housing Material | Aluminum die-cast | | Dimensions (L x W x H) | 13.14 x 9.25 x 7.48" (334 x 235 x 190 mm) | | Weight | 15.4 lb (7 kg) | | | | Package Weight | 20.6 lb | | Box Dimensions (LxWxH) | 16.8 x 13.0 x 10.6" |
