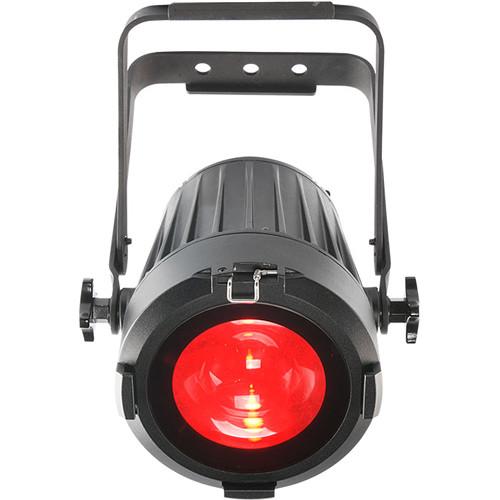

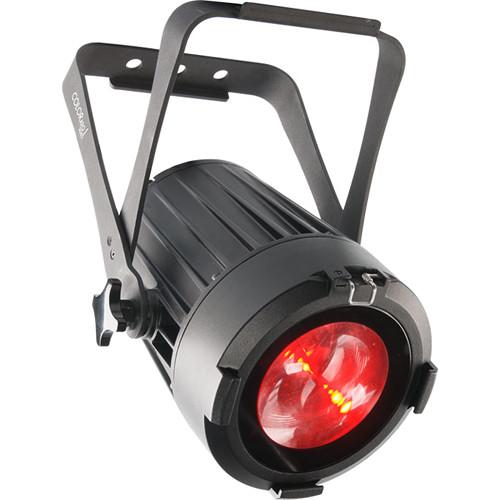

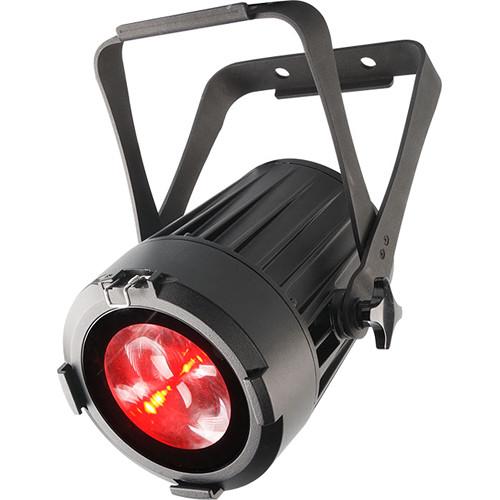

Product description The COLORado 1-SOLO Quad-Color Wash Fixture from Chauvet is a RGBW LED wash light for use as a rental or anywhere on the road, indoors or outdoors. The light has a wide zooming range of 8 to 55°, and dynamic effects such as electron dimming and strobe, motorized zoom, standalone color mixing and 5 dimming modes, as well as DMX and RDM compatibility. You can use the COLORado 1-SOLO anywhere in the world thanks to its universal 100-240 VAC power supply. - Benefits
-
- Zooming RGBW LED wash for touring, rental and production indoors or out
- Completely homogenized wash with superior color mixing and zoom
- 8 to 55° smooth and fast zoom
- All environment operation with IP rated power and DMX connections
- Color temperature presets, from 3200K to 10000K
- Selectable, smooth dimming curves for programming versatility
- OLED display with password protection
UPC: 781462214722 In the Box CHAUVET PROFESSIONAL COLORado 1-SOLO Quad-Color Wash Fixture Seetronic Powerkon IP65 Power Cord Gel Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLORado 1-SOLO Quad-Color Wash Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORado 1 Solo Specs | Optical | Light Source: 1 LEDs (quad-color RGBW) 60 W, (4 A), 50,000 hours life expectancy
Beam Angle: 4 to 40°
Field Angle: 8 to 55°
Zoom Angle: 8 to 55°
Illuminance (40°): 75 lux @ 16.4' (5.0 m)
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25,000 Hz | | Effects | Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 25 Hz
Standalone color mixing
Color temperature presets
Dim Modes: 5
Built-in automated programs
Customizable programs

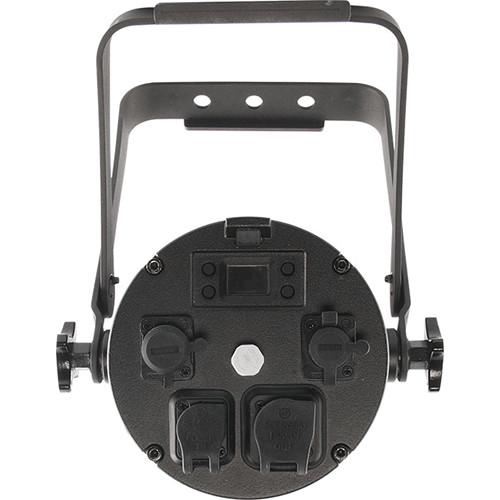

Recall custom programs | | Connections | Power connection: Edison (Local) plug to Seetronic Powerkon IP65
Power input: Seetronic Powerkon IP65
Power output: Seetronic Powerkon IP65
Data connectors: 5-pin XLR
Cable length (power): 5.0' (1.5 m) | | Control | DMX, RDM
DMX channels: 9, 12, or 17
Modes/personalities: 5 personalities (HSIC, SSP, TOUR, TR16, STD.Y) | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Electrical | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 24 units @ 120 V; 40 units @ 208 V; 45 units @ 230 V
Power and Current: 65 W, 0.548 A @ 120 V, 60 Hz
Power and Current: 62 W, 0.332 A @ 208 V, 60 Hz
Power and Current: 65 W, 0.297 A @ 230 V, 50 Hz | | Dimming | 5 Modes | | Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Current | Power Linking: 24 units @ 120 V; 40 units @ 208 V; 45 units @ 230 V
Power and Current: 65 W, 0.548 A @ 120 V, 60 Hz
Power and Current: 62 W, 0.332 A @ 208 V, 60 Hz
Power and Current: 65 W, 0.297 A @ 230 V, 50 Hz | | Certifications | CE, MET
IP Rating: IP66, outdoor/wet, with pressure equalizing M12 GORE valve | | Dimensions | 13.62 x 6.93 x 9.53 in (346 x 176 x 242 mm) | | Weight | 11.8 lb (5.4 kg) | | | | Package Weight | 16.35 lb | | Box Dimensions (LxWxH) | 17.3 x 12.7 x 10.6" |
