User Manual for CHAUVET PROFESSIONAL COLORado 1-Tri Tour RGB LED Wash Light Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL COLORado 1-Tri Tour RGB
- Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights
 |
User manual for the CHAUVET PROFESSIONAL COLORado 1-Tri Tour RGB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|
Product description - Chauvet Colorado Tri Tour LED Wash Light at the NAMM Pioneer DJ Booth

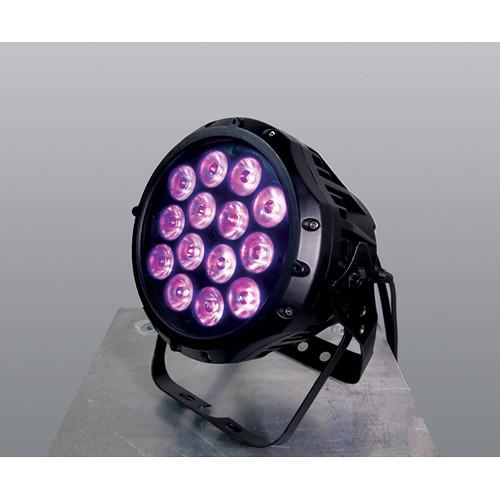

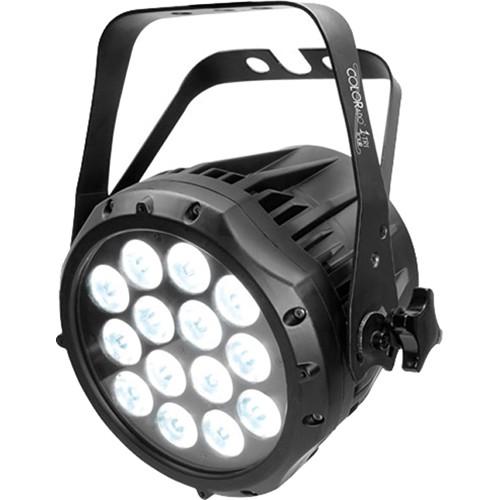

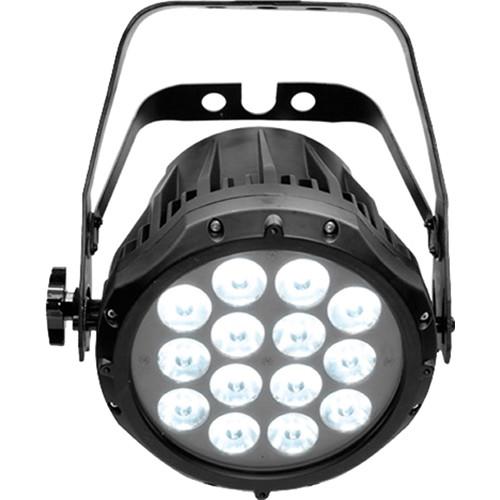

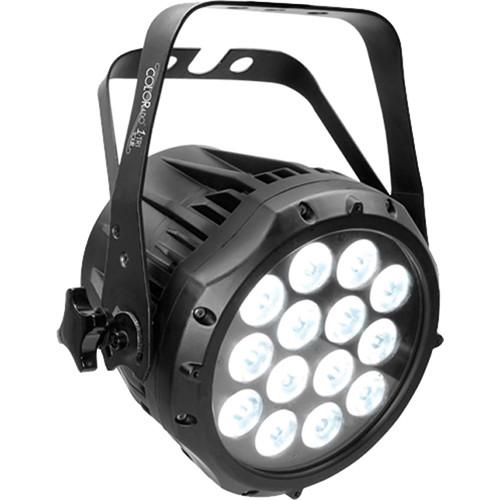

The CHAUVET PROFESSIONAL COLORado 1-Tri Tour is an RGB LED wash light designed to produce color washes with bright and smooth color mixing. Featuring 14, 3W tri-color RGB LEDs (red, green, blue), a 15° beam angle, and a 28° field angle, it is well suited for venue up-lighting, dance floor color washing, stage illumination, and more. The COLORado 1-Tri Tour offers built-in auto and custom programs such as Static Color, Auto Program, Variable Strobe, and RGB Dimming. It can also be controlled via DMX or used in master/slave configuration to coordinate multiple fixtures without the need for a controller. The fixture comes equipped with a DMX LED display, an auto-ranging power supply, and a double-bracket yoke, which can be used for conventional mounting to a truss or to create a variable-angle floor stand. The COLORado 1-Tri Tour ships with an attachable gel frame holder. - Key Features
-
- 14 x 3W tri-color RGB LEDs (red, green, blue), for bright color washes
- Specially designed optics make the light from the LEDs converge before leaving the fixture, to enhance color mixing
- 15° beam angle, 28° field angle
- Five DMX channel modes: 3, 4, 5, 9, or 13
- Color temperature presets: 2800 to 10,000K
- Variable strobe effect: 0-20 Hz
- Variable electronic dimmer: 0-100%
- Operation Modes: Static color, Auto Program, RGB Dimming, DMX-controlled
- Standalone and master/slave configuration
- 16-bit dimming resolution for smooth fades
- Eight selectable smooth dimming curves for programming versatility

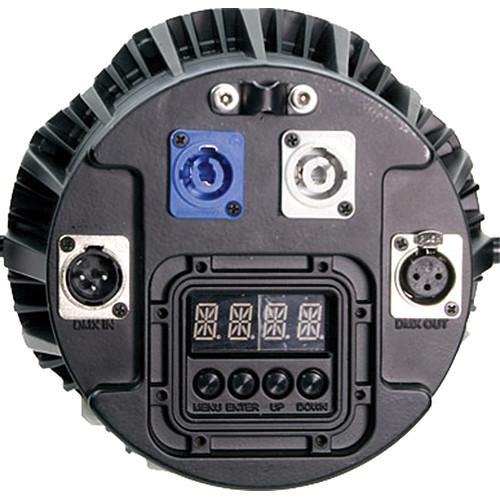

- LED display with password protection
- 3-pin and 5-pin DMX input/output connections
- Neutrik powerCON power input/output connections for fast and easy setup
- Daisy-chain power for up to 14 units at 120V
- Double-bracket yoke doubles as floor stand
- Multi-Voltage Operation: 100-240 VAC, 50/60 Hz
- Includes an attachable gel frame holder
UPC: 781462204228 In the Box CHAUVET PROFESSIONAL COLORado 1-Tri Tour RGB LED Wash Light powerCON Power Cord Gel Frame Holder (7.5") Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLORado 1-Tri Tour RGB LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORado 1-Tri Tour Specs | Light Source | 14 x 3 W tri-color RGB LEDs (red, green, blue)
Current: 3 x 350 mA
Life Expectancy: 50,000 hours | | Color Temperature | 2800 to 10,000K | | Beam and Field Angle | Beam Angle: 15°
Field Angle: 28° | | Illuminance | 806 lux at 16.4' (5.0 m) | | PWM Frequency | 900 Hz | | DMX Interface | DMX Channels: 3, 4, 5, 9, 13
DMX Connectors: 3-pin and 5-pin XLR, in/out
Modes/Personalities: 6 x personalities (ARC.1, HSV, AR1.D, AR1.S, TR16, TOUR) | | Effects | Standalone color mixing
Color temperature presets
Electronic shutter/strobe, 0 to 20 Hz strobe rate
Built-in automated programs
Customizable programs
Recall custom programs | | Dimming | 0-100%, electronic
8 x dimming modes | | Approvals | CE, MET
IP Rating: IP20 | | Power Connectors | 1 x Neutrik powerCON A, power input
1 x Neutrik powerCON B, power output | | Cable | Length: 5.0' (1.5 m)
Connectors: Edison plug to Neutrik powerCON | | Power Linking | 14 x units at 120 V
26 x units at 230 V | | Power Requirements | 100-240 VAC, 50/60 Hz, auto-ranging | | Power Consumption | 87 W, 0.73 A at 120 V, 60 Hz
91 W, 0.44 A at 208 V, 60 Hz
93 W, 0.40 A at 230 V, 50 Hz | | Operating Current | 0.73 A at 120 V, 60 Hz
0.40 A at 230 V, 50 Hz | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Housing Material | Aluminum die-cast | | Color / Finish | Black | | Dimensions (H x W x L) | 11.5 x 9.7 x 8.0" (292.1 x 246.3 x 203.2 mm) | | Weight | 8.8 lb (3.9 kg) | | | | Package Weight | 13.2 lb | | Box Dimensions (LxWxH) | 14.8 x 12.9 x 11.7" |
