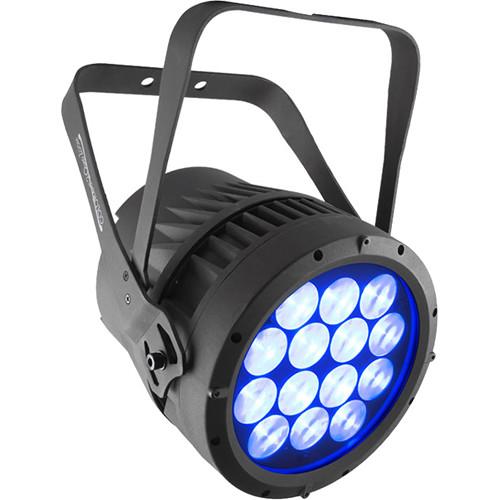

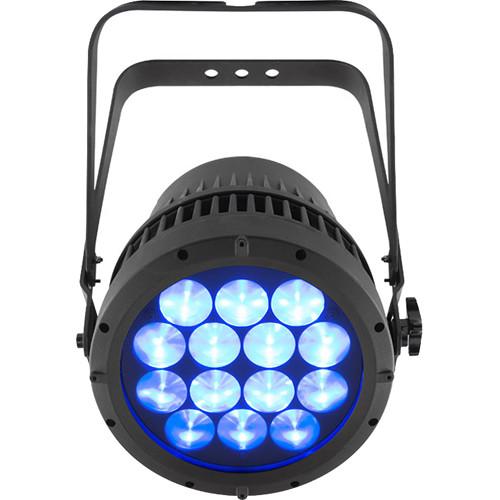

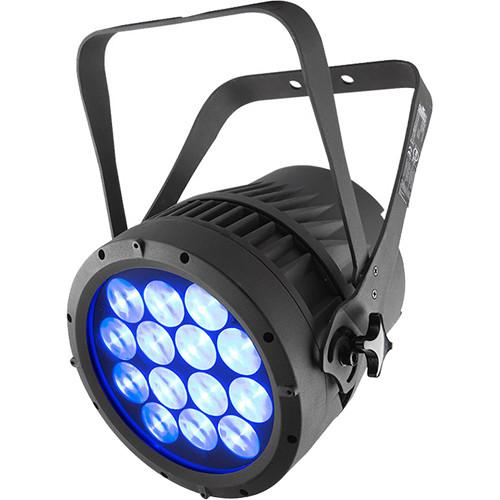

Product description The COLORado 2 Quad Zoom from Chauvet Professional is a quad-color LED wash fixture featuring an IP65 rating, which allows the unit to be used in outdoor/wet conditions and makes it suitable for a wide range of applications including rental houses, theatrical events, and outdoor festival production. The fixture utilizes 14 15W Osram (RGBW) LEDs and features a 14 to 44° adjustable zoom. The selectable, smooth dimming curves offer programming versatility, while color macros make for easy color mixing. The instrument features dynamic effects such as electronic dimming and strobe, motorized zoom, and 16-bit dimming of individual colors as well as master dimming. The fixture can be operated manually or via DMX, with several channel modes including 3, 4, 5, 6, 7, 12 or 17. The COLORado 2 Quad Zoom can be used anywhere in the world with its built-in universal 100 to 240 VAC power supply and ships with a Seetronic Powerkon IP65 power cord, a gel frame, and a gel frame holder. - Benefits
-
- RGBW color mixing via DMX or manually
- Zoom control via DMX or manually
- Color temperature range: 3200 to 10,000K
- Built-in auto and custom programs recalled via DMX and Master/Slave
- 16-bit dimming of individual colors as well as master dimmer
- Selectable, smooth dimming curves for programming versatility
- Color macros with included speed adjustment
- Double-bracketed yoke doubles as a floor stand

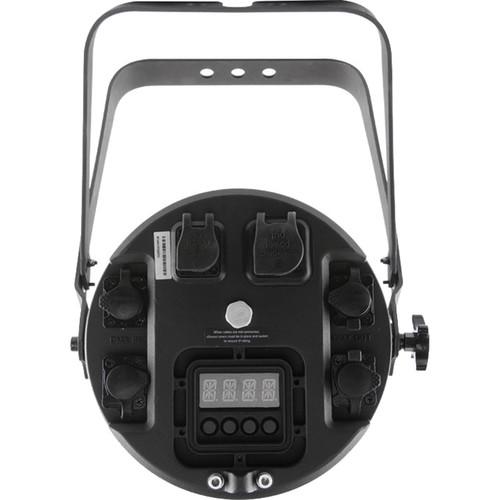

- All-environment operation with IP rated power and DMX connections
- 3- and 5-pin DMX input/output connections
- LED display with password protection
UPC: 781462215927 In the Box CHAUVET PROFESSIONAL COLORado 2 Quad Zoom LED Wash Fixture (RGBW) Seetronic Powerkon IP65 Power Cord Gel Frame Holder Gel Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLORado 2 Quad Zoom LED Wash Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORado 2-Quad Zoom Specs | Optical | Light Source: 14 LEDs (quad-color RGBW) 15 W, (985 mA), 50,000 hours life expectancy
Beam Angle: 7 to 29°
Field Angle: 14 to 44°
Zoom Angle: 14 to 44°
Illuminance (14°): 7180 lux @ 16.4' / 5.0 m
Illuminance (44°): 737 lux @ 16.4' / 5.0 m
Selectable PWM: 1200 Hz | | Effects | Color Macros: 20 macros
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Dim Curves: 4
Built-In Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes | | Connections | Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (Power): 5' / 1.5 m | | Control | DMX Channels: 3, 4, 5, 6, 7, 12 or 17
Modes/Personalities: 10 personalities (HSV, ARC.1, AR1.D, ARC.2, AR2.D, AR2.S, AR2.Z, TOUR, TR16, STD.Y) | | Electrical | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
Power and Current: 220 W, 1.82 A @ 120 V, 60 Hz
Power and Current: 225 W, 1.08 A @ 208 V, 60 Hz
Power and Current: 228 W, 0.98 A @ 230 V, 50 Hz | | Certifications | CE, MET
IP Rating: IP65, temporary outdoor/wet use | | Housing Material | Aluminum die-cast | | Exterior Color | Black | | Dimensions | 12.9 x 11.1 x 9.2" / 32.8 x 28.2 x 23.4 cm | | Weight | 18.8 lb / 8.5 kg | | | | Package Weight | 25.9 lb | | Box Dimensions (LxWxH) | 17.3 x 15.8 x 12.3" |
