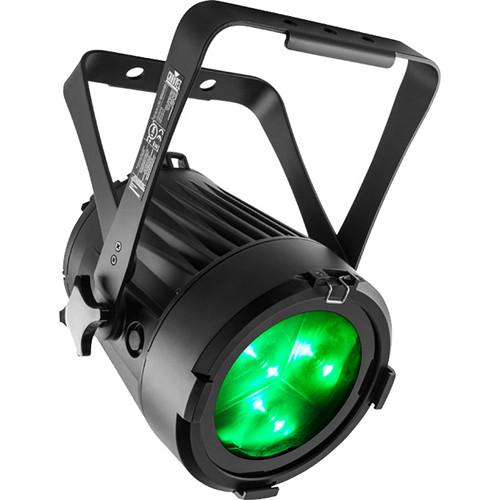

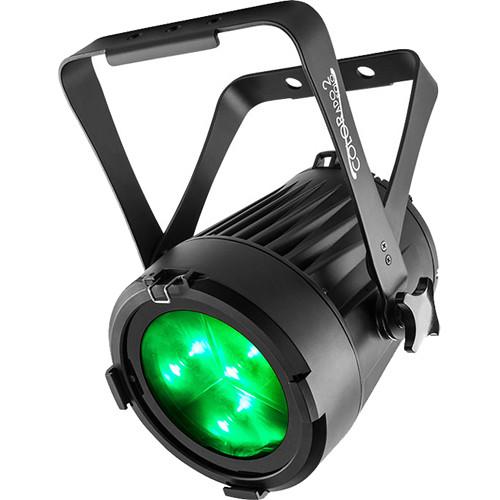

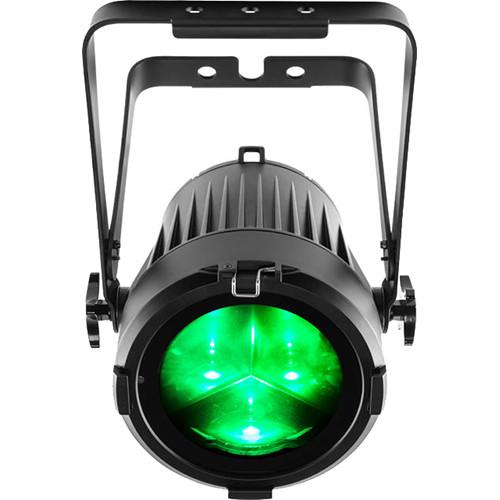

Product description The COLORado 2 Solo from Chauvet Professional is a quad-color LED wash fixture featuring an IP65 rating, which allows the unit to be used in outdoor/wet conditions and makes it suitable for a wide range of applications including rental houses, theatrical events, and outdoor festival production. The fixture utilizes three 40W RGBW LEDs to project a fully homogenized beam through fast and smooth zooming optics. The instrument features a wide zooming range of 7 to 42° and dynamic effects, such as electronic dimming and strobe, motorized zoom, standalone color mixing, and 5 dimming modes, as well as DMX compatibility. The COLORado 2 Solo can be used anywhere in the world with its built-in universal 100 to 240 VAC power supply and ships with a Seetronic Powerkon IP65 power cord. - Benefits
-
- Zooming RGBW LED wash for touring, rental, and production, indoors or outdoors
- Completely homogenized wash with superior color mixing and zoom
- 7° to 42° smooth and fast zoom
- All-environment operation with IP-rated power and DMX connections
- Color temperature presets, from 3200K to 10,000K
- Selectable, smooth dimming curves for programming versatility
- OLED display with password protection
UPC: 781462215934 In the Box CHAUVET PROFESSIONAL COLORado 2 Solo LED Wash Fixture with Zoom (RGBW) Seetronic Powerkon IP65 Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLORado 2 Solo LED Wash Fixture with Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORado 2 Solo Specs | Optical | Light Source: 3 LEDs (quad-color RGBW) 40 W, (2.5 A), 50,000 hours life expectancy
Beam Angle: 5 to 27°
Field Angle: 7 to 42°
Zoom Angle: 7 to 42°
Illuminance (5°): 9720 lux @ 16.4' / 5 m
Illuminance (27°): 318 lux @ 16.4' / 5 m
Selectable PWM: 600, 1200, 2000, 2400, 6000, 25,000 Hz | | Effects | Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Built-In Automated Programs: Yes
Customizable Programs: Yes

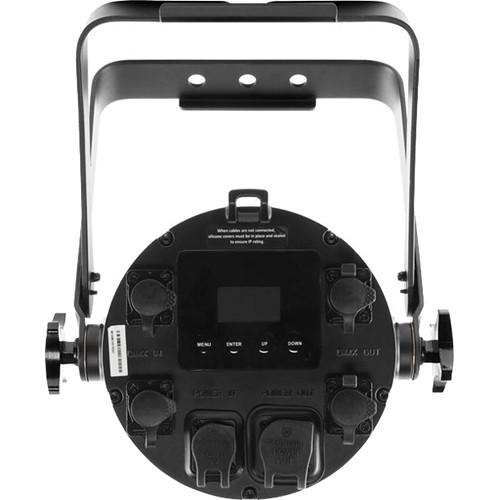

Recall Custom Programs: Yes | | Connections | Power connection: Edison (local) plug to Seetronic Powerkon IP65
Power input: Seetronic Powerkon IP65
Power output: Seetronic Powerkon IP65
Data connectors: 3- and 5-pin XLR
Cable length (power): 5.0' / 1.5 m | | Control | DMX
DMX channels: 9, 12, or 17
Modes/personalities: 5 personalities (HSIC, SSP, TOUR, TR15, STD.Y) | | Electrical | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 12 units at 120 V; 21 units at 208 V; 23 units at 230 V
Power and Current: 130 W, 1.11 A at 120 V, 60 Hz
Power and Current: 124 W, 0.63 A at 208 V, 60 Hz
Power and Current: 123 W, 0.57 A at 230 V, 50 Hz | | Certifications | CE, MET
IP Rating: IP66, outdoor/wet, with pressure equalizing M12 GORE valve | | Dimensions | 8.3 x 10.7 x 15.2" / 209.8 x 271.8 x 386.1 mm | | Weight | 16.2 lb / 7.3 kg |
