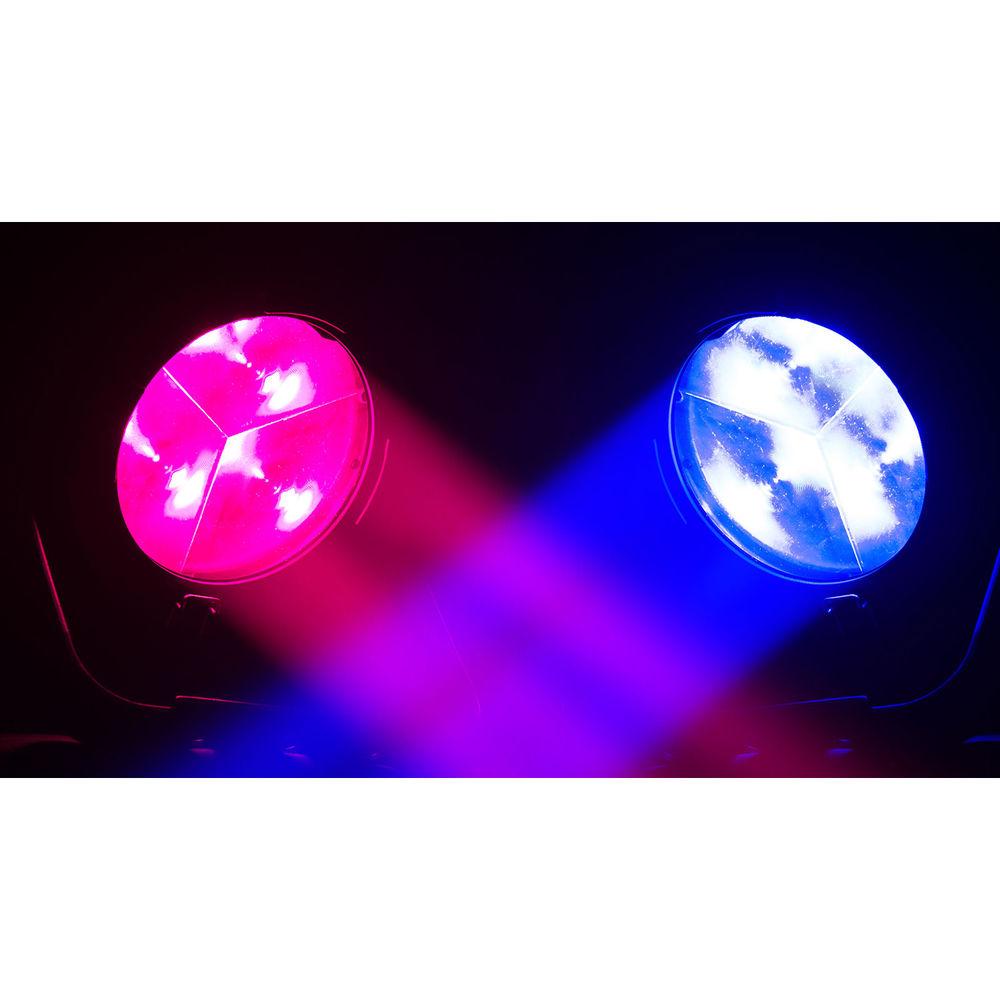

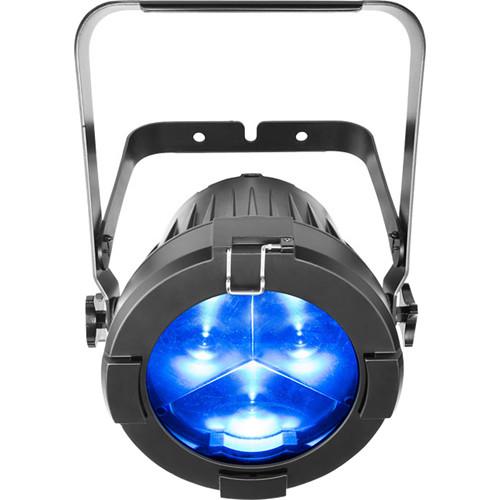

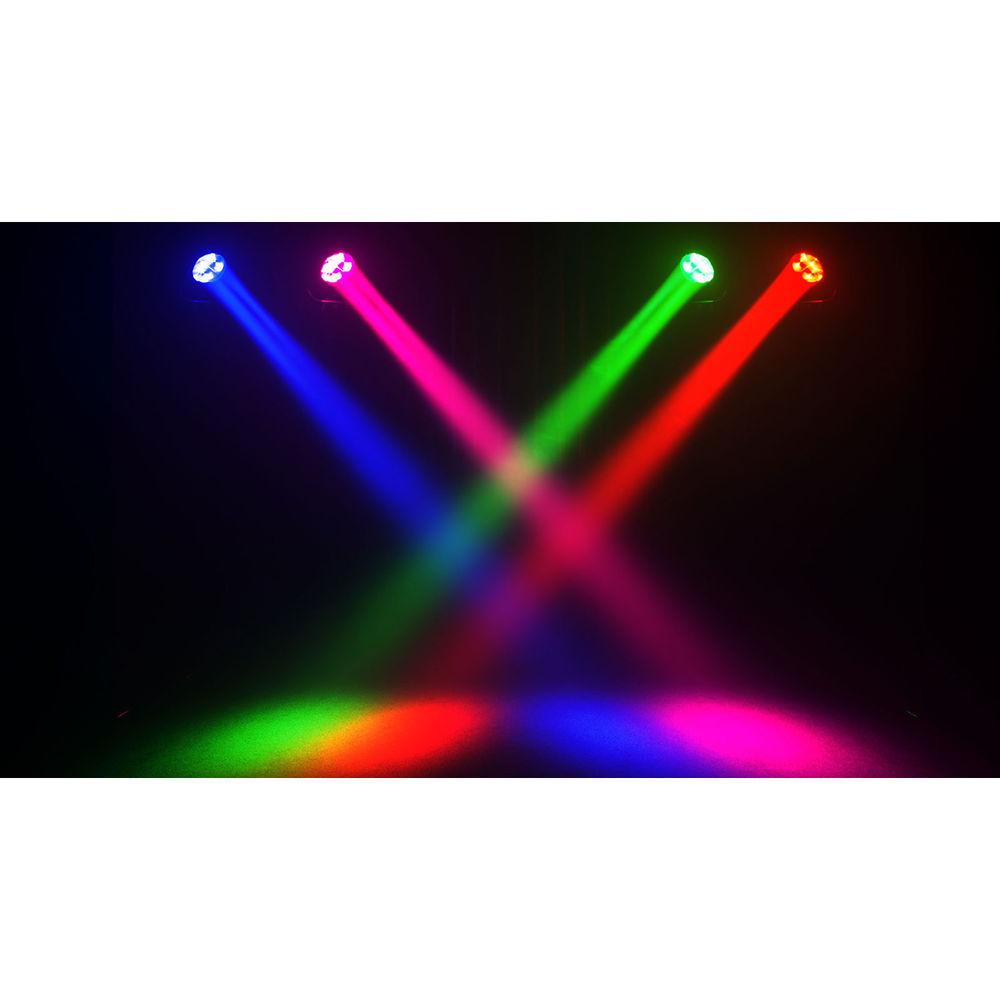

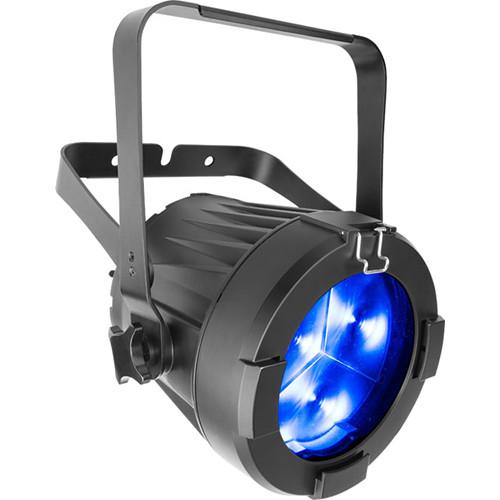

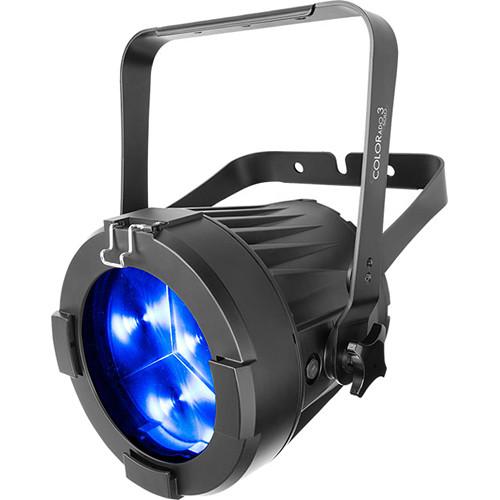

Product description The COLORado 3 Solo from Chauvet is a zooming wash light that delivers all-environment performance and advanced optics with three 60W RGBW LED engines that project an intense, even, and fully homogenized beam through fast and smooth zooming optics. Utilization of IP65-rated power & data connectors and full convection cooling allows this fixture to perform in all kinds of environments. -
- Zooming RGBW LED wash for touring, rental, and production, indoors or outdoors
- Completely homogenized wash with color mixing and zoom
- 8° to 45° smooth and fast zoom
- All environment operation with IP65-rated power and DMX connections
- Color temperature presets, from 3200 to 10000K
- Selectable, smooth-dimming curves for programming versatility
- OLED display with password protection
UPC: 781462215811 In the Box CHAUVET PROFESSIONAL COLORado 3 Solo RGBW LED Lighting Fixture Seetronic Powerkon Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLORado 3 Solo RGBW LED Lighting Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORado 3 Solo Specs | Light Source | 3 x RGBW LEDs, 7 W (500 mA) | | Life Expectancy | 50,000 hours | | Illuminance | 4°: 10,422 lux @ 16.4' / 5 m
34°: 185 lux @ 16.4' / 5 m | | Beam Angle | 4 to 34° | | Field Angle | 8 to 45° | | Zoom Angle | 8 to 45° | | Zoom Adjustment | Motorized | | Color Mixing | HSI, RGBW, RGBW (16-bit), Standalone | | Color Temperature | 3200 to 10000K | | Color Temperature Presets | Yes | | Dimmer | Electronic | | Dimmer Mode | 5 x modes | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 25 Hz | | PWM Frequency | 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25,000 Hz | | Built-In Programs | Yes | | Custom Functions | Customizable Programs: Yes

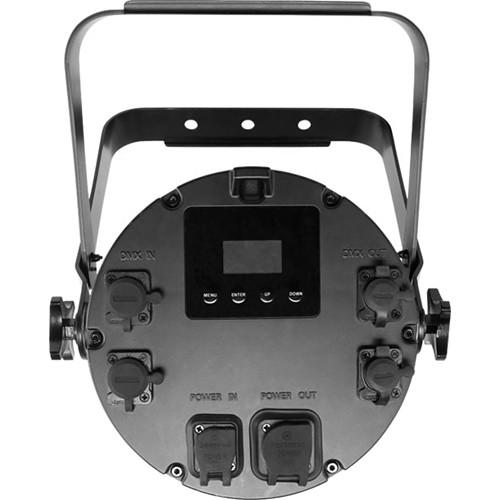

Recall Custom Programs: Yes | | Protocols | DMX, RDM | | DMX Connectors | Input: XLR 3-pin, XLR 5-pin
Output: XLR 3-pin, XLR 5-pin | | DMX Channel Modes | 9, 12, or 17 channels | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: Seetronic Powerkon IP65
Output: Seetronic Powerkon IP65 | | Power Linking | 120 V: 8 units
208 V: 14 units
230 V: 15 units | | Power Consumption | 120 V, 60 Hz: 187 W, 1.58 A
208 V, 60 Hz: 181 W, 0.91 A
230 V, 50 Hz: 175 W, 0.87 A | | Power Cable | Edison plug to Seetronic Powerkon IP65 | | Power Cable Length | 5' (1.5 m) | | Certifications & Approvals | CE, MET | | IP Rating | IP65 | | Housing Material | Aluminum die-cast | | Dimensions | 13 x 12 x 4.1" (32 x 30 x 11 cm) | | Weight | 10 lb (4.6 kg) | | | | Package Weight | 26.35 lb | | Box Dimensions (LxWxH) | 18.5 x 15.3 x 12.6" |
