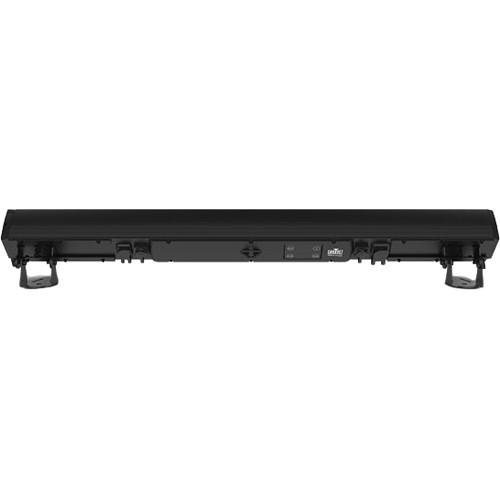

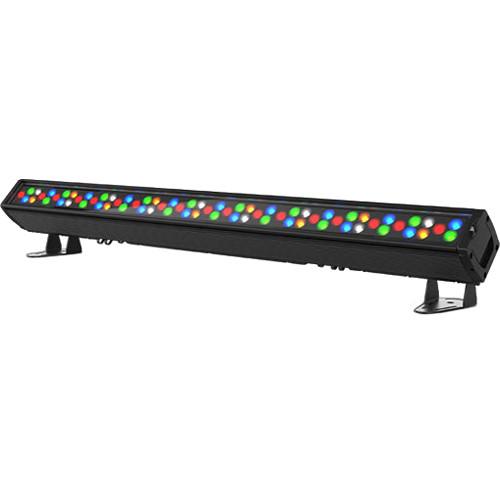

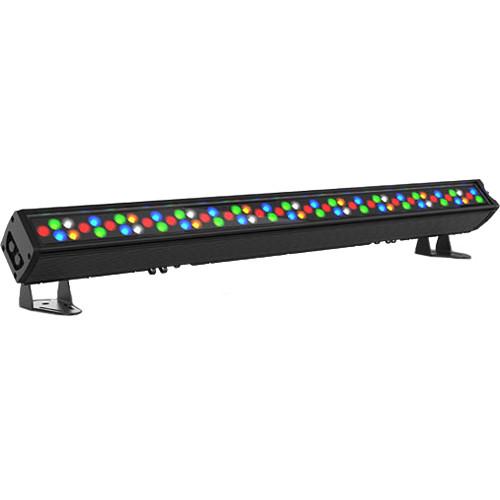

Product description The COLOrado Batten 72X from Chauvet Professional is an IP65 batten-style wash lighting fixture powered by 72 calibrated RGBWA LEDs. It can be used to produce a wide palette of color renderings ranging from soft pastels to saturated hues for touring, live events, television, and theatrical productions.The COLOrado Batten 72X is equipped with 16-bit dimming capability, as well as five selectable dimming curves. They provide smooth fades and can easily integrate into traditional rigs. In addition, it is built with integrated trunnions to accommodate clamps for vertical or horizontal hanging. - RGBAW LED Batten for touring, rental, and production—indoors or out
- All environment operation with IP rated power and DMX connection
- Color temperature presets, from 3200 K to 10000 K
- Selectable, smooth dimming curves for programming versatility
- Built for touring, live events, television, and theatrical productions
- Large, easy to navigate display with password protection
UPC: 781462218270 In the Box CHAUVET PROFESSIONAL COLOrado Batten 72X IP65 Wash Light Seetronic PowerKON IP65 Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLOrado Batten 72X IP65 Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORado Batten 72X Specs | Optical | Light Source: 72 LEDs (18 Red, 18 Green, 18 Blue, 9 White, 9 Amber) 3 W, (690 mA), 50,000 Hours Life Expectancy
Color Temperature (Range): 3200 to 10000
CRI (3200 K): 80
Installed Optics: 24°
Beam Angle (Horizontal): 22°
Beam Angle (Vertical): 18°
Field Angle (Horizontal): 39 °
Field Angle (Vertical): 34°
Lumens: 3,631
Illuminance (total): 1730 lux @ 5 m
Selectable PWM: 600, 1200, 2000, 2400, 4000, 6000, 25000 Hz | | Dynamic Effects | Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Built-In Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes | | Connections | Power Connection: Edison (Local) Plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (Power): 5' / 1.5 m | | Control | Control Protocol: DMX, RDM
DMX Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16
3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
Modes/Personalities: 18 Personalities | | Electrical | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 10 units @ 120 V; 17 units @ 208 V; 19 units @ 230 V
Power and Current: 161 W, 1.33 A @ 120 V, 60 Hz
Power and Current: 164 W, 0.79 A @ 208 V, 60 Hz
Power and Current: 163 W, 0.71 A @ 230 V, 50 Hz | | Certifications | CE, MET
IP Rating: IP65, Temporary Outdoor/Wet Use
Temperature (Ambient): -4 to 113°F / -20 to 45°C | | Material of Construction | Housing Material: Aluminum Alloy, Aluminum Die-Cast | | Dimensions (L x W x H) | 39.37 x 6.14 x 2.95" / 100.00 x 15.60 x 7.49 cm | | Weight | 18.6 lb / 8.4 kg |
