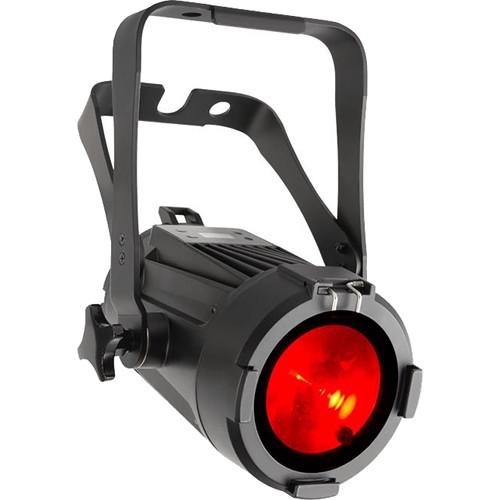

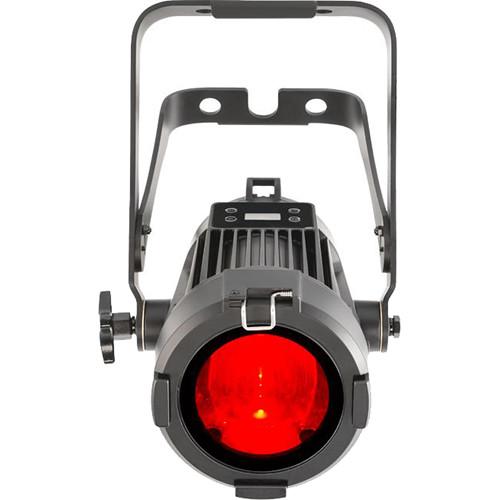

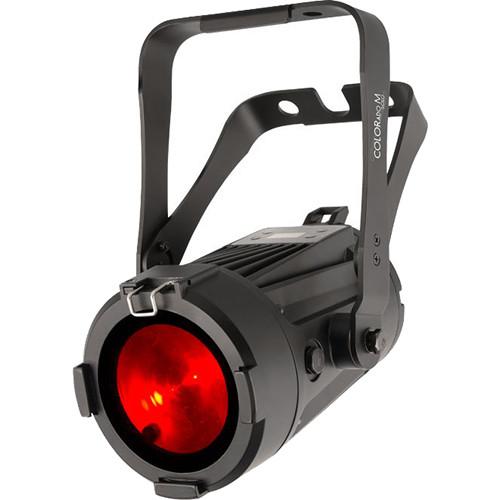

Product description The compact CHAUVET PROFESSIONAL COLORado M Solo is an RGBW (red, green, blue, white) LED fixture designed to produce color washes with an even and fully homogenized beam, and color temperature ranging from 3200 to 10,000K. It is equipped with a 40W quad-color LED, precision optics, and a smooth and fast zoom that produces a 4 to 18° beam angle and 5 to 24° field angle. The DMX connectors and Seetronic Powerkon power connectors are IP65-rated, allowing this fixture to operate in all types of environments, for touring, rental, or production work, indoor and outdoor. The COLORado M Solo offers a standalone mode with automated programs, 0-100% electronic dimming with five curves, motorized zoom, and strobe. Manual control is achieved via an OLED display with password protection and an easy-to-navigate 4-button menu. For in-depth control, the unit comes with three DMX channel modes and four DMX personalities. The Master/Slave option lets you coordinate multiple fixtures without the need for a controller. Other features include full convection cooling for silent and reliable operation, and a universal, auto-sensing power supply. You can also daisy-chain power for up to 38 units at 120V, or 62 units at 230V. The COLORado M Solo comes equipped with a dual-yoke bracket that can be used for conventional mounting to a truss or lighting stand, or to create a variable-angle floor stand. - Key Features
-
- Robust and compact LED wash light designed for touring, rental, and production work
- Precision optics project an even and fully homogenized beam
- 1 x 40W quad-color RGBW (red, green, blue, white) LED
- 5 to 24° smooth and fast zoom
- IP65-rated power and DMX connectors, designed for indoor and outdoor use
- Color temperature presets from 3200 to 10,000K
- 4 to 18° beam angle / 5 to 24° field angle
- 3 x DMX channel modes
- 4 x DMX personalities
- Standalone and Master/Slave operation
- Built-in automated programs
- Color macros
- LED strobe effect
- Variable electronic dimmer: 0-100% with five curves
- Customizable programs: Store and recall
- 5-pin XLR DMX I/O
- Daisy-chain power for up to 38 units at 120V, or 62 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging

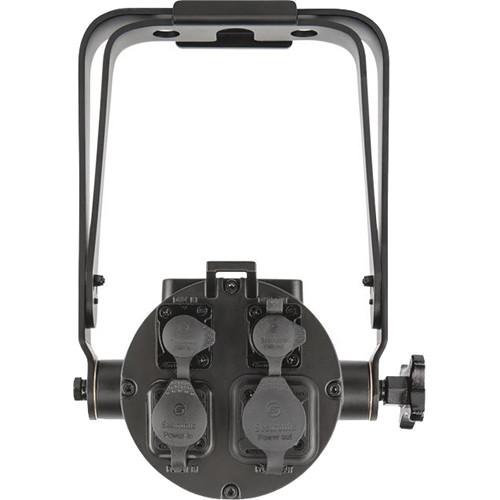

- Seetronic Powerkon connectors for secure power connections and power linking
- OLED display with password protection and 4-button menu for easy navigation
- Full convection cooling for silent and reliable operation
- Magnesium housing allows for operating temperature up to 113°F
- Double-bracket yoke can be used for conventional mounting or as a variable-angle floor stand
- Built-in accessory holder for 4.75" gel frames
UPC: 781462216627 In the Box CHAUVET PROFESSIONAL COLORado M Solo RGBW LED Wash Light Seetronic Powerkon IP65 Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLORado M Solo RGBW LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORado M Solo Specs | Light Source | 1 x 40 W quad-color RGBW LED (red, green, blue, white)
Current: 2.55 A
Life Expectancy: 50,000 hours | | Color Temperature | Presets: 3200 to 10,000K | | Illuminance | 4280 lux at 16.4' / 5 m (4° beam angle)
238 lux at 16.4' / 5 m (18° beam angle) | | PWM Frequency | 600, 1200, 2000, 2400, 6000, 25,000 Hz (selectable) | | Zoom Angle | 5 to 24° | | Beam and Field Angle | Beam Angle: 4 to 18°
Field Angle: 5 to 24° | | Operating Modes | DMX
Master/Slave
Standalone | | Effects | Motorized Zoom: In / out, 2 x modes
Electronic Dimming: 0-100%, with five dimming curves
Auto programs
Color macros
Electronic Shutter/Strobe: Variable from 0 to 25 Hz | | DMX Interface | DMX Channels Modes: 9, 12, or 17
DMX Personalities: 4 x personalities (HSIC, SSP, TOUR, TR16) | | DMX Connectors | 5-pin IP65 XLR, in/out (IP-rated) | | Manual Controls | OLED display with password protection
4-button control interface | | Power Linking | 38 units, 13.6 A at 120 V
62 units, 13.6 A at 230 V | | Power Requirements | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: 1 x Seetronic Powerkon IP65 (IP-rated)
Output: 1 x Seetronic Powerkon IP65 (IP-rated)
Power Cord Plug: Edison | | Power and Current | 120 V (60 Hz): 44 W, 0.342 A
230 V (50 Hz): 49 W, 0.218 A | | Maximum Temperature | 113°F / 45°C (external) | | Cooling System | Convection | | Mounting | Double-bracket yoke | | Certifications | CE, MET
IP Rating: IP65, outdoor/wet with pressure-equalizing M12 GORE valve | | Housing Material | Magnesium | | Color | Black (exterior) | | Gel Frame Holder | Accessory Holder/Gel Frame Size: 4.75" / 120.65 mm | | Dimensions (L x W x H) | 13.03 x 7.32 x 5.31" / 331.00 x 186.00 x 135.00 mm | | Weight | 7.9 lb / 3.6 kg | | | | Package Weight | 11.45 lb | | Box Dimensions (LxWxH) | 15.3 x 9.9 x 8.1" |
