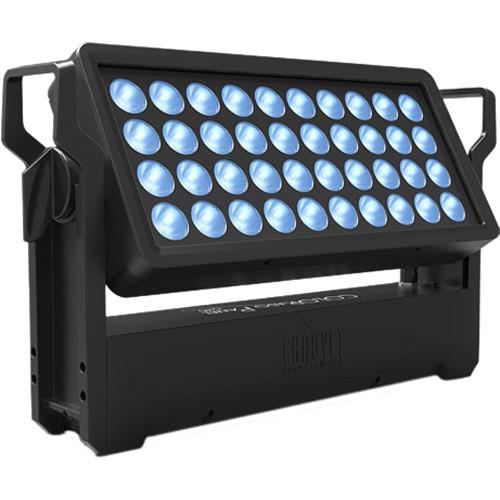

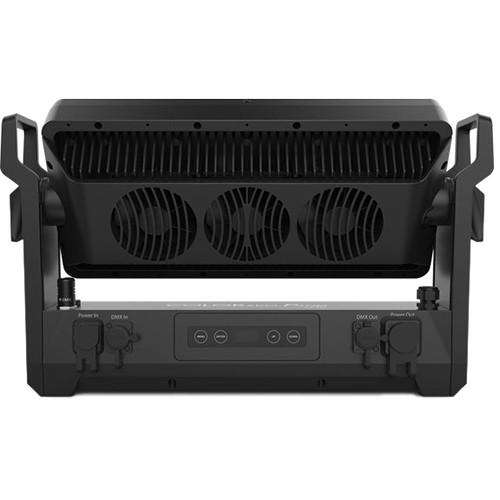

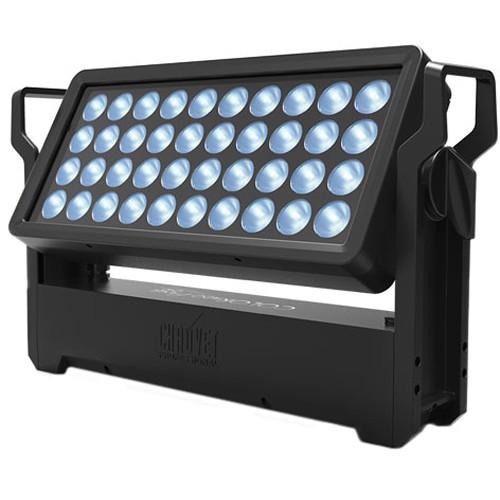

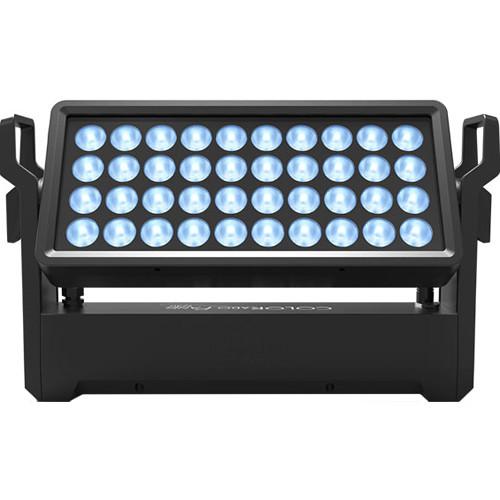

Product description The COLORado Panel Q40 Rectangular Wash Light from CHAUVET PROFESSIONAL is an IP65-rated rectangular wash light that features 40 15W RGBW LEDs capable of edge-to-edge color mixing. A color temperature of 2800 to 10,000K is supported with a brightness of 16,589 lumens. This rugged indoor/outdoor unit can be manipulated through adjustable beam angles and includes a magnetic flood filter to produce a wide, even area wash. Its outdoor-rated power and data connectors allow for easy connections without propriety cabling. You can control it as you see fit with W-DMX and RDM management. An omega bracket is included for quick and easy truss/pipe mounting. - Rugged RGBW LED wash for events where indoor/outdoor flexibility is needed
- Edge-to-edge color mixing
- IP-rated power and DMX connections
- Adjustable PWM (pulse width modulation) to avoid flickering on camera
- W-DMX and RDM (remote device management) for added flexibility
- Selectable, smooth dimming curves to eliminate flicker and choppiness in fades
- Easy to read OLED display with password protection and touchscreen interface
- Advanced optics provide exceptional color mixing and high efficiency
In the Box CHAUVET PROFESSIONAL COLORado Panel Q40 Rectangular Wash Light Seetronic Powerkon IP65 Power Cord Color Blending Filter Lens Omega Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLORado Panel Q40 Rectangular Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORado Panel Q40 Specs | | | Light Source | 40 x 15 W Quad-Color RGBW LEDs, 970 mA, 50,000 Hours Life Expectancy | | Color Temperature | 2800 to 10,000K | | Installed Optics | 15° | | Beam Angle | Without Filter: 15°
With Filter: 24° | | Field Angle | Without Filter: 28°
With Filter: 48° | | Brightness | Lumens: 16,589
Lumens with Filter: 14,294 | | Illuminance | Without Filter: 9480 lux at 16.4' / 5 m
With Filter: 3045 lux at 16.4' / 5 m | | PWM Frequency | 600, 1200, 2000, 4000, 6000, and 25,000 Hz | | | | Tilt Range | 0 to 150° | | Dimmer | Electronic | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 27 Hz | | Color Mixing | Standalone | | Color Temperature Presets | Yes | | Dimming | Four Modes | | Built-In Programs | Automated Programs | | | | Power Connection Type | Edison (Local) Plug to Seetronic Powerkon IP65 | | Power Input | Seetronic Powerkon IP65 | | Power Output | Seetronic Powerkon IP65 | | Data Connectors | 5-Pin XLR IP65 | | Power Cord/Cable Length | 5' / 1.5 m | | | | Control Protocol | DMX, W-DMX, RDM | | DMX Channels | 4, 7, 11, 16 or 22 | | DMX Personalities | 5 Personalities (4-Channel, 7-Channel, 11-Channel, 16-Channel, 23-Channel) | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (Auto-Ranging) | | Power Linking | 2 units at 120 V
4 units at 208 V
5 units at 230 V | | Power and Current | 570 W, 4.69 A at 120 V, 60 Hz
560 W, 2.71 A at 208 V, 60 Hz
560 W, 2.44 A at 230 V, 50 Hz | | | | Certifications | CE, MET | | IP Rating | IP65, Outdoor/Wet, with Pressure-Equalizing M12 GORE Valve | | Ambient Temperature Range | -4 to 113°F / -20 to 45°C | | | | Exterior Color | Black | | Housing Material | Aluminum Alloy, Aluminum Die-Cast | | Filter Size | 16.75 x 8" (425.45 x 203.2 mm) | | Dimensions | 20.27 x 7.71 x 11.96" (515 x 196 x 304 mm) | | Weight | 28.2 lb / 12.8 kg |
