User Manual for CHAUVET PROFESSIONAL COLORado Solo Batten Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL COLORado Solo Batten
- Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights
 |
User manual for the CHAUVET PROFESSIONAL COLORado Solo Batten contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|

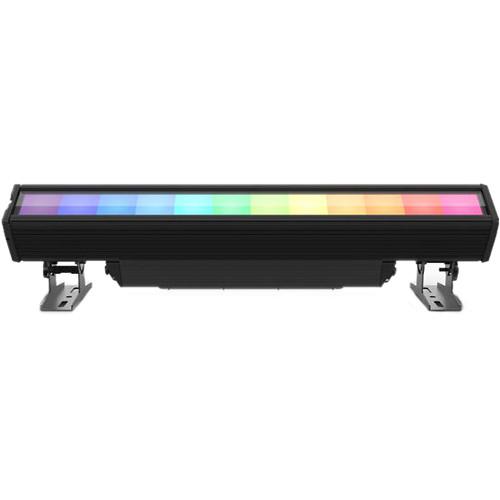

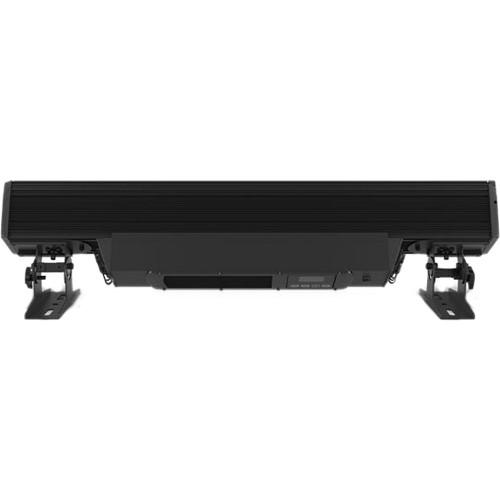

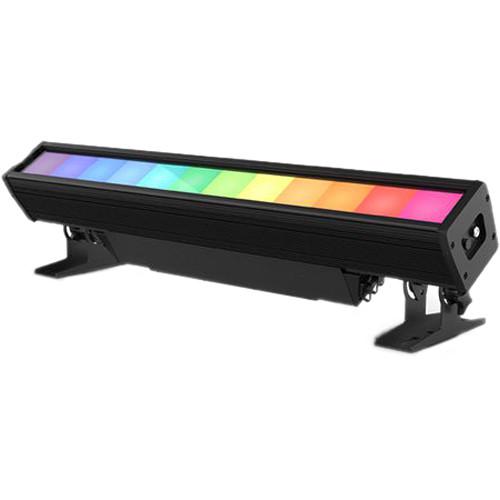

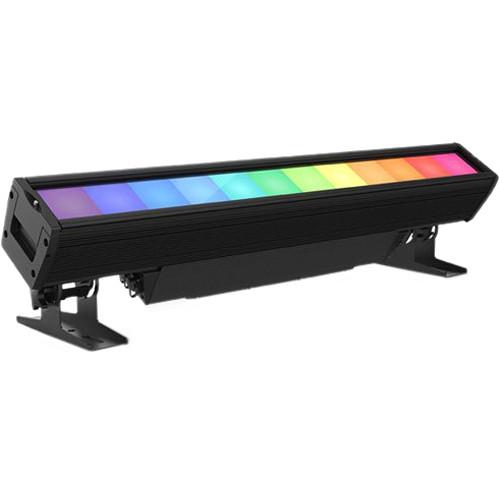

Product description The COLORado Solo Batten from CHAUVET Professional projects a single homogenized wash with smooth color-mixing, giving it the appearance of a bright single bar of light without round eyes or pixels. This fixture is engineered with 12 square sections that can be controlled individually. They appear seamlessly together without separation and create an endless variety of color control and pixel mapping effects. The unit is IP65 rated and equipped with DMX and RDM protocols. - Completely homogenized color with no separation or dimmed lens corners
- IP-rated power, DMX, and Ethernet connections
- Color temperature presets from 1800 to 8000K
- Selectable, smooth dimming curves for programming versatility
- Built for touring, live event, television, and theatrical productions
- Large, easy-to-navigate display with password protection
- Built-in automated programs
In the Box CHAUVET PROFESSIONAL COLORado Solo Batten Seetronic Powerkon IP65 Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLORado Solo Batten in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORado Solo Batten Specs | | | Light Source | LEDs: 144 (24 Red, 24 Green, 24 Blue, 24 Amber, 48 White), 3 W (612 mA)
Life Expectancy: 50,000 Hours | | Color Temperature | 1800 to 8000K | | Installed Optics | 18° | | Beam Angle | Horizontal: 20°
Vertical: 16° | | Field Angle | Horizontal: 34°
Vertical: 29° | | Lumens | 6968 | | Illuminance | 3870 lux at 16.4' / 5 m | | PWM Frequency | 600, 1200, 2400, 4000, 6000, 25,000 Hz (Selectable) | | | | Dimmer | Electronic | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 25 Hz | | Standalone Color Mixing | Yes | | Color Temperature Presets | Yes | | Dimming | 5 Modes | | | | Power Connection Type | Edison (Local) Plug to Seetronic Powerkon IP65 | | Power Input | Seetronic Powerkon IP65 | | Power Output | Seetronic Powerkon IP65 | | Data Connectors | 5-Pin IP65 XLR, Seetronic etherCON IP65 | | Power Cable Length | 5' / 1.5 m | | | | Control Protocol | Art-Net, DMX, RDM, sACN | | DMX Channels | DMX:
1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16
2 Cell: 6, 8, 10, 15, 15, 17, 19, 20, 30
3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
12 Cell: 36, 48, 60, 75, 85, 87, 99, 120, 160
Art-Net:
1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16
2 Cell: 6, 8, 10, 15, 15, 17, 19, 20, 30
3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
12 Cell: 36, 48, 60, 75, 85, 87, 99, 120, 160 | | Modes | 36 Personalities | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (Auto-Ranging) | | Power Linking | 4 Units at 120 V
8 Units at 208 V
9 Units at 230 V | | Power and Current | 331 W, 2.75 A at 120 V, 60 Hz
329 W, 1.581 A at 208 V, 60 Hz
332 W, 1.456 A at 230 V, 50 Hz | | | | Certification | CE, MET | | IP Rating | IP65, Temporary Outdoor/Wet Use | | Ambient Temperature | -4 to 113 °F / -20 to 45 °C | | | | Exterior Color | Black | | Housing Material | Aluminum Die-Cast | | Dimensions | 39.86 x 9.06 x 9.84" / 101.25 x 23.0 x 24.98 cm
Accessory Holder / Gel Frame Size: 38.75 x 3.81" / 98.43 x 9.7 cm | | Weight | 41.9 lb / 19 kg |
