User Manual for CHAUVET PROFESSIONAL Colordash Accent Quad Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Colordash Accent Quad
- Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights
 |
User manual for the CHAUVET PROFESSIONAL Colordash Accent Quad contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|

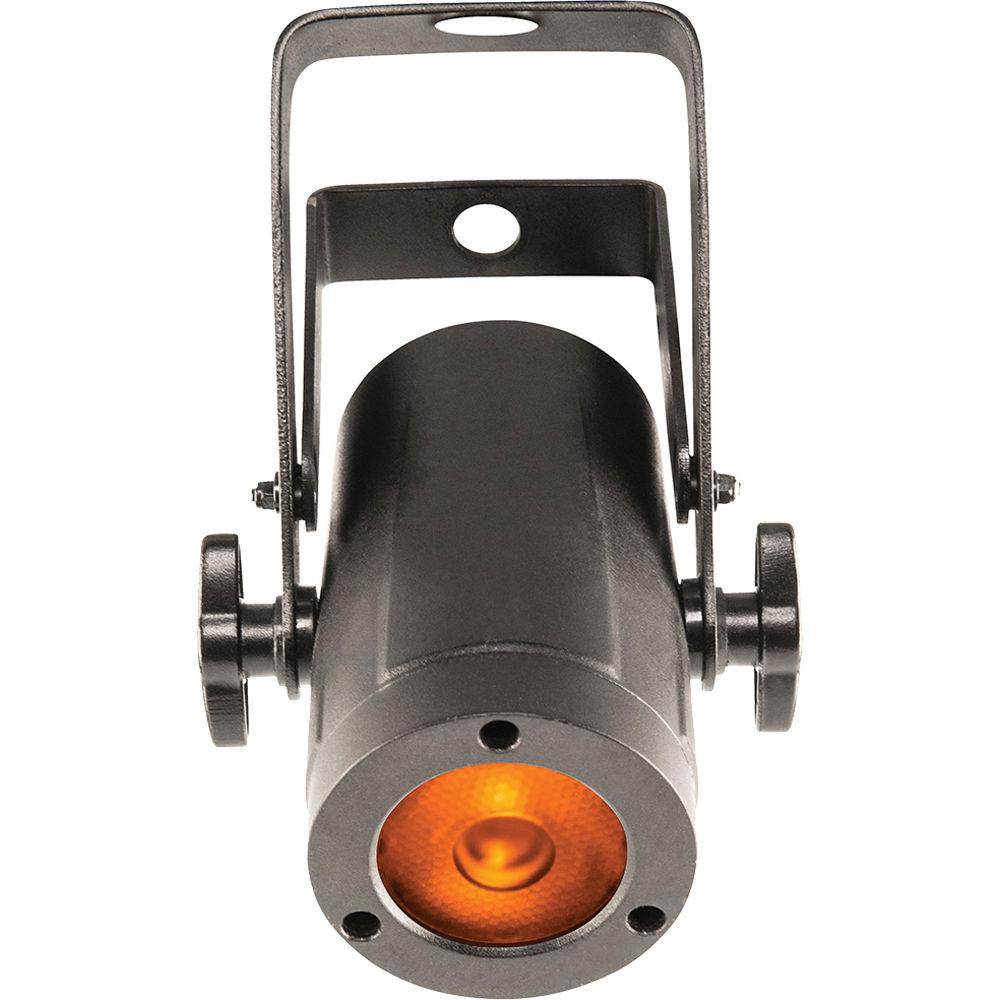

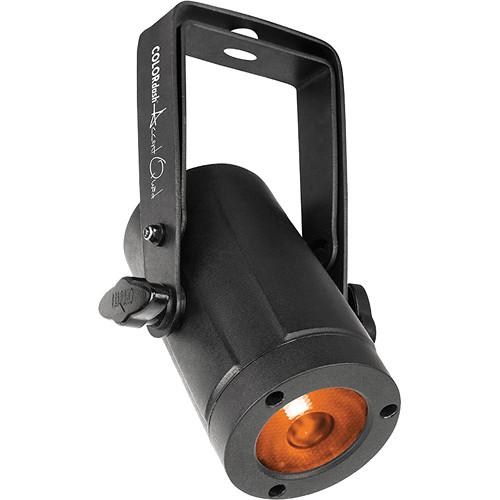

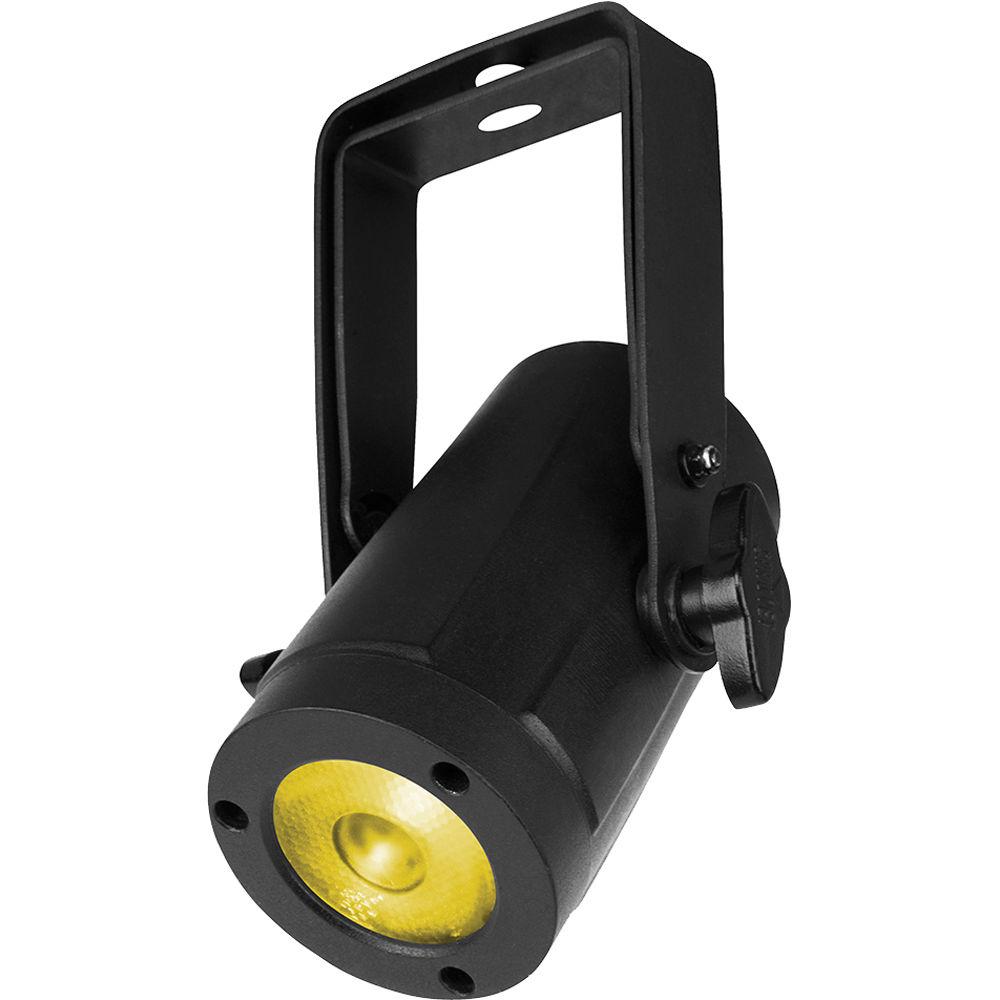

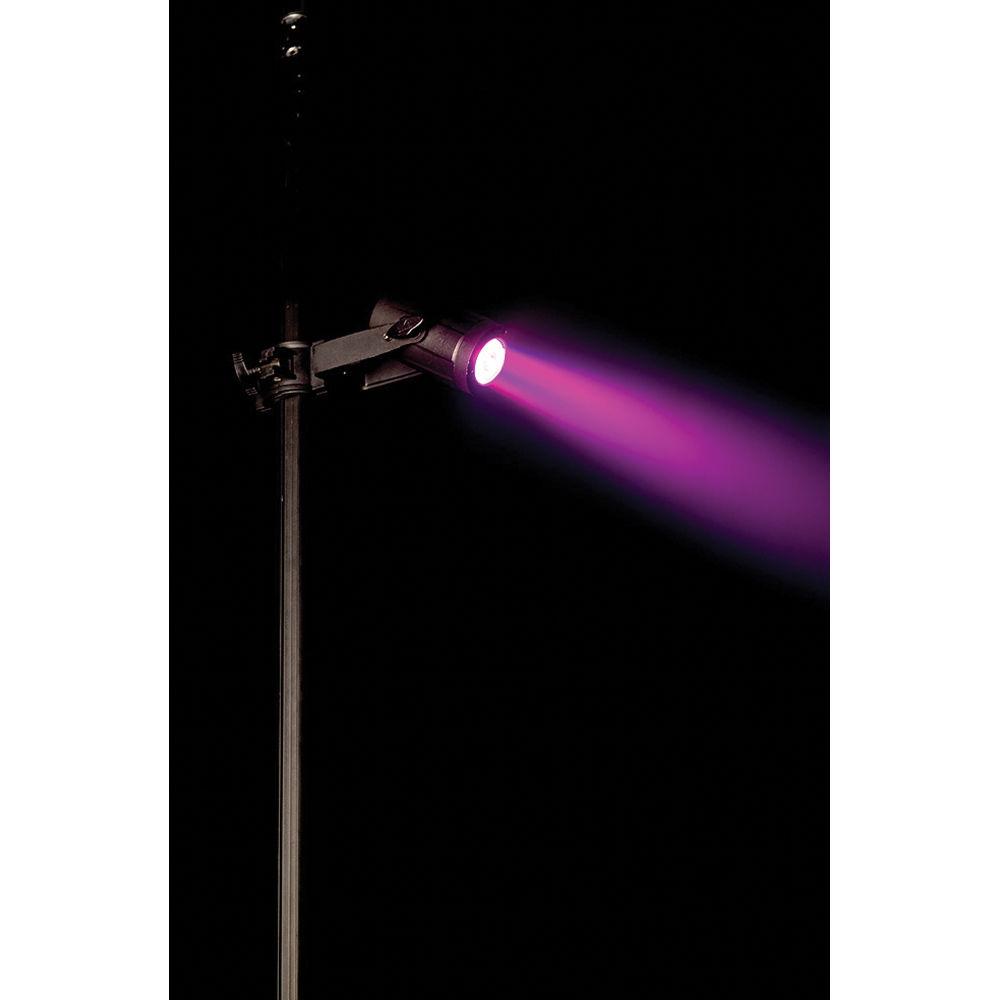

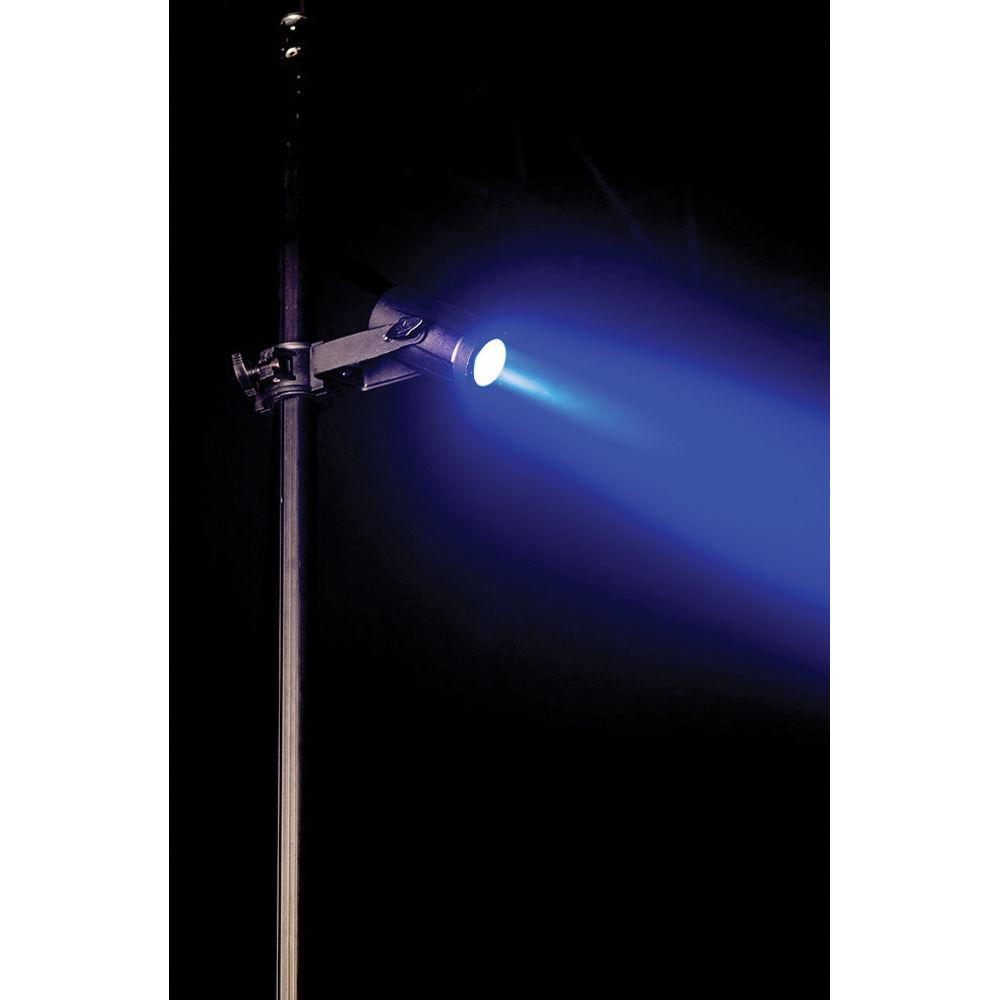

Product description The COLORdash Accent Quad LED light from Chauvet delivers a punch of evenly mixed light into tight locations. Powered by a 10W quad color (RGBA) LED, this palm-sized fixture excels at delivering saturated colors and brilliant pastels with a soft, even glow. An onboard OLED display controls and addresses the fixture via DMX or in a stand-alone mode. - Attributes
-
- Quad-color LED: red, blue, green, amber (RGBA)
- RGBA color mixing via DMX or manually
- Extremely compact with excellent output
- Variable electronic dimmer (0-100%)
- Simple and complex DMX channel profiles for programming versatility
- Double-bracketed yoke doubles as floor stand

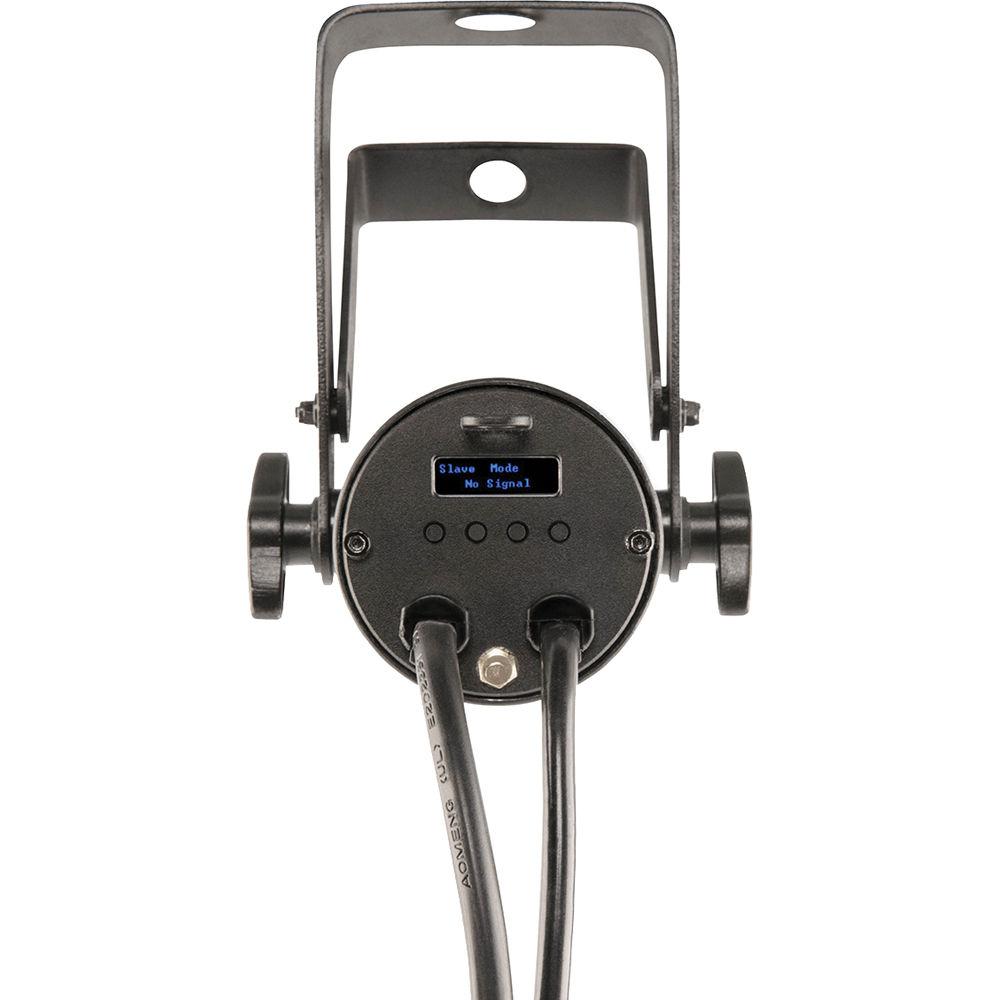

- Easy-to-use OLED digital display
- Built-in auto programs recalled via DMX or Master/Slave
UPC: 781462212896 In the Box CHAUVET PROFESSIONAL Colordash Accent Quad Quick Reference Guide Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Colordash Accent Quad in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORdash Accent Quad Specs | DMX Channels | 4, 6, or 10 | | DMX Connectors | 5-Pin XLR | | Light Source | 1x LED (quad-color RGBA) 10 W, (700 mA), 50,000 hours life expectancy | | Programs | Built-in automated | | Dimmer | Electronic: 0-100%
4 Dimming modes | | Color Mixing | Yes, standalone | | Color Temperature Presets | No | | PWM Frequency | 1200 Hz | | Shutter/Strobe | Electronic
Strobe rate: 0-33 Hz | | Beam and Field Angle | Beam angle: 15°
Field angle: 29° | | Illuminance | 140 lux at 16.4' (5.0 m) | | IP Rating | IP20, dry location | | Cable | Edison plug to hard-wired 3.5' (1.07 m) cable | | Input Voltage | Auto-ranging 100 to 240 VAC, 50/60 Hz | | Power and Current | 14 W, 0.20 A at 120 VAC 60 Hz
14 W, 0.13 A at 208 VAC 60 Hz
13 W, 0.12 A at 230 VAC 50 Hz | | Approvals | CE, MET | | Dimensions | 4.3 x 2.6 x 6.8" (110 x 67 x 172 mm) | | Weight | 1.8 lb (0.8 kg) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 8.3 x 6.2 x 6.2" |
