User Manual for CHAUVET PROFESSIONAL COLORdash Batten-Quad 12 Linear Wash Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL COLORdash Batten-Quad 12 Linear
- Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights
 |
User manual for the CHAUVET PROFESSIONAL COLORdash Batten-Quad 12 Linear contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|

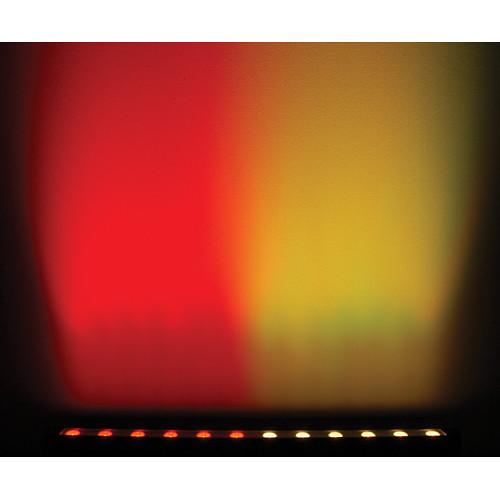

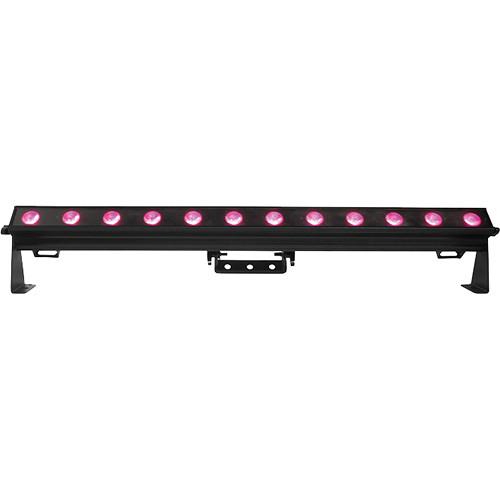

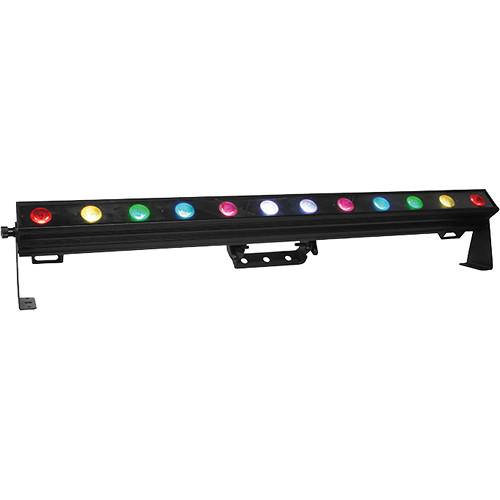

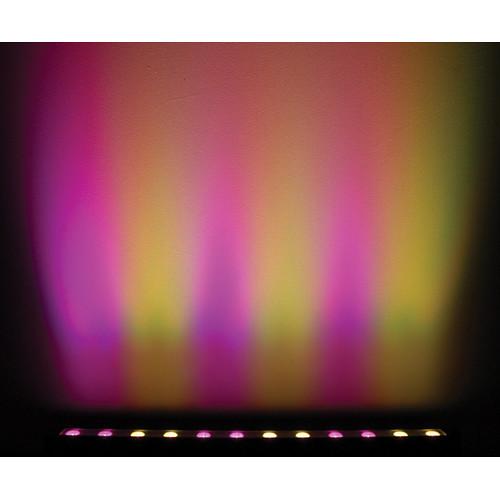

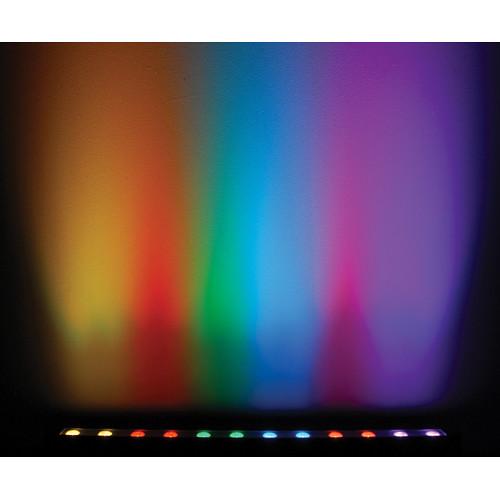

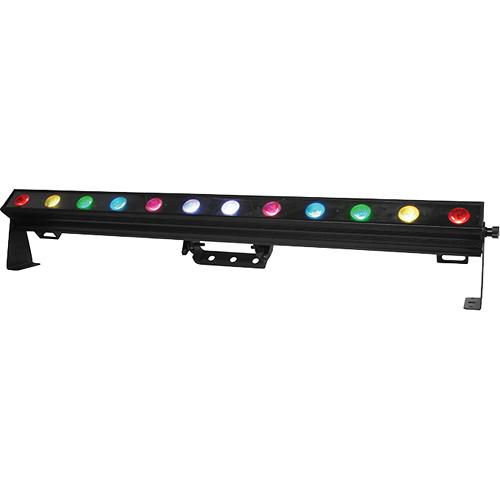

Product description The COLORdash Batten-Quad 12 Linear Wash Fixture from Chauvet has 12 individually controlled quad-colored RGBA LEDs that produce any variation of white light, as well as richly saturated colors, due to the inclusion of amber LEDs. It maintains an even pixel pitch when used in multiples, either stacked in an array using the optional CBB6 bracket or lined up end-to-end. Setup is easy thanks to a built-in hanging bracket, floor trunnions, 3- and 5-pin DMX connectors, and power linking. - Attributes
-
- Built-in auto and custom programs recalled via DMX or Master/Slave
- Metal construction for added durability
- Individual pixel control
- Silent flicker-free operation
- Mount multiple units in stack or end-to-end to maintain pixel pitch
UPC: 781462210625 In the Box CHAUVET PROFESSIONAL COLORdash Batten-Quad 12 Linear Wash Fixture Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLORdash Batten-Quad 12 Linear Wash Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORdash Batten-Quad 12... Specs | Light Source | 12 LEDs (quad-color RGBA) 7.0 W, (500 mA), 50,000 hours life expectancy | | Color Temperature | 2,800 to 10,000 K with color temperature presets and stand alone color mixing | | Optics | 20° | | Beam and Field Angle | Beam angle: 22°
Field angle: 31° | | Light Intensity | 539 lux @ 16.4' (5.0 m) | | Programs | Built-in automated | | Strobe Rate | 0 to 20 Hz (Electronic shutter/strobe) | | Dimming | 4 Modes | | DMX Interface | DMX channels: 4, 6, 10, 48, 52

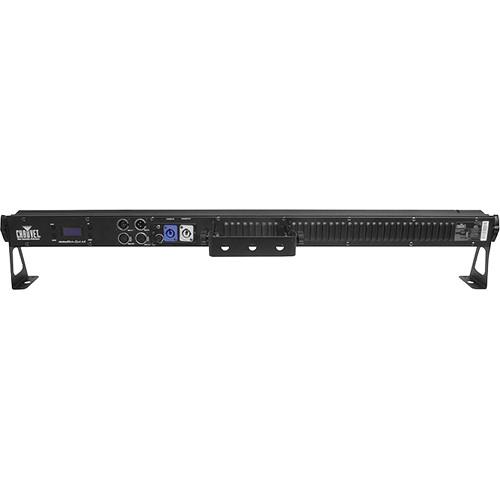

DMX connectors: 3-pin and 5-pin XLR | | Connectors | Power connection: Edison plug to Neutrik powerCON
Power input: Neutrik powerCON
Power output: Neutrik powerCON Data connectors: Neutrik etherCON | | Power Linking | 9 Units @ 120 VAC, 16 units @ 208 VAC, 17 units @ 230 VAC | | Power Requirements | Auto-switching 100-240 VAC, 50/60 Hz | | Power Consumption | At 120 VAC, 60 Hz: 175 W, 1.45 A
At 208 VAC, 60 Hz: 168 W, 0.81 A
At 230 VAC, 50 Hz: 175 W, 0.76 A | | Approvals | CE, MET | | IP Rating | IP20, dry location | | Cable | 5.0 (1.5 m) | | Dimensions | 41 x 3.2 x 6.5" (1041 x 82 x 164 mm) | | Weight | 10.6 lb (4.8 kg) | | | | Package Weight | 12.6 lb | | Box Dimensions (LxWxH) | 42.0 x 8.0 x 5.0" |
