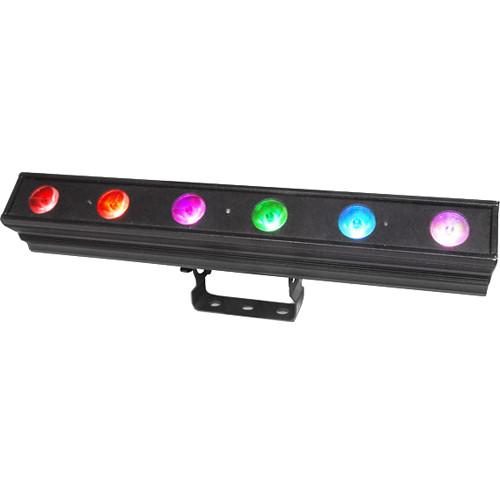

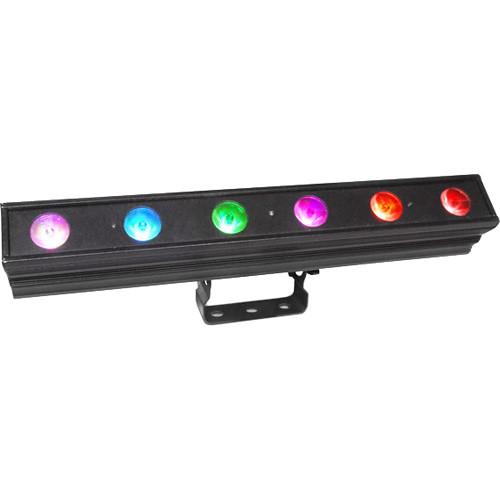

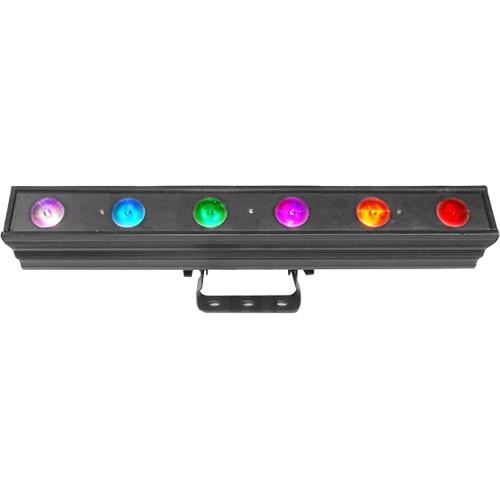

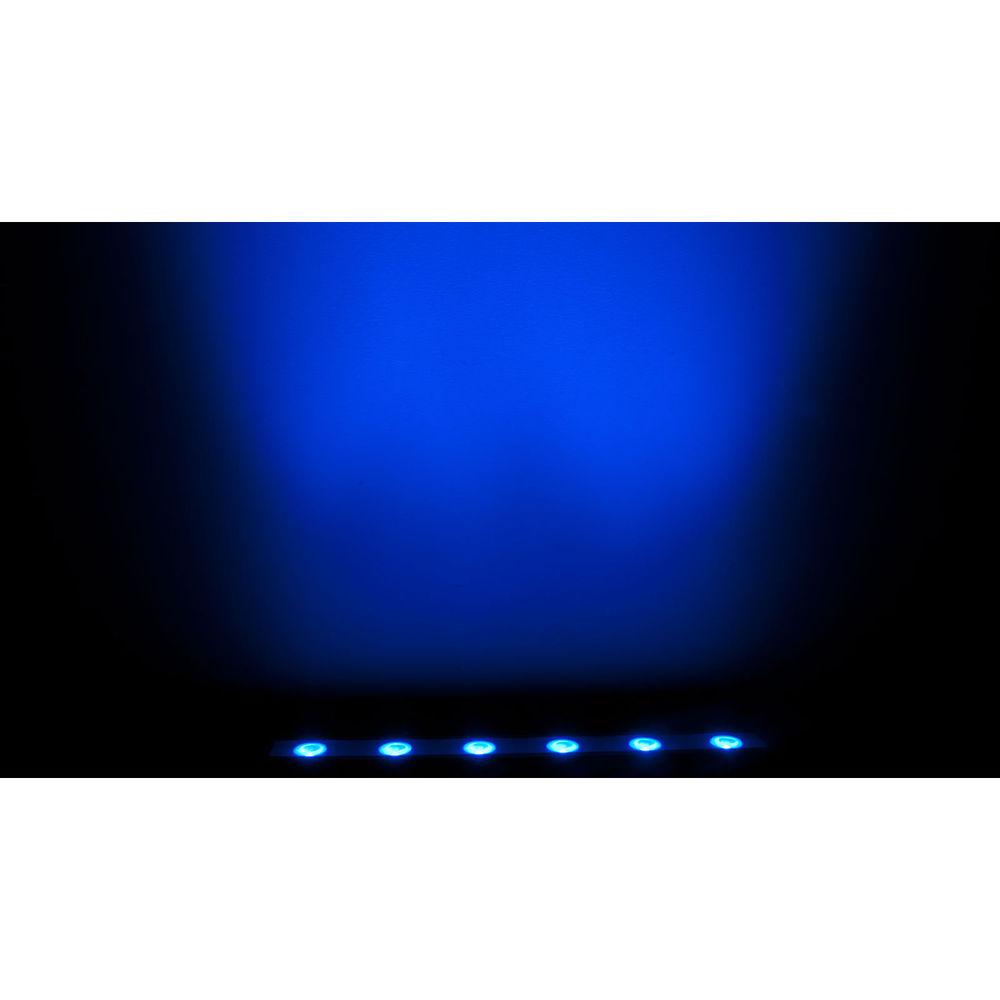

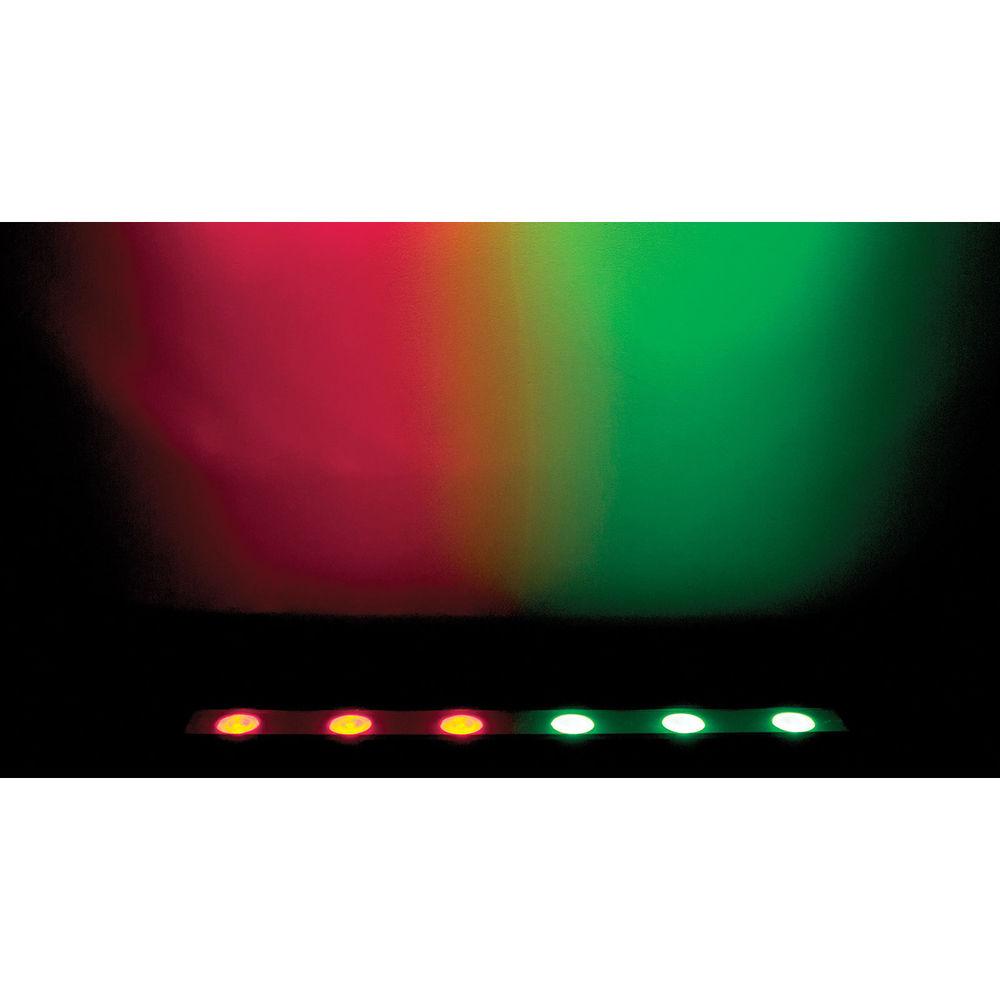

Product description The COLORdash Batten Quad-6 from Chauvet Professional is a linear wash fixture with six individually controllable quad-colored RGBA LEDs, which output a variety of richly saturated colors. The inclusion of amber LEDs not only help to produce any variation of white, but also create stunning saturated colors. The unit offers even pixel pitch, which delivers stunning pixel mapping when used in multiples. The included hanging bracket and floor trunnions make setup quick and easy. The fixture's LEDs are properly spaced to maintain even pixel pitch when fixtures are lined up end-to-end or stacked in an array using the optional CBB-6 bracket. Its 3- and 5-pin DMX connections, a locking IEC power input, and Edison power linking make connections simple and convenient for use. -
- DMX Operating Modes
- 4-channel: RGBA
- 6-channel: Dimmer, RGBA, Strobe
- 10-channel: Dimmer, RGBA, Strobe, Macro, Auto, Auto Speed, Dim Mode
- 24-channel: R1, G1, B1, A1, R2, G2, B2, A2, R3, G3, B3, A3, R4, G4, B4, A4, R5, G5, B5, A5, R6, G6, B6, A6
- 28-channel: R1, G1, B1, A1, R2, G2, B2, A2, R3, G3, B3, A3, R4, G4, B4, A4, R5, G5, B5, A5, R6, G6, B6, A6, Auto, Auto Speed, Dimmer, Strobe
- Silent, flicker-free operation

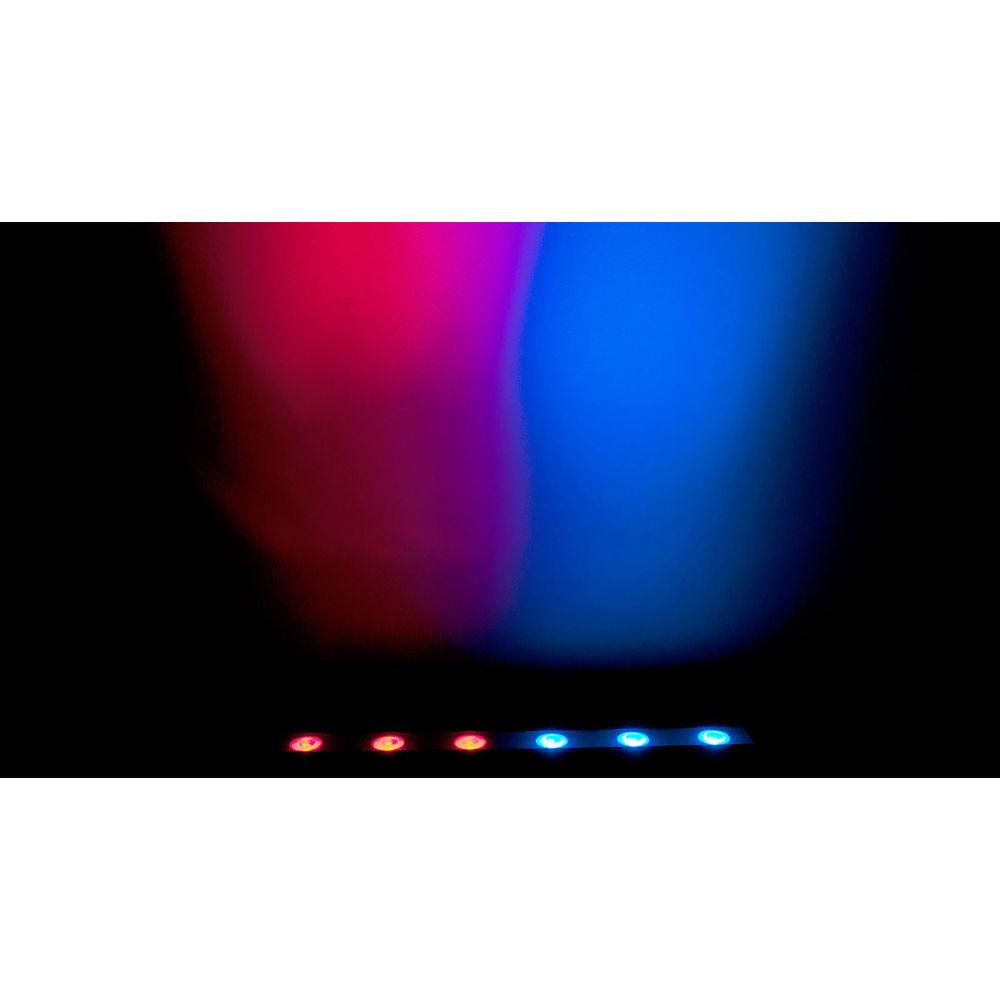

- Individual pixel control
- Maintain pixel pitch end to end or stacking
- 16-bit dimming with selectable dimming curves
- All metal construction for added durability
UPC: 781462209612 In the Box CHAUVET PROFESSIONAL COLORdash Batten Quad-6 - Linear RGBA Wash Fixture Neutrik powerCON Power Cord Hanging Bracket 2 x Floor Trunnions Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLORdash Batten Quad-6 - Linear RGBA Wash Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORdash Batten-Quad 6 Specs | | | Optical | Light Source: 6 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancy
Color Temperature (range): 2,800 to 10,000 K
Installed Optics: 20°
Beam Angle: 17°
Field Angle: 33°
Illuminance (Total): 390.7 lux @ 16.4' / 5 m
PWM Frequency: 600 Hz | | | | Dynamics | Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes

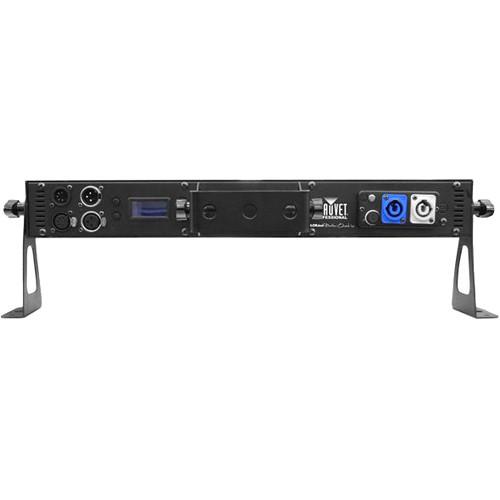

Built-In Automated Programs: Yes | | | | Connections | Power Connection: Edison plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5.0' / 1.5 m
| | | | Control | Control Protocol: DMX
DMX Channels: 4, 6, 10, 24 or 28
Modes/Personalities: 5 personalities (4, 6, 10, 24, 28)
| | | | Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 17 units @ 120 V; 30 units @ 208 V; 33 units @ 230 V
Power and Current: 90 W, 0.76 A @ 120 V, 60 Hz
Power and Current: 94 W, 0.45 A @ 208 V, 50 Hz
Power and Current: 96 W, 0.41 A @ 230 V, 50 Hz
| | | | Certifications & Approvals | CE, MET
IP Rating: IP20, dry location | | | | Exterior Color | Black | | Dimensions (W x H x D) | 22.0 x 2.6 x 6.5" / 560 x 65 x 164 mm | | Weight | 5.0 lb / 2.3 kg | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 23.6 x 5.7 x 4.7" |
