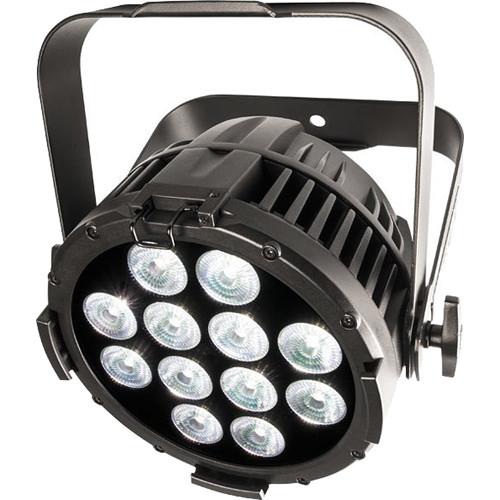

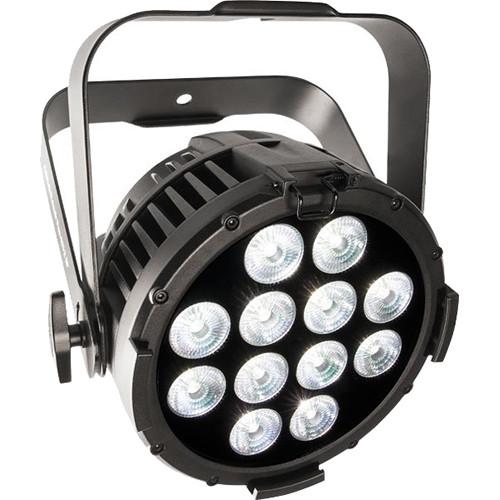

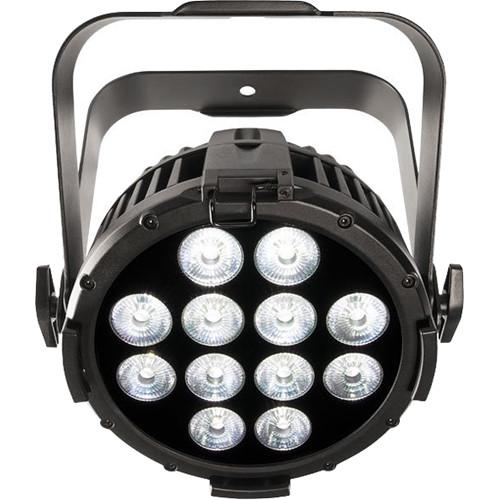

Product description The COLORdash Par H12IP LED Fixture from Chauvet Professional is a compact IP65-rated RGBAW+UV LED wash light delivering soft fields of saturated colors. It features a user-friendly OLED full text display with password protection and touchscreen interface. It has an IP65-rated connection for power and DMX. The attached double-bracketed yoke can be used as a floor stand. The fixture includes a gel frame holder. - Rugged RGBAW+UV LED for indoor/outdoor events
- Use at home in any weather conditions with IP-rated power and DMX connections
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- RDM (Remote Device Management) for added flexibility
- Selectable, smooth dimming curves eliminate flicker and choppiness in fades
- Easy to read OLED display with password protection and touchscreen interface
- Advanced optics provide exceptional color mixing and high efficiency
- Double-bracketed yoke doubles as floor stand
UPC: 781462216450 In the Box CHAUVET PROFESSIONAL COLORdash Par H12IP LED Fixture Seetronic Powerkon IP65 Power Cord Gel Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLORdash Par H12IP LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

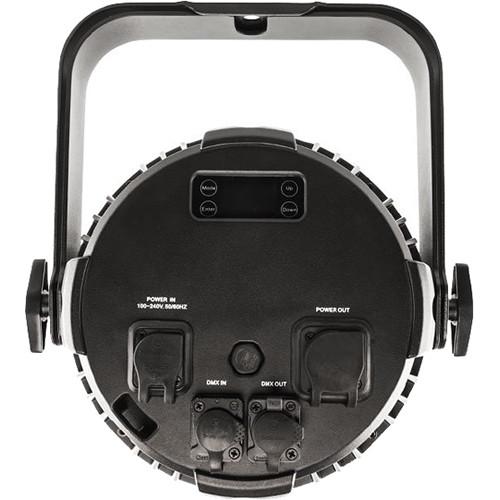

Technical parametersCHAUVET PROFESSIONAL COLORdash Par H12IP Specs | Light Source | 12 LEDs (hex-color RGBAW+UV) 10 W, (650 mA), 50,000 hours life expectancy | | Color Temperature | 2800 to 10,000 K | | Optics | 15° | | Beam Angle | 22° | | Field Angle | 34° | | Illuminance | 1180 lux @ 16.4' (5 m) | | PWM Frequency | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz | | Dimmer | Electronic | | Strobe Rate | 0 to 30 Hz | | Dimmer Mode | 4 | | Power Connections | Edison (Local) plug to Seetronic Powerkon IP65 | | Power Input | Seetronic Powerkon IP65 | | Power Output | Seetronic Powerkon IP65 | | Data Connector | 5-pin XLR | | Cable Length | Power: 5' (1.5 m) | | Control Protocol | DMX, RDM | | DMX Channels | 6, 8, or 13 | | Models | 3 personalities (6, 8, 13) | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Linking | 14 units @ 120 V; 24 units @ 208 V; 26 units @ 230 V | | Power and Current | 13 W, 0.936 A @ 120 V, 60 Hz
114 W, 0.555 A @ 208 V, 60 Hz
117 W, 0.505 A @ 230 V, 50 Hz | | Certifications | CE, METIP
Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve | | Housing Material | Aluminum die-cast | | Dimensions | Fixture: 12.3 x 11.9 x 6.9" (31.2 x 30.2 x 17.5 cm)
Gel Frame: 8.5" (21.6 cm) | | Weight | 13.4 lb (6.1 kg) | | | | Package Weight | 16.725 lb | | Box Dimensions (LxWxH) | 15.7 x 14.5 x 10.1" |
