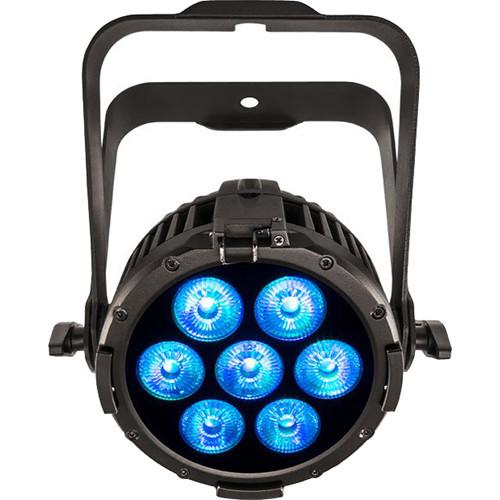

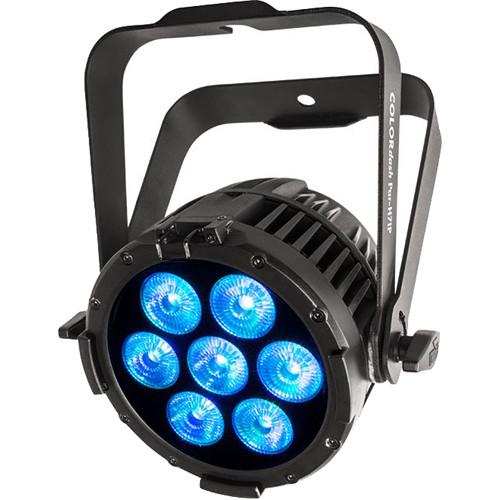

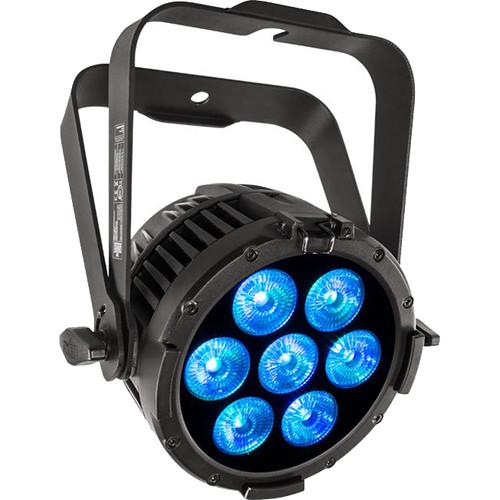

Product description The black CHAUVET PROFESSIONAL COLORdash Par H7IP RGBWAUV LED Wash Light features seven hex-color RGBAW+UV LEDs with a life expectancy of 50,000 hours. It offers a maximum illumination of 674 lux, a beam angle of 21°, and field angle of 47°. The light features a user-friendly OLED full text display and supports DMX and RDM control protocols. - Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed
- IP-rated power and DMX connections
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- RDM (Remote Device Management) for added flexibility
- Selectable, smooth dimming curves for eliminating flicker and choppiness in fades
- Easy-to-read OLED display with password protection and touchscreen interface
- Double-bracketed yoke doubles as a floor stand
- Color temperature presets
- Built-in automated programs
UPC: 781462216535 In the Box CHAUVET PROFESSIONAL COLORdash Par H7IP RGBWAUV LED Wash Light Seetronic PowerKon IP65 Power Cord Gel Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLORdash Par H7IP RGBWAUV LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORdash Par H7IP Specs | Light Source | 7 LEDs (hex-color RGBAW+UV) 10 W, 500 mA

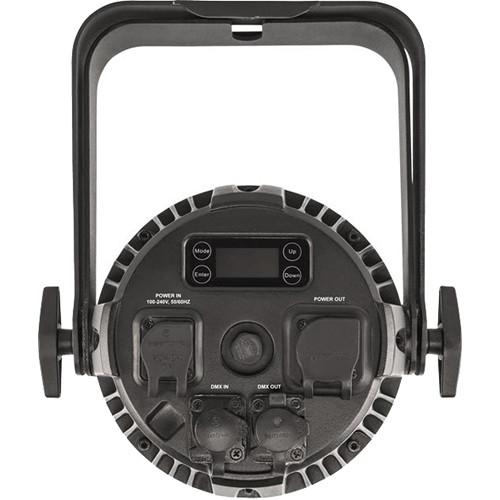

50,000 hours life expectancy | | Color Temperature | 2800 to 10,000K | | Beam Angle | 21° | | Field Angle | 47° | | Illuminance | 674 lux at 16.4' (5 m) | | PWM Frequency | Selectable: 600/1200/2000/4000/6000/25,000 Hz | | Dimmer | Electronic | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 30 Hz | | Dimming | Modes: 4 | | Power Connections | Edison (Local plug to Seetronic Powerkon IP65) | | Power Input | Seetronic Powerkon IP65 | | Power Output | Seetronic Powerkon IP65 | | Connectors | Data: 5-pin IP65 XLR | | Cable Length | Power: 5' (1.5 m) | | Control Protocol | DMX, RDM | | DMX Channels | 6, 8, or 13 | | DMX Personalities | 3 personalities (6, 8, 13) | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Linking | 26 units at 120 V
46 units at 208 V
50 units at 230 V | | Power and Current | 63 W, 0.52 A at 120 V, 60 Hz
63 W, 0.52 A at 120 V, 60 Hz
66 W, 0.28 A at 230 V, 50 Hz | | Certifications | CE, MET | | IP Rating | IP65 | | Ambient Temperature | -4 to 113°F (-20 to 45°C) | | Housing Material | Aluminum die-cast | | Gel Frame Holder | 6.5" (165 mm) | | Dimensions | 11.02 x 9.44 x 6.06" (280 x 240 x 154 mm) | | Weight | 7.8 lb (3.6 kg) |
