User Manual for CHAUVET PROFESSIONAL COLORdash Par-Quad 18 RGBA LED Wash Light Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL COLORdash Par-Quad 18 RGBA
- Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights
 |
User manual for the CHAUVET PROFESSIONAL COLORdash Par-Quad 18 RGBA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|

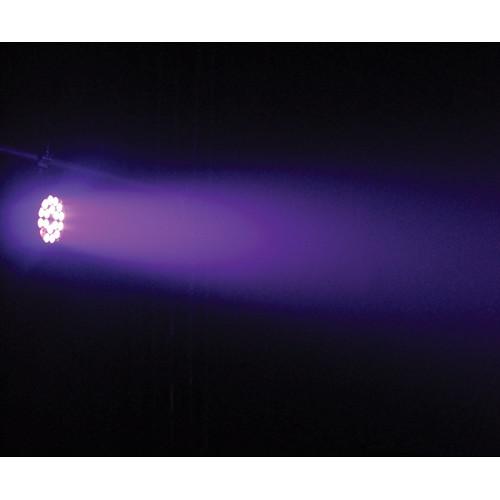

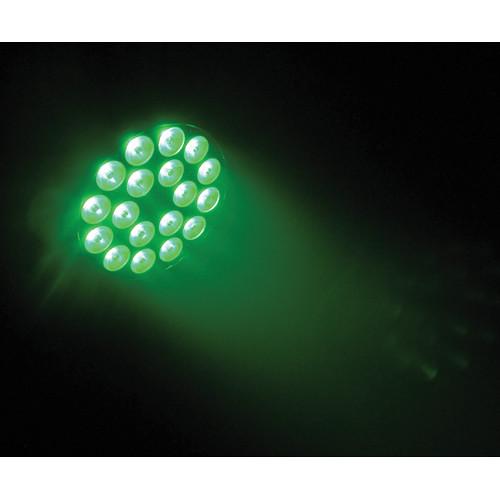

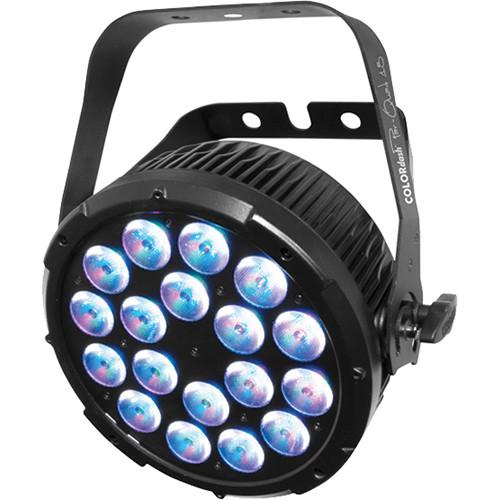

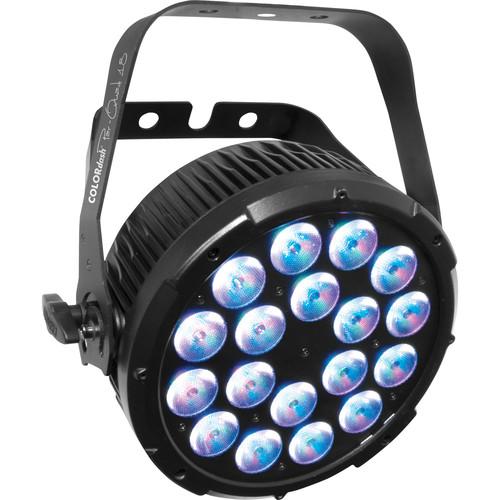

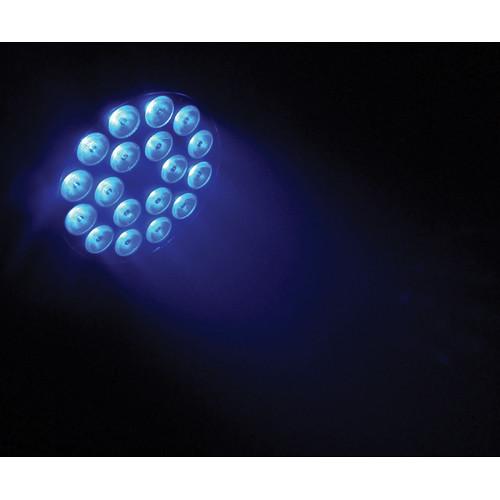

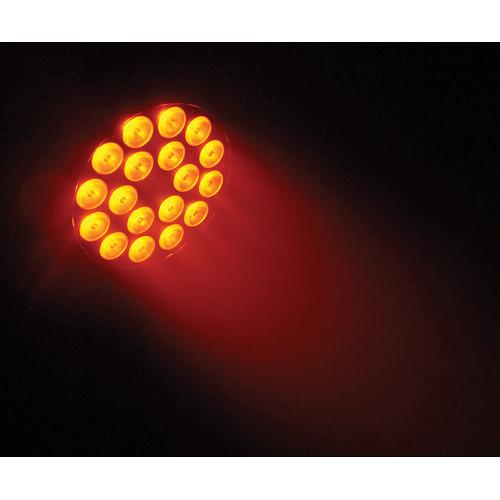

Product description The CHAUVET PROFESSIONAL COLORdash Par Quad-18 is an RGBA LED wash light designed to produce color washes with variations of white and smooth color-mixing devoid of multi-colored shadows. Featuring 18 7W quad-color RGBA LEDs (red, green, blue, amber), an 18° beam angle, and a 32.5° field angle, it is well suited for venue uplighting, dance-floor colorwashing, stage illumination, and more.The COLORdash Par-Quad 18 can be used as a standalone with dynamic effects including electronic dimming, color macros, variable strobe, built-in automated programs, and color-temperature presets. It can also be controlled via DMX or used in a master/slave configuration to coordinate multiple fixtures without the need for a controller.The fixture comes equipped with a DMX LED display, an auto-ranging power supply, and a double-bracket yoke, which can be used for conventional mounting to a truss or to create a variable-angle floor stand. The COLORdash Par-Quad 18 ships with a gel frame holder and a gel frame. - Key Features
-
- 18 x 7W quad-color RGBA LEDs (red, green, blue, amber), for bright colorwashes

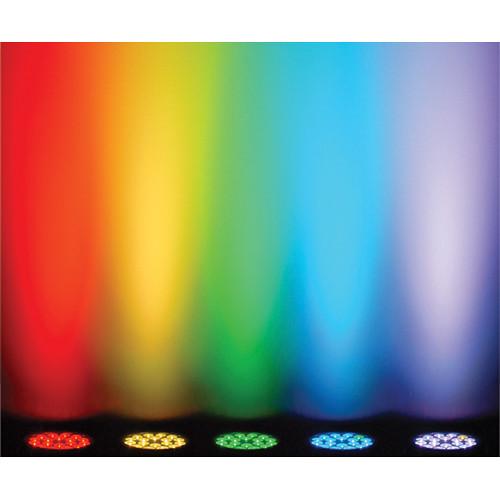

- Produces any variation of white and saturated colors devoid of multi-colored shadows
- 18° beam angle, 32.5° field angle
- 3 x DMX channel modes – 4, 6, or 10
- Electronic dimming – 0 to 100%
- 16-bit dimming with selectable curves for smooth fades
- Built-in color macros
- Color temperature presets – 2800 to 10,000K
- Standalone or master/slave configuration
- Variable color-strobe effect
- Built-in automated programs
- Silent, flicker-free operation

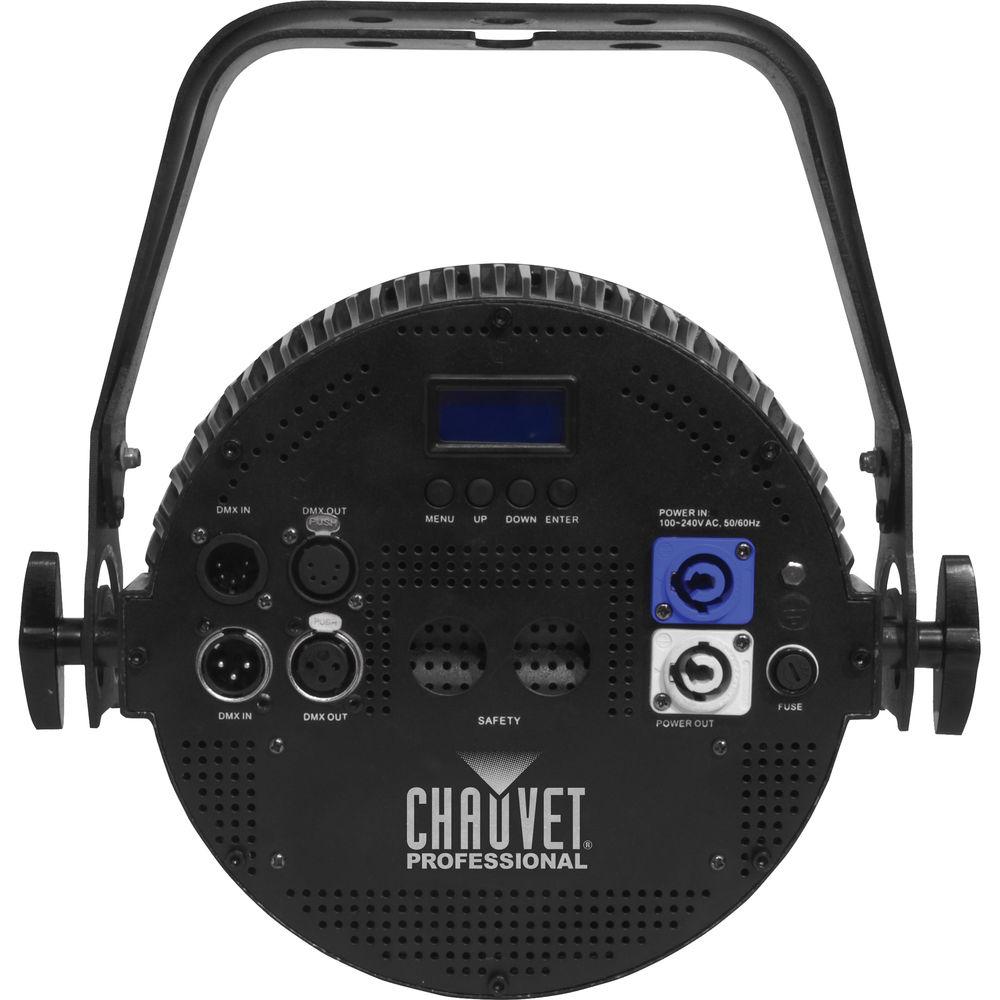

- LED display with 4-button menu for easy navigation
- Daisy-chain power for up to 14 units at 120V
- Lightweight (at 10.2 lb), easy to install
- Neutrik powerCON power input/output connections for fast and easy setup
- All-metal construction for added durability
- Double-bracket yoke doubles as floor stand
- Multi-voltage operation: 100-240 VAC, 50/60 Hz
- IP rating – IP20, dry location
- CE, MET certifications
- Includes a gel frame holder and gel frame
UPC: 781462209605 In the Box CHAUVET PROFESSIONAL COLORdash Par-Quad 18 RGBA LED Wash Light powerCON Power Cable Gel Frame Holder Gel Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLORdash Par-Quad 18 RGBA LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORdash Par-Quad 18 Specs | Light Source | 18 x 7 W quad-color LEDs (red, green, blue, amber) LED Current: 500 mA Life Expectancy: 50,000 hours | | Color Temperature | 2800 to 10,000K | | Installed Optics | 20° | | Beam Angle | 18° | | Field Angle | 32.5° | | Illuminance | 1210 lux at 16.40' / 5.00 m | | PWM Frequency | 600 Hz | | Dynamic Effects | Electronic dimming 0-100%
Shutter/strobe, 0 to 20 Hz rate
Standalone color mixing
Color temperature presets
Built-in automated programs | | Controls | Control Protocol: DMX
DMX Channels: 4, 6 or 10
Modes/Personalities: 3 personalities (4CH, 6CH, 10CH)
Master/slave mode | | Operating Modes | 4-Channel: RGBA
6-Channel: Dimmer, RGBA, strobe
10-Channel: Dimmer, RGBA, strobe, macro, auto, auto speed, dim mode | | DMX Connectors | 3-pin, in/out
5-pin, in/out | | Power Linking | 14 units at 120 V
24 units at 208 V
26 units at 230 V | | Input Voltage | 100-240 VAC, 50/60 Hz, auto-ranging | | Power Connectors | Power Connection: Edison plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Power Cable Length: 5.0' / 1.5 m | | Power Consumption | 113 W, 0.95 A at 120 V 60 Hz
115 W, 0.56 A at 208 V 50 Hz
117 W, 0.51 A at 230 V 50 Hz | | Fuse | T 3.15 A, 250 V at 120 V 60 Hz
T 3.15 A, 250 V at 208 V 50 Hz
T 3.15 A, 250 V at 230 V 50 Hz | | Power Linking Current | 13.6 A at 120 V 60 Hz, 14 units
13.6 A at 208 V 50 Hz, 24 units
13.6 A at 230 V 50 Hz, 26 units | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Certifications | CE, MET
IP Rating: IP20, dry location | | Gel Frame Holder | Size: 9.25" / 234.95 mm | | Mounting | Double-bracket yoke | | Construction | Metal | | Dimensions | 12.7 x 11.7 x 4.1" / 322.6 x 297.2 x 104.1 mm | | Exterior Color | Black | | Weight | 10.2 lb / 4.6 kg | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 14.8 x 14.4 x 7.3" |
