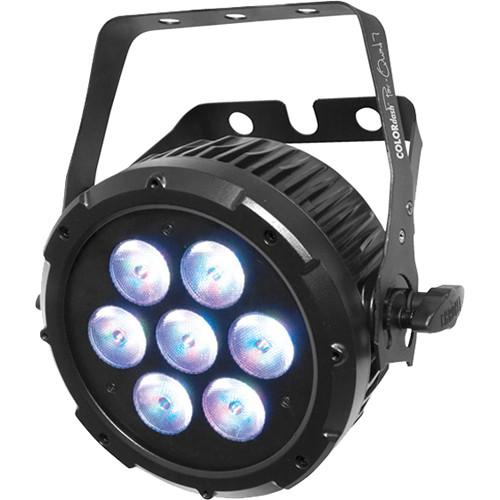

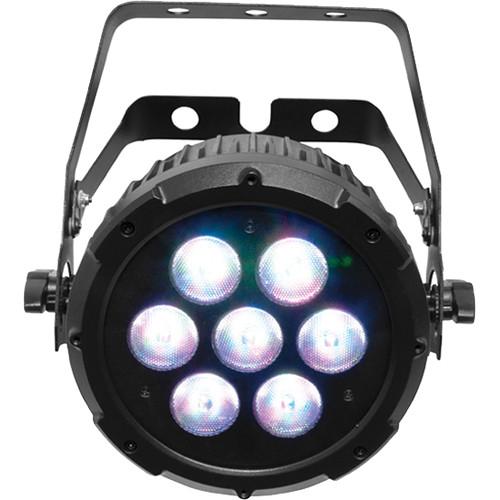

Product description The compact and lightweight (at 5.4 lb) CHAUVET PROFESSIONAL COLORdash Par-Quad 7 is an RGBA LED wash light designed to produce color washes with variations of white, and smooth color mixing devoid of multi-colored shadows. Featuring 18, 7W quad-color RGBA LEDs (red, green, blue, amber), an 18° beam angle, and a 32.5° field angle, it is well suited for venue up-lighting, dance floor color washing, stage illumination, and more.The COLORdash Par-Quad 7 can be used as a standalone with dynamic effects including electronic dimming, color macros, variable strobe, built-in automated programs, and color-temperature presets. It can also be controlled via DMX or used in master/slave configuration to coordinate multiple fixtures without the need for a controller.The fixture comes equipped with a DMX LED display, an auto-ranging power supply, and a double-bracket yoke, which can be used for conventional mounting to a truss or to create a variable-angle floor stand. The COLORdash Par-Quad 7 ships with a gel frame holder and gel frame. - Key Features
-
- 7 x 7W quad-color RGBA LEDs (red, green, blue, amber), for bright color washes
- Produces any variation of white and saturated colors devoid of multi-colored shadows
- 18° beam angle, 32.5° field angle
- 3 x DMX channel modes – 4, 6, or 10
- Electronic dimming – 0 to 100%
- 16-bit dimming with selectable curves for smooth fades
- Built-in color macros
- Color temperature presets – 2800 to 10,000K
- Standalone or master/slave configuration
- Variable color-strobe effect
- Built-in automated programs
- Silent, flicker-free operation
- LED display with 4-button menu for easy navigation
- Daisy-chain power for up to 21 units at 120V
- Lightweight (at 5.4 lb), easy to install

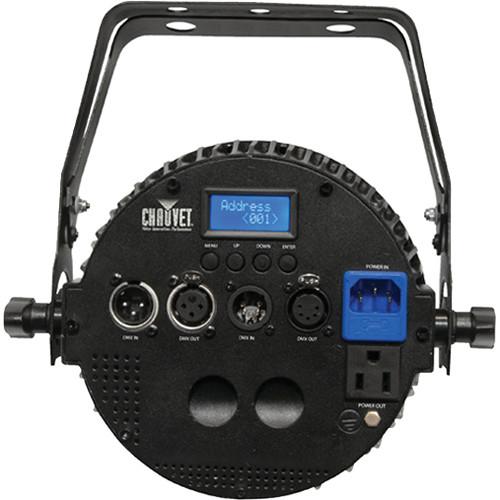

- Neutrik powerCON power input/output connections for fast and easy setup
- All-metal construction for added durability
- Double-bracket yoke doubles as floor stand
- Multi-Voltage Operation: 100-240 VAC, 50/60 Hz
- IP rating – IP20, dry location
- CE, MET certifications
- Includes a gel frame holder and gel frame
UPC: 781462209582 In the Box CHAUVET PROFESSIONAL COLORdash Par-Quad 7 RGBA LED Wash Light powerCON Power Cable Gel Frame Holder Gel Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL COLORdash Par-Quad 7 RGBA LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL COLORdash Par-Quad 7 Specs | Light Source | 7 x 7 W quad-color LEDs (red, green, blue, amber)LED Current: 500 mA
Life Expectancy: 50,000 hours | | Color Temperature | 2800 to 10,000K | | Installed Optics | 20° | | Beam Angle | 18° | | Field Angle | 32.5° | | Illuminance | 434 lux at 16.4' / 5 m | | PWM Frequency | 600 Hz | | Dynamic Effects | Electronic dimming 0-100%
4 x dim modes
Shutter/strobe, 0 to 20 Hz
Stand-alone color mixing
Color-temperature presets
Built-in automated programs | | Controls | Control Protocol: DMX
DMX Channels: 4, 6 or 10
Modes/Personalities: 3 personalities (4, 6, 10)
Master/slave mode | | Operating Modes | 4-Channel: RGBA
6-Channel: Dimmer, RGBA, strobe
10-Channel: Dimmer, RGBA, strobe, macro, auto, auto speed, dim mode | | DMX Connectors | 3-pin, in/out
5-pin, in/out | | Power Linking | 21 units at 120 V
36 units at 208 V
39 units at 230 V | | Input Voltage | 100-240 VAC, 50/60 Hz, auto-ranging | | Power Connectors | Power Connection: Edison plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Power Cable Length: 5.0' / 1.5 m | | Power Consumption | 73 W, 0.60 A at 120 V 60 Hz
73 W, 0.36 A at 208 V 50 Hz
74 W, 0.35 A at 230 V 50 Hz | | Fuse | T 2 A, 250 V at 120 V 60 Hz
T 2 A, 250 V at 208 V 50 Hz
T 2 A, 250 V at 230 V 50 Hz | | Power Linking Current | 13.6 A at 120 V 60 Hz, 21 units
13.6 A at 208 V 50 Hz, 36 units
13.6 A at 230 V 50 Hz, 39 units | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Certifications | CE, MET
IP Rating: IP20, dry location | | Gel Frame Holder | Size: 7.5" / 190.5 mm | | Mounting | Double-bracket yoke | | Construction | Metal | | Dimensions | 9.9 x 9 x 3.9" / 252 x 228 x 100 mm | | Exterior Color | Black | | Weight | 5.4 lb / 2.4 kg | | | | Package Weight | 7.95 lb | | Box Dimensions (LxWxH) | 11.5 x 10.5 x 5.6" |
