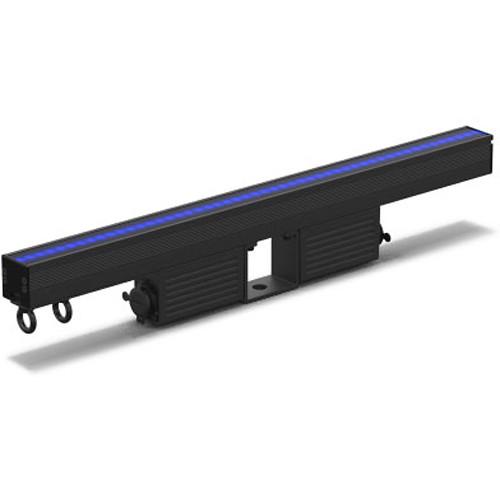

Product description The 1.6', IP65 outdoor-rated CHAUVET PROFESSIONAL EPIX Strip IP 50 is a pixel-mapping, RGB LED linear fixture designed for showing video and/or motion graphics in open-air events, music festivals, and more. It is compatible with Art-Net, Kling-Net, and sACN control protocols, making it ideal for professional touring, rental, and installation applications.The EPIX Strip IP 50 features fifty, tricolor RGB (red, green, blue) SMD 5050 LEDs arranged in one row with a 125° viewing angle. The included square and round milky filters increase the viewing angle to 160°, while diffusing the light output of the fixture. Also included is a black stealth filter for high contrast. The EPIX Strip IP 50 is powered and controlled by the required EPIX Drive 2000 IP processor, which allows you to link up to 20 fixtures per port.Required hardware (available separately):
Controller: EPIX Drive 2000 IP
Mounting: M12 bolt/clamp (rear mounting) - Key Features
-
- 1.6' pixel-mapping linear fixture with 50 LEDs arranged in one row
- For showing video and/or motion graphics
- IP65-rated for use outdoors or in wet environments
- Ideal for use in tight spaces

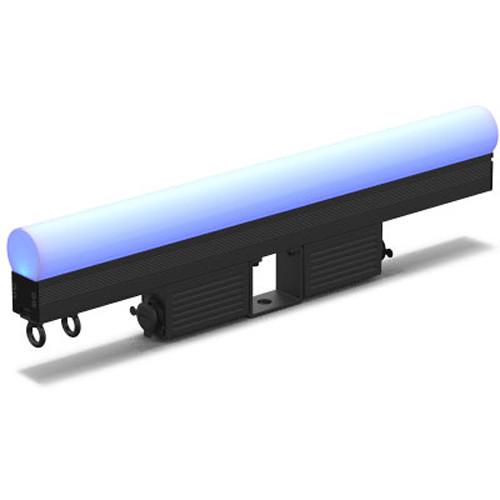

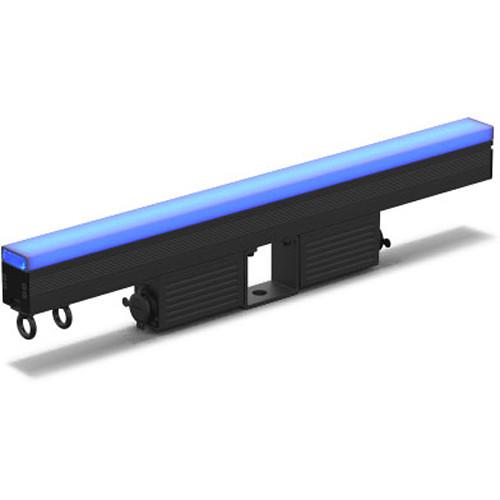

- Includes square milky filter (installed) and round milky filter for diffused output
- Includes black stealth filter for high contrast
- Increase viewing angle by using the square milky filter or round milky filter
- Versatile control options include Art-Net, Kling-Net, and sACN (streaming Architecture for Control Networks)
- Reduce programming time by using alternate personalities of 7-channel or multisection control (15-30 channels)
- Pixel personality (150 channels) for use with video servers
- Powered and controlled via EPIX Drive 2000 IP processor
- Link up to 20 units per port of an EPIX Drive 2000 IP
UPC: 781462217839 In the Box CHAUVET PROFESSIONAL EPIX Strip IP 50 Pixel-Mapping RGB LED Linear Fixture (1.6') Round Milky Filter Square Milky Filter Black Stealth Filter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL EPIX Strip IP 50 Pixel-Mapping RGB LED Linear Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL EPIX Strip IP 50 Specs | Light Source | 50 tricolor RGB (red, green, blue) SMD 5050 LEDs in one row
50,000 hours life expectancy | | Viewing Angle | 160° (with square milky filter installed)
160° (with round milky filter installed)
125° (with black stealth filter installed) | | Illuminance | 8640 nits (open)
2470 nits (with square milky filter installed)
1455 nits (with black stealth filter installed)
1360 nits (with round milky filter installed) | | Pixels | Pixels: 50 x 1
Pixel Pitch: 0.4" / 10.0 mm | | Refresh Rate | 4800 Hz | | Control | Control Protocol: Art-Net, Kling-Net, sACN
Control Channels: Art-Net, sACN: 7, 15, 30, 75, or 150 | | Connectors | 1 x 4-pin XLR data/power input
1 x 4-pin XLR data/power output | | Power Supply | EPIX Drive 2000 IP
Range: 100-240 VAC, 50/60 Hz | | Power and Current | 16 W, 0.133 A at 120 V, 60 Hz
17 W, 0.082 A at 208 V, 60 Hz
17 W, 0.073 A at 230 V, 50 Hz | | Power Linking | 20 x units to each port of an EPIX Drive 2000 IP | | Cooling System | Convection | | Operating Temperature | -4 to 113°F / -20 to 45°C, ambient | | Construction | Housing: Aluminum
Color: Black | | IP Rating | IP65, outdoor/wet | | Certification | CE, MET | | Dimensions | 19.68 x 1.33 x 3.93" / 499.87 x 33.78 x 99.82 mm (with square milky filter installed)
19.68 x 1.33 x 3.46" / 499.87 x 33.78 x 87.88 mm (with black stealth filter installed)
19.68 x 1.77 x 5.03" / 499.87 x 44.96 x 127.76 mm (with round milky filter installed) | | Weight | 3.4 lb / 1.5 kg |
