User Manual for CHAUVET PROFESSIONAL EPIX Strip Tour 50 RGB LED Pixel-Mapping Linear Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL EPIX Strip Tour 50
- Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights
 |
User manual for the CHAUVET PROFESSIONAL EPIX Strip Tour 50 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|

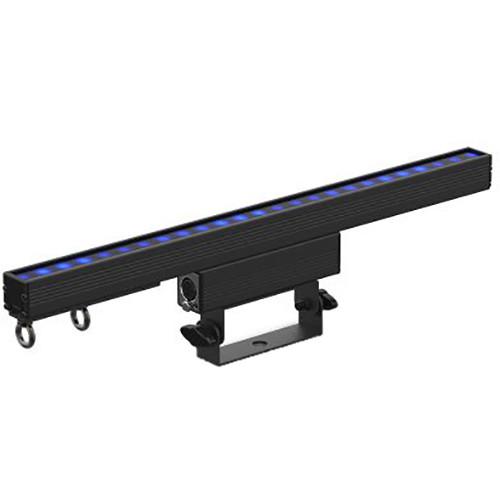

Product description The 1.6' CHAUVET PROFESSIONAL EPIX Strip Tour 50 is an RGB LED, pixel-mapping linear fixture designed for showing video and/or motion graphics on stages, in clubs, and more. It is compatible with Art-Net, Kling-Net, and sACN control protocols, which makes it ideal for professional touring, rental, and installation applications.The EPIX Strip Tour 50 features fifty, tricolor RGB (red, green, blue) SMD 5050 LEDs arranged in one row and a 125° viewing angle. It comes with an installed black stealth filter for high contrast and includes a white, frost filter for a diffused output. You can link up to 36 fixtures.Required Hardware/Software (available separately):
Software: CHAUVET LED Studio for Windows 7
Controller: EPIX Drive 900 or EPIX Drive 2000 IP
Video Interface: VIP Driver
Mounting: M12 bolt/clamp - Key Features
-
- 1.6' pixel-mapping linear fixture with 50 LEDs arranged in one row
- For showing video and/or motion graphics

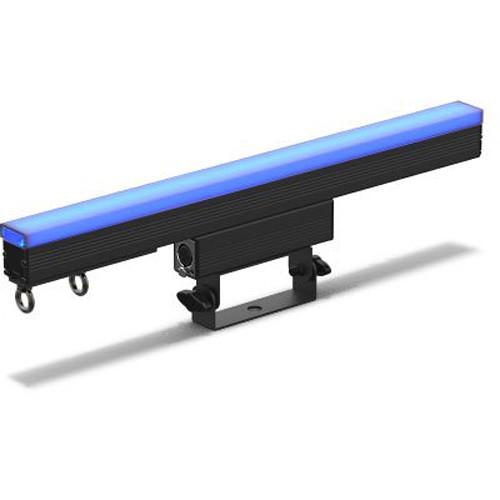

- Black stealth filter (installed) for high contrast
- Includes white frost filter for diffused output
- Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN)
- Reduce programming time by using alternate personalities of 7 channel or multi-section control (15-channels)
- Pixel personality (75 channels) for use with video servers
- Link up to 36 units

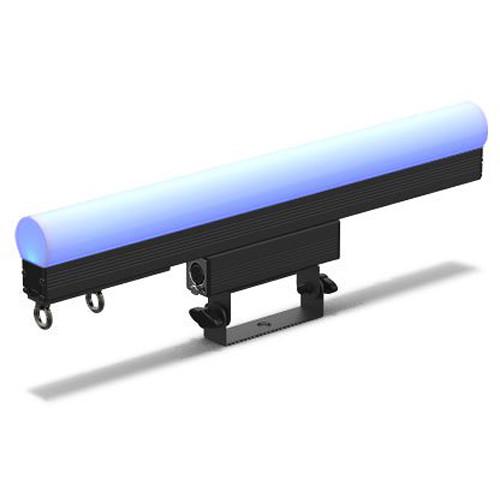

- Increase viewing angle by using the dome accessory (available separately)
UPC: 781462217846 In the Box CHAUVET PROFESSIONAL EPIX Strip Tour 50 RGB LED Pixel-Mapping Linear Fixture (1.6') White Frost Filter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL EPIX Strip Tour 50 RGB LED Pixel-Mapping Linear Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL EPIX Strip Tour 50 Specs | Light Source | 50 x tricolor RGB (red, green, blue) SMD 5050 LEDs in one row
50,000 hours life expectancy | | Viewing Angle | 125° (with white frost filter installed)
125° (with black stealth filter installed)
180° (with optional dome accessory) | | Illuminance | 1100 nits (with white frost filter installed)
700 nits (with optional dome accessory)
270 nits (with black stealth filter installed) | | Pixels | Pixels: 50 x 1
Pixel Pitch: 0.78" / 20 mm | | Refresh Rate | 4700 Hz | | Control | Control Protocol: Art-Net, Kling-Net, sACN
Control Channels: Art-Net, sACN: 75 | | Connectors | 1 x data/power input
1 x data/power output | | Power Supply | EPIX Drive 900 or EPIX Drive 2000 IP Range: 100-240 VAC, 50/60 Hz | | Power and Current | 7 W, 0.051 A at 120 V, 60 Hz
9 W, 0.046 A at 208 V, 60 Hz
8 W, 0.031 A at 230 V, 50 Hz | | Power Linking | 36 units | | Cooling System | Convection | | Operating Temperature | -4 to 113°F / -20 to 45°C, ambient | | Construction | Aluminum | | IP Rating | IP20, dry location | | Certification | CE, MET | | Dimensions | 19.7 x 1.2 x 4.7" / 500.0 x 30.5 x 119.5 mm | | Weight | 2.0 lb / 0.9 kg |
