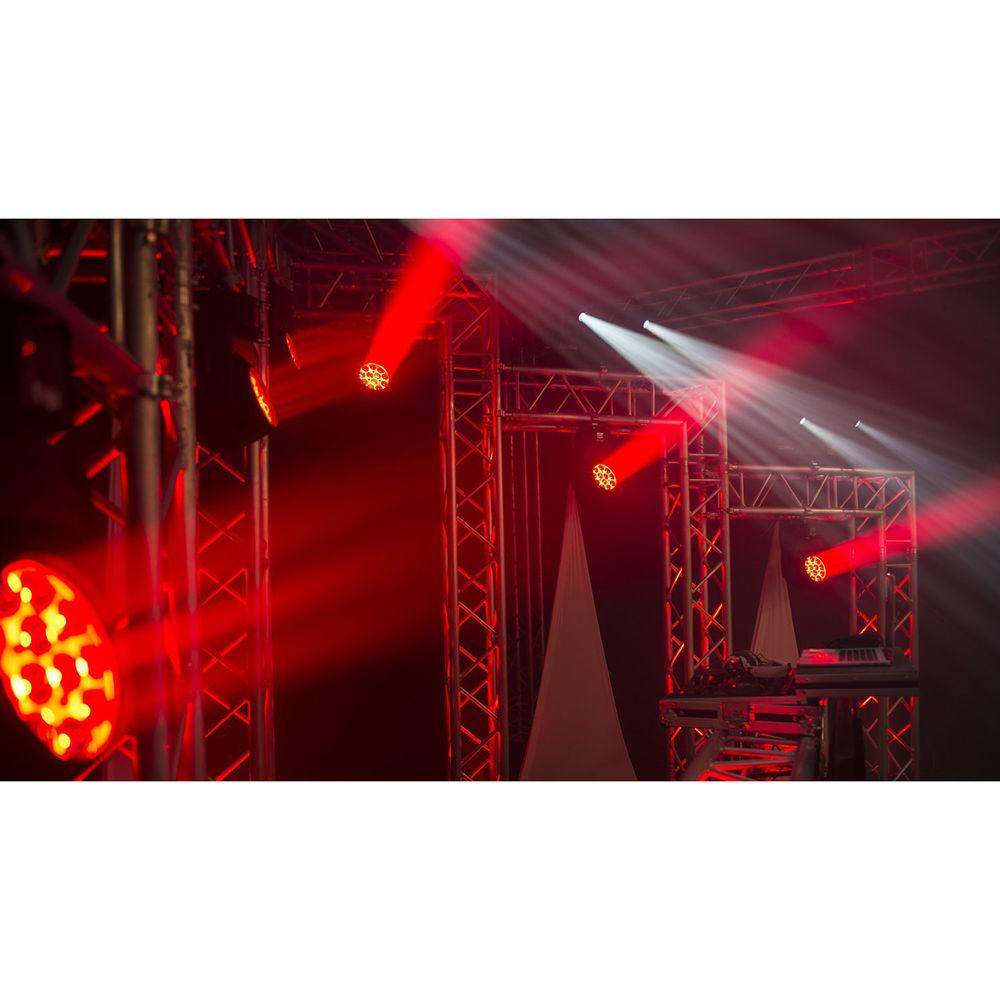

User Manual for CHAUVET PROFESSIONAL Intimidator Wash Zoom 450 IRC Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Intimidator Wash Zoom 450
- Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights
 |
User manual for the CHAUVET PROFESSIONAL Intimidator Wash Zoom 450 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|

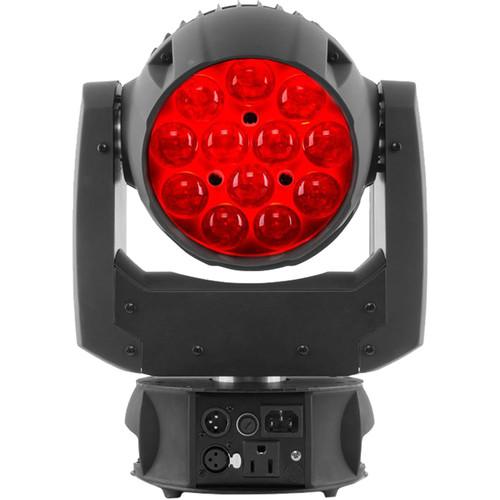

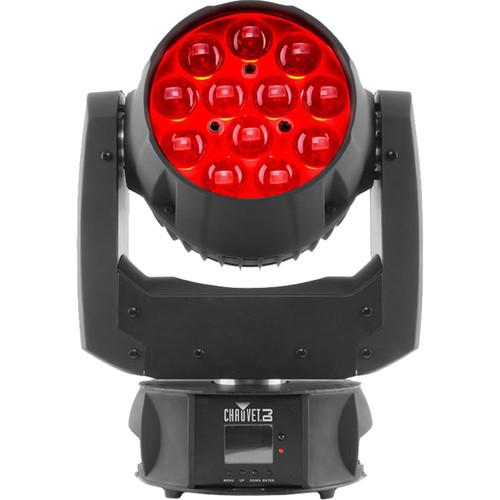

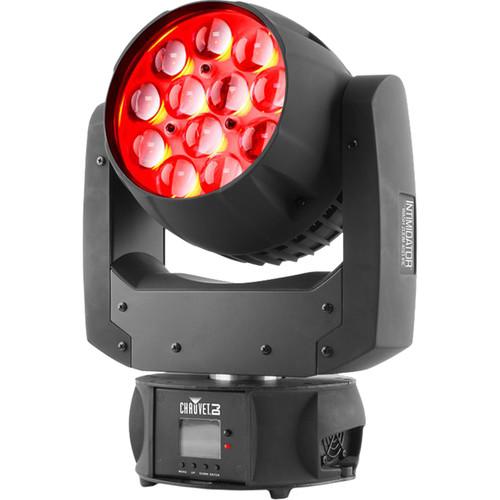

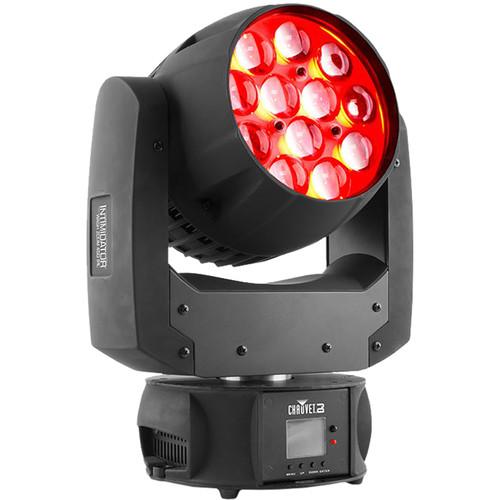

Product description The Chauvet Intimidator Wash Zoom 450 IRC is a powerful moving head wash fitted with twelve 15W quad-color RGBW LEDs and a motorized zoom for short-throw or long-throw applications. It features a Totem mode that keeps beams aimed at the dance floor and auto programs with zone control. Up to four fixtures can be linked to create synchronized shows in automated, sound, and master/slave modes. -
- Compact moving head wash
- Allows you to set, save, and recall one scene manually from the full-color LCD display
- Links up to four fixtures to create synchronized shows in automated or sound modes
- Simple navigation and full text readout with the full-color LCD screen
- Cables let you to power link multiple units
- Generates a synchronized show in Master/Slave mode with easy-to-access, built-in automated programs
- Can be used with separately available CHS-50 VIP Gear Bag
In the Box CHAUVET PROFESSIONAL Intimidator Wash Zoom 450 IRC Power Cord Hanging Bracket Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Intimidator Wash Zoom 450 IRC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Intimidator Wash Zoom 45... Specs | DMX Channels | 14 or 29 | | DMX Connectors | 3-pin XLR | | Pan / Tilt | 540°/270° | | Pan & Tilt Range | Pan: 540°, 360°, 180°
Tilt: 270°, 180°, 90° | | Light Source | 12 LEDs (quad-color RGBW) 15 W (3.7 A), 50,000 hours life expectancy | | Strobe Rate | 0 to 20 Hz | | PWM Frequency | 1,200 Hz | | Illuminance | At 14°: 25,610 lux at conversion (2 m)
At 58°: 1,960 lux at conversion (2 m) | | Power Linking | 4 units at 120 V
8 units at 230 V | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 219 W, 1.9 A at 120 V, 60 Hz
207 W, 1 A at 230 V, 50 Hz | | Zoom Angle | 14° to 58° | | Approvals | CE | | Dimensions | 7.6 x 10.9 x 14.3" (194 x 277 x 363 mm) | | Weight | 15.8 lb (7.2 kg) |
