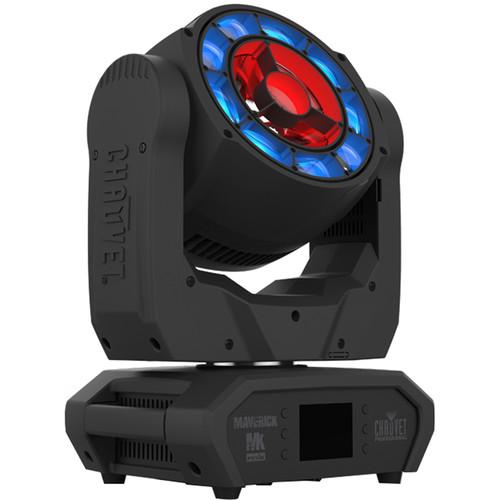

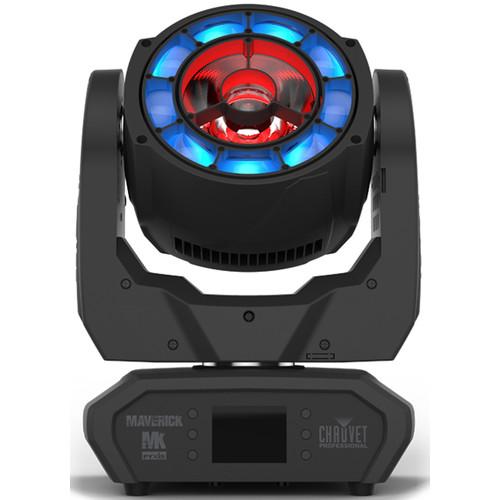

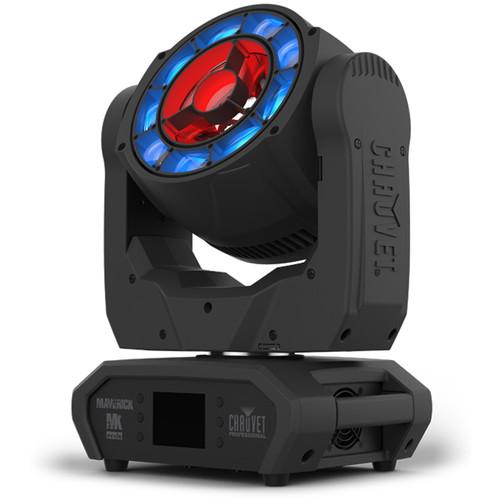

Product description The CHAUVET PROFESSIONAL Maverick MK Pyxis combines an outer ring of nine 15W RGBW (red, green, blue, white) LEDs with one bright, 60W RGBW LED, in a compact moving head fixture. The outer ring offers a 7 to 45° motorized zoom angle and pixel control to produce color washes and beams with variable sizes, while the center pixel comes with a fixed 3° beam angle for dedicated color beam effects. With variable strobe, fast and precise head movements, movement macros, move-in-black functionality, and more, this versatile fixture lets you create light shows with punchy and bold beams, eye-catching aerial and pixel-mapping effects, and multicolored washes in clubs, on concert stages, and more.The Maverick MK Pyxis can be controlled via DMX, W-DMX, Art-Net, sACN, or Kling-Net protocols. It is equipped with 5- and 3-pin DMX I/O and Amphenol XLRnet through ports I/O for full flexibility in professional environments. The unit is RDM-enabled for remote addressing and troubleshooting, and can convert TCP/IP to DMX for shorter data cable runs. Seetronic Powerkon IP65 I/O connectors provide secure power connections.Other features include a virtual color wheel with 21 color macros, a built-in virtual gobo wheel, and 0-100% electronic dimming with two dim modes and four dim curves. The Maverick MK Pyxis ships with two Omega brackets and mounting hardware. - Key Features
-
- Full-featured RGBW LED wash and beam moving head fixture with 360° continuous pan and tilt movement
- Create instant light shows with punchy and bold beams, eye-catching aerial and pixel-mapping effects, and multicolored washes
- Outer ring of nine 15W RGBW LEDs with a 7 to 45° motorized zoom angle and pixel control for wash and narrow effects with variable beam sizes
- Center pixel with a single 60W RGBW LED with a fixed 3° beam angle for dedicated beam color effects
- Virtual Color wheel with instantaneous access to 21 colors
- Built-in color macros for quick design possibilities
- Color temperature 2800 to 10,000K (with presets)
- Built in virtual gobo wheel with background colors for atmospheric effects
- Quiet operation, ideal for use in low-noise environments
- DMX, W-DMX, Art-Net, sACN, Kling-Net control protocols for full flexibility
- DMX Channels: 26, 66, 113, 131 (single mode)
- RDM-enabled for remote addressing and troubleshooting
- Converts TCP/IP to DMX for shorter data cable runs
- True 1 compatible power input
- Battery-powered touchscreen display auto-rotates depending on fixture orientation
- Three setup menu presets and preset sync, for cross-loading to multiple fixtures
- 3- and 5-pin DMX input/output connections
- Amphenol XLRnet through ports I/O
- Daisy-chain power for up to 6 units at 120V or 12 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging
- Rubber feet for positioning fixture on a flat-level surface
- Includes two Omega brackets with mounting hardware
UPC: 781462216689 In the Box CHAUVET PROFESSIONAL Maverick MK Pyxis - RGBW LED Moving Head Wash and Beam Fixture Seetronic Powerkon IP65 Power Cord 2 x Omega Brackets with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Maverick MK Pyxis - RGBW LED Moving Head Wash and Beam Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Maverick MK Pyxis Specs | Light Source | Outer Ring
9 x 15 W quad-color RGBW (red, green, blue, white) LEDs
Current: 1.29 A
Center Pixel
1 x 60 W quad-color RGBW (red, green, blue, white) LED
Current: 4.5 A | | LED Life Expectancy | 50,000 hours | | Color Temperature | 2800 to 10,000K | | Illuminance | Center Pixel and Outer Ring: 27,560 lux at 16.4' / 5 m
Center Pixel: 20,300 lux at 16.4' / 5 m
Outer Ring: 7330 lux at 16.4' / 5 m | | Lumens | Source
Center Pixel: 1700 lumens
Outer Ring: 4300 lumens
Output
Center Pixel: 1100 lumens
Outer Ring: 2400 lumens | | Beam Angle | Center Pixel and Outer Ring: 3°
Center Pixel: 3°
Outer Ring: 5 to 28° | | Field Angle | Center Pixel and Outer Ring: 6°
Center Pixel: 5°
Outer Ring: 7 to 45° | | Zoom Angle | 7 to 45° | | PWM Frequency | 600, 1200, 2000, 4000, 6000, 15,000 Hz (selectable) | | Pan/Tilt | 540° / 270° | | Pan & Tilt Range | Pan: 180, 360, 540°, infinite
Tilt: 90, 180, 270°, infinite | | Color Wheel | 21 colors, virtual | | Gobo Wheel | Built-in gobos, virtual | | Dimming | Dimmer: 0-100%, electronic
Dim Modes: 2
Dim Curves: 4 | | Effects | Shutter/Strobe: Electronic, variable from 0 to 20 Hz
Motorized zoom
21 x color macros
Color temperature presets
Move in black | | Control | Protocol: DMX, W-DMX, Art-Net, sACN, Kling-Net
DMX Channels Single Mode: 26, 66, 113, 131
DMX Channels Dual Mode—Function: 13, 26, 33
DMX Channels Dual Mode—Pixel: 30, 40, 80
Art-Net Channels Single Mode: 26, 66, 113, 131
Art-Net Channels Dual Mode—Function: 13, 26, 33

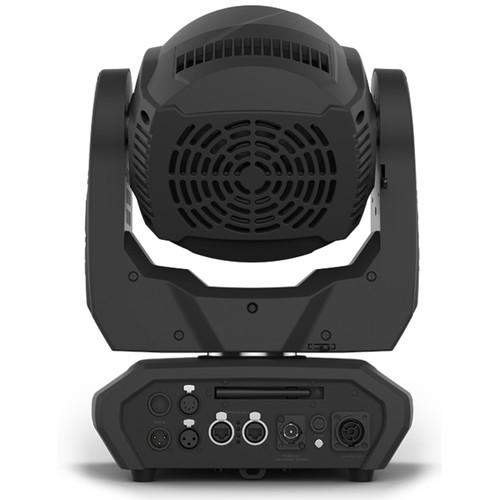

Art-Net Channels Dual Mode—Pixel: 30, 40, 80 | | Data Connectors | DMX 3-pin I/O
DMX 5-pin I/O
Amphenol XLRnet through ports I/O | | Power Linking | 6 units, 13.6 A at 120 V
11 units, 13.6 A at 208 V
12 units, 13.6 A at 230 V | | Power Requirements | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 262 W, 2.2 A at 120 V, 60 Hz
260 W, 1.2 A at 208 V, 60 Hz
223 W, 1.1 A at 230 V, 50 Hz | | Fuse | F 5 A, 250 V | | Power Connections | Input: 1 x Seetronic Powerkon IP65
Output: 1 x Seetronic Powerkon IP65 | | Power Cord | Edison plug to Seetronic Powerkon IP65 (included)
Length: 5' / 1.5 m | | IP Rating | IP20, dry location | | Cooling System | Fan-assisted convection | | Operating Temperature | 13°F / 45°C, maximum external | | Construction | Housing Material: High-impact, flame-retardant polymer
Exterior Color: Black | | Dimensions | 12.20 x 8.86 x 18.07" / 310.00 x 225.00 x 459.00 mm | | Weight | 32.0 lb / 14.5 kg |
